FIDELITY FOR ALL
Our exclusive dual-mode input filter and differential-balanced inputs result in outstanding noise rejection and crystal-clear audio performance in boats or cars.
EQUIPPED WITH NexD
Advanced switching technology for exceptional efficiency reduces current draw and heat, permitting reliable high-power output from a compact and easy-to-install chassis.
STUDIO-GRADE SIGNAL PROCESSING

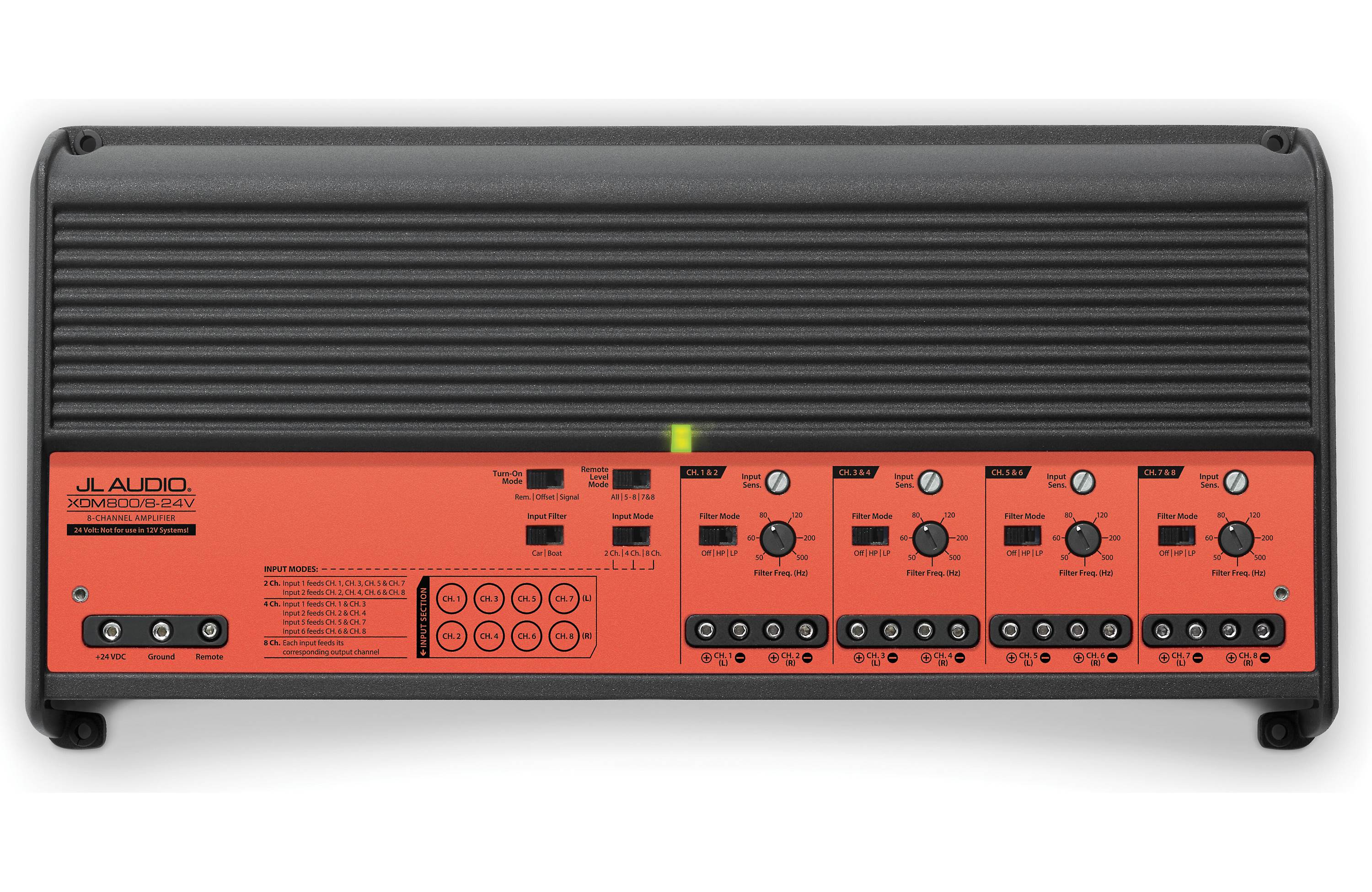

Beneath every XDM amplifier’s sealed security cover, you’ll find audiophile-grade signal processing with fully variable filters and calibrated potentiometers.
ADVANCED ROLLBACK PROTECTION
Innovative circuit design ensures the amplifier will never shut down due to thermal overload and keeps the music playing, even under the most demanding conditions.
AUTO TURN-ON CAPABILITIES
Choose from 3 options: auto signal sensing with +12-volt remote out; auto DC-offset sensing with +12-volt remote out; or conventional +12 volt turn-on lead.
BUILT TOUGH
The all-aluminum, powder-coated housing inhibits corrosion, and a sealed security cover protects controls from the elements.
| Brand | JL Audio |
| RMS Power Output (Watts x Channels) | 75 x 8 |
| Power at 2 Ohms (Watts x Channels) | 100 x 8 |
| Bridged Power (Watts x Channels) | 200 x 4 |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 104 dB |
| Input Voltage | 28.8v |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Features | 0 |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-500 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | 50-500 Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Bass Boost | No |
| Bass Boost Frequency | N/A |
| Fan Cooled | No |
| Fuse Rating | 40 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Height (inches) | 2 |
| Width (inches) | 14-1/2 |
| Depth (inches) | 7-1/8 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
