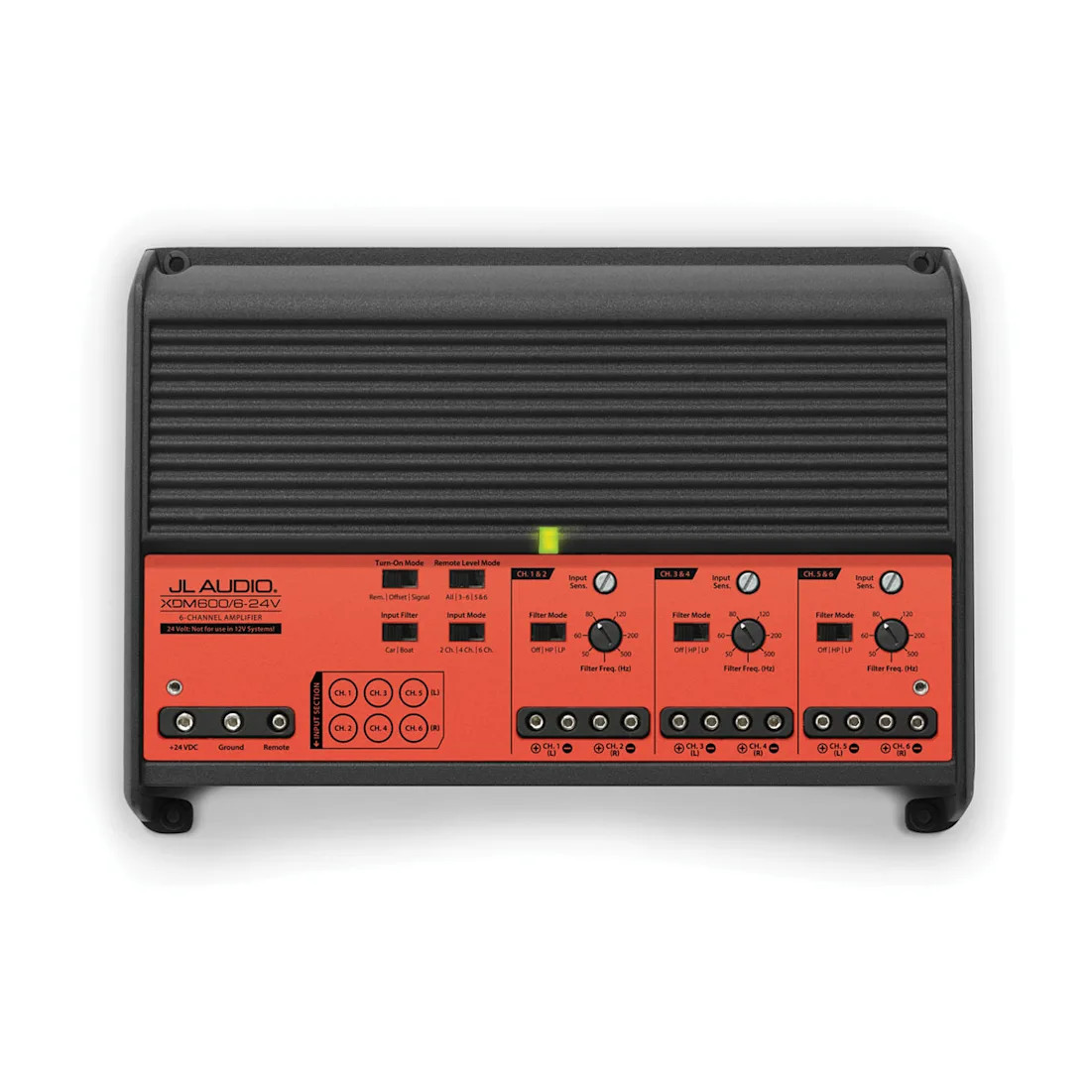

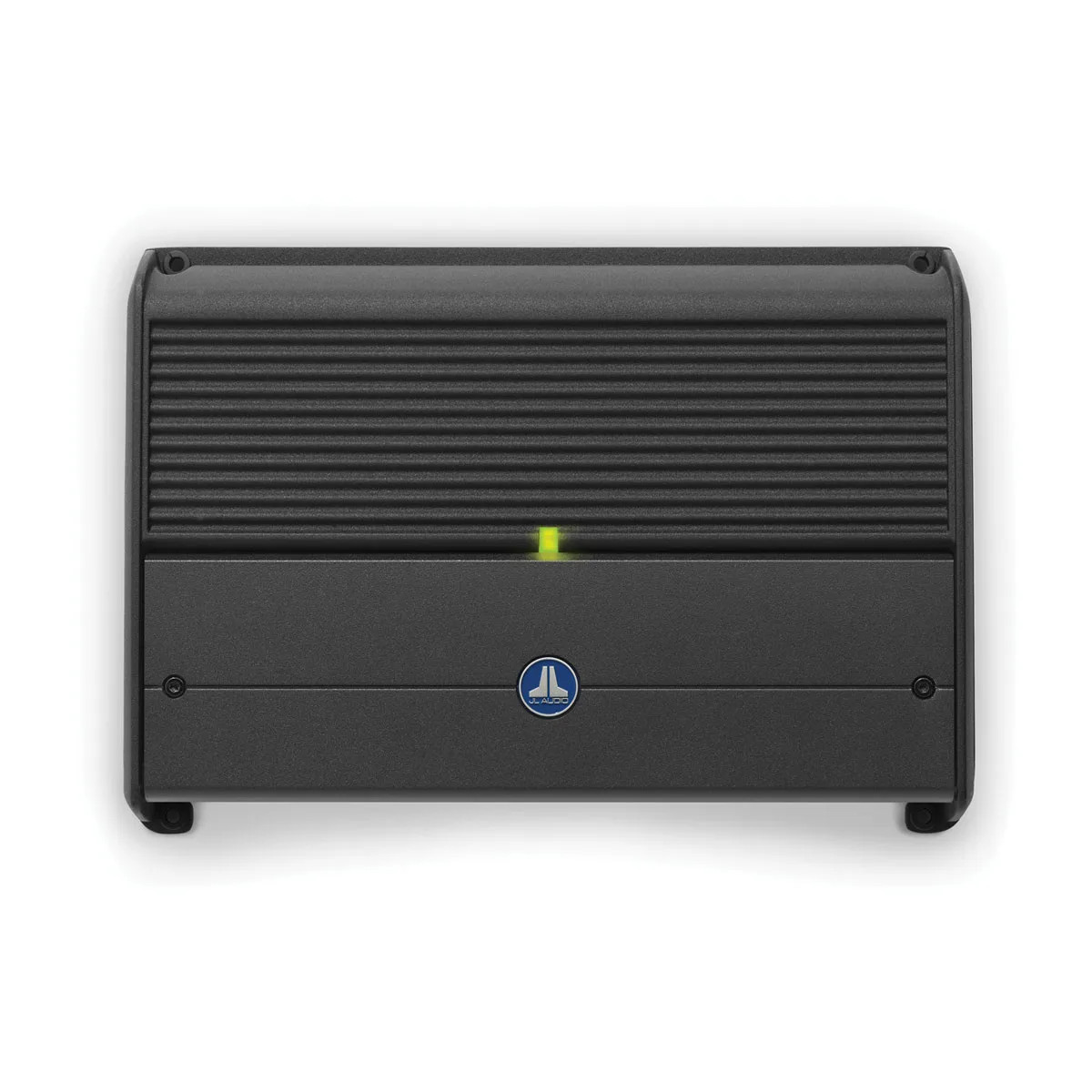

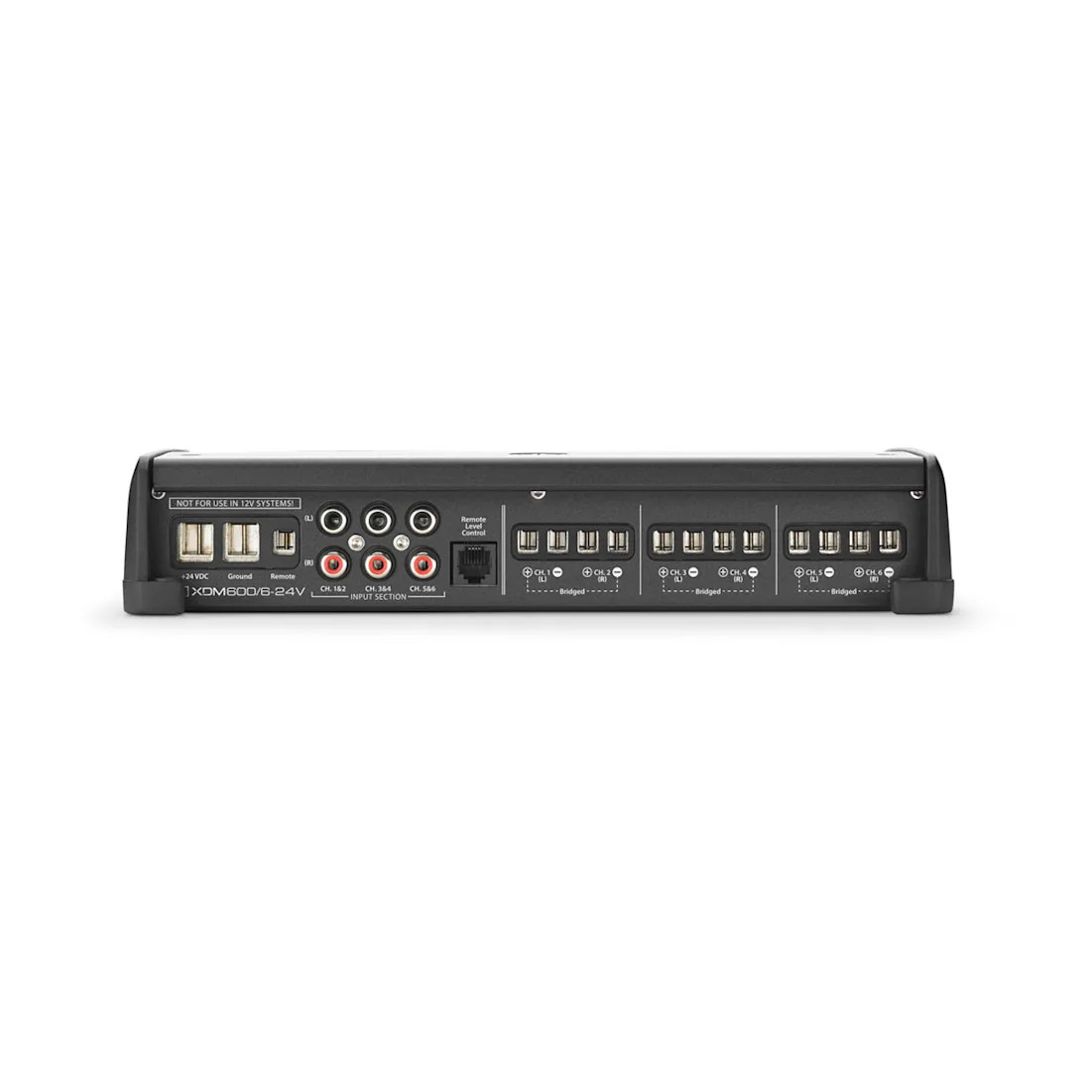

JL Audio XDM600/6-24V 6-Channel Class D Amplifier for 24V Marine & Vehicle Systems
The JL Audio XDM600/6-24V is a premium 6-channel Class D full-range amplifier engineered specifically for 24-volt negative-ground electrical systems found in marine, commercial, and specialty vehicle applications. Designed with advanced NexD™ switching technology, this compact amplifier delivers powerful, clean output with exceptional efficiency and ultra-low distortion.
Built for demanding environments, the XDM600/6-24V features a corrosion-resistant black powder-coated finish, gasketed removable top cover, and marine-grade durability. Whether powering full-range speakers, bridged channels, or mixed speaker/subwoofer systems, this amplifier provides flexible system design with legendary JL Audio sound quality.
Key Features
- 6-Channel Class D Full-Range Amplifier
- Designed for 24V Negative-Ground Systems
- JL Audio NexD™ ultra-efficient switching technology
- Compact chassis for flexible installation
- Marine-grade corrosion-resistant construction
- Black powder-coated finish
- Gasketed removable top cover
- Automatic turn-on capability
- Optional remote level controller compatible
- Low distortion, high-fidelity output
Power Output
- 100W x 6 RMS @ 2 Ohms
- Up to 200W RMS bridged per channel pair (configuration dependent)
Supports multiple system layouts including:
- 6-channel full-range speaker systems
- 4-channel bridged systems
- Front/rear speakers + subwoofer combinations
- Marine multi-zone audio systems
Audio Performance
- Frequency Response: 12 Hz – 22 kHz
- Ultra-low distortion design
- High signal clarity and dynamic output
- Clean power delivery for speakers and subwoofers
Crossovers & Tuning
- Built-in 12 dB/Octave filters
- Customizable crossover settings for system tuning
- Optional remote level control available for convenient adjustment
Marine & Vehicle Applications
Ideal for:
- Boats and yachts with 24V systems
- Commercial trucks
- Buses
- RVs with 24V electrical systems
- Specialty off-road or industrial vehicles
Construction & Durability
- Compact aluminum chassis
- Black powder-coated finish
- Corrosion-resistant hardware
- Gasketed top cover for added environmental protection
Designed for long-term reliability in harsh marine and mobile environments.
Why Choose the JL Audio XDM600/6-24V?
The XDM600/6-24V is perfect for users needing premium JL Audio sound in a 24V platform. Its compact footprint, high efficiency, and flexible multi-channel design make it ideal for boats, commercial vehicles, and advanced custom installs.
Perfect for:
- 24V marine amplifier upgrades
- Multi-speaker audio systems
- JL Audio premium installs
- Commercial vehicle sound systems
- Compact high-power Class D setups
| Brand | JL Audio |
| RMS Power Output (Watts x Channels) | 75 x 6 |
| Frequency Response at Rated RMS Power | N/A |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-500 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | 50-500 Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 104 dB |
| Input Voltage | 28.8v |
| Peak Power Output (Watts x Channels) | N/A |
| Power at 2 Ohms (Watts x Channels) | 100 x 6 |
| Bridged Power (Watts x Channels) | 200 x 3 |
| Bass Boost | No |
| Bass Boost Frequency | N/A |
| Fan Cooled | No |
| Fuse Rating | 30 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Height (inches) | 2 |
| Width (inches) | 10 5/16 |
| Depth (inches) | 7 1/8 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
