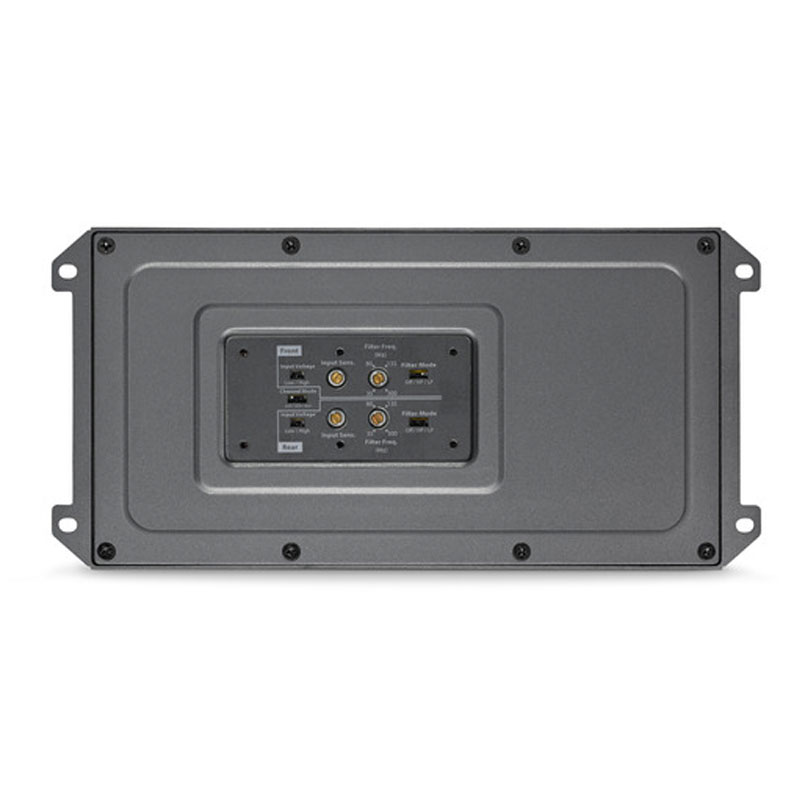

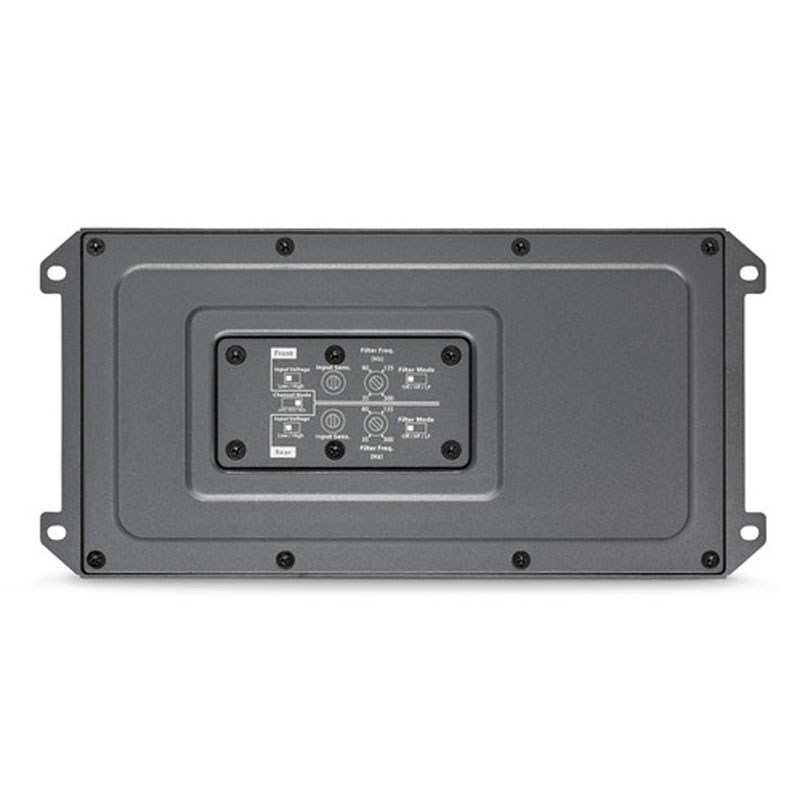

JL Audio MX500/4 Amplifier

JL Audio 500W RMS MX Series Class-D Weatherproof Motorcycle / ATV / SSV / UTV 4-Channel Amplifier 500W RMS
No reviews yet Write a Review
In-Store Pickup | Call Us At 510-527-9888 For Pricing
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products.

What's Inside?
•(1) 4-Channel Marine amplifier
• 4 Self-tapping screws (1" length)
• Owner's Manual

Compact Marine and Powersports Amplifier
Perfect for any marine and powersports applications, you can now enjoy an amazing audio experience while out in the open with your marine speakers powered up by the amazing JL Audio MX500/4. This amplifier comes with four channel outputs and can pack a lot of power even with its compact size.

IPX7 Waterproof Resistance
This amplifier has an IPX7 water-resistance rating, so you won't have to worry about it getting wet. The JL Audio MX500/4’s cast aluminum chassis is corrosion-resistant as well, so you can expect that it is going to withstand extreme environments, allowing you longer playing hours of use.

Class D Amplifier
With its Class-D amp technology design, the JL Audio MX500/4 can deliver a power output of 70 Watts RMS at 4 ohms per channel and 125 Watts RMS at 2 ohms per channel. By setting it in a 2-channel mode, you get a continuous power output of 250 Watts at 4 ohms per channel, which is perfect if you are going to power up a pair of subwoofers.

Variable Low and High-Pass Filters
Aside from a switchable input voltage and channel modes, the JL Audio MX500/4 also comes with variable low and high-pass filters from 35 Hz up to 300 Hz, allowing you to filter out unnecessary frequencies that can affect your audio output while it also protects your speakers from getting damaged.

Brand JL Audio
RMS Power Output (Watts x Channels) 70 x 4
Frequency Response at Rated RMS Power 20-20k Hz
THD at Rated RMS Power 0.01
Signal to Noise Ratio 88 dB
Input Voltage 14.4v
Amplifier Class D
Low-Pass Crossover Frequency 35-300 Hz
Low-Pass Slope (dB/octave) 12 dB/oct
High-Pass Crossover Frequency 35-300 Hz
High-Pass Slope (dB/octave) 12 dB/oct
Peak Power Output (Watts x Channels) N/A
Power at 2 Ohms (Watts x Channels) 125 x 4
Bridged Power (Watts x Channels) 250 x 2
Minimum Impedance Bridged 4
Minimum Impedance Unbridged 2
Bass Boost No
Bass Boost Frequency N/A
Fan Cooled No
Fuse Rating 50
Speaker Level Inputs Yes
Preamp Outputs No
Height (inches) 1 13/16"
Width (inches) 9 3/8"
Depth (inches) 4 9/16"
Parts Warranty 1 Year
Labor Warranty 1 Year
