DS18 ZXI15.2D

DS18 15" 1000W RMS DVC 2-Ohm ZXI Series Quad Stacked Magnets High Excursion Subwoofer
No reviews yet Write a Review
$359.95
SKU:
ZXI15.2D
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 15" High Excursion Subwoofer
  • MAX Power: 2000 Watts
  • RMS Power: 1000 Watts
  • Impedance: 2-Ohm 3" DVC
  • Quad Stacked Ferrite Magnet
  • 89dB

High Excursion 15" Car Audio Subwoofer 2000W Watts 2-Ohm DVC Quad Stacked Magnets

Experience bass like never before with DS18’s ZXI15.2D: the ultimate subwoofer for enthusiasts who crave thunderous bass!

The ZXI subline is renowned for its high excursion capabilities, and the ZXI15.2D is no exception. This subwoofer handles wattage as high as 2000W while delivering smooth ultra-low frequency responses. The ZXI15.2D’s lower than normal FS (Resonant Frequency), allows it to excel in larger boxes with lower tuning. Whether you prefer sealed or ported boxes, the ZXI15.2D will excel in both, giving you the flexibility to optimize placement in any vehicle.
It’s dual 2-ohm configuration and 3-inch voice coils, makes the ZXI15.2D a force to be reckoned with. Handling a staggering 1000W RMS power and 2000W of MAX power, ensuring you get the full potential out of your system. The large foam surround and non-pressed paper cone work in perfect harmony, delivering crisp, smooth bass that permeates every corner of your vehicle.

The ZXI15.2D goes beyond raw power and precision. It features a strong stamped basket adorned with show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. The quad stacked magnets on the ZXI15.2D offer a multitude of benefits, including increased magnetic field strength, improved power handling, enhanced cone control, higher excursion capabilities, greater durability, and superior heat dissipation. Not only will it impress your ears, but it will also outlast any vehicle. This subwoofer is designed to provide you with crisp and clear bass for years to come.
Immerse yourself in bass that is both thunderous and refined, thanks to DS18's commitment to quality and innovation.

Brand DS18
Nominal Diameter 15" / 381mm
Nominal Impedance 2 + 2 ohms
RMS Power Handling 1000W
Maximum Power Handling 2000W
Sensitivity (1w/1m) 89dB
Frequency Response 15-900Hz
Recommended Lo Pass Crossover 90Hz
Voice Coil Diameter 3" / 76.2mm
Voice Coil Former Material Black Aluminum
Winding Material CCAW
Cone Material Non-Pressed Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Aluminum
Basket Color/Finish Black Sandblasted
Magnet Material Ferrite
Magnet Weight 232 Oz (4 x 58 oz)
Displacement Volume 5.82L / 0.2ft3
Equivalent Volume Vas 86L / 3.03ft3
Free Air Resonance Fs 28Hz
Mechanical Factor Qms 9.125
Electrical Factor Qes 0.692
Total Factor Qts 0.543
Moving Mass Mms 380.851g
Compliance Cms 0.114mm/N
Bl Factor Bl 26.052
Voice Coil Inductance Le 58.102 mH
Diaphragm Area Sd 804.25cm2
DC Resistance Re 2.0+2.0 ohms
Efficiency Bandwidth Product EBP 40.4
Sealed Internal Volume 56.6L / 2ft3
Sealed Box Output Response F3 32Hz
Ported Internal Volume 79.3L / 2.8ft3
Port Size *Square (W x H x Long) 1.6" x 15" x 23.46" / 40.6 x 381 x 595.9mm
Port Tuning Frequency FB 28Hz
Ported Box Output Response F3 25Hz

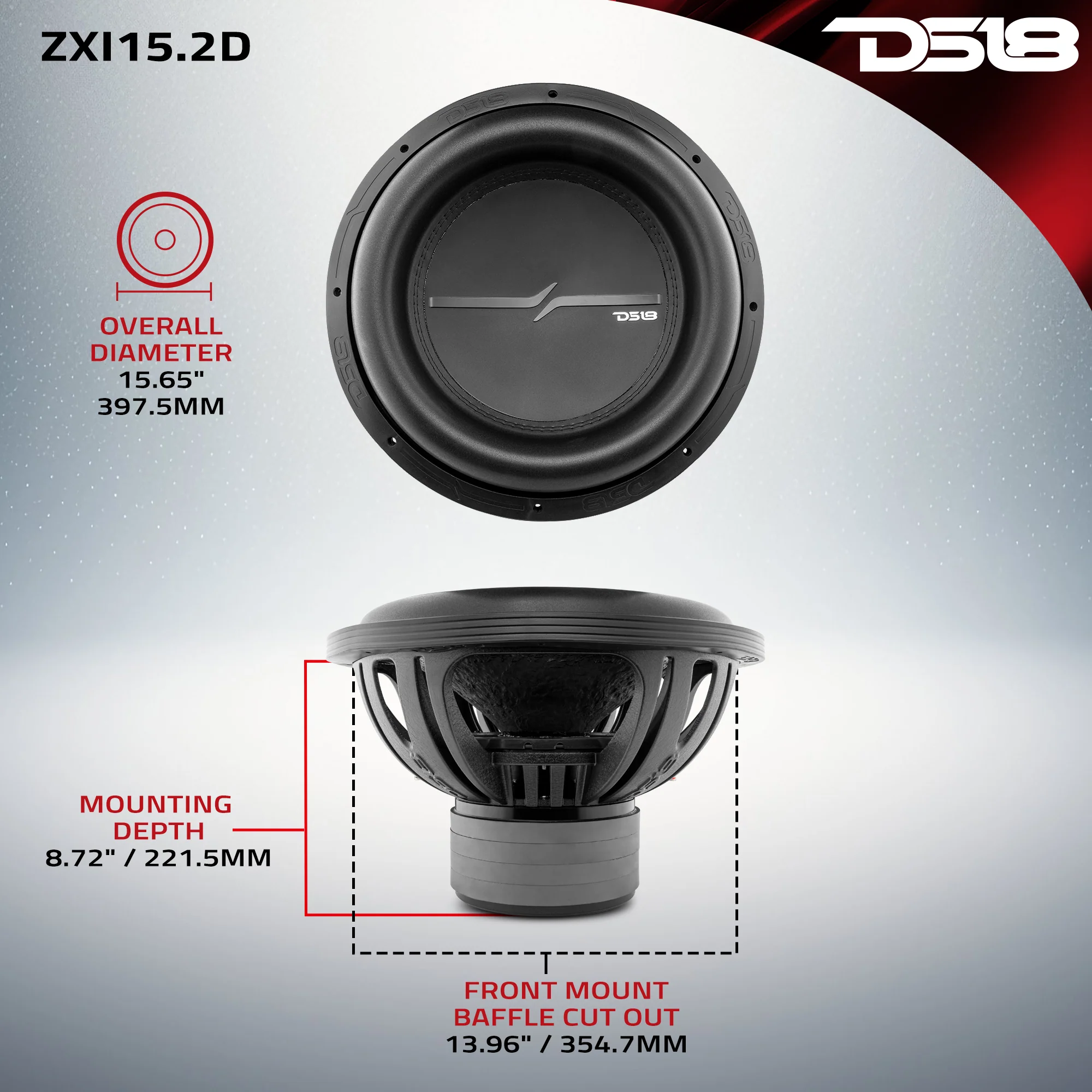

Overall Diameter 15.65" / 397.5mm
Overall Depth 10.51" / 267mm
Front Mount Baffle Cutout 13.96" / 354.7mm
Mounting Depth 8.72" / 221.5mm
Motor Diameter 7.48" / 190mm
Gross Single Unit Weight 39
Dimensions W x L x H 17.5 x 17.5 x 13
Parts Warranty 1 Year
Labor Warranty 1 Year
