DS18 DXQ6.5CX

DS18 6.5" DXQ 150W RMS 4-Ohm 2-Way Coaxial Speaker with Yellow Straw and Composite Foam Cone - Pair
No reviews yet Write a Review
$299.95
SKU:
DXQ6.5CX
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • Premium Yellow Straw and Composite Foam Cone
  • Adjustable Swivel Mount Silk Tweeter
  • Ferrite Magnets
  • High Power Handling 150W RMS / 300W Peak
  • Wide Frequency Response

6.5" Coaxial Speaker with Yellow Straw + Composite Foam Cone

The DXQ6.5CX prioritizes sound quality above everything. This 6.5-inch coaxial speaker delivers clear, distortion-free audio in car audio systems focused on SPL and precise sound.

Power and Performance
With a controllable 150W RMS and 300W MAX power handling, the DXQ6.5CX manages high power levels without compromising clarity. Its wide frequency response from 45Hz to 20kHz captures every detail, so your music sounds exactly as it should.

Advanced Cone and Tweeter Design

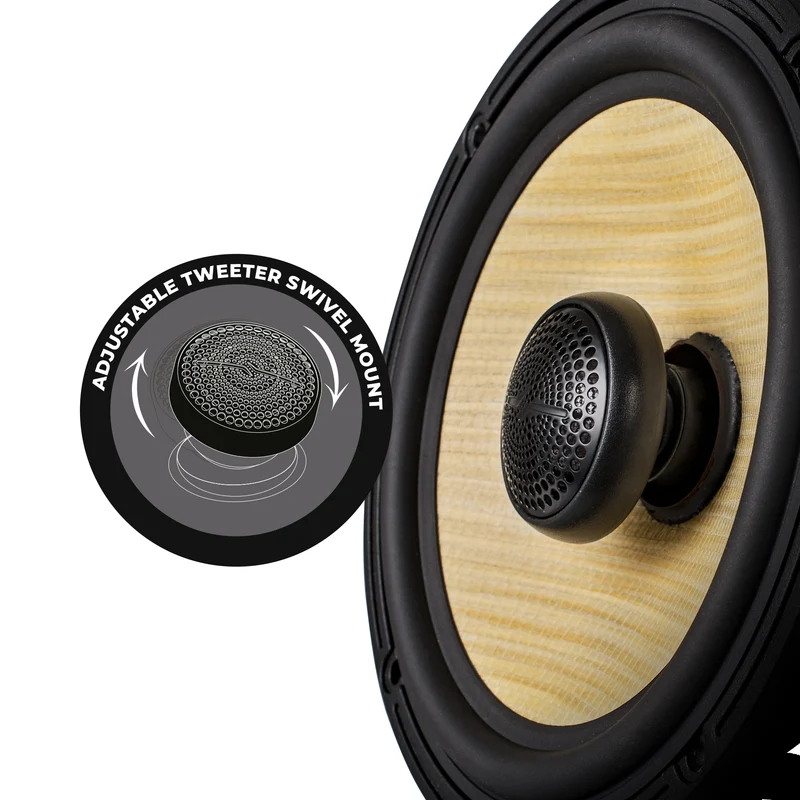

The woofer features a unique yellow straw and composite foam cone with a durable rubber surround, for excellent bass response and improved heat dissipation for reliability during intense use. Complementing this is a 1-inch silk dome tweeter with a neodymium magnet, delivering smooth, high-frequency sounds that enhance every note. The adjustable swivel tweeter mount lets you fine-tune your soundstage for optimal listening.

Optimized for Car Audio Systems
With a nominal impedance of 4 ohms and a 1.2-inch voice coil, the DXQ6.5CX integrates into a variety of car audio setups easily. The recommended high-pass crossover at 60Hz balances the sound spectrum, producing rich, full-range audio without distortion.

Durability Meets Precision
Constructed with an aluminum basket and improved heat dissipation, this speaker ensures long-lasting, consistent performance even under demanding conditions.

Complete Stereo Setup
Sold in pairs, the DXQ6.5CX is the simple, risk-free way to transform your existing audio system. These coaxial speakers deliver premium sound that makes every drive unforgettable.

Brand DS18
SKU DXQ6.5CX
Nominal Diameter 6.5" / 165mm
Nominal Impedance 4 ohms
MAX Power Handling 300W
RMS Power Handling 150W
Sensitivity (1w/1m) 92dB
Frequency Response 45Hz-20KHz
Recommended HI Pass Crossover 60Hz
Number of ways 2
Sold in Pair or Single Pair
Grill Included No
Voice Coil Diameter 1.2" / 30.5mm
Voice Coil Former Material TL
Winding Material SV
Cone Material Yellow Straw + Composite Foam
Surround Material Rubber Edge
Basket Material Aluminum
Basket Color/Finish Black
Magnet Material Ferrite
Magnet Weight 20.2 Oz
Improved Heat Dissipation Yes
Cone Shape Curvilinear
Speaker Terminals Push / 14Ga
Equivalent Volume Vas 17.91L / 0.63ft3
Excursion (one way) Xmax 5mm
Free Air Resonance Fs 46Hz
Mechanical Factor Qms 9.929
Electrical Factor Qes 0.506
Total Factor Qts 0.481
Mechanical Mass Mms 17.686g
Mechanical Compliance Cms 0.676mm/N
BL Factor BL 6.054
Voice Coil Inductance Le 0.295mH
Cone Area Sd 136.85cm2
DC Resistance Re 3.62ohms
Mechanical Mass w/o air Mmd 15.877g
Nominal Diameter 1" / 25mm
Voice Coil Diameter 1" / 25mm
Voice Coil Former Material ASV
Winding Material CCAW
Diaphragm Material Silk
Magnet Material Neodymium
Magnet Weight 0.5 Oz / 14g

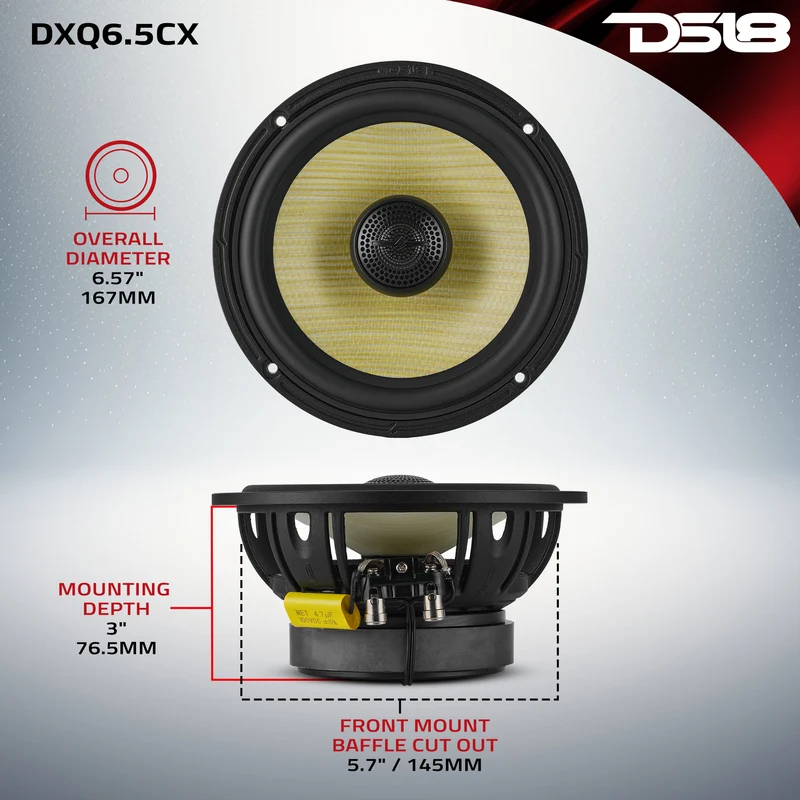

Overall Diameter 6.57" / 167mm
Overall Depth 3.55" / 90.4mm
Front Mount Baffle Cutout 5.7" / 145mm
Mounting Depth 3" / 76.5mm
Motor Diameter 3.7" / 100mm
Parts Warranty 1 Year
Labor Warranty 1 Year
