DS18 G6.5XI

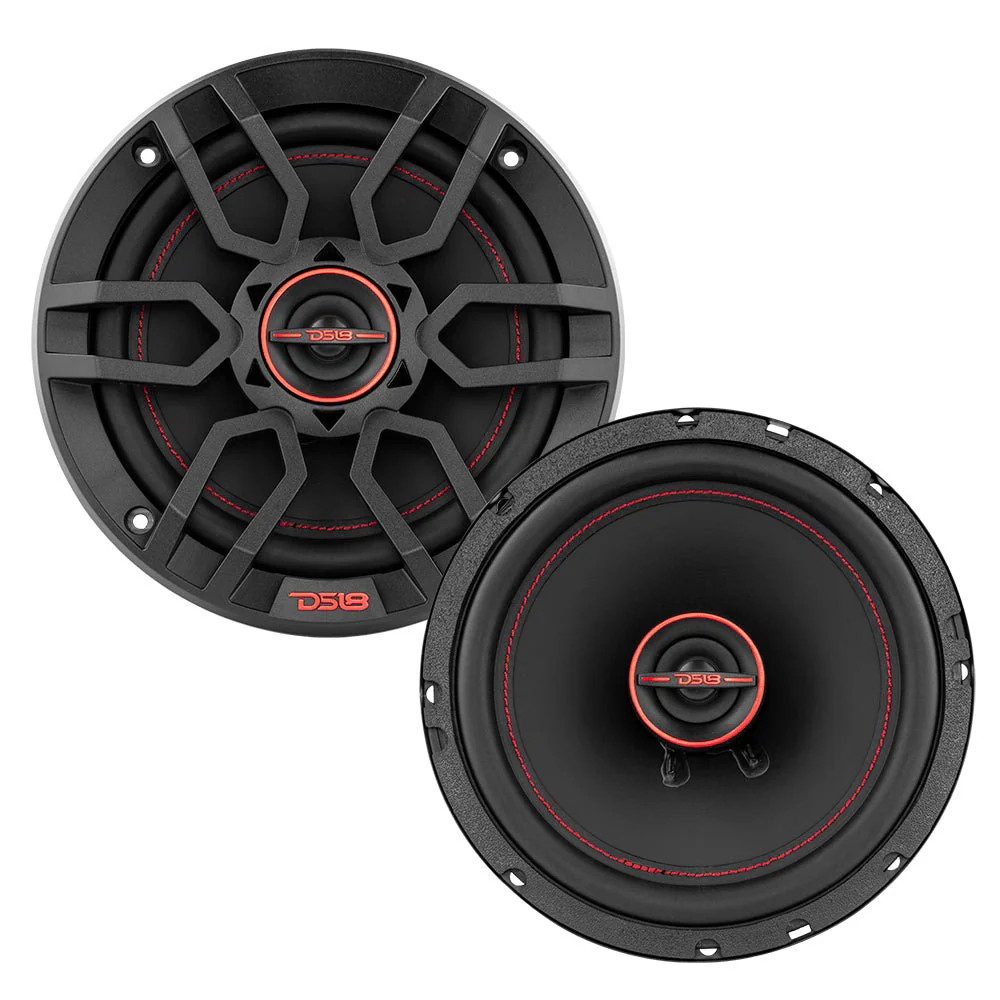

DS18 6.5" 4-ohm GEN-X Series 2 Way 300W Peak (100W RMS) Coaxial Speakers
No reviews yet Write a Review
$57.95
SKU:
G6.5XI
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 6.5" 2-Way Coaxial
  • MAX Power: 150 Watts
  • RMS Power: 50 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 86dB

2-Way Coaxial Speakers 150 Watts 4-Ohm

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

The G6.5Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G6.5Xi is notable for its 2-way design consisting of a woofer and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.5Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz.

These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.

Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G6.5Xi will deliver.

Brand DS18
Nominal Diameter 6.5" / 165mm
Nominal Impedance 4 Ohms
RMS Power Handling 50W
Maximum Power Handling 150W
Sensitivity (1w/1m) 86dB
Frequency Response 35Hz-20KHz
Recommended HI Pass Crossover 60Hz
Number of ways 2
Pair or single Pair

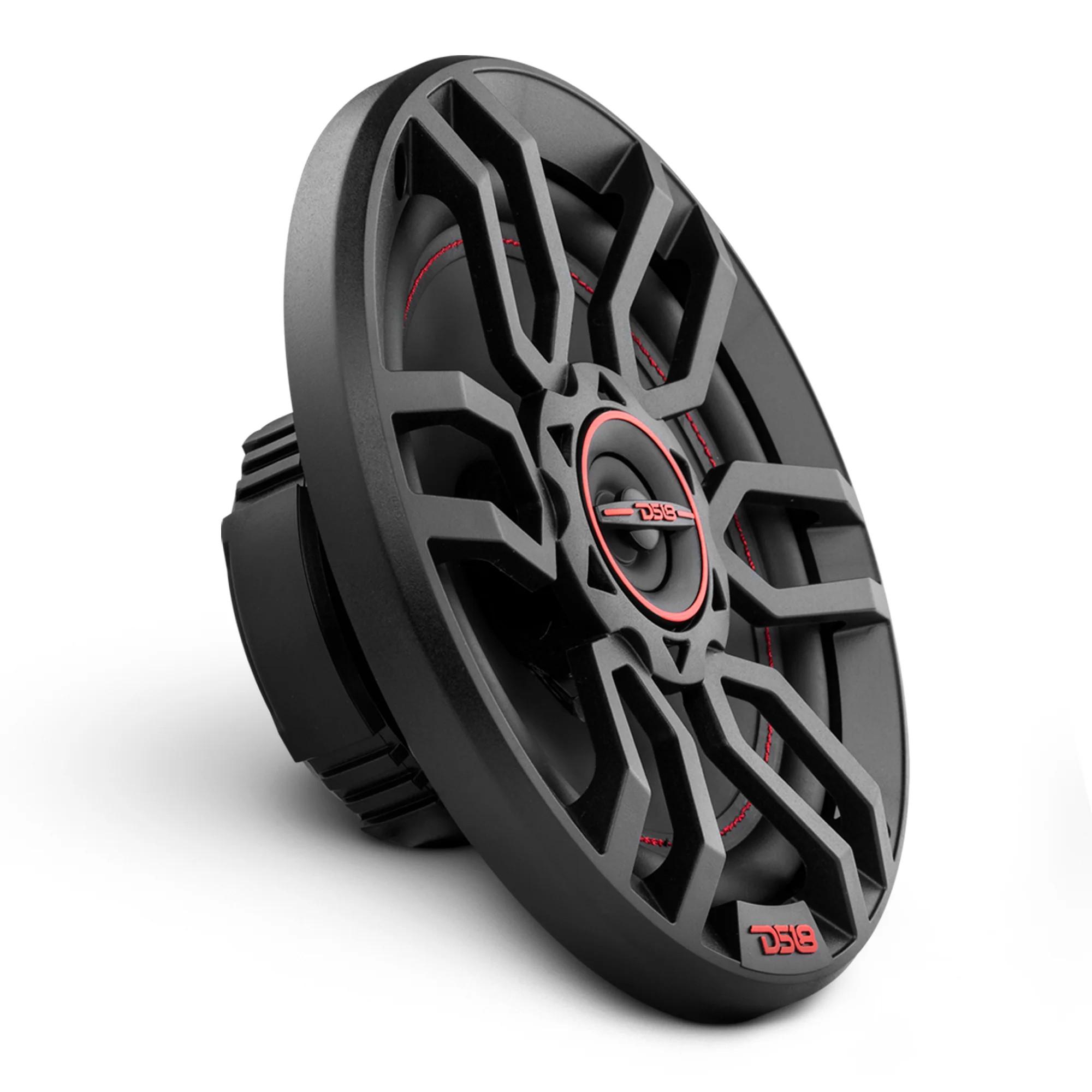

Grill Included Yes
Voice Coil Diameter 1" / 25.5mm
Winding Material EISV
Cone Material Paper
Surround Material Rubber
Basket Material Steel
Basket Color/Finish Black Matte
Magnet Material Barium Ferrite
Magnet Weight 9.87oz / 280g
Equivalent Volume Vas 9.47L / 0.33ft3
Excursion (one way) Xmax 2.7mm
Free Air Resonance Fs 76Hz
Mechanical Factor Qms 4.6
Electrical Factor Qes 2
Total Factor Qts 1.4
Mechanical Mass Mms 11.4g
Mechanical Compliance Cms 350mm/N
Bl Factor Bl 3.2
Voice Coil Inductance Le 172uH
Cone Area Sd 136.8cm2
DC Resistance Re 3.7 Ohms
Mechanical Mass w/o air Mmd 10.5g
Nominal Diameter 1" / 25.5mm
Voice Coil Diameter 0.5" / 13.25mm
Winding Material EISVM
Diaphragm Material Mylar
Magnet Material Neodymium
Magnet Weight 1.8g

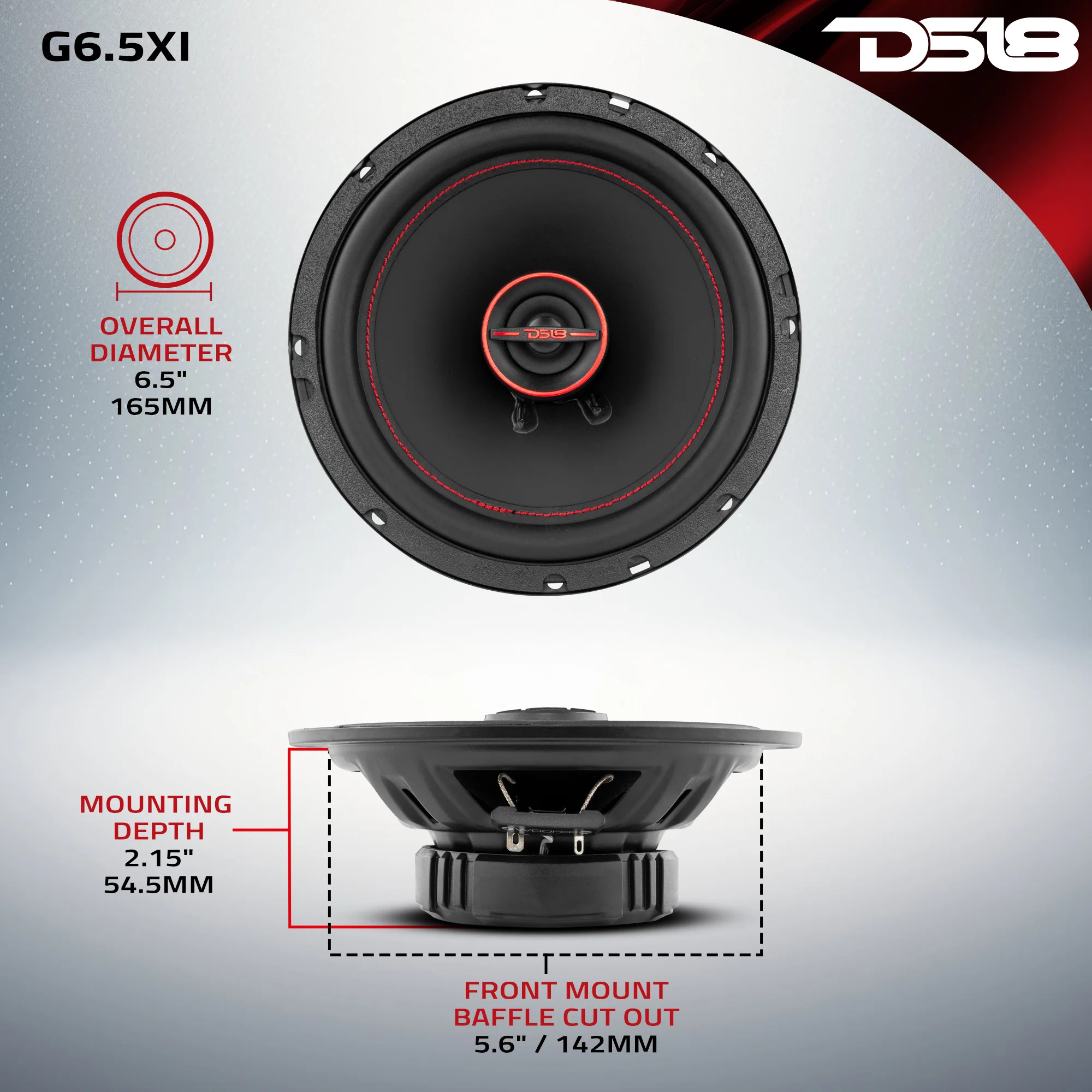

Overall Diameter 6.5" / 165mm
Overall Depth 2.65" / 67.3mm
Overall Diameter (With Grill) 7" / 179mm
Overall Depth (With Grill) 3" / 76.4mm
Front Mount Baffle Cutout 5.6" / 142mm
Mounting Depth 2.15" / 54.5mm
Motor Diameter 3.4" / 86mm
Tweeter Protrusion 0.5" / 12.8mm
Gross Single Unit Weight 0.8KG
Single Unit Box Dimensions W x L x H 210 x 106 x 360mm
Parts Warranty 1 Year
Labor Warranty 1 Year
