We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.
General Features:
- 350W RMS / 700W MAX power handling / Neodymium Magnet
- Curvilinear cone for improved response
- Aluminum basket construction
- Plug-and-play recone system – no glue required
- Patent-Pending rotating recone design for instant repairs
- Compatible recone model PROJECT360.64RCK

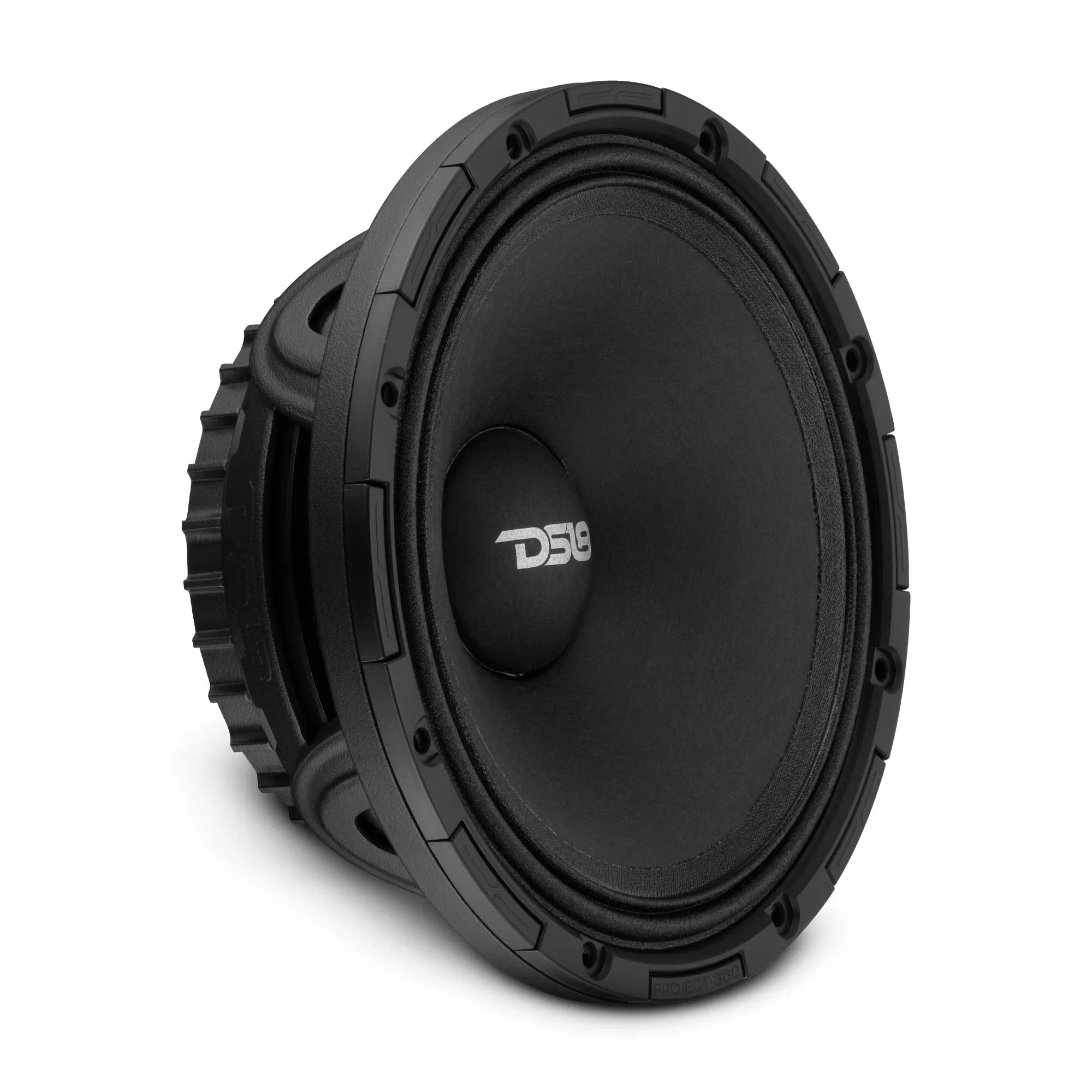

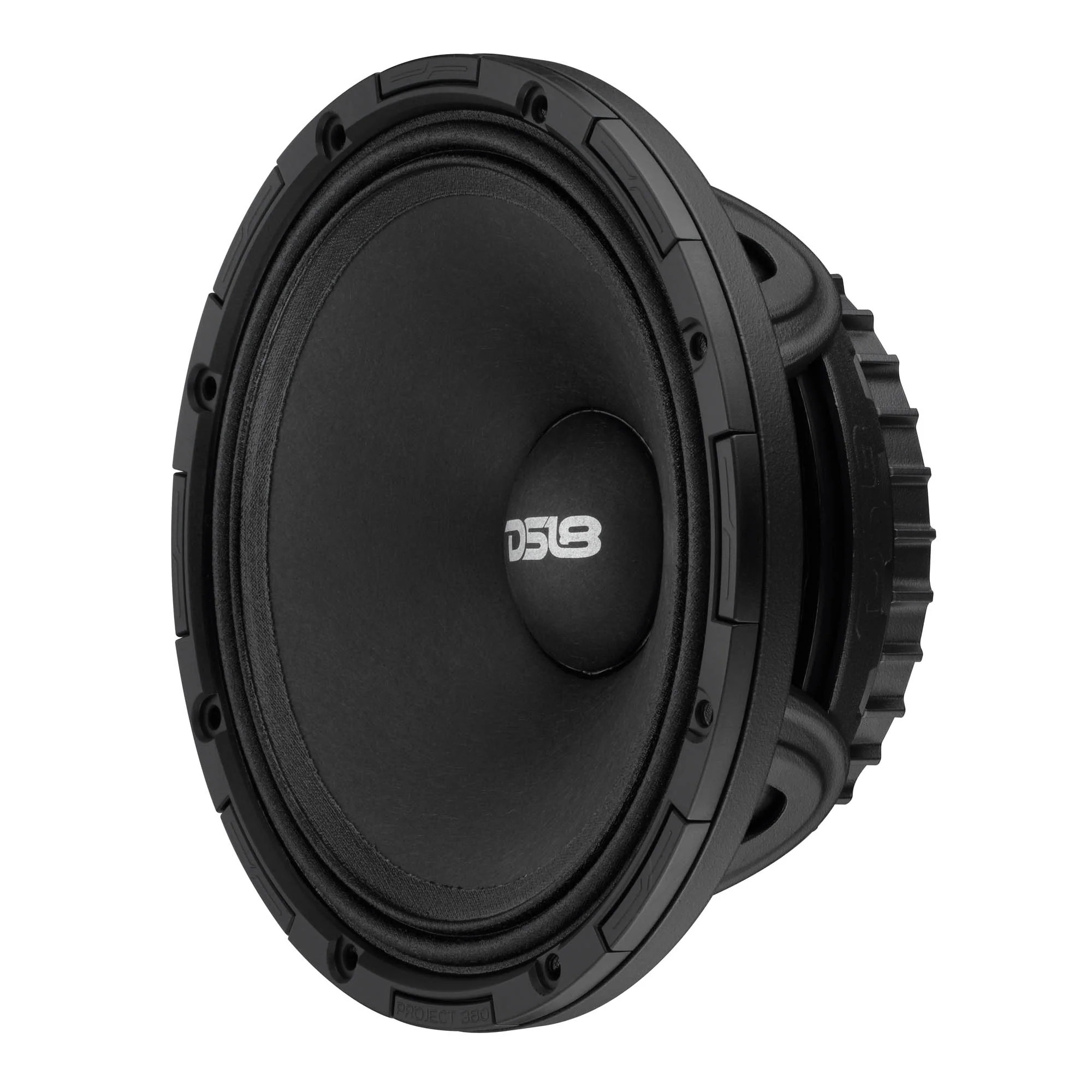

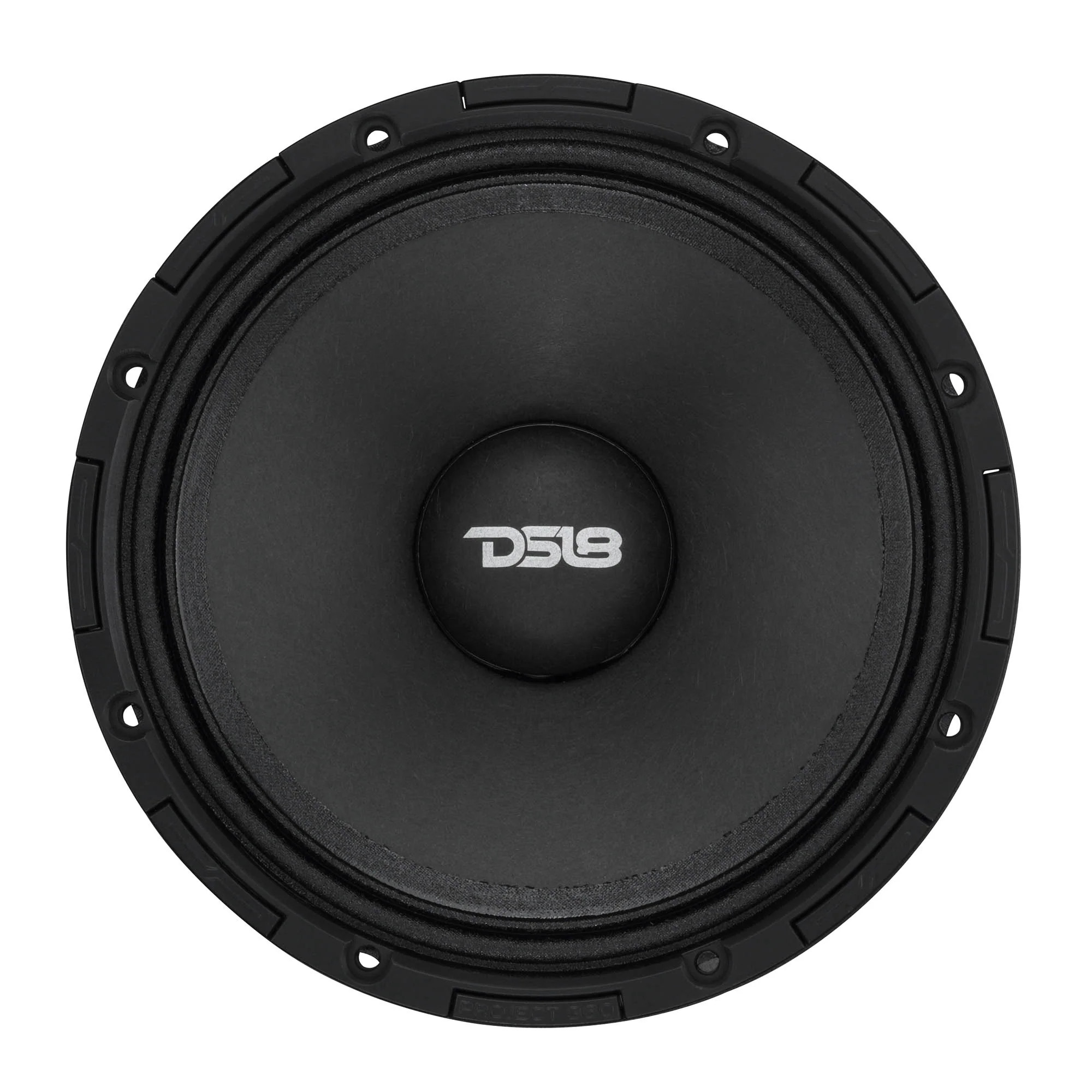

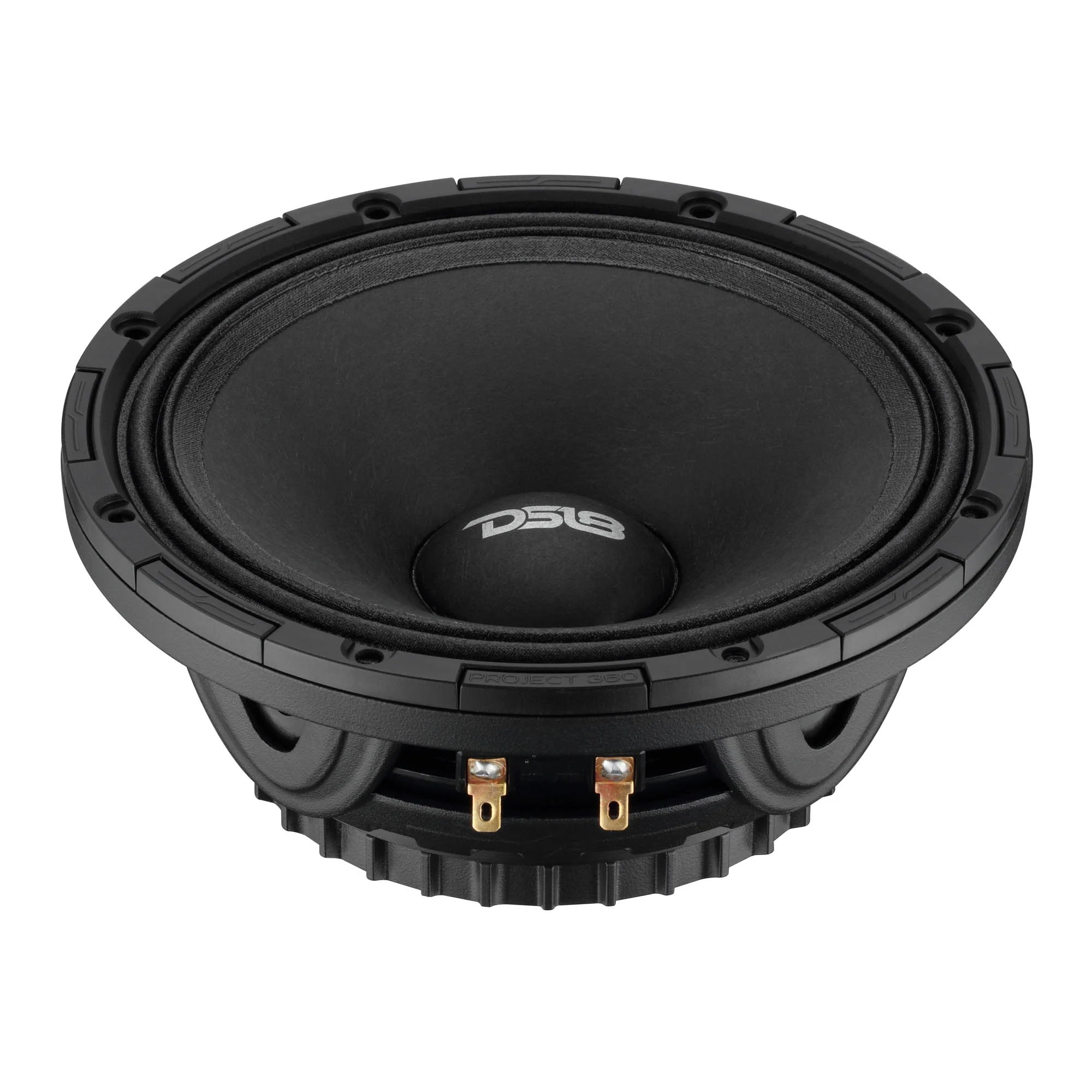

The Project360.64N is a high-sensitivity mid-high loudspeaker engineered for extreme efficiency, lightweight performance, and rapid serviceability. Featuring a shallow mounting depth of just 2.72 inches, this speaker is designed to deliver aggressive output in compact installations where traditional drivers cannot fit. Built with DS18’s rotating recone system and a lightweight neodymium motor, the Project360.64N provides powerful projection with unmatched maintenance convenience.

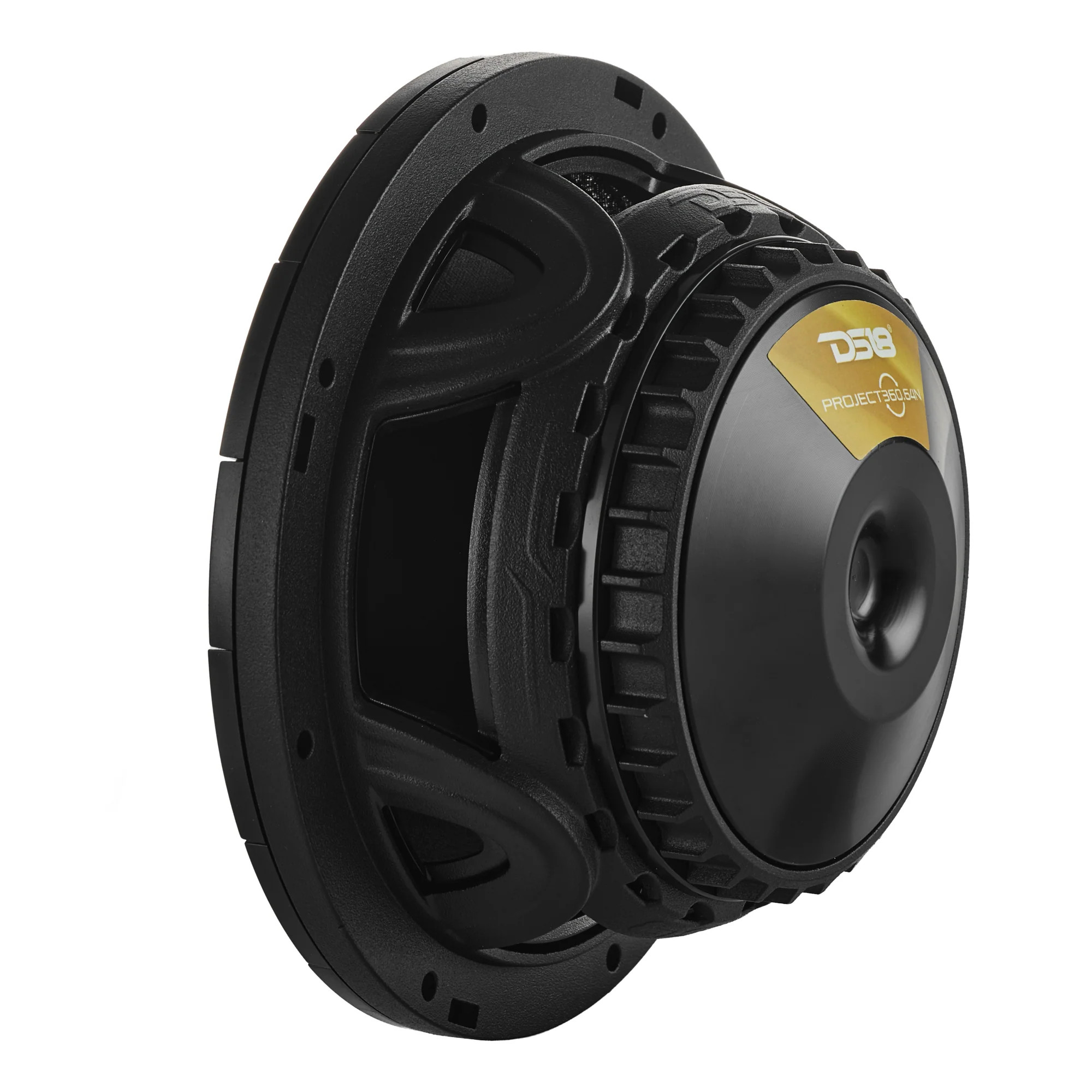

Neodymium Motor, Maximum Efficiency
Built with a compact neodymium magnet structure, the Project360.64N delivers strong motor force while reducing overall weight. This design improves efficiency, enhances transient response, and makes it ideal for performance-focused applications.

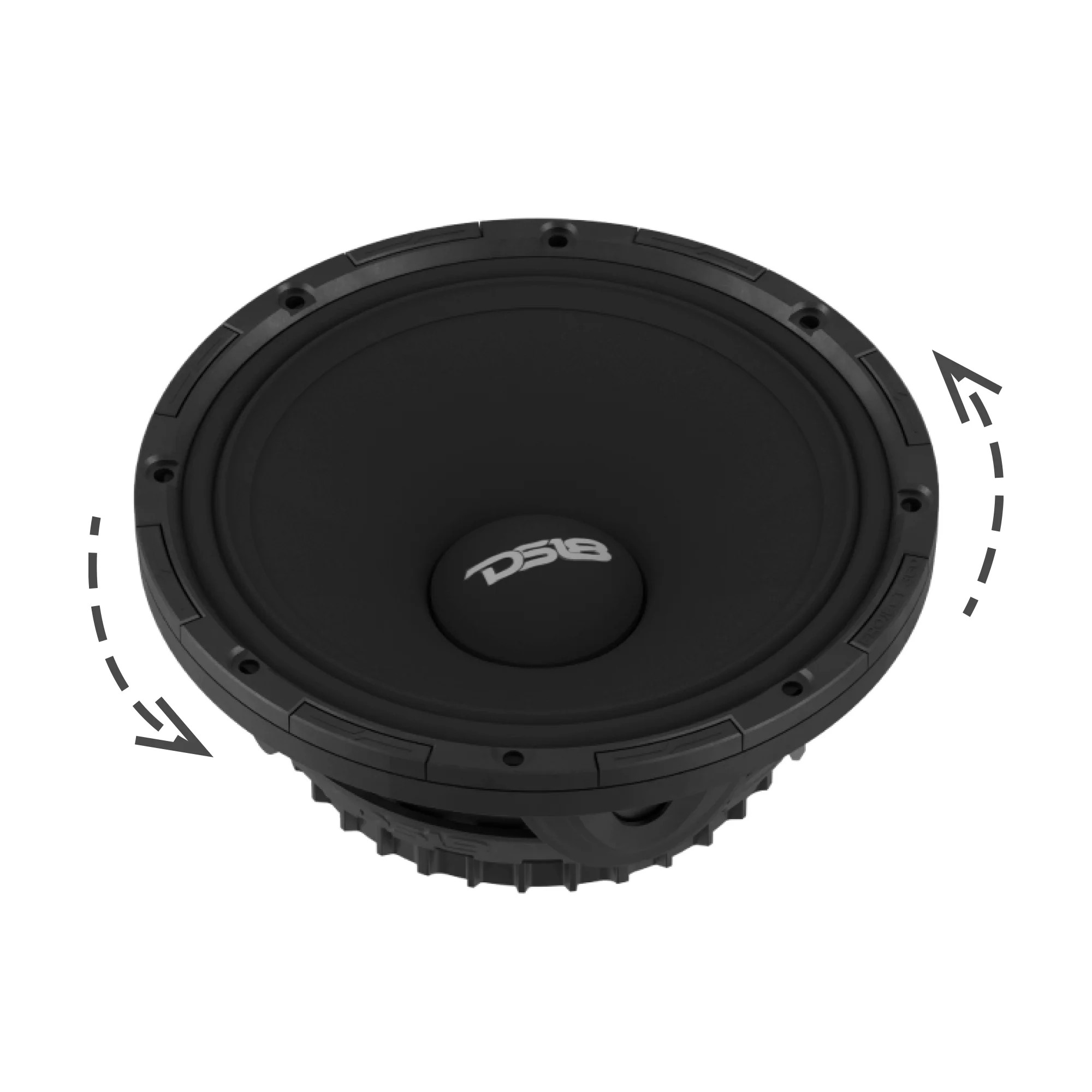

Patent-Pending Rotating Recone for Instant Repairs

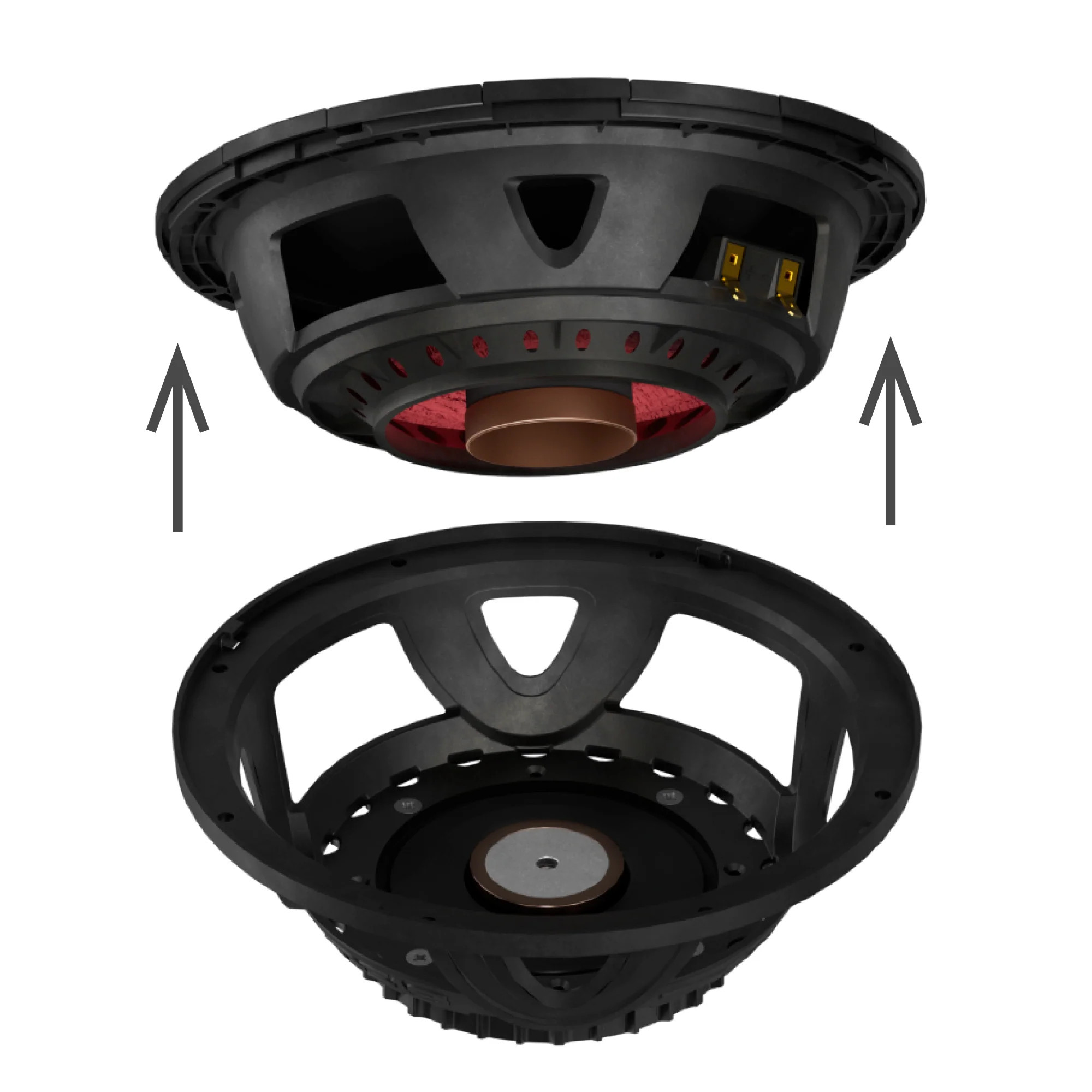

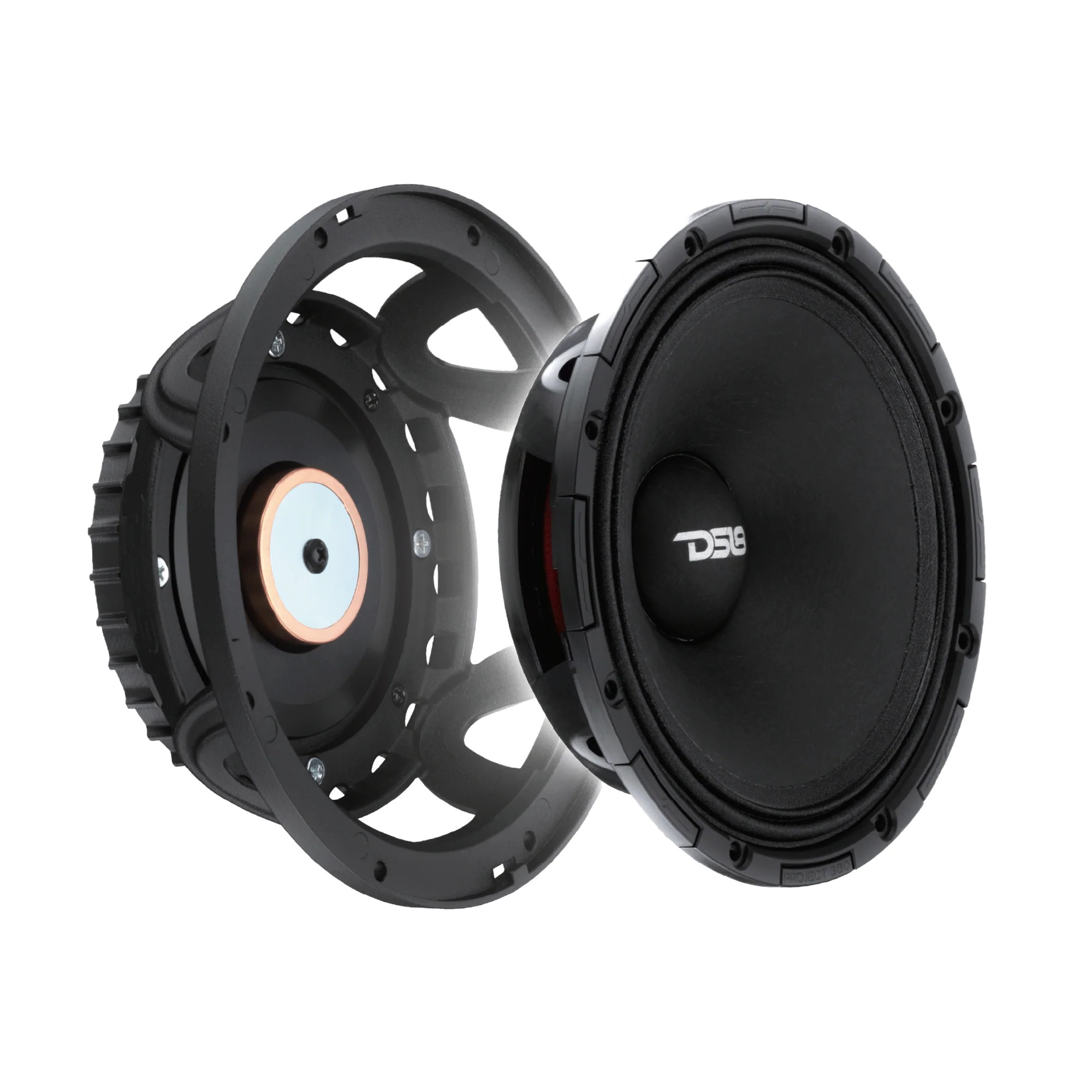

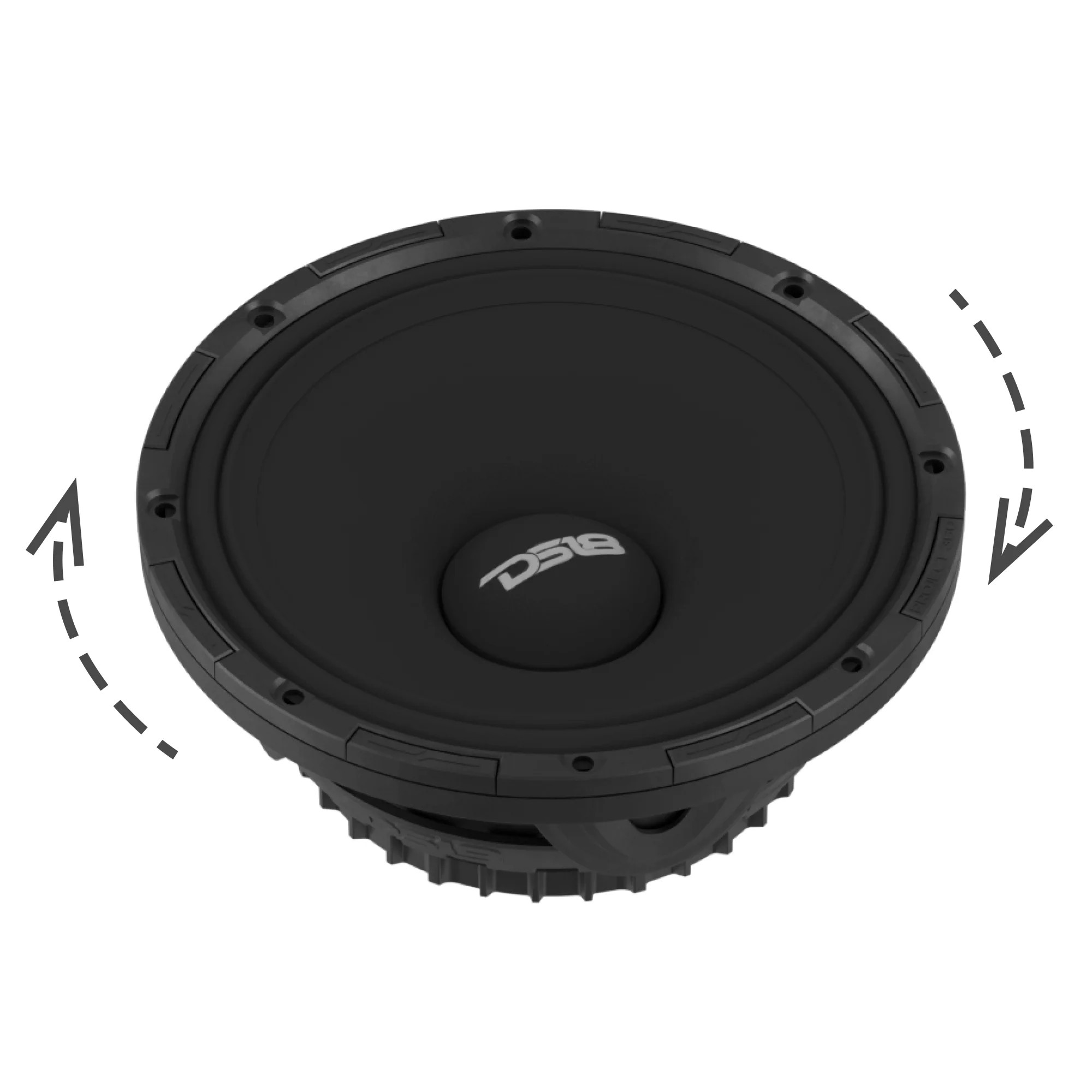

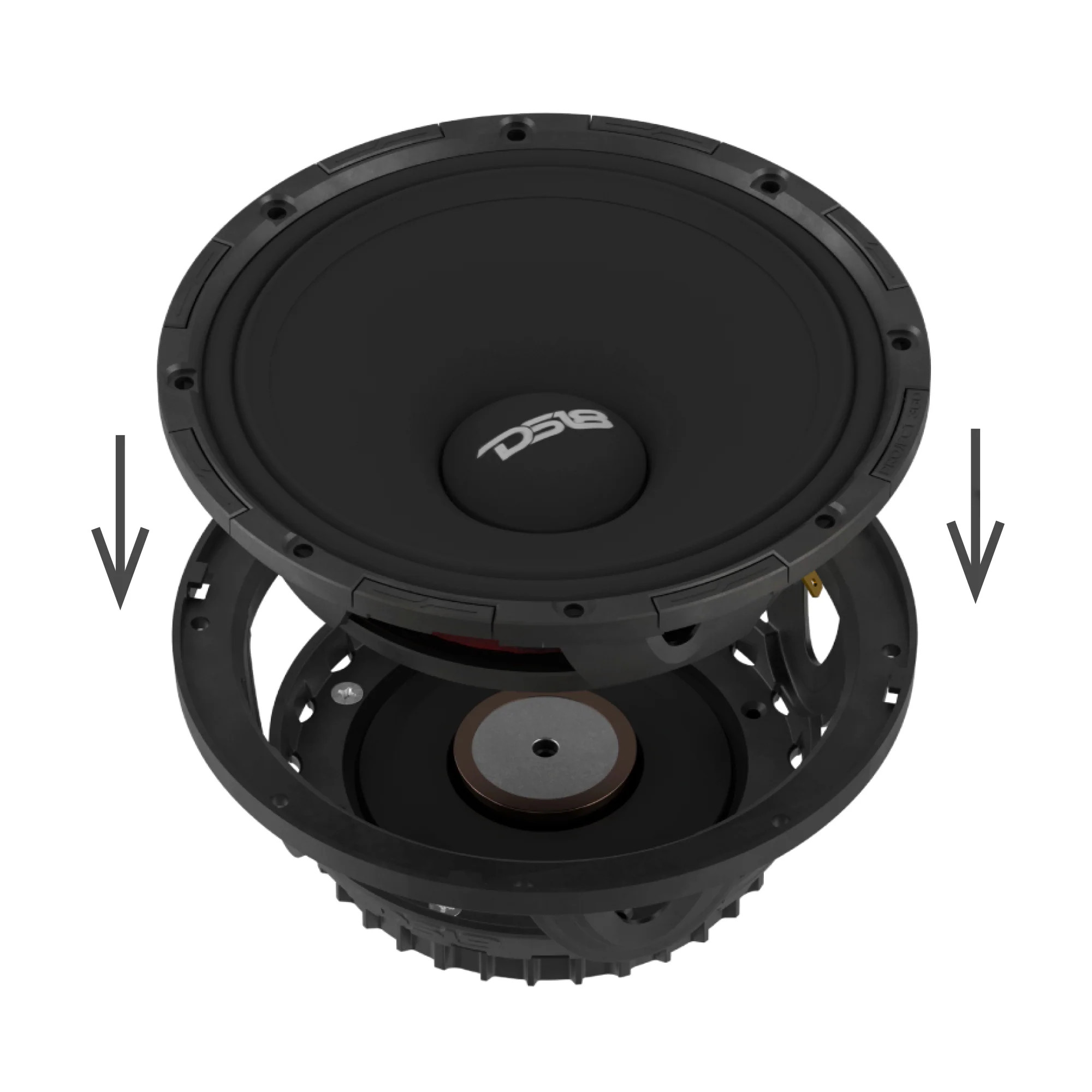

The innovative rotating recone design allows the entire cone assembly to lift cleanly from the basket and lock securely into place with a smooth turning motion. No glue, no drying time, and no downtime. Recones can be completed immediately, keeping systems operational without interruption.
High Sensitivity, Powerful Projection
With an impressive 100.5dB sensitivity rating, the Project360.64N produces exceptional output with minimal amplifier power. The curvilinear cone design ensures smooth midrange response and crisp mid-high articulation.
Engineered for Durability
A 1.75” Kapton voice coil, cloth surround, aluminum basket, and precision motor structure provide strength, thermal stability, and long-term reliability.
Bring lighter weight, louder projection, and smarter service ability to your system with DS18’s Project360.64N.
| Brand | DS18 |
| Nominal Diameter | 6.5" / 152.4mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 350 W |
| MAX Power Handling | 700 W |
| Sensitivity (1w/1m) | 100.5 dB |
| Frequency Response | 100Hz-17kHz |
| Recommended High-Pass Crossover | 100 Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| Demodulating Rings | Yes |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |

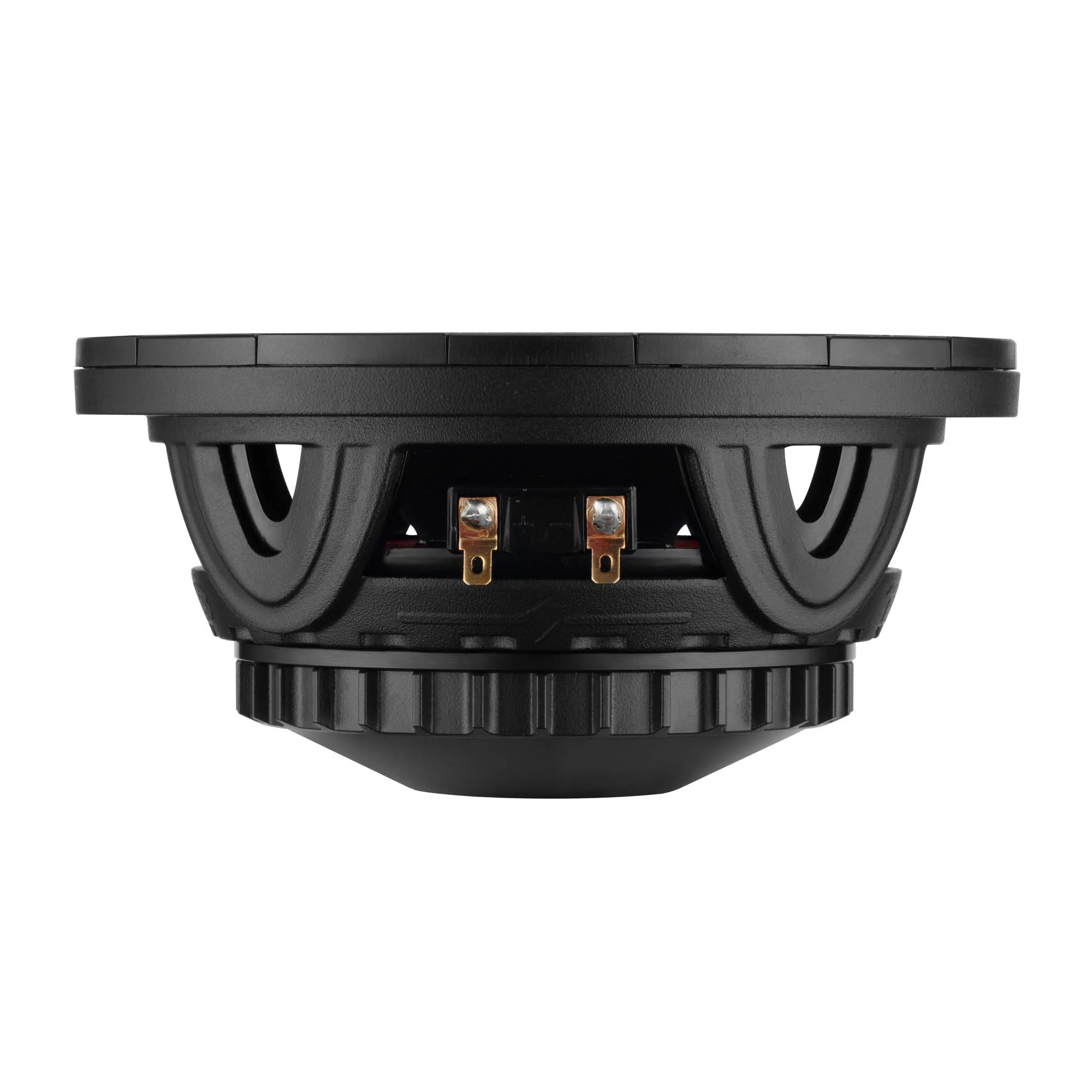

| Speaker Terminals | Spade |
| Easy Recone Design | Yes |
| Voice Coil Diameter | 1.75" / 44.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Spider Diameter | 4" / 102mm |
| Leads Connection Type | Round Crossed |
| Basket Material | Aluminum |
| Basket Color / Finish | Black |
| Magnet Material | Neodymium |
| Magnet Weight | 12.8 oz |
| Equivalent Volume | 2.78L / 0.098ft3 |
| Excursion (one way) | 0.3 mm |
| Free Air Resonance | 160 Hz |
| Mechanical Factor | 2.667 |
| Electrical Factor | 0.264 |
| Total Factor | 0.24 |
| Moving Mass | 14.523 g |
| Mechanical Compliance | 0.063 mm/N |
| BL Factor | 12.708 |
| Voice Coil Inductance | 0.035 mH |
| Cone Area | 176.71 cm2 |
| DC Resistance | 3.4 Ohm |

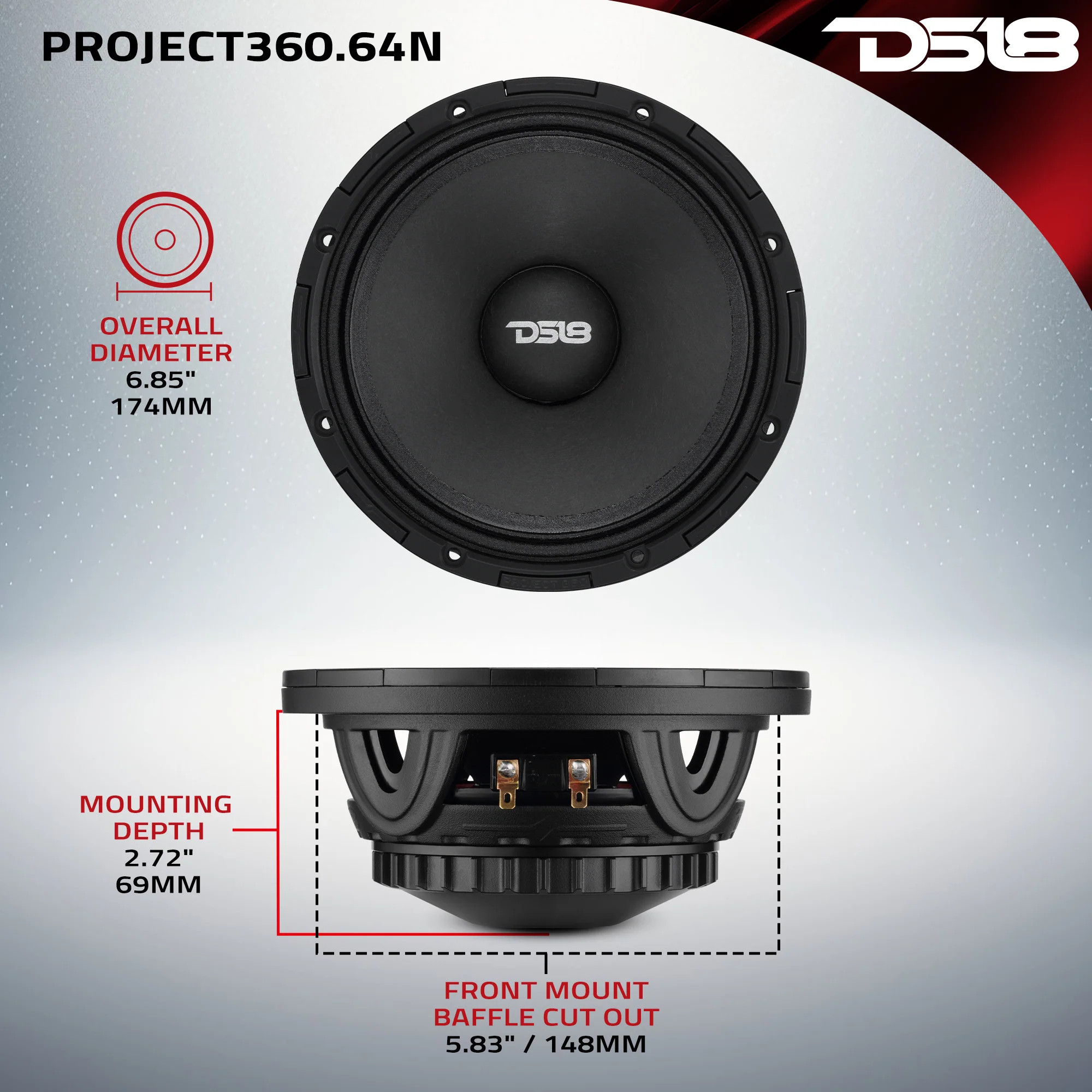

| Overall Diameter | 6.85" / 174mm |
| Overall Depth | 3.27" / 83mm |
| Front Mount Baffle Cutout | 5.83" / 148mm |
| Mounting Depth | 2.72" / 69mm |
| Motor Diameter | 3.94" / 100mm |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
