DS18 PU210A

DS18 10" 700W Peak (350W RMS) Loaded Dual Sealed Shallow Subwoofer Enclosure for Pick-up Trucks
No reviews yet Write a Review
$419.95
SKU:
PU210A
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • Active Subwoofer Enclosure
  • 2 X 10" Shallow Mount
  • RMS Power: 350 Watts(700 Watts Peak)
  • Impedance: 2 Ohm
  • Class D ~ Bass Knob
  • 5/8" MDF with Black Carpet

DS18 PU210A

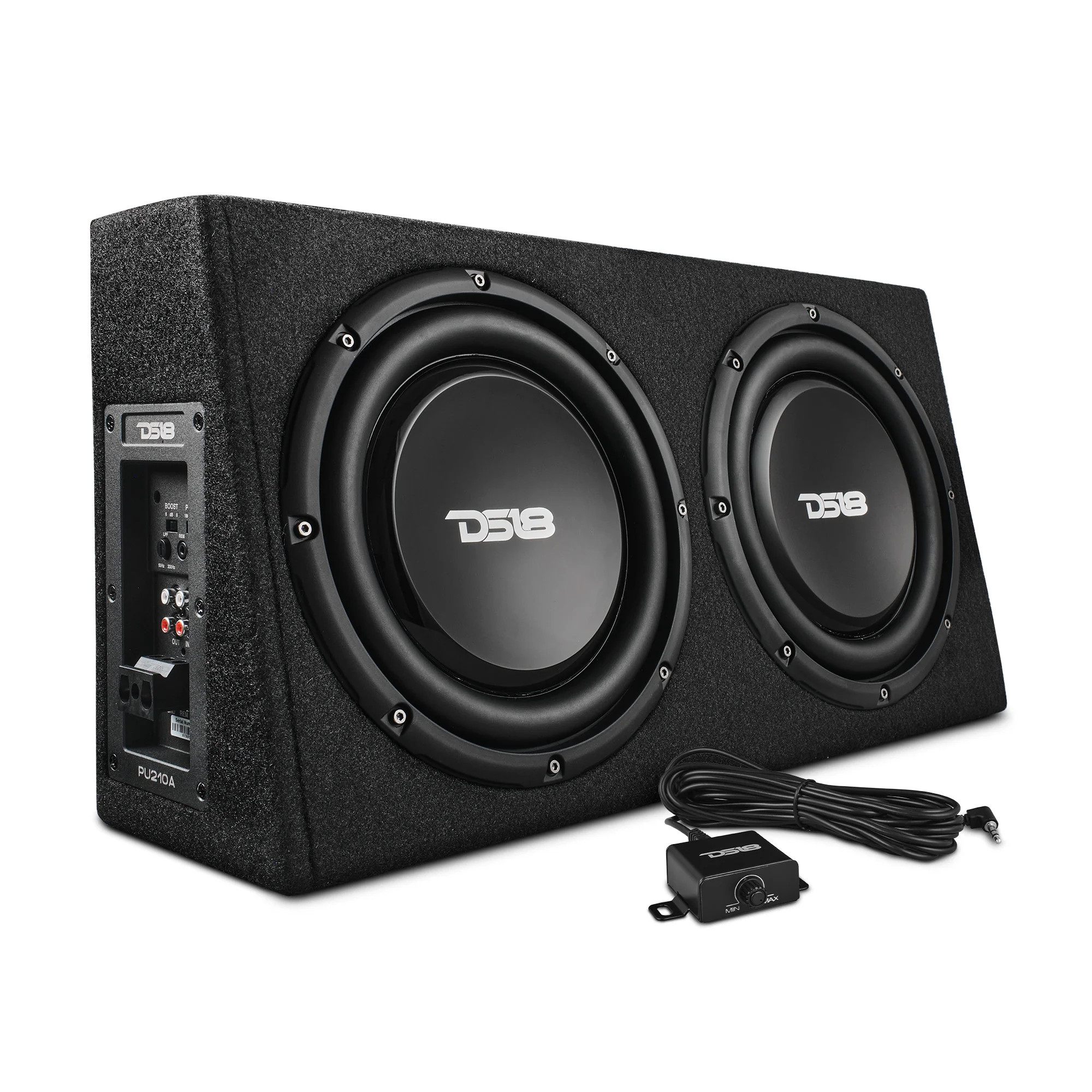

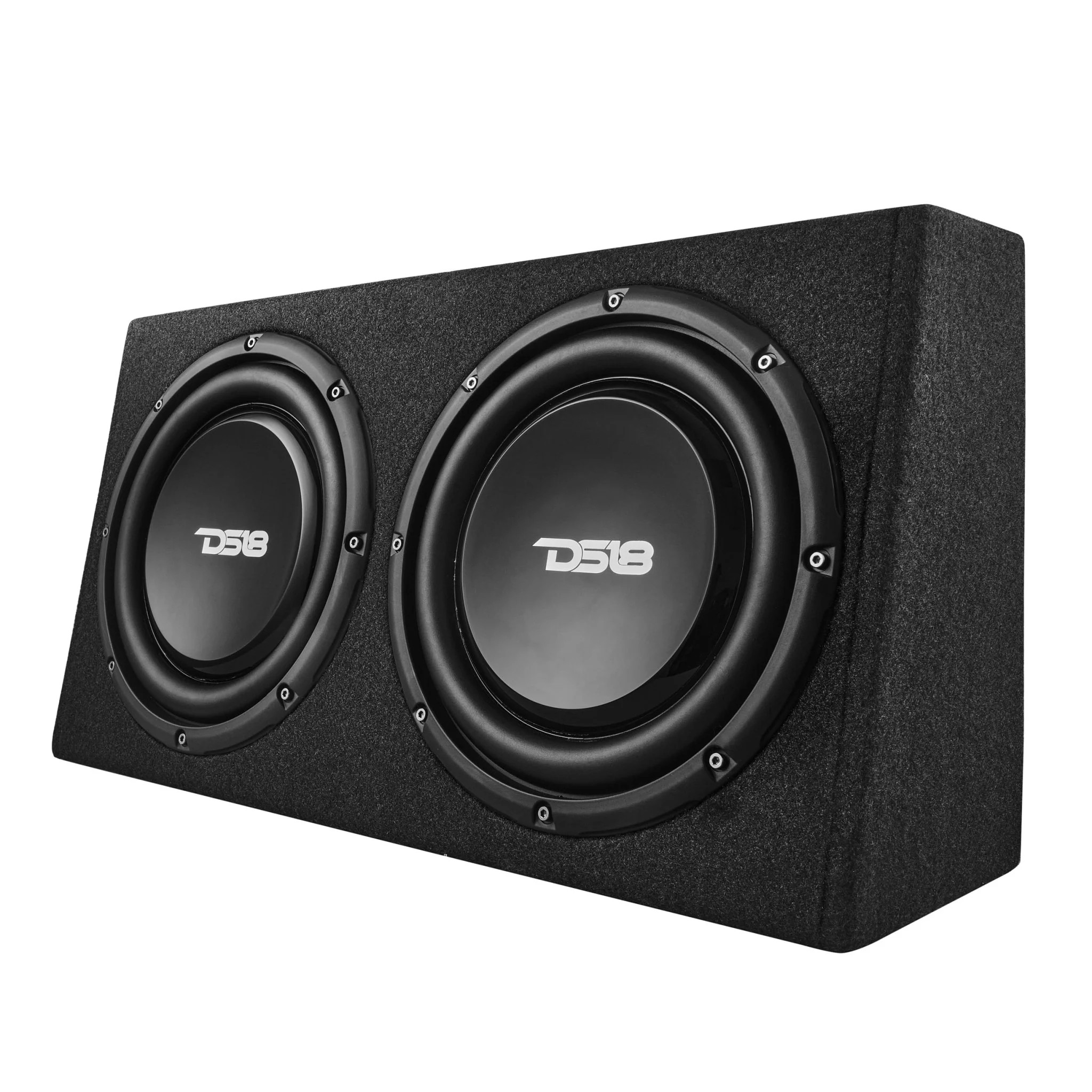

10” Active Subwoofer Shallow Enclosure With 10” Passive Subwoofer For Pickup Trucks

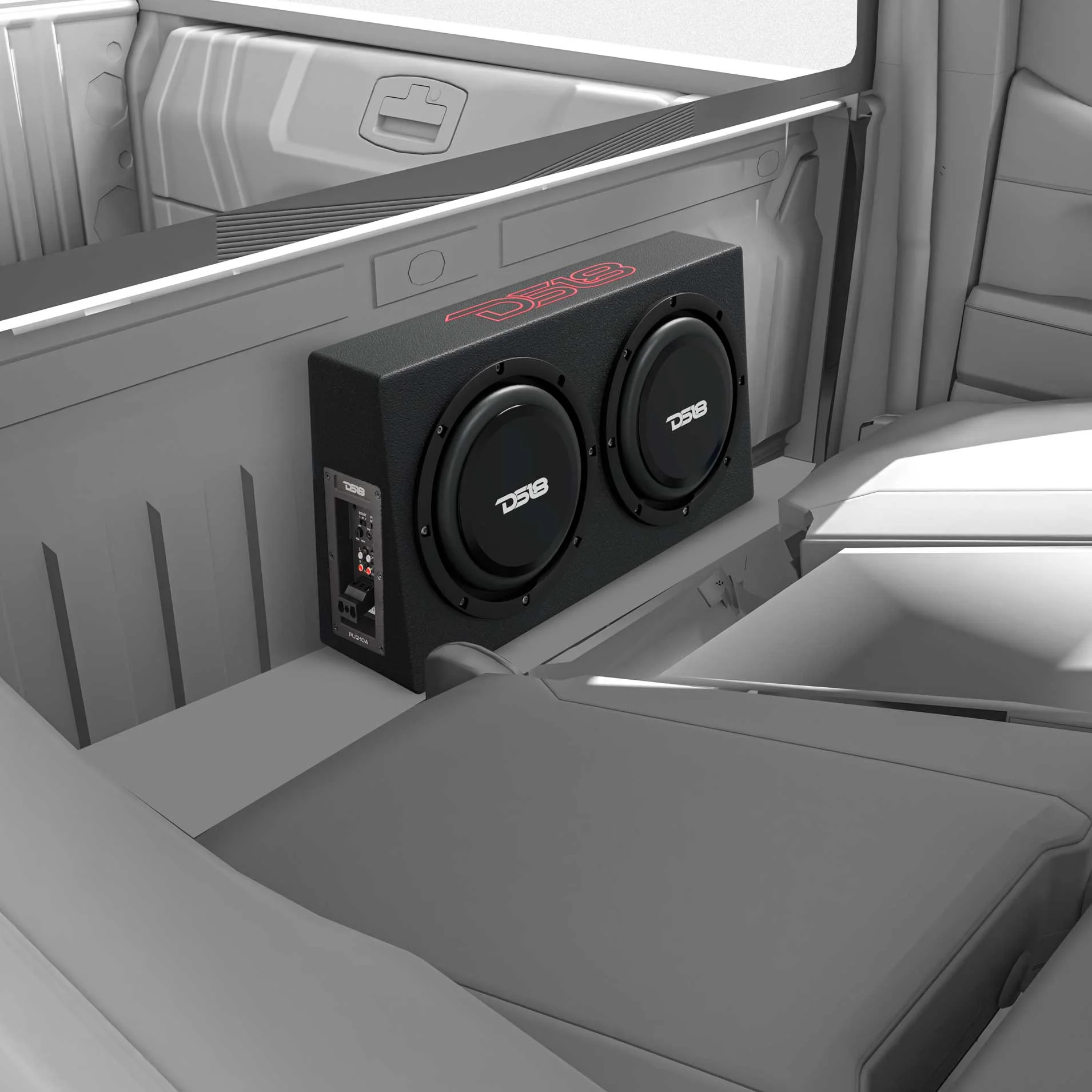

Unleash high-performance bass in your pickup with DS18’s PU210A subwoofer. This 10-inch active and passive subwoofer work in harmony to deliver punchy bass in tight spaces. Specifically designed for compact settings, its shallow enclosure seamlessly fits into tight spaces, ensuring your vehicle's cabin remains uncluttered while elevating your sound system to new heights.

DS18’s PU210A handles an impressive 350W RMS and peaks at 700W, providing powerful car audio that resonates with deep and impactful bass. Its frequency response ranges from 30–250Hz, capturing every nuance of your music with remarkable clarity. The sensitivity of 87dB ensures efficient sound reproduction, making it a top choice for truck audio upgrades.

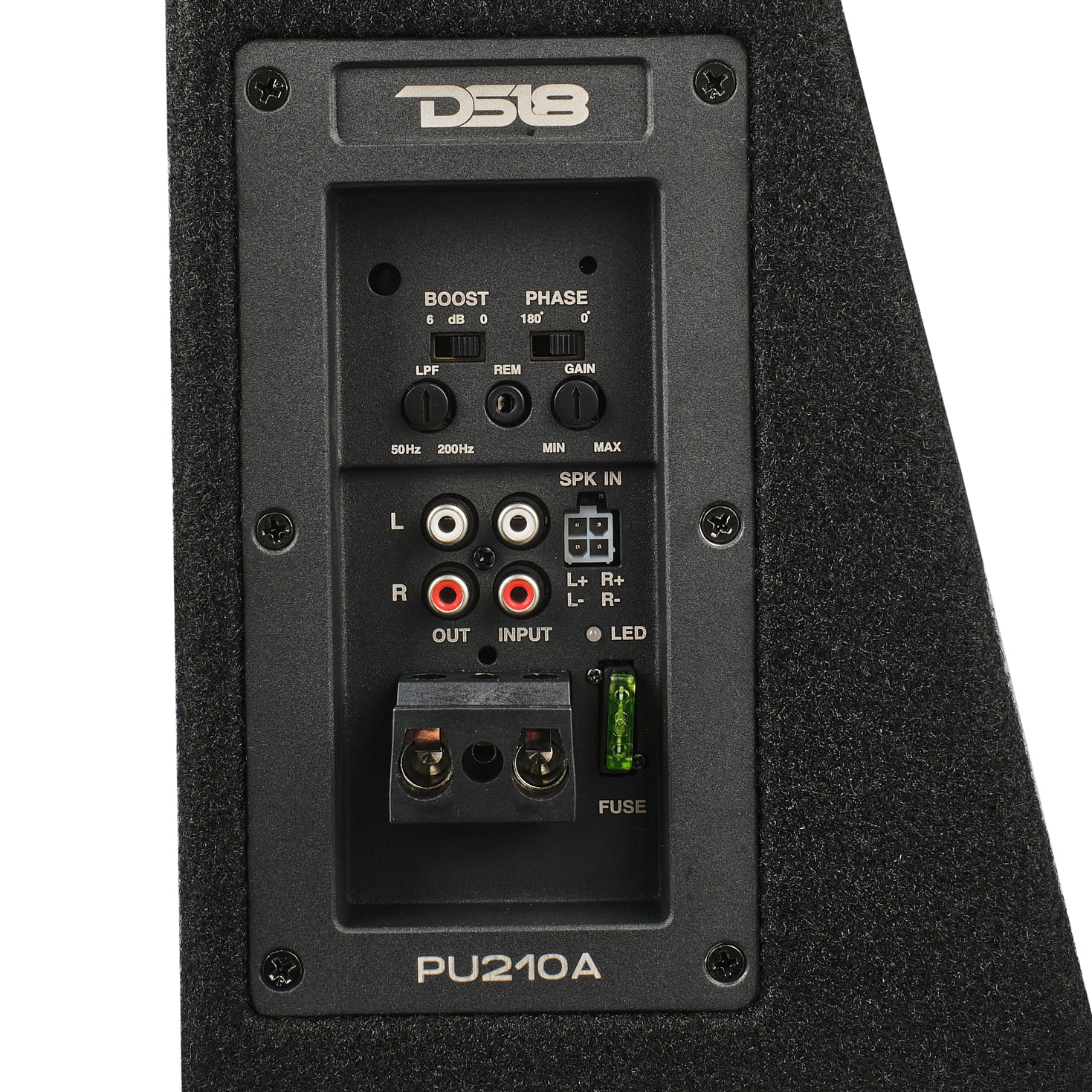

Equipped with advanced controls such as a remote controller for gain adjustment, phase selector, and adjustable low-pass filter (LPF), this compact subwoofer for trucks allows you to tailor your listening experience to perfection. The bass boost feature further enhances the depth of sound, offering up to a 6dB increase.

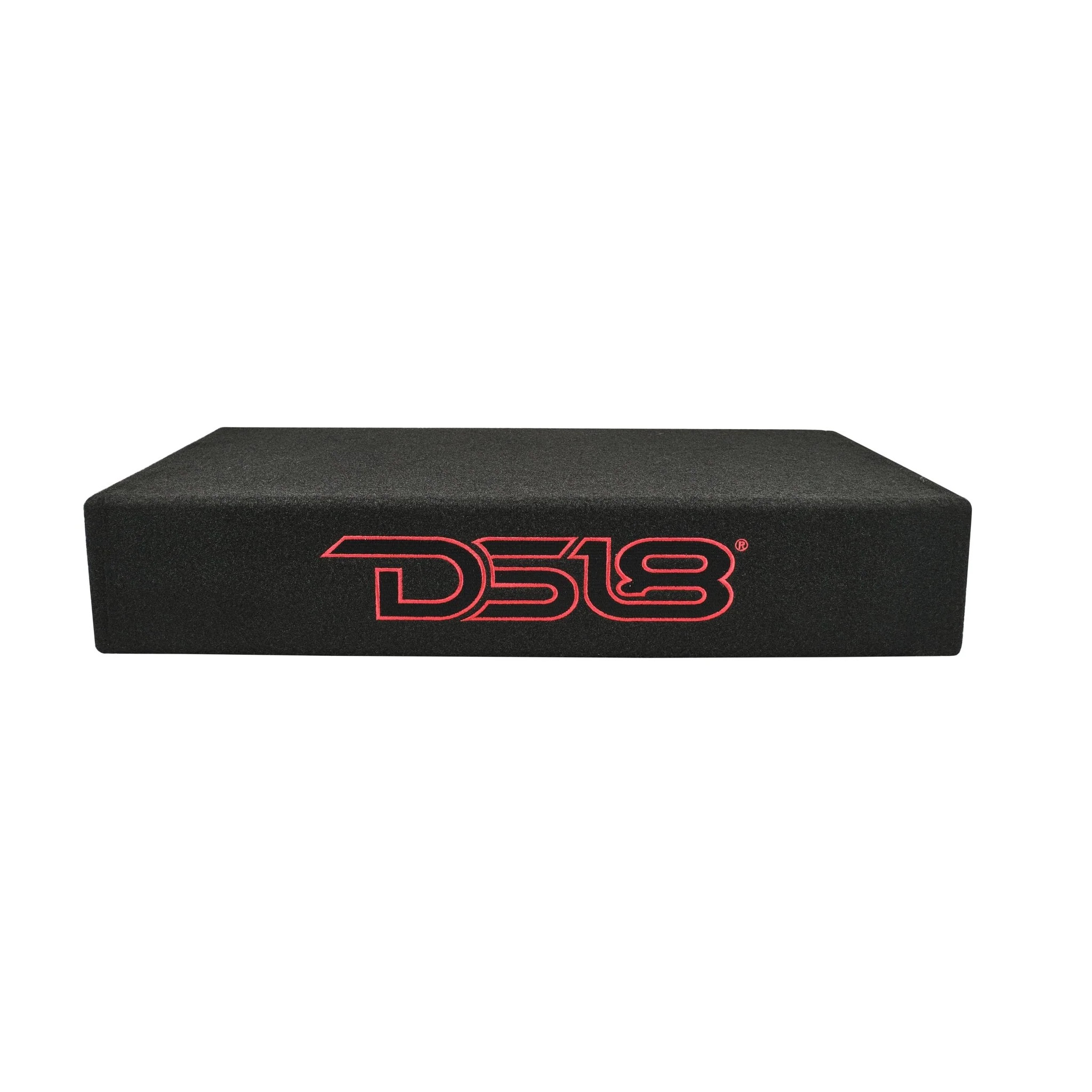

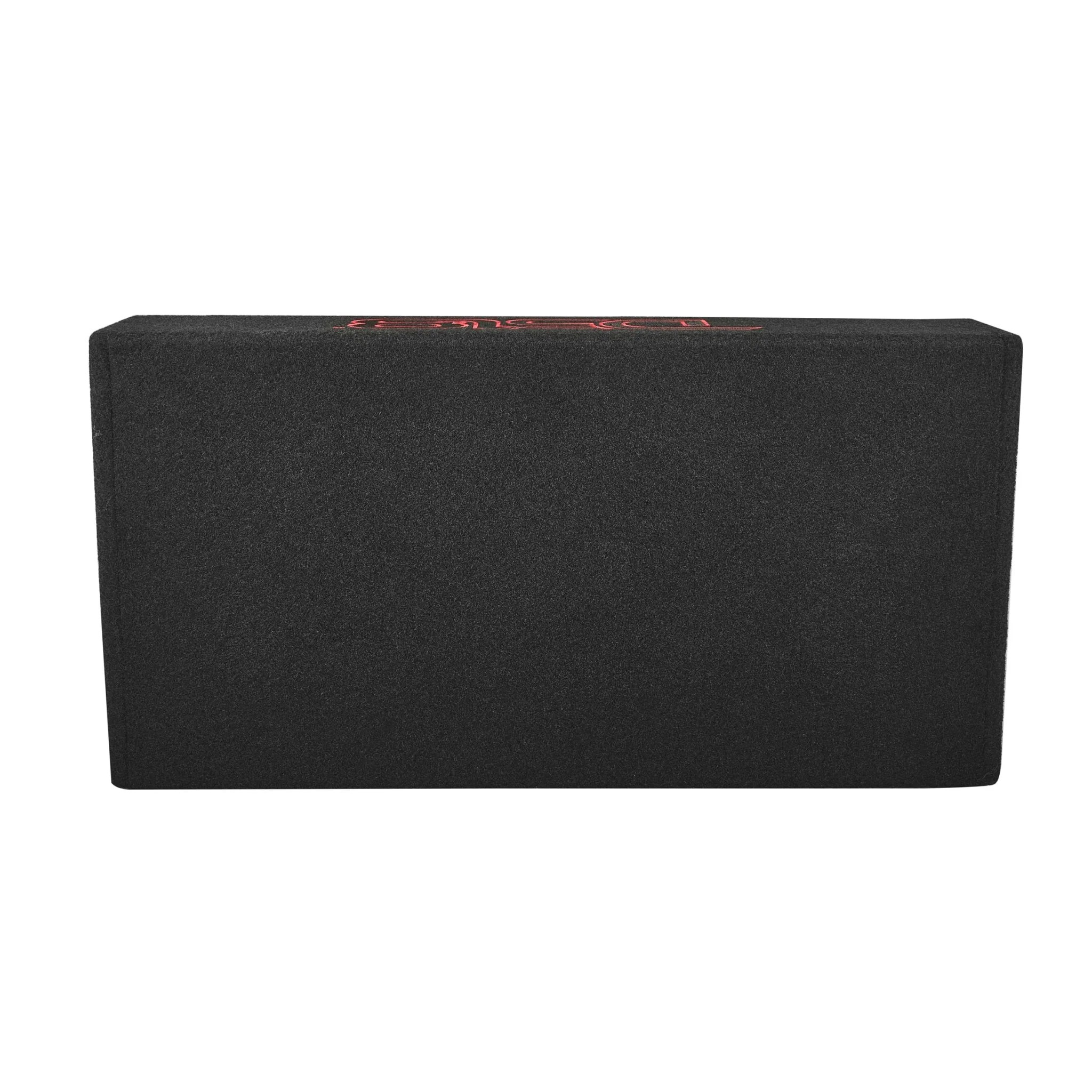

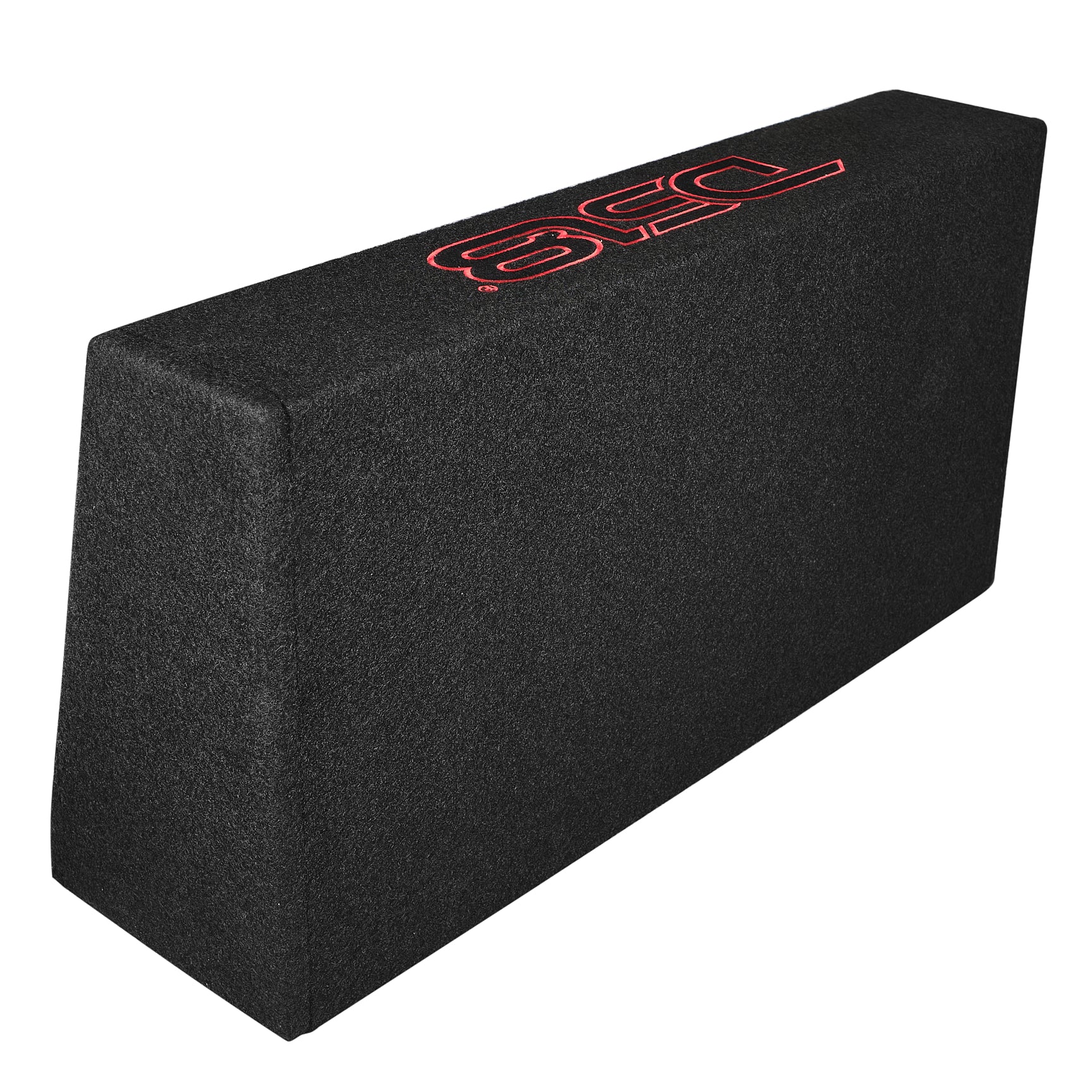

Crafted with durability in mind, the PU210A features a robust sealed subwoofer box made from 5/8" MDF with a sleek black carpet finish. It houses a digital monoblock amplifier that includes thermal, overload, short circuit, and DC output protections, ensuring longevity and reliability.

Upgrade to high-performance bass with the expertly crafted PU210A!

Brand DS18
Speaker Type / Size 10" Active + 10" Passive (261+261mm)
RMS Power Handling (14.4V) 350W
MAX Power Handling (14.4V) 700W
Sensitivity (1w/1m) 87dB
Frequency Response 30-250Hz
Voice Coil Diameter 1.5" / 38.6mm
Voice Coil Former Material Aluminum
Winding Material EISV
Cone Material IPP
Surround Material Rubber
Basket Material Steel
Magnet Material Ferrite
Magnet Weight 40 Oz
Amplifier Class Digital
Amplifier Type Monoblock Subwoofer
Number of Channels 1CH
Minimum Impedance 2-ohms
Signal to Noise Ratio 75 dB
Efficiency @ 4ohm 0.75
Total Harmonic Distortion (THD) 0.003
Low Level Input Range 0.1-0.6V
High Level Input Yes (Auto Turn-On)
Selectable X-Over LPF Fixed
X-Over Filter Range 50-200Hz
Bass Boost Range 0-6 dB
Bass Boost Frequency 50Hz
Phase Selector 0-180?
LED Indicator Power / Protection
Power Input Terminal Size 8Ga (Quick Connector)
Fuse Size 30A
Remote Level Control Yes
Thermal Protection Yes (75? / 167?F)
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes (<9v,>16v)
Signal Output (Pass-Through RCA) Yes

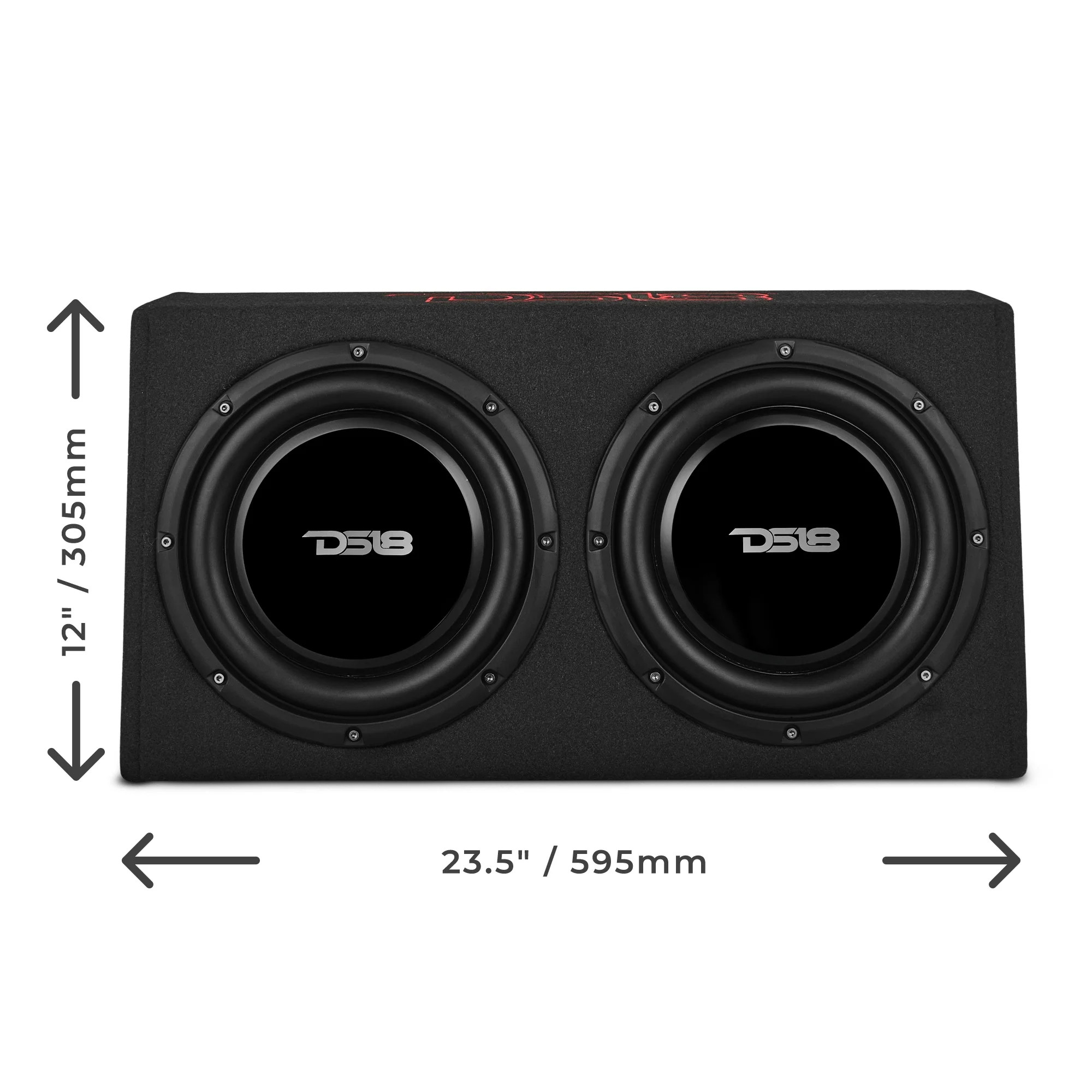

Height 12" / 305mm
Width 23.5" / 595mm
Depth 1 (Top) 4.25" / 108mm
Depth 2 (Bottom) 7" / 176mm
Enclosure Type Sealed
Subwoofer Size 10 Inch
Number of Subwoofers 2
Parts Warranty 1 Year
Labor Warranty 1 Year
