We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.
General Features:
- 6X9" 2-Way Coaxial
- MAX Power: 360 Watts
- RMS Power: 120 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 92dB

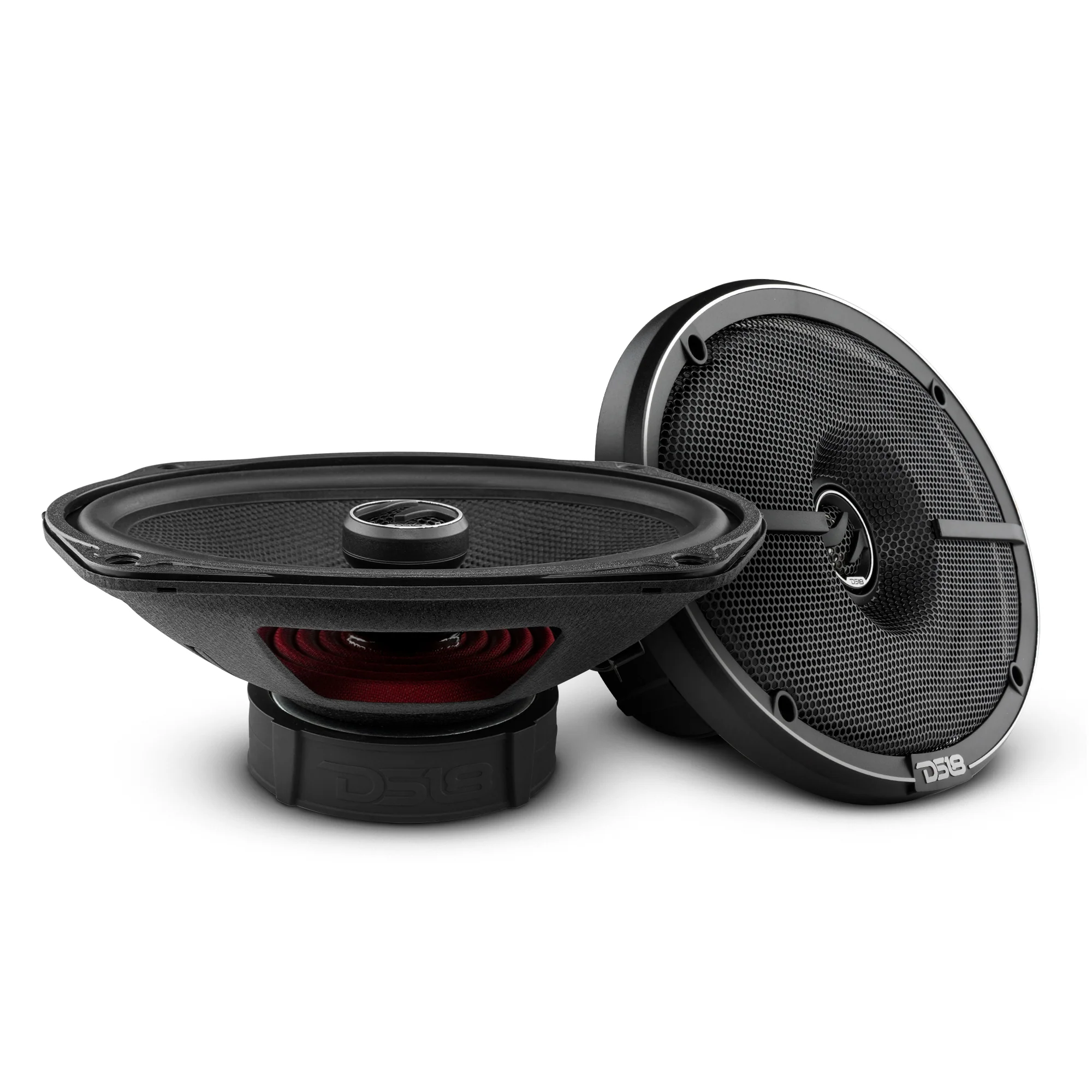

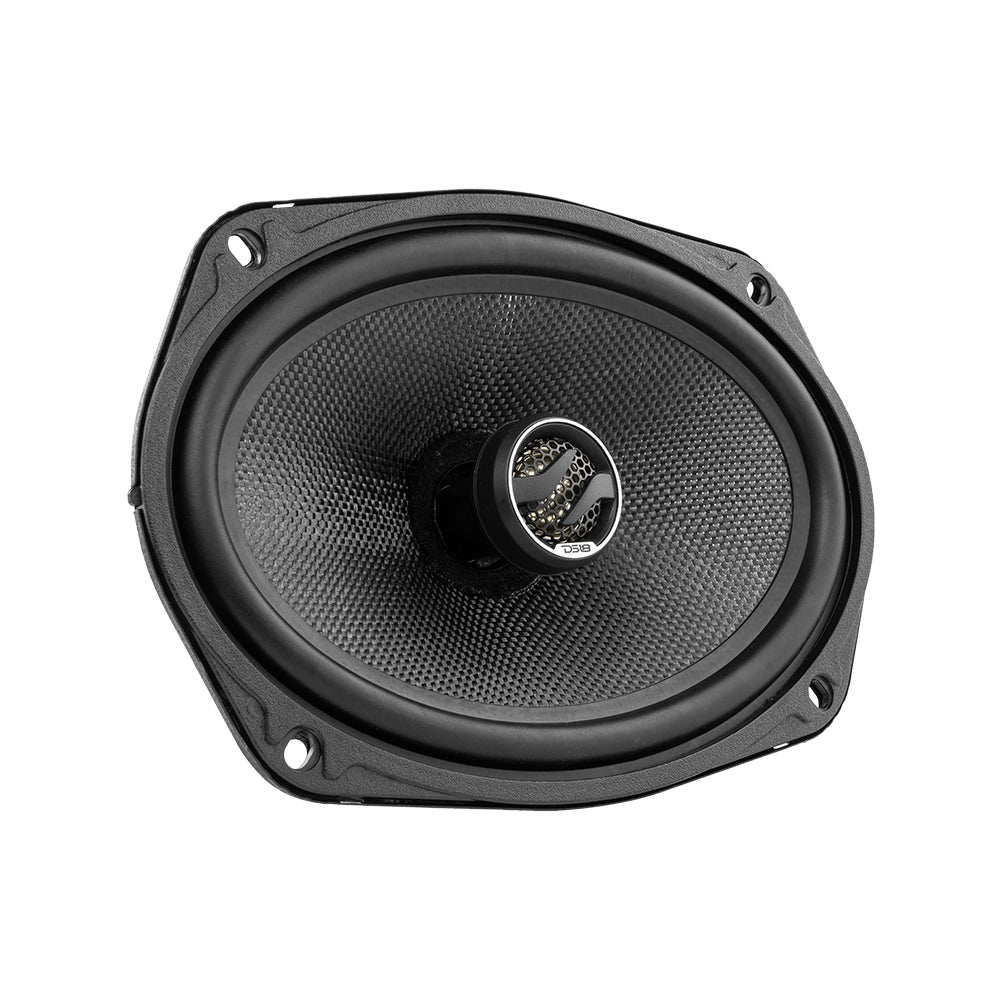

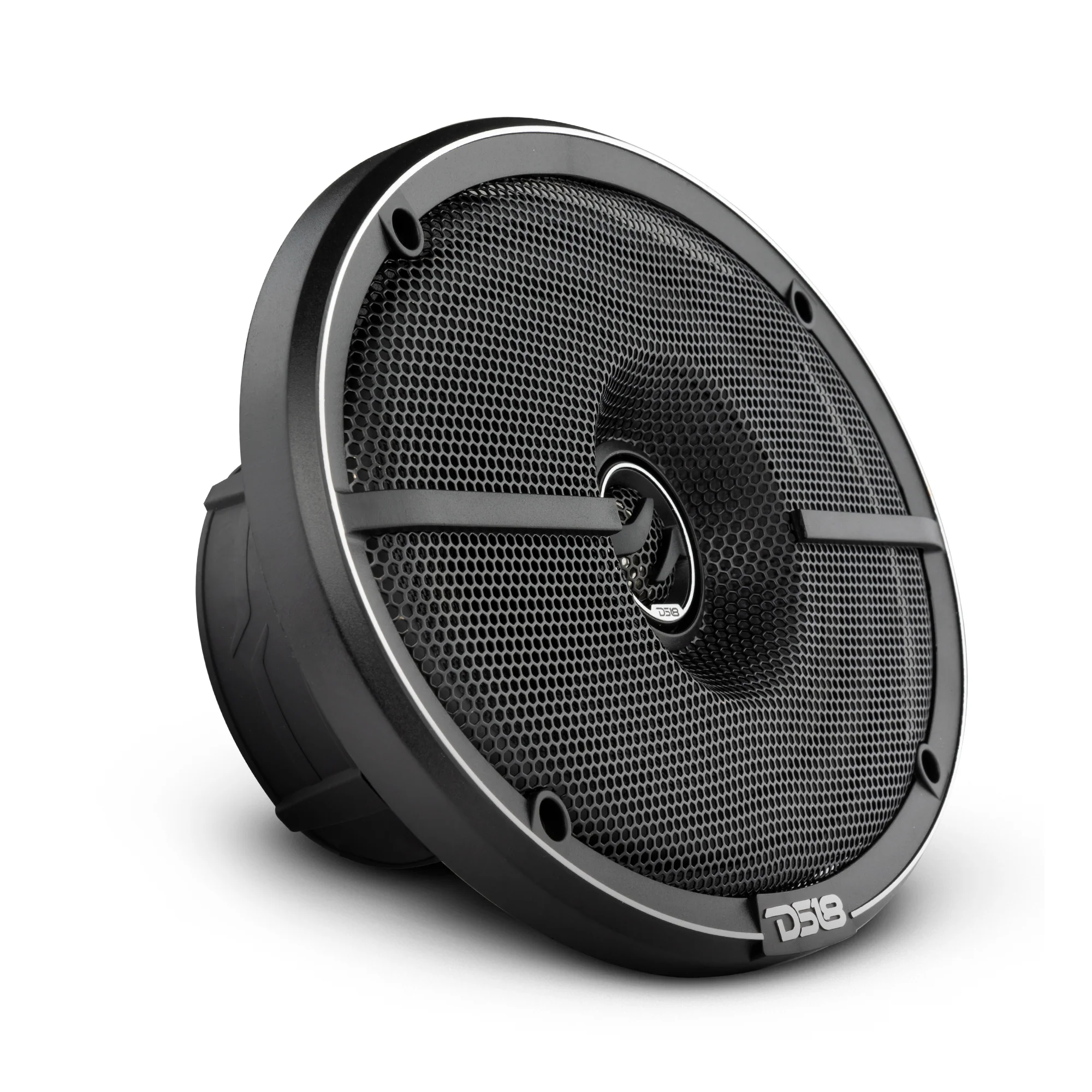

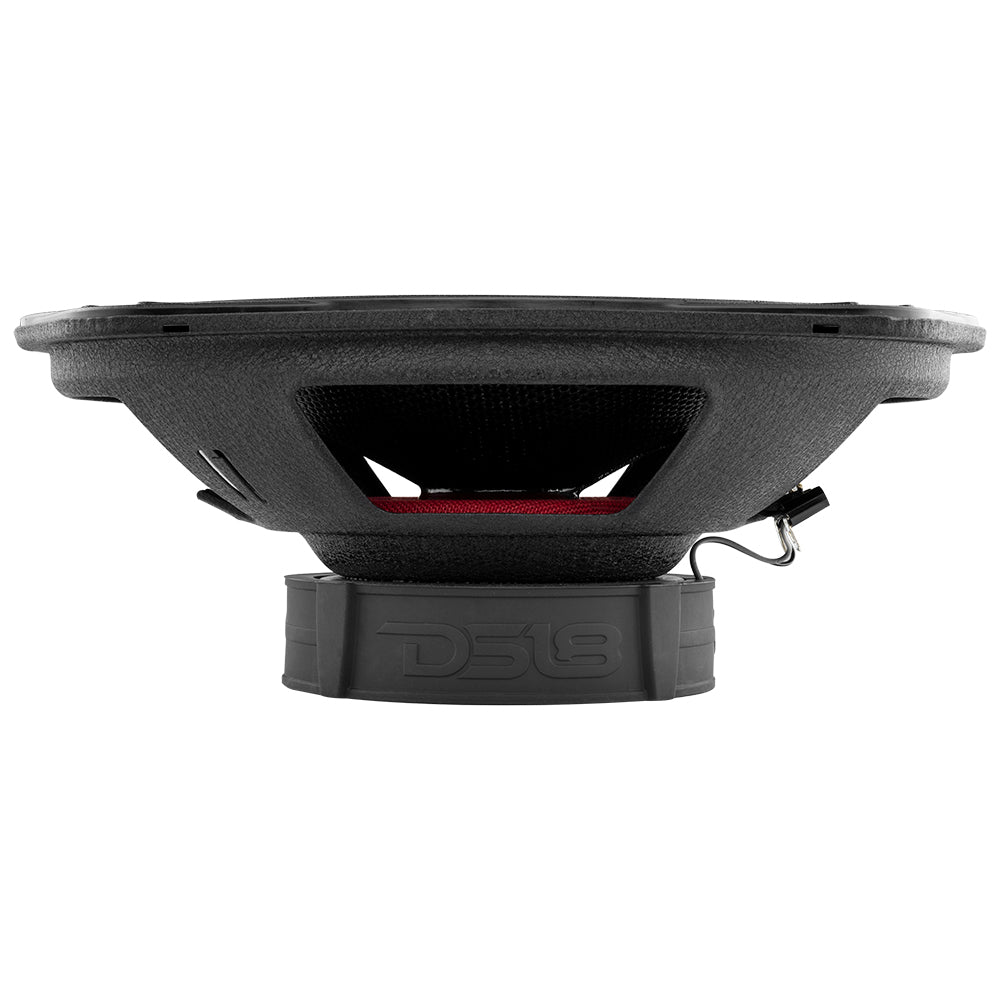

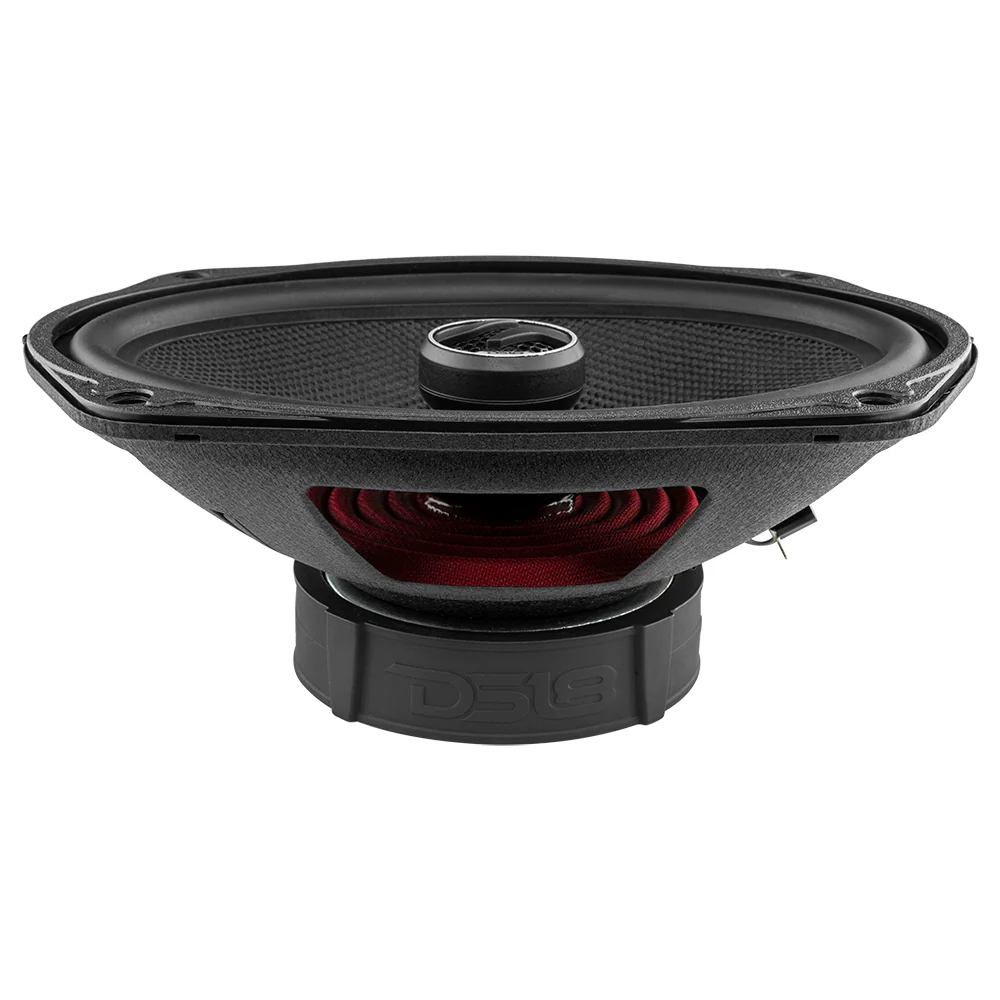

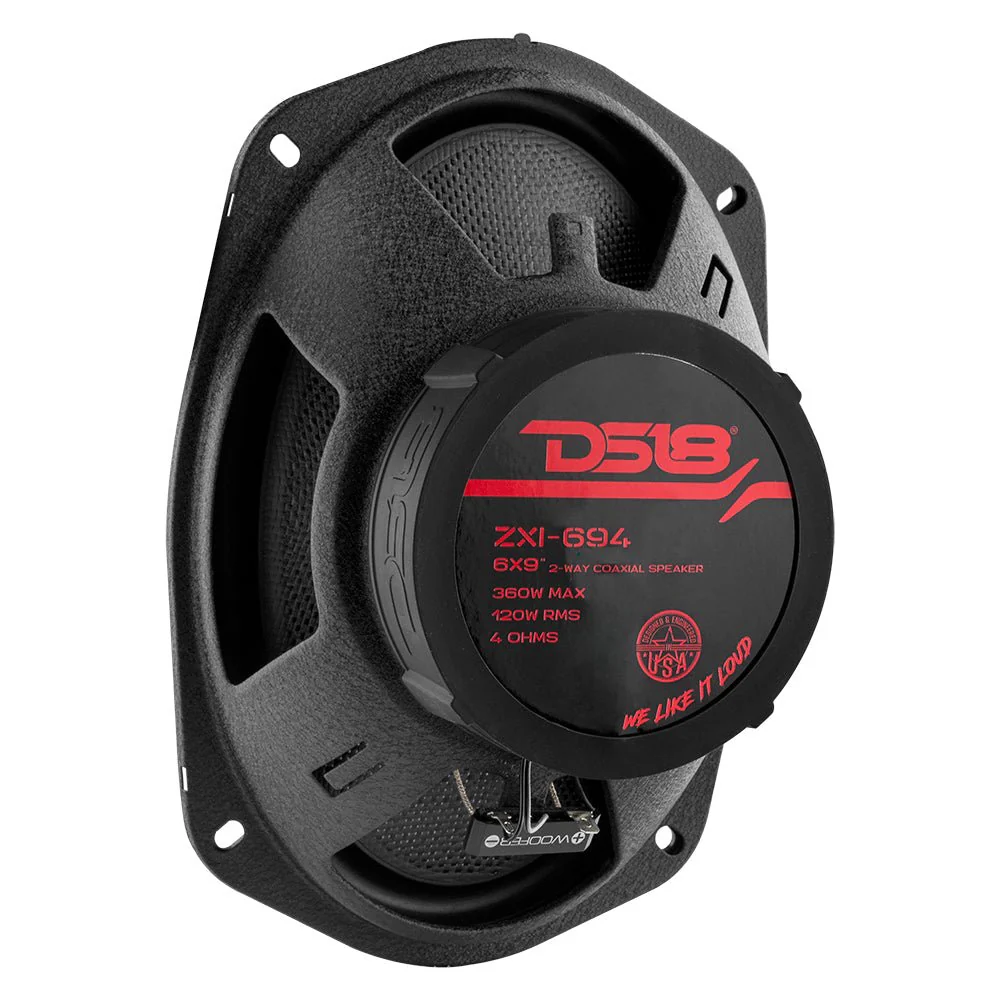

Kevlar 6x9" 2-Way Coaxial Car Speaker 360 Watts 4-Ohm
Experience music like never before with the DS18 ZXI-694 - the perfect solution for audiophiles looking to elevate their car audio system’s sound quality. This speaker is designed to deliver powerful sound with little to no distortion, ensuring an enhanced listening experience that will leave you wanting more.
The ZXI-694 features a Kevlar cone woofer with a rubber surround, the perfect combination for delivering precise and punchy bass responses. Kevlar is a durable and lightweight material that is commonly used in bulletproof vests: but is ideal for creating speaker cones due to its excellent strength-to-weight ratio. Combined with the rubber surround these speakers come with the ZXI-694 reduces unwanted vibrations, resulting in a cleaner and more accurate sound.
The 2-way design on the ZXI-694 equips the 6 x 9 woofer with a 1-inch Neodymium Magnet Tweeter, which delivers unmatched clarity and detail in the higher end of the frequency range. Neodymium magnets are known for their lightweight and powerful properties, allowing the speaker to reproduce accurate high frequencies without increasing the overall weight of the speaker resulting in a more balanced and natural sound.
With frequency responses ranging from 31.5Hz – 20KHz, the ZXI-694 is built to deliver clear and powerful sound across the entire frequency spectrum.
No matter where your car takes you, DS18’s ZXI-694 will immerse you in the music like never before. Upgrade with DS18’s ZXI-694 and experience the difference today.
| Brand | DS18 |
| Nominal Diameter | 6X9" / 162*235mm |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 120W |
| MAX Power Handing | 360W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 31.5Hz-20KHz |
| Recommended HI Pass Crossover | 50Hz |
| Number of ways | 2-Way |
| Midrange | Specs |
| Voice Coil Diameter | 1.2" / 30.4mm |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 550g |
| Tweeter | Specs |
| Nominal Diameter | 1" (25.4mm) |
| Voice Coil Diameter | 0.8"(20.4mm) |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 8.5g |
| Thiele & Small Parameters | Listed Below |
| Equivalent Volume Vas | 17.52L |
| Excursion (one way) Xmax | 3.3mm |
| Free Air Resonance Fs | 58Hz |
| Mechanical Factor Qms | 5.77 |
| Electrical Factor Qes | 1.18 |
| Total Factor Qts | 0.98 |
| Mechanical Mass Mms | 23.44g |
| Mechanical Compliance Cms | 286mm/N |
| BL Factor Bl | 5.18 |
| Voice Coil Inductance Le | 178mH |
| Cone Area Sd | 207.7cm2 |
| DC Resistance Re | 3.5 ohm |
| Mechanical Mass w/o air Mmd | 20g |
| Measurement | Listed Below |

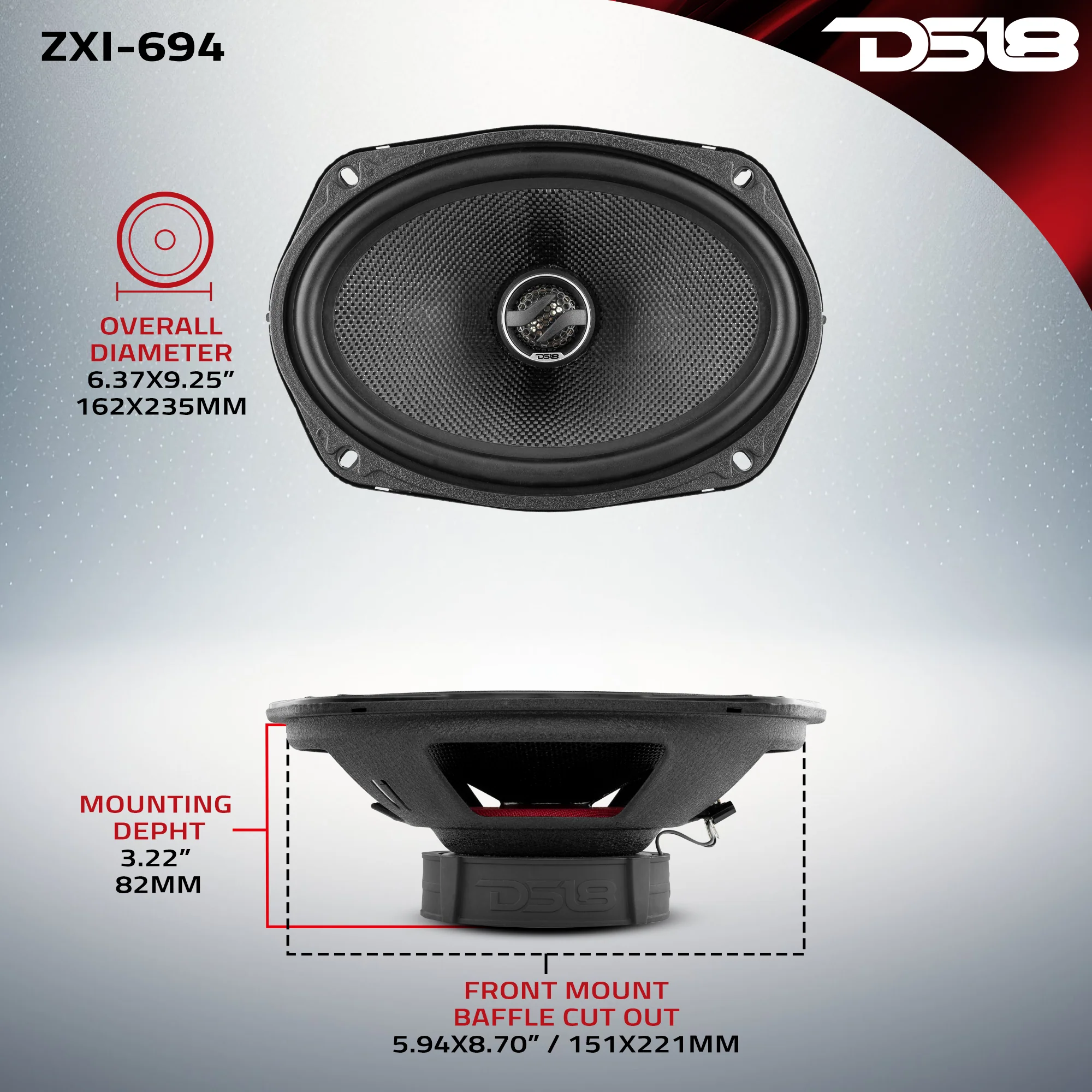

| Overall Diameter | 6.37X9.25" / 162*235mm |
| Overall Depth | 3.66" / 93mm |
| Front Mount Baffle Cutout | 5.94x8.70" / 151*221mm |
| Mouting Depth | 3.22" / 82mm |
| Motor Diameter | 4.09" / 104mm |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
