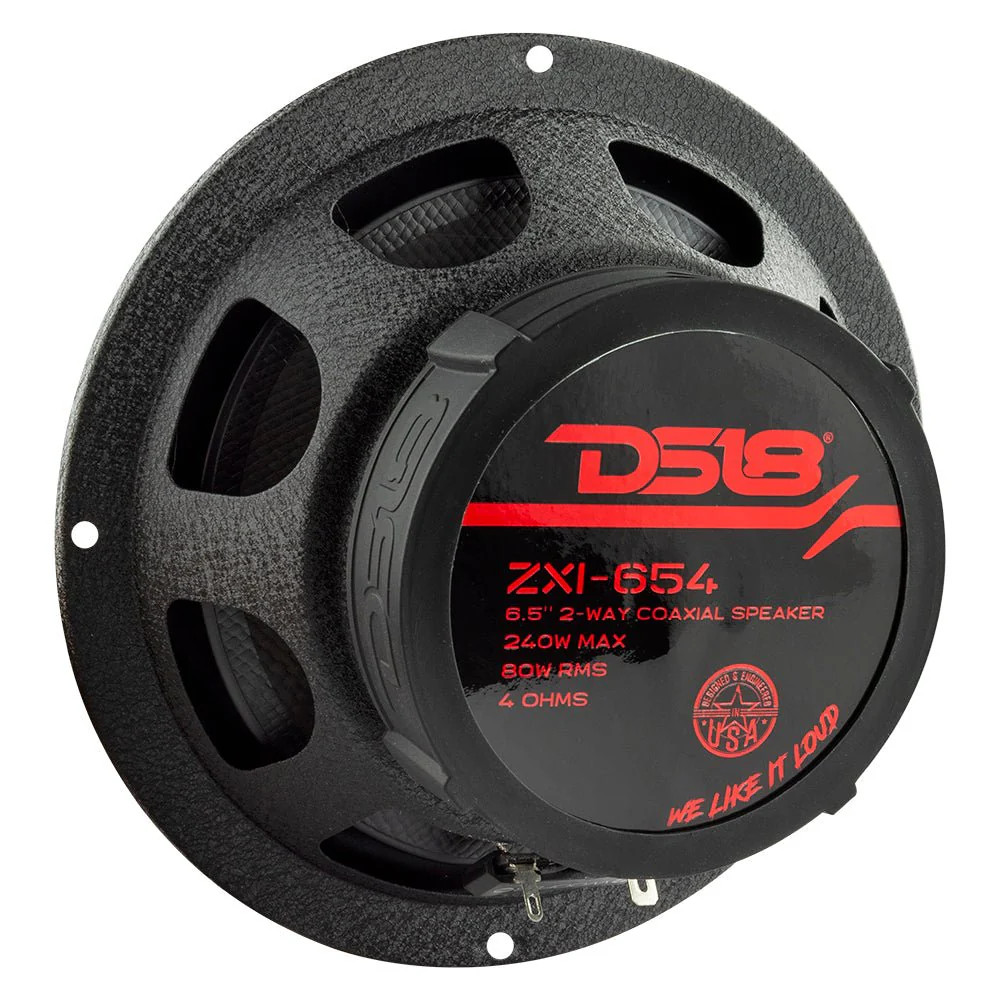

DS18 ZXI-654

No reviews yet Write a Review
$94.95
SKU:
ZXI-654
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 6.5" 2-Way Coaxial
  • MAX Power: 240 Watts
  • RMS Power: 80 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 87dB

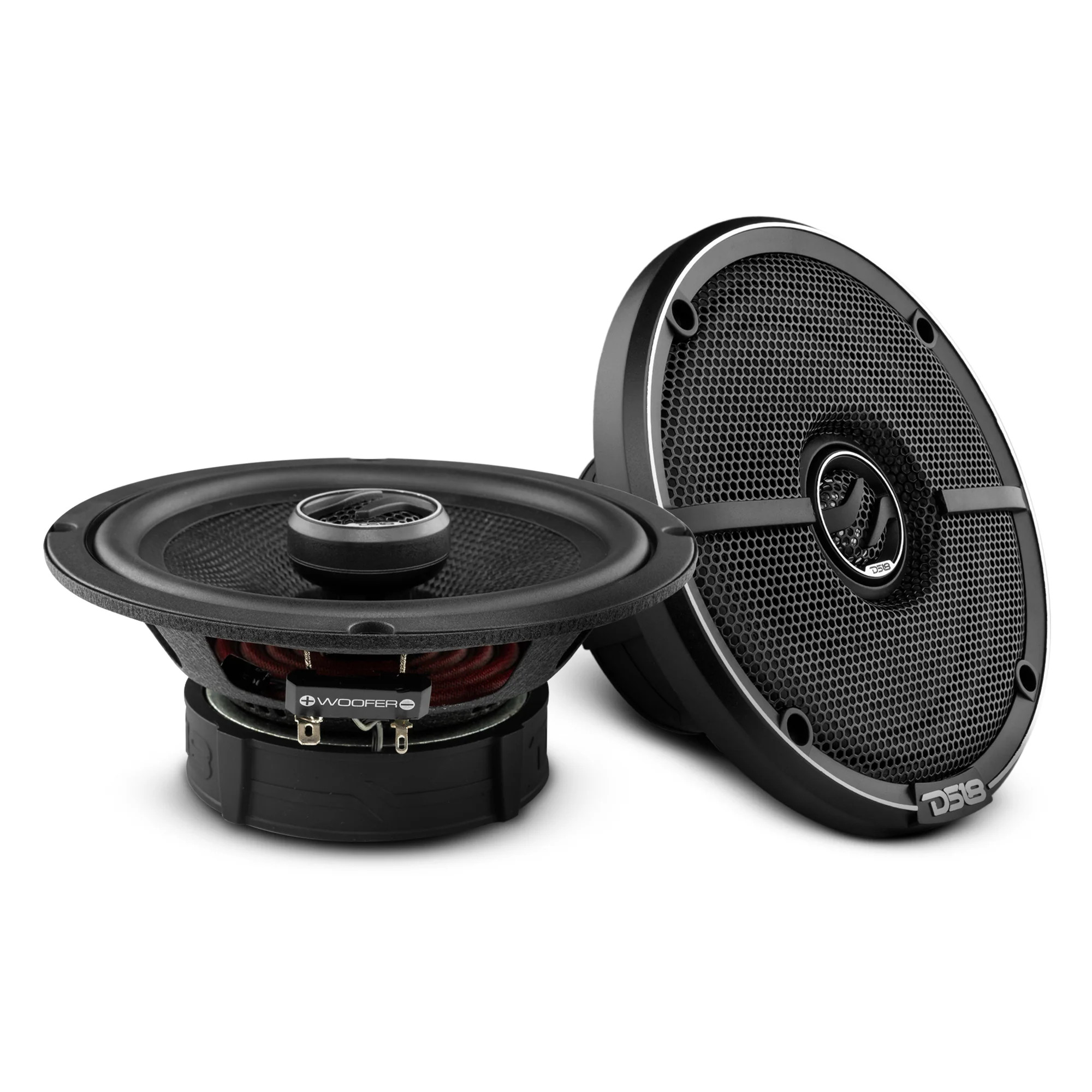

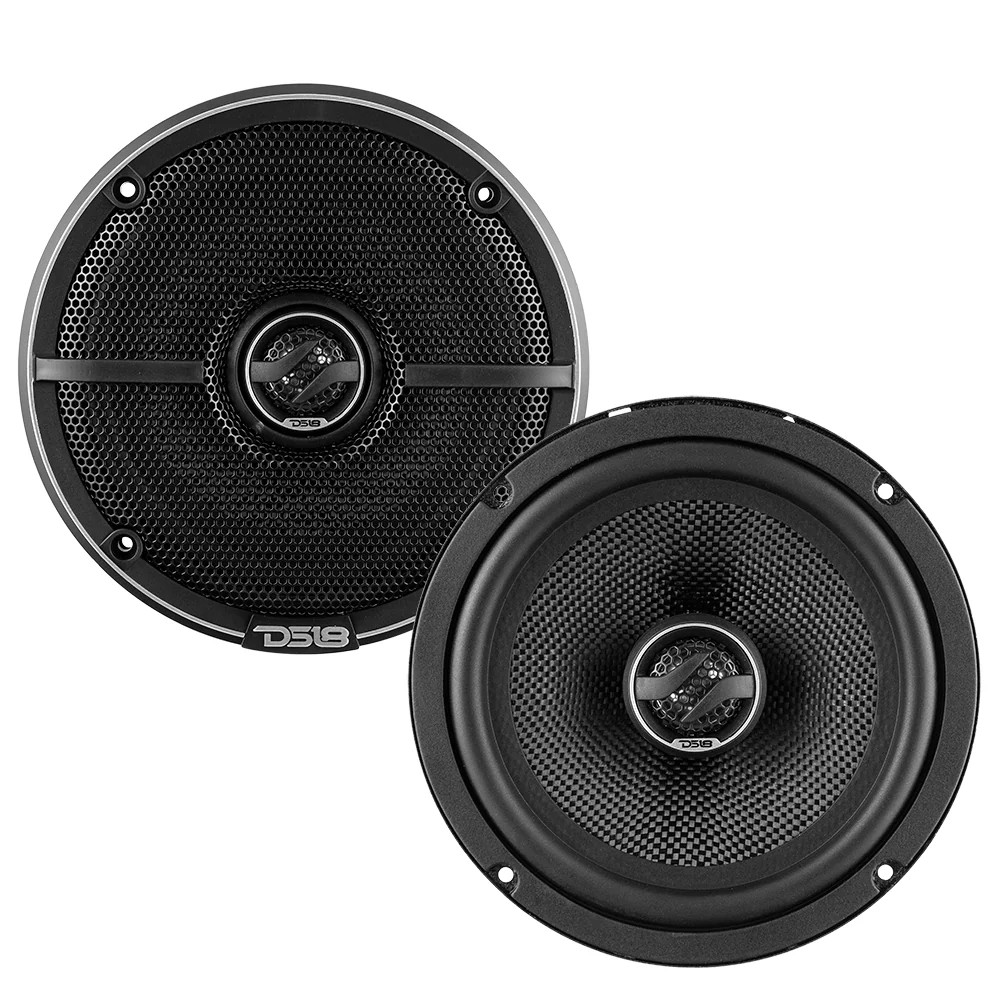

Kevlar 6.5" 2-Way Coaxial Car Speaker 240 Watts 4-Ohm

Experience music like never before with the DS18 ZXI-654 - the perfect solution for audiophiles looking to elevate their car audio system’s sound quality. This speaker is designed to deliver powerful sound with little to no distortion, ensuring an enhanced listening experience that will leave you wanting more.

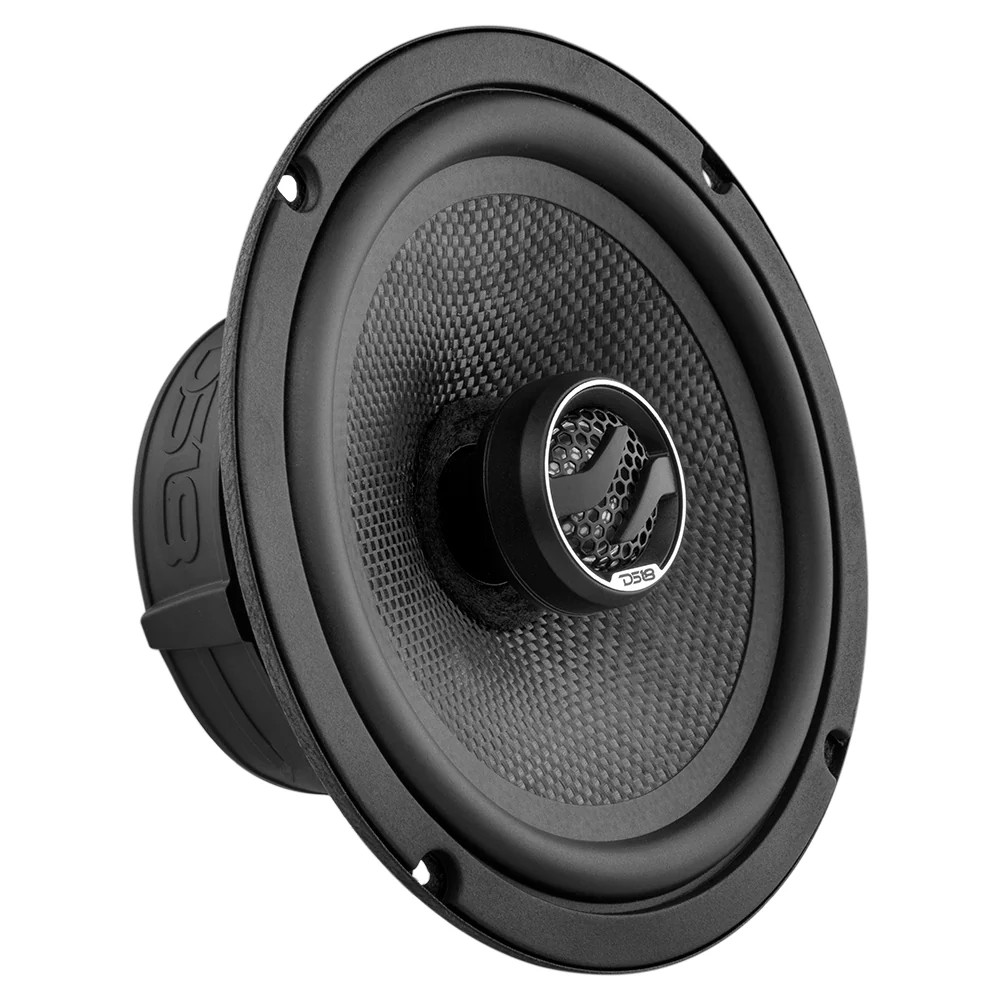

The ZXI-654 features a Kevlar cone woofer with a rubber surround, the perfect combination for delivering precise and punchy bass responses. Kevlar is a durable and lightweight material that is commonly used in bulletproof vests: but is ideal for creating speaker cones due to its excellent strength-to-weight ratio. Combined with the rubber surround the ZXI-654 comes with reduces unwanted vibrations, resulting in a cleaner and more accurate sound.

The 2-way design on the ZXI-654 equips the 6.5” woofer with a 1” Neodymium Magnet Tweeter, which delivers unmatched clarity and detail in the higher end of the frequency range. Neodymium magnets are known for their lightweight and powerful properties, allowing the speaker to reproduce accurate high frequencies without increasing the overall weight of the speaker resulting in a more balanced and natural sound.

With frequency responses ranging from 40Hz – 20KHz, the ZXI-654 is built to deliver clear and powerful sound across the entire frequency spectrum.

No matter where your car takes you, DS18’s ZXI-654 will immerse you in the music like never before. Upgrade with DS18’s ZXI-654 and experience the difference today.

Brand DS18
Nominal Diameter 6.5 Inches
Nominal Impedance 4 ohm
RMS Power Handing 80 WATTS
MAX Power Handing 240 WATTS
Sensitivity 89 dB
Frequency Response 40 Hz - 20 KHz
Recommended HI Pass 60 Hz
Speaker Type 2-Way
Midrange Specifications
Voice Coil Diameter 25.5 mm (1 inch)
Winding Material EISV
Cone Material Glass fiber
Surround Material Rubber
Basket Material Steel
Magnet Material Barium Ferrite
Magnet Weight 14.46 oz / 410 g
Tweeter Specifications
Nominal Diameter 25.4 mm (1 inch)
Voice Coil Diameter 20.4 mm (0.8 inch)
Winding Material EISVM
Diaphragm Material PEI
Magnet Material Neodymium
Magnet Weight 8.5 g / 0.3 oz
Vas 10.84 LTR
Xmax 2.7 mm
Fs 64 Hz
Qms 9.44
Qes 0.79
Qts 0.73
Mms 13.72 g
Cms 444 mm / N
BL 5.1
Le 228 mH
Sd 131 cm2
Re 3.5 ohm
Mmd 12 g

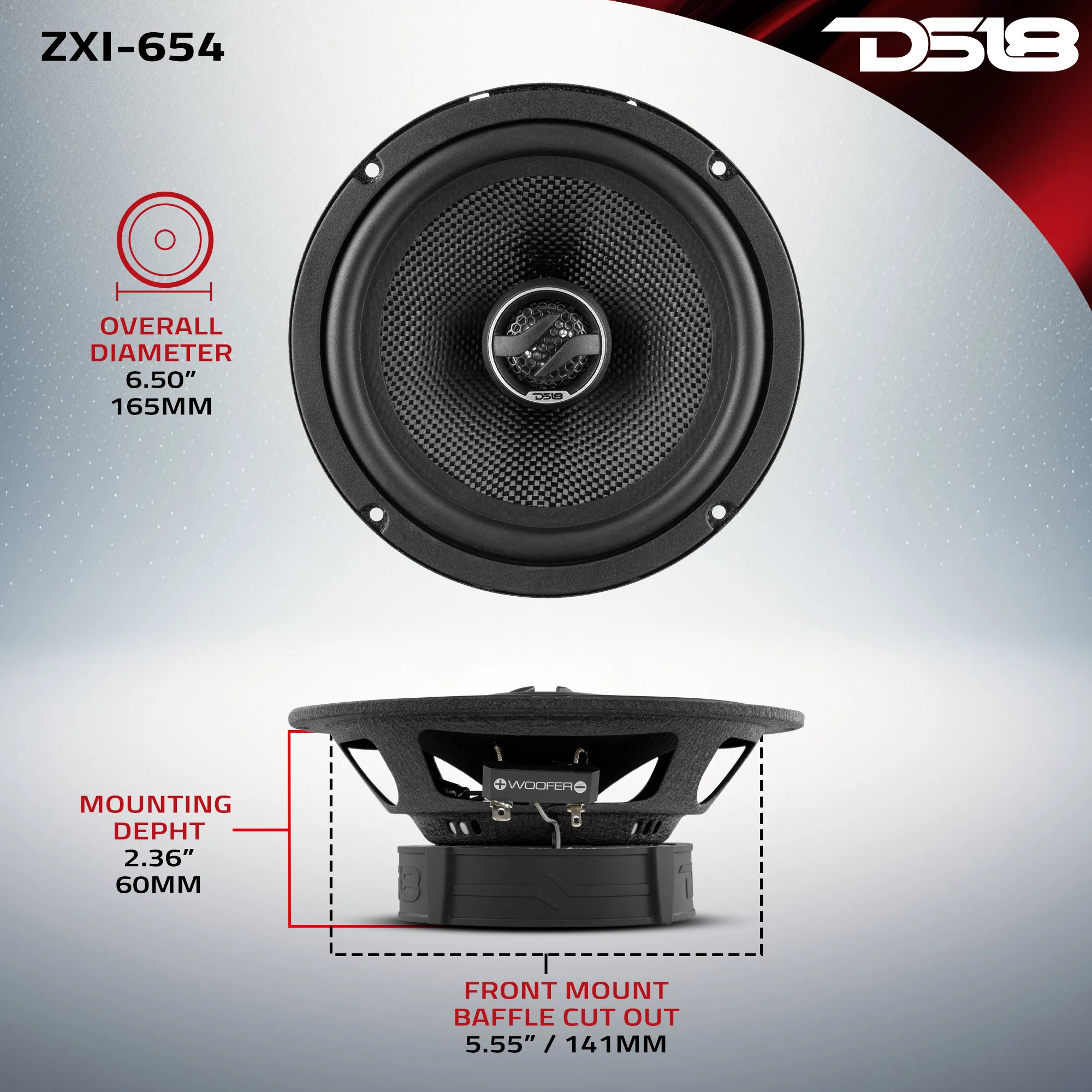

Overall Diameter 6.50 inch (165 mm)
Overall Depth 72 mm (2.83 inch)
Front Mount Baffle Cutout 141 mm (5.55 inch)
Mounting Depth 60 mm (2.36 inch)
Motor Diameter 94 mm (3.70 inch)
Product Weight 5.5 lbs
Product Dimensions 15.75 x 7.75 x 3.75
Parts Warranty 1 Year
Labor Warranty 1 Year
