General Features:
- 4X6" 2-Way Coaxial
- MAX Power: 180 Watts
- RMS Power: 60 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 87dB

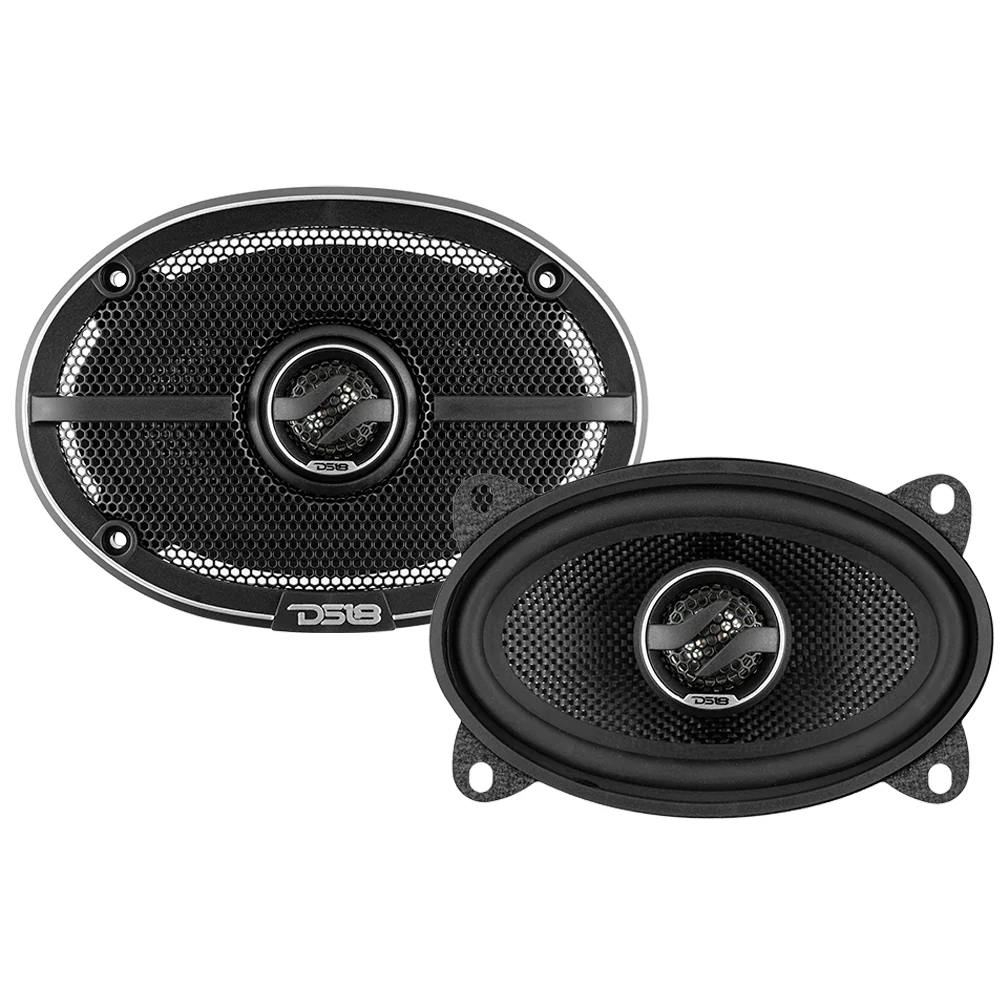

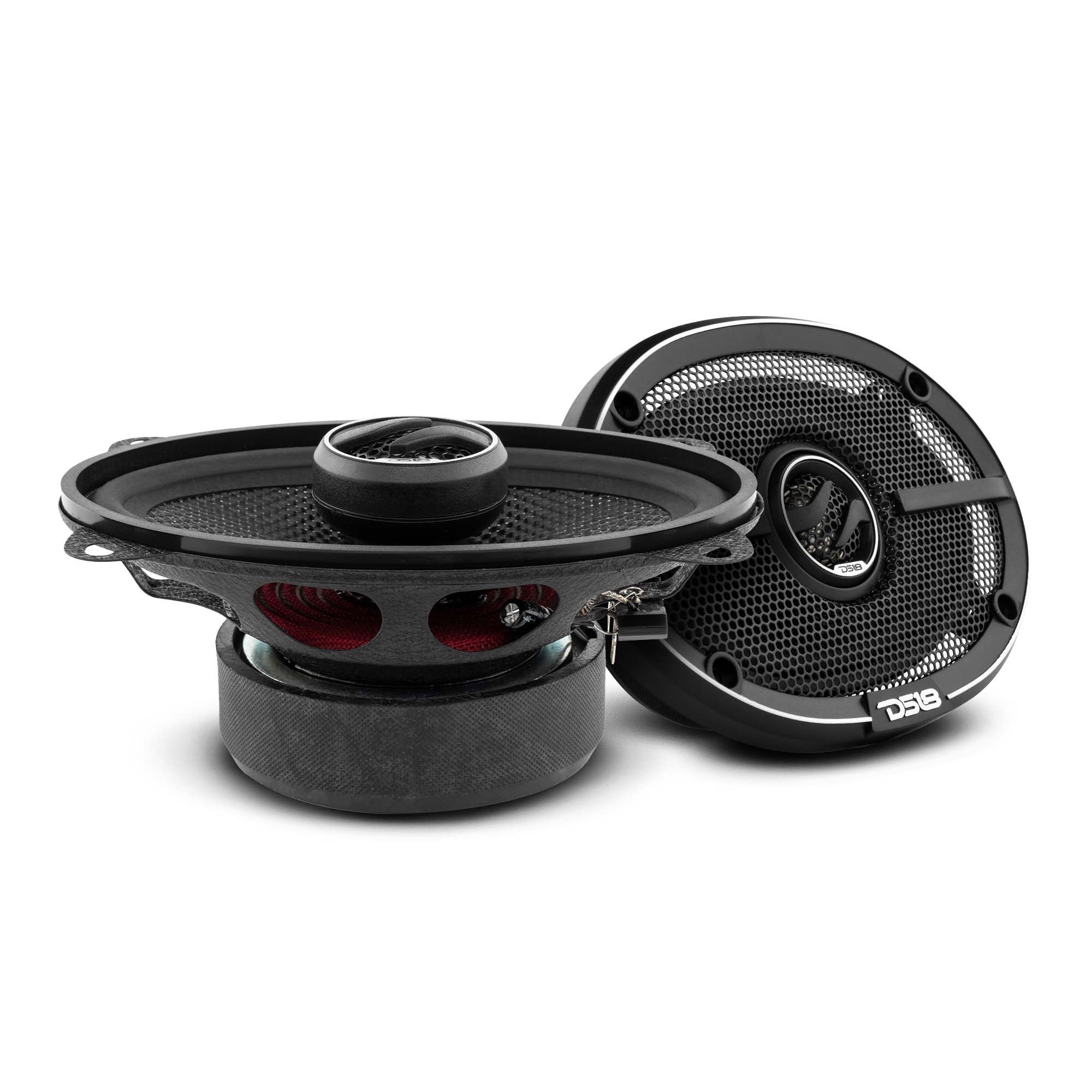

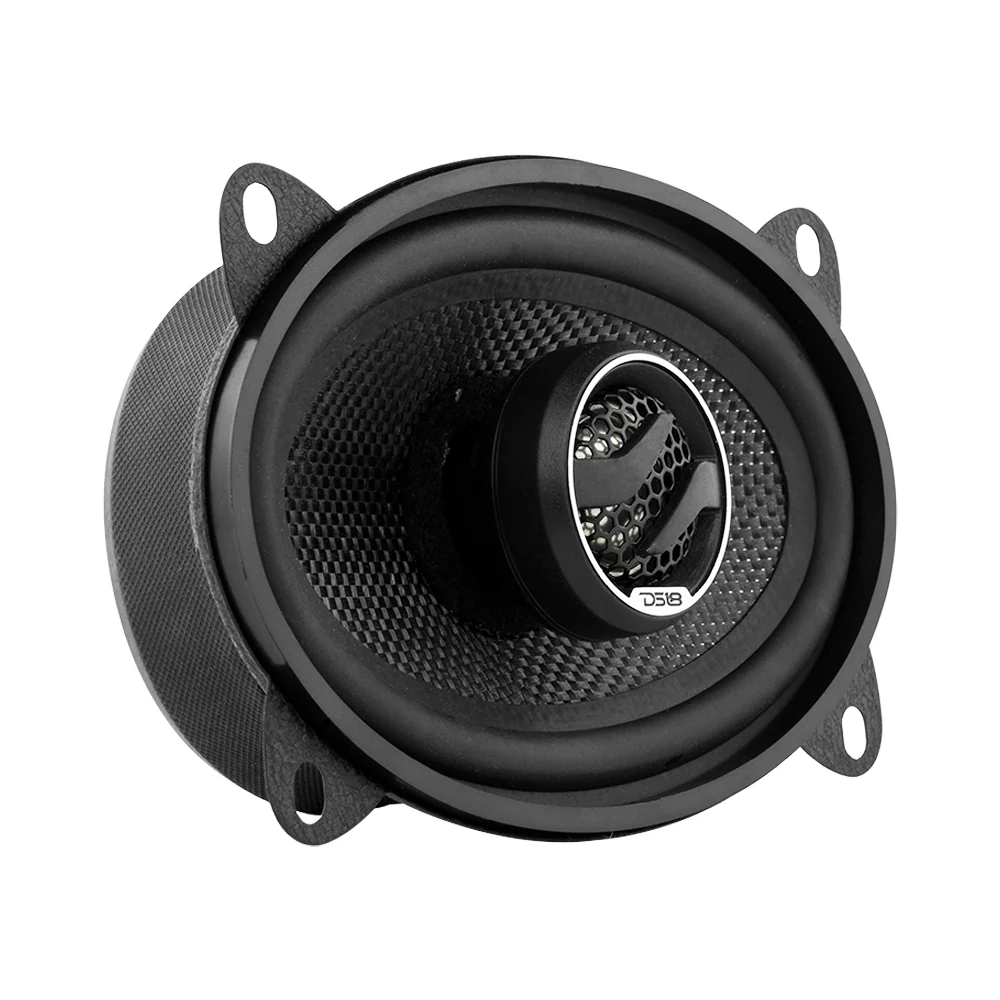

Kevlar 4x6" 2-Way Coaxial Car Speaker 180 Watts 4-Ohm
Experience music like never before with the DS18 ZXI-464 - the perfect solution for audiophiles looking to elevate their car audio system’s sound quality. This speaker is designed to deliver powerful sound with little to no distortion, ensuring an enhanced listening experience that will leave you wanting more.
The ZXI-464 features a Kevlar cone woofer with a rubber surround, the perfect combination for delivering precise and punchy bass responses. Kevlar is a durable and lightweight material that is commonly used in bulletproof vests: but is ideal for creating speaker cones due to its excellent strength-to-weight ratio. Combined with the rubber surround the ZXI-464 comes with reduces unwanted vibrations, resulting in a cleaner and more accurate sound.

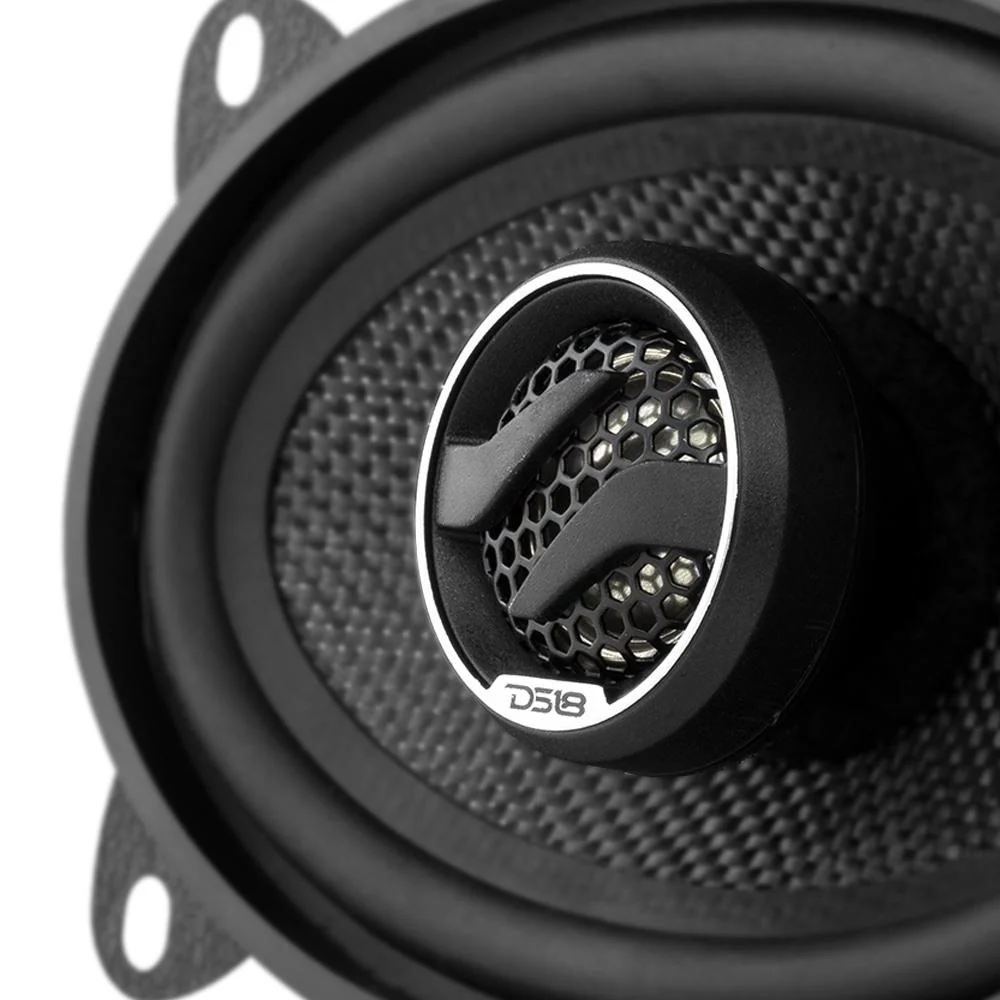

The 2-way design on the ZXI-464 equips the 4x6” woofer with a 1” Neodymium Magnet Tweeter, which delivers unmatched clarity and detail in the higher end of the frequency range. Neodymium magnets are known for their lightweight and powerful properties, allowing the speaker to reproduce accurate high frequencies without increasing the overall weight of the speaker resulting in a more balanced and natural sound.
With frequency responses ranging from 80Hz – 20KHz, the ZXI-464 is built to deliver clear and powerful sound across the entire frequency spectrum.
No matter where your car takes you, DS18’s ZXI-464 will immerse you in the music like never before. Upgrade with DS18’s ZXI-464 and experience the difference today.
| Brand | DS18 |
| Nominal Diameter | 4 X 6 Inches |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 60 WATTS |
| MAX Power Handing | 180 WATTS |
| Sensitivity | 87 dB |
| Frequency Response | 80 Hz - 20 KHz |
| Recommended HI Pass | 100 Hz |
| Speaker Type | 2-Way |
| Voice Coil Diameter | 25.5 mm (1 inch) |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 10.9 oz / 310 g |
| Nominal Diameter | 25.4 mm (1 inch) |
| Voice Coil Diameter | 20.4 mm (0.8 inch) |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 8.5 g / 0.3 oz |
| Vas | 1.989 LTR |
| Xmax | 2.3 mm |
| Fs | 77 Hz |
| Qms | 5.97 |
| Qes | 1.15 |
| Qts | 0.97 |
| Mms | 9.79 g |
| Cms | 232 mm / N |
| BL | 4.44 |
| Le | 216 mH |
| Sd | 77.7 cm2 |
| Re | 3.5 ohm |
| Mmd | 9 g |

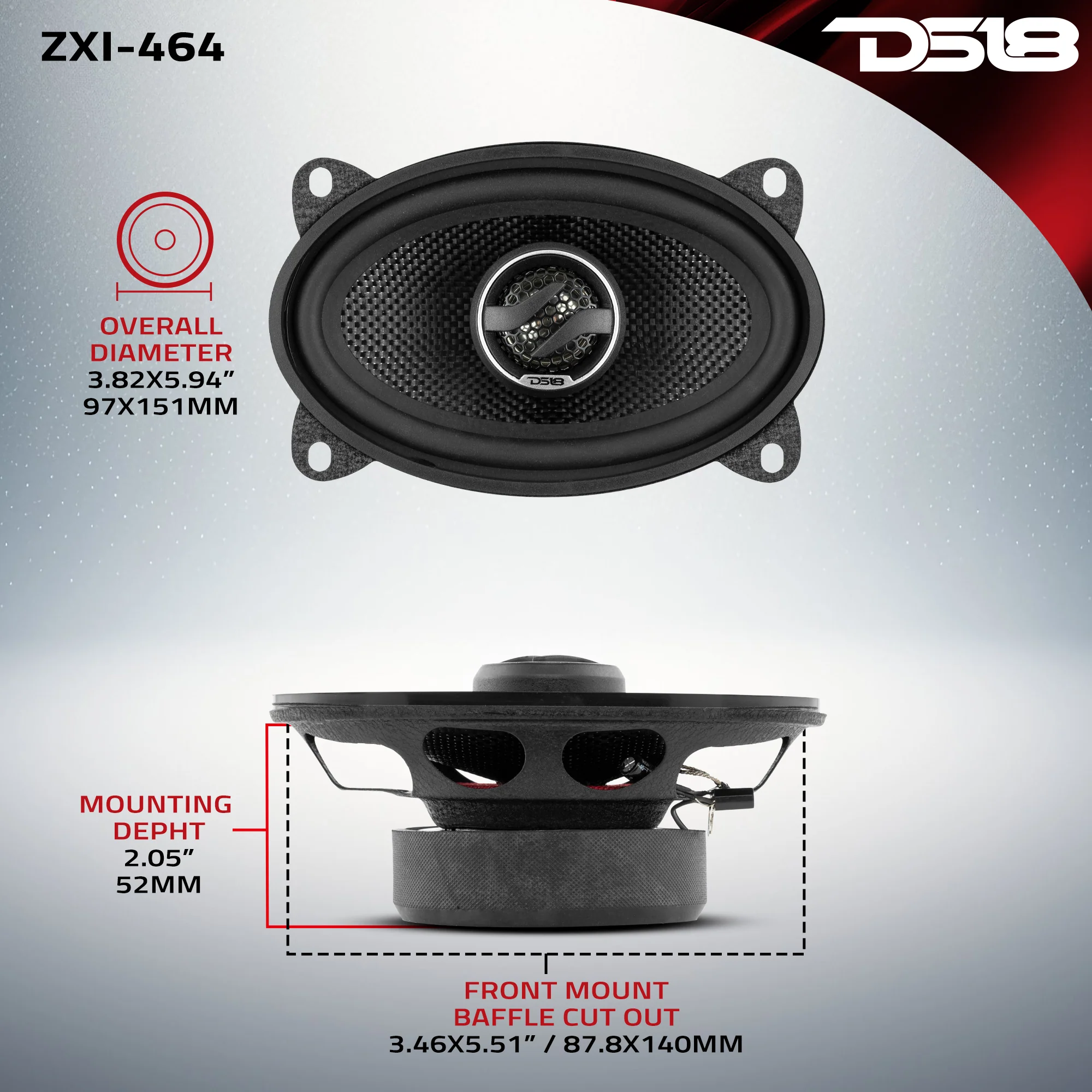

| Overall Diameter | 3.82 x 5.94 inch (97 x 151 mm) |
| Overall Depth | 71 mm (2.80 inch) |
| Front Mount Baffle Cutout | 87.8 x 140 mm (3.46 x 5.51 inch) |
| Mounting Depth | 52 mm (2.05 inch) |
| Motor Diameter | 84 mm (3.31 inch) |
| Product Weight | 4.5 lbs |
| Product Dimensions | 11.5 x 8 x 3.5 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
