DS18 ZR10.4D

DS18 10" 700W RMS DVC 4-Ohm ZR Series Car Subwoofer
No reviews yet Write a Review
$179.95
SKU:
ZR10.4D
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 10" Subwoofer
  • MAX Power: 1400 Watts
  • RMS Power: 700 Watts
  • Impedance: 4-Ohm 2.5" DVC
  • Ferrite Magnet
  • 81dB

10” Car Subwoofer 1400W 4-Ohm DVC

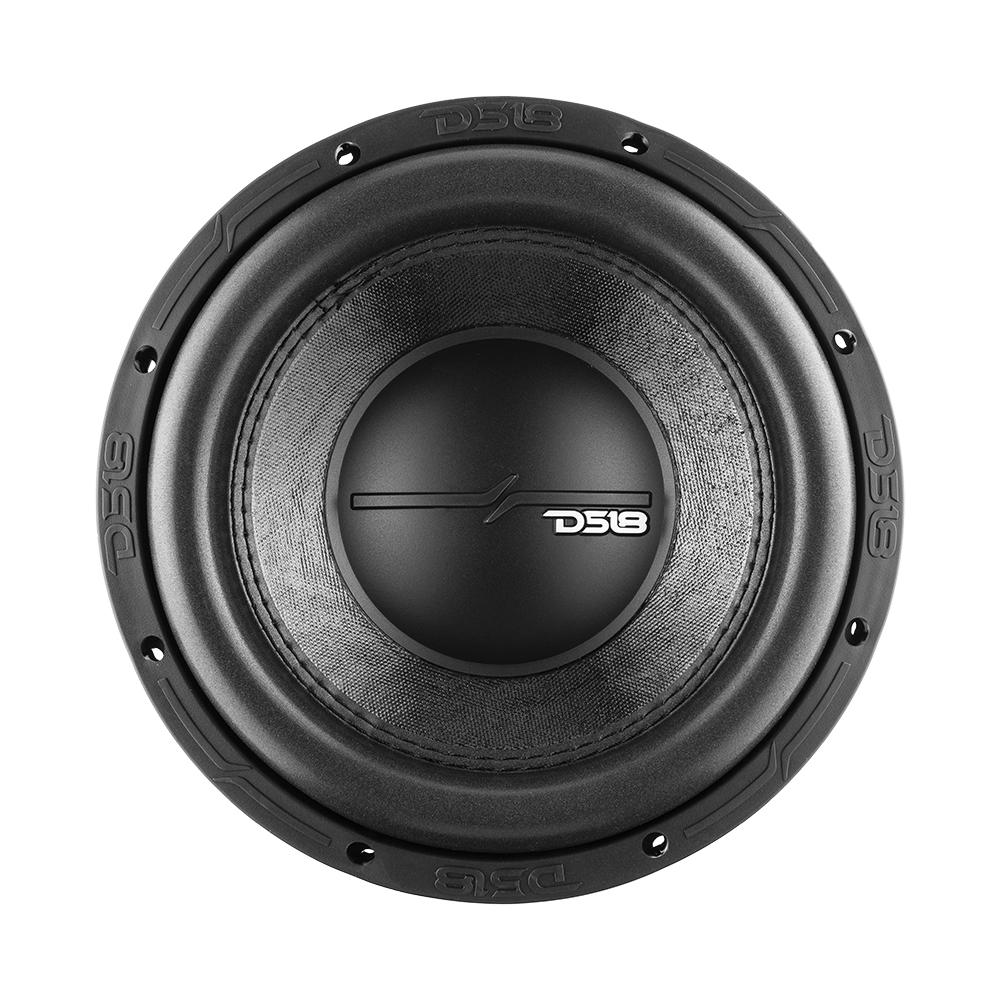

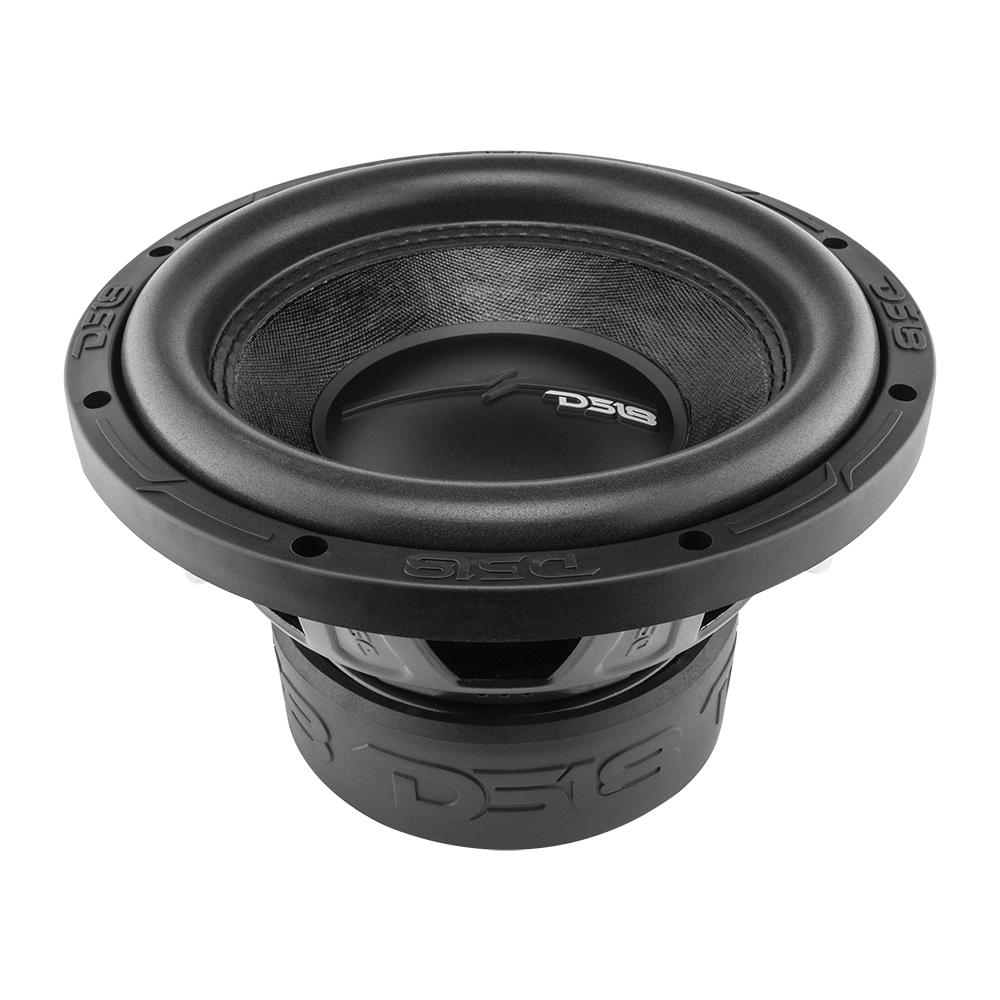

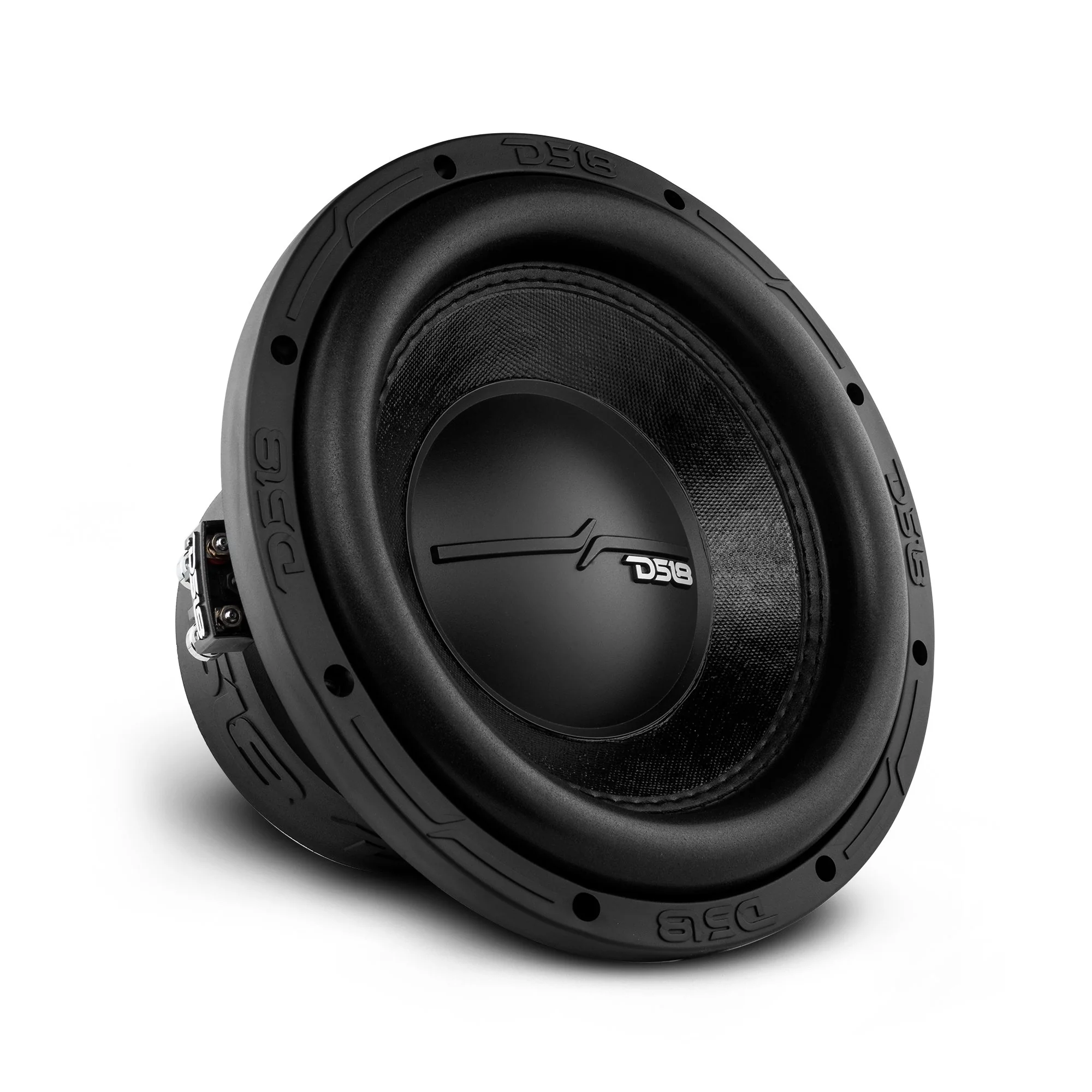

Introducing the DS18 ZR10.4D, a true powerhouse designed to deliver mind-blowing bass and precision performance.

The ZR subline is renowned for its exceptional performance, and the ZR10.4D is no exception. With a robust 1400W of MAX power handling and 700W of RMS power handling, the ZR10.4D guarantees a spine-tingling audio experience that will leave you craving for more. Its 2.5-inch high-strength aluminum voice coil ensures that every note is delivered with precision and clarity, elevating your car audio system to new heights. Its 4+4 ohm dual voice coil configuration allows you to match your amplifier's optimal impedance, providing maximum power transfer and efficiency.

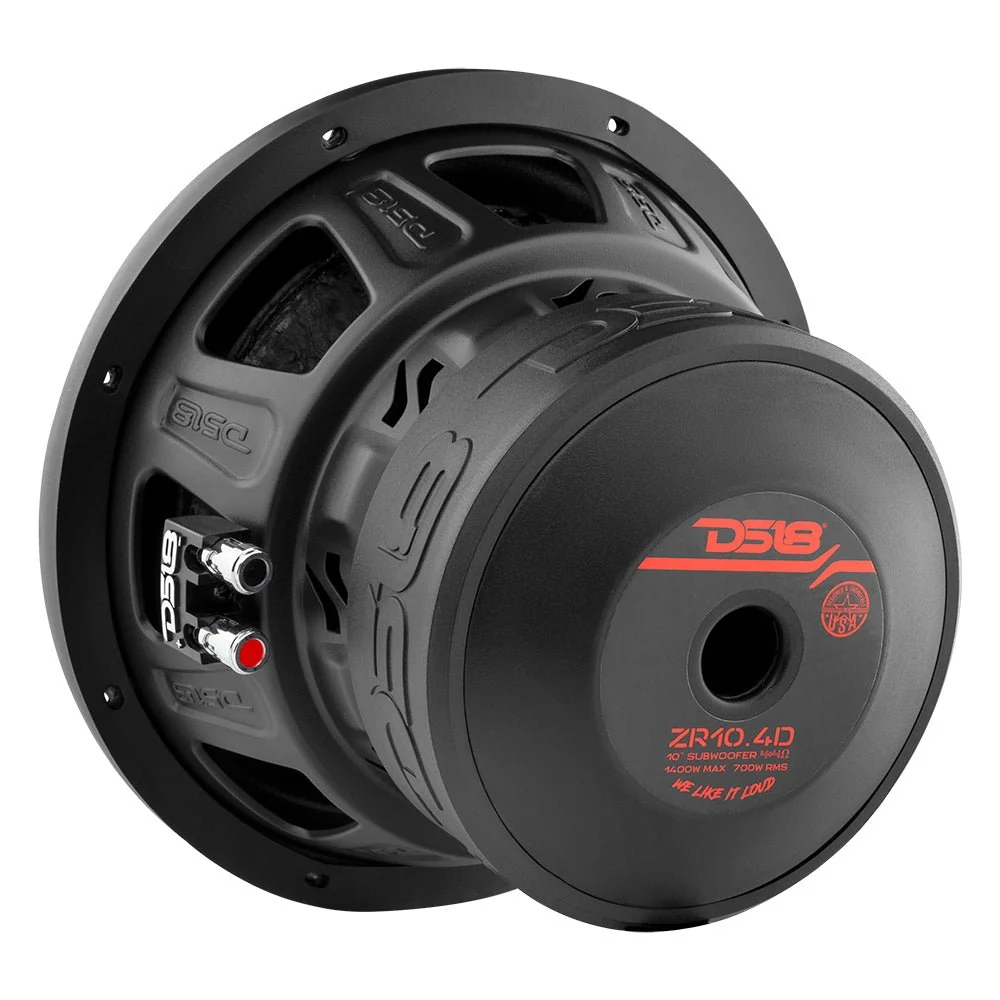

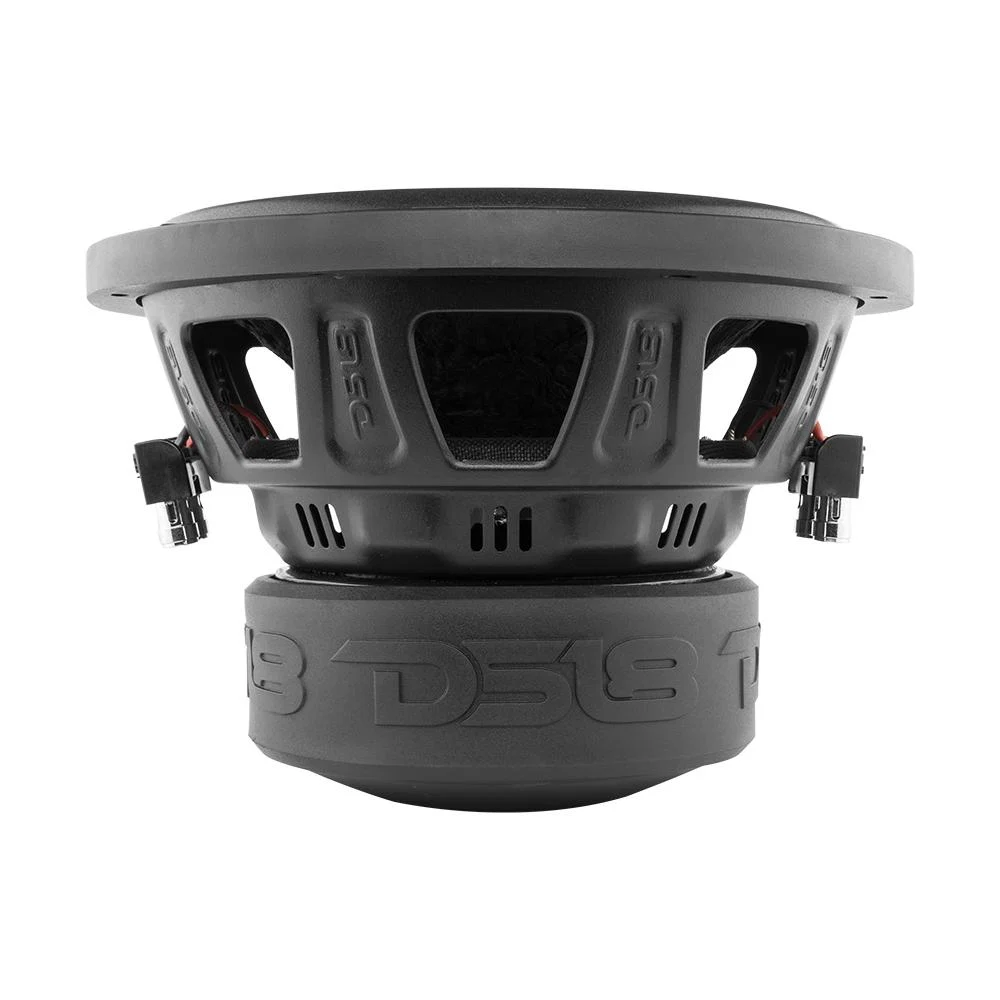

With DS18’s ZR10.4D, you don't just get exceptional performance; you also get unmatched style and unbreakable durability. The ZR10.4D features a strong stamped basket that not only provides structural integrity but also showcases show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. Its matte black finish adds a touch of elegance, making it a visually stunning addition to any car audio setup.

With a frequency response ranging from 27Hz to 200Hz and a sensitivity of 81 dB, the ZR10.4D captures every nuance of your music, delivering it with crystal-clear precision. The recommended low-pass crossover of 100Hz ensures seamless integration with your existing audio system, allowing your music to shine in all its glory.

With its striking design, exceptional performance, and versatility, the ZR10.4D is the perfect choice for car audio enthusiasts who demand nothing but the best.

Brand DS18
Nominal Diameter 10" / 254mm
Nominal Impedance 4 + 4 Ohm
RMS Power Handling 700W
Maximum Power Handling 1400W
Sensitivity (1w/1m) 81 dB
Frequency Response 27-200Hz
Recommended Lo Pass Crossover 100Hz
Voice Coil Diameter 2.5" / 61.6mm
Voice Coil Former Material Aluminum
Winding Material Copper
Cone Material Non-Pressed Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel
Basket Color/Finish Black Matte
Magnet Material Ferrite
Magnet Weight 100 Oz
Displacement Volume 0.05 ft3
Equivalent Volume Vas 8.18 L
Free Air Resonance Fs 37 Hz
Mechanical Factor Qms 4.86
Electrical Factor Qes 0.93
Total Factor Qts 0.78
Moving Mass Mms 216.3g
Compliance Cms 52.8? m/N
Bl Factor BI 10.7
Voice Coil Inductance Le 823.5m mH
Diaphragm Area Sd 333.29 Cm2
DC Resistance Re 3.4 + 3.4 Ohm
Efficiency Bandwidth Product EBP 39.78

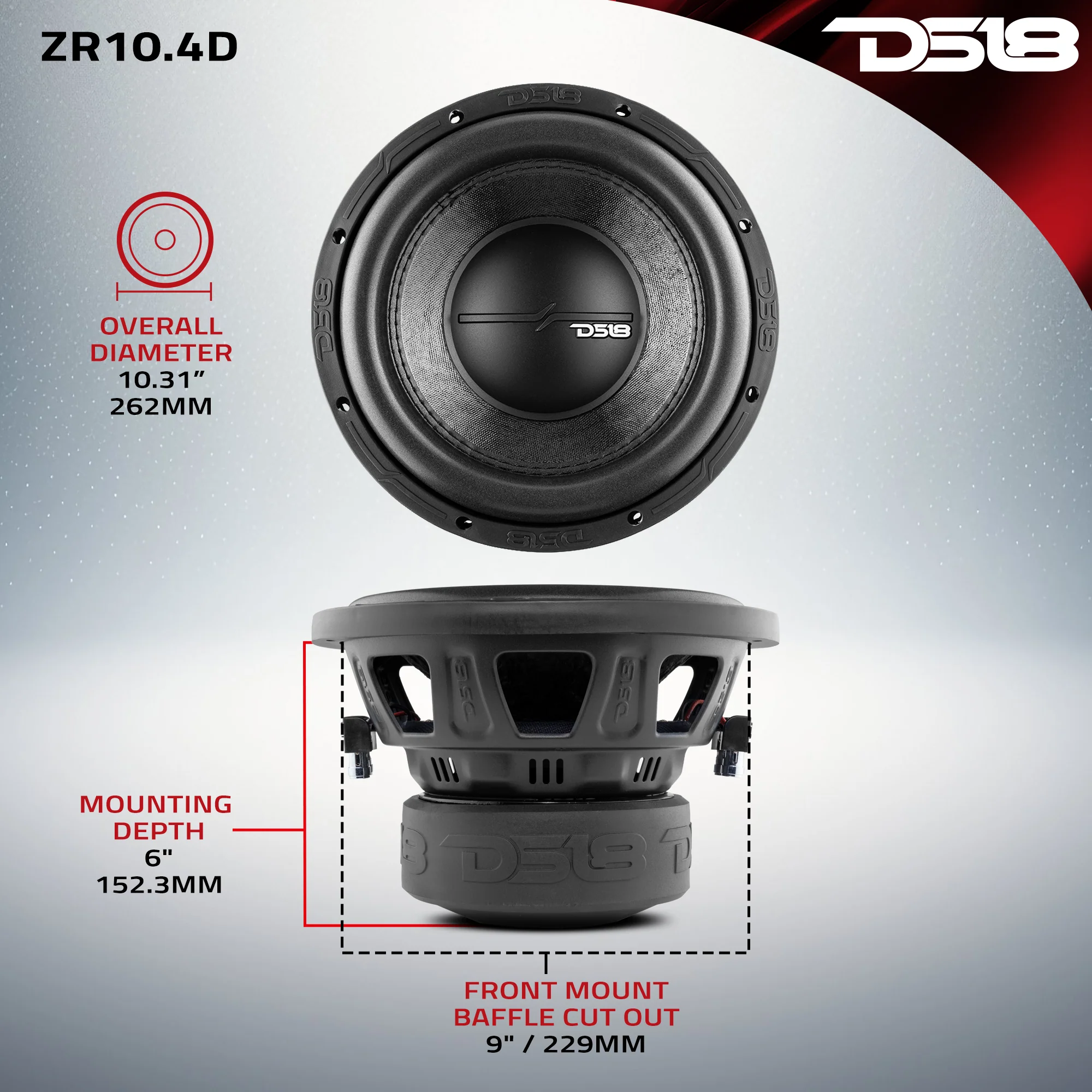

Overall Diameter 10.31" / 262mm
Overall Depth 6.92" / 176mm
Front Mount Baffle Cutout 9" / 229mm
Mounting Depth 6" / 152.3mm
Motor Diameter 6.1" / 155mm
Gross Single Unit Weight (lb) 17.5
Dimensions W x L x H (Inches) 11.5 x 11.5 x 8.25
Parts Warranty 1 Year
Labor Warranty 1 Year
