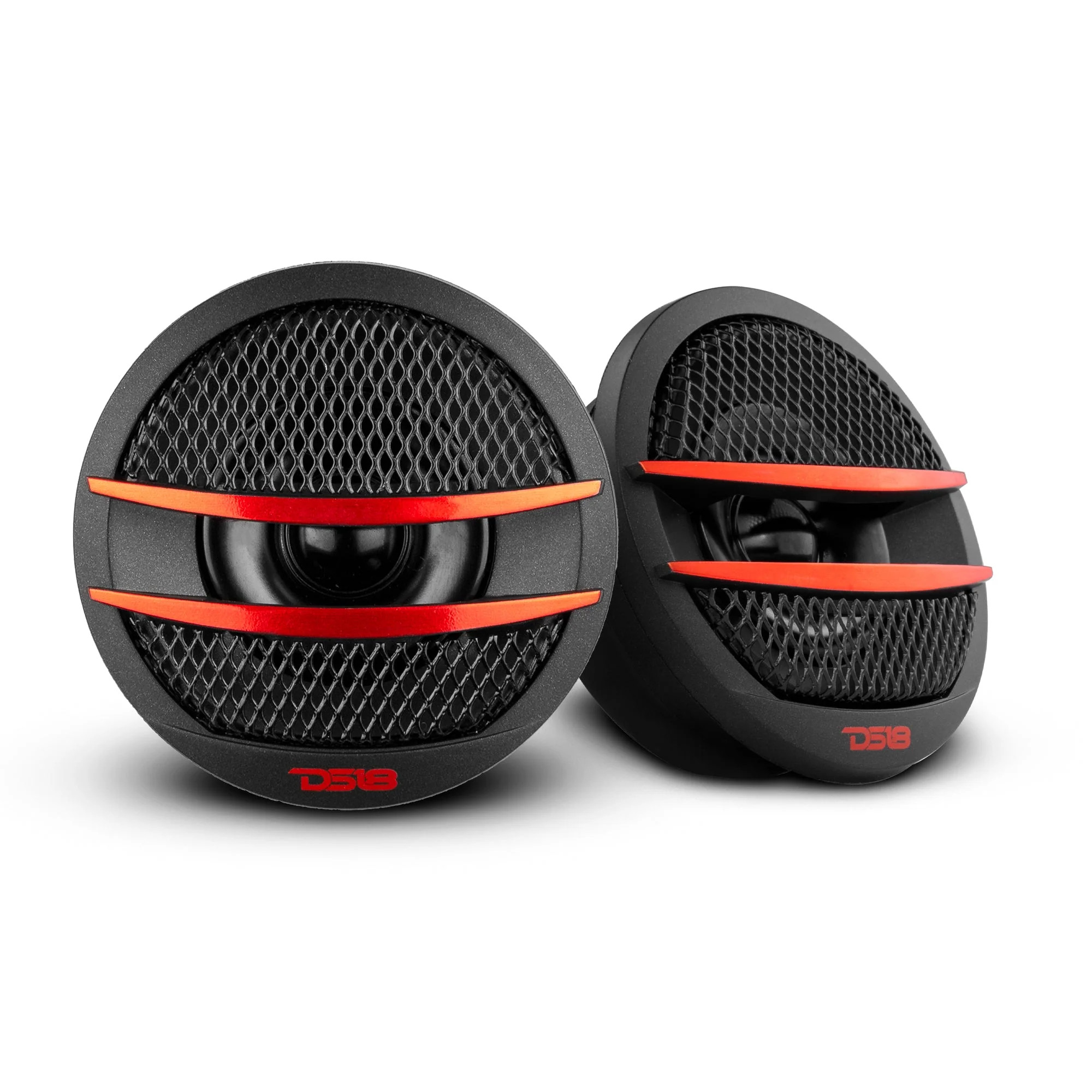

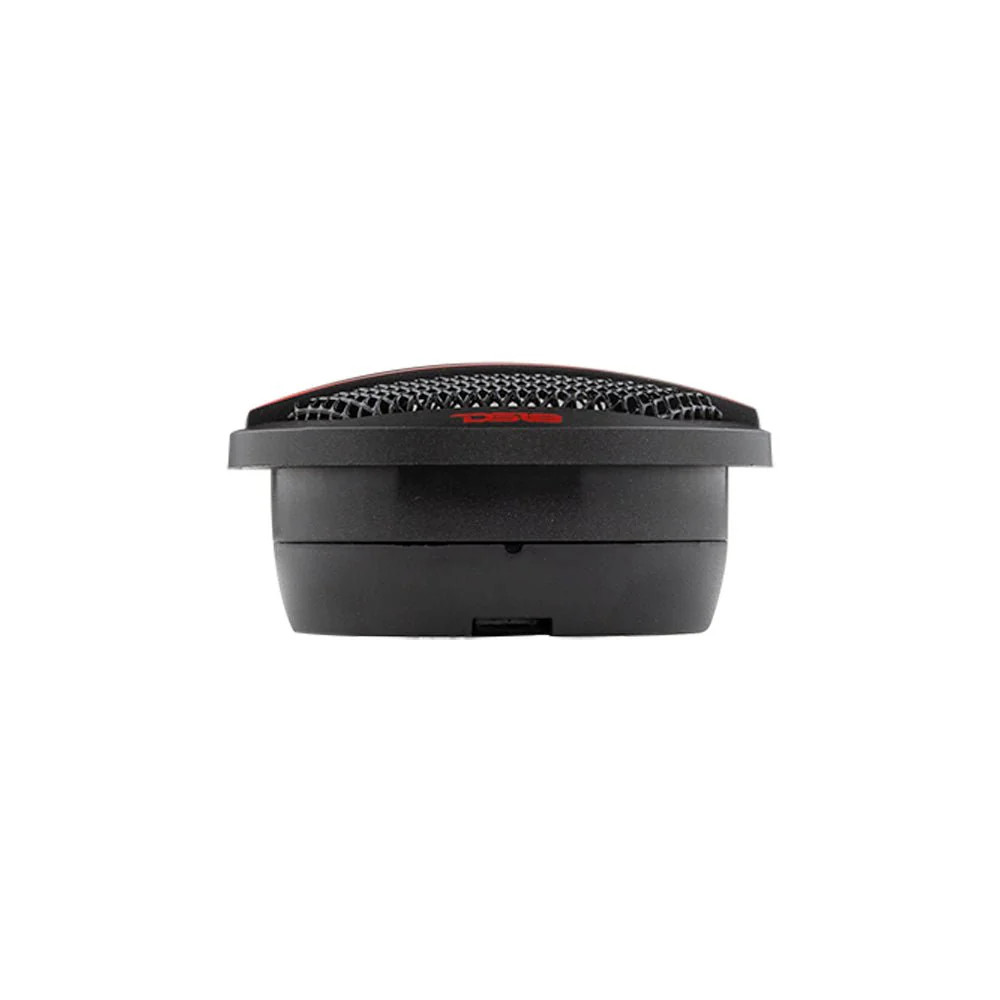

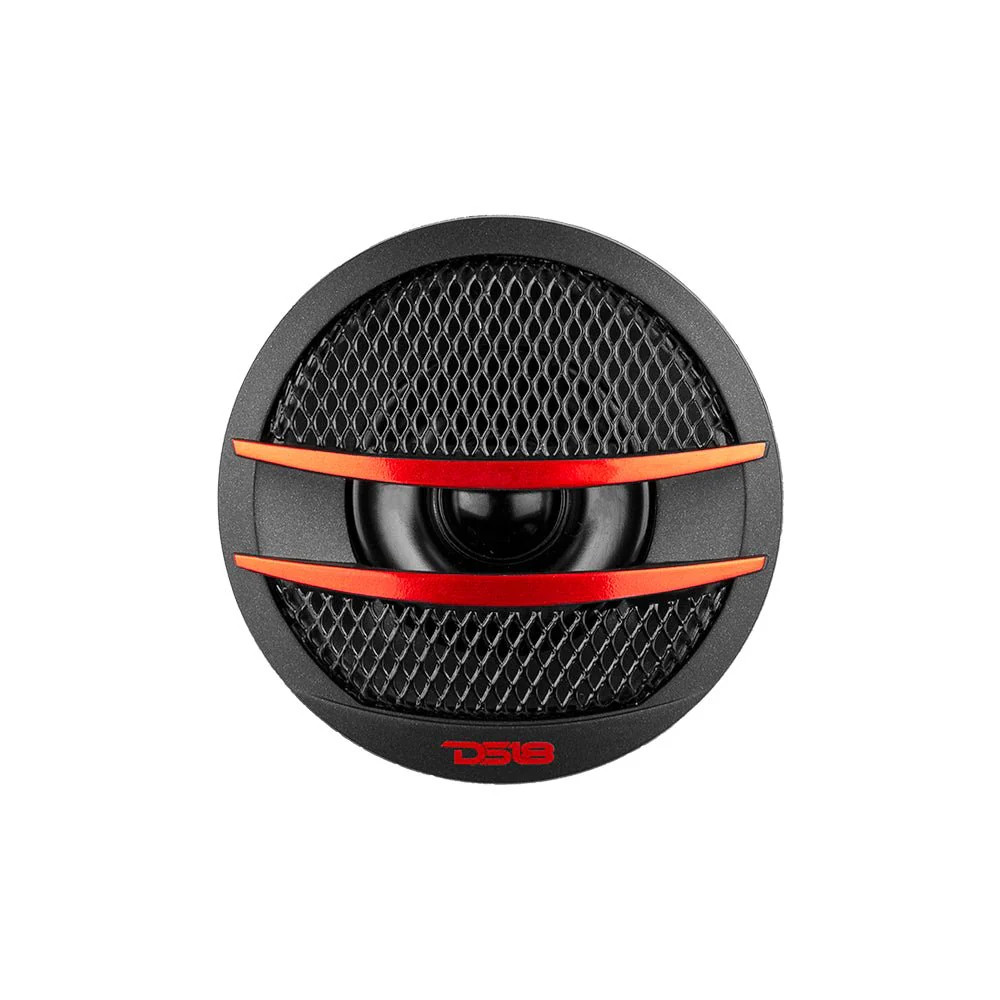

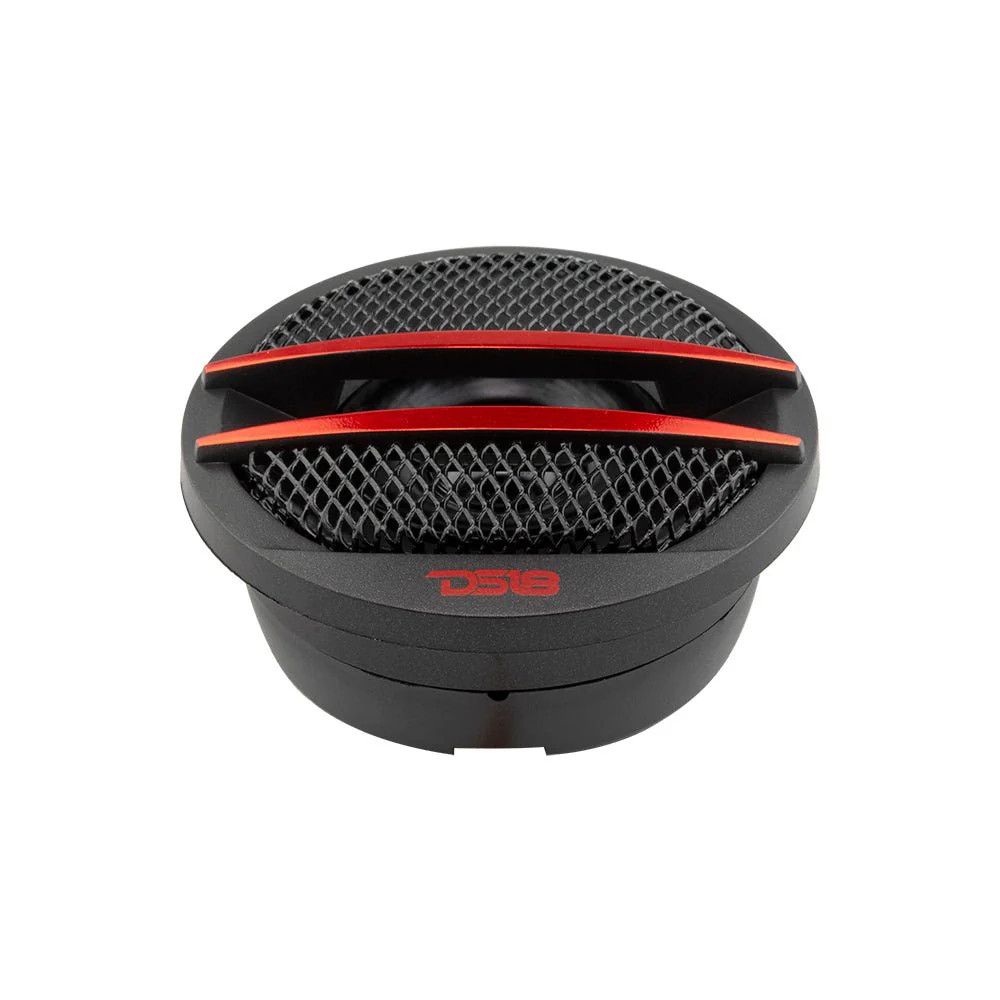

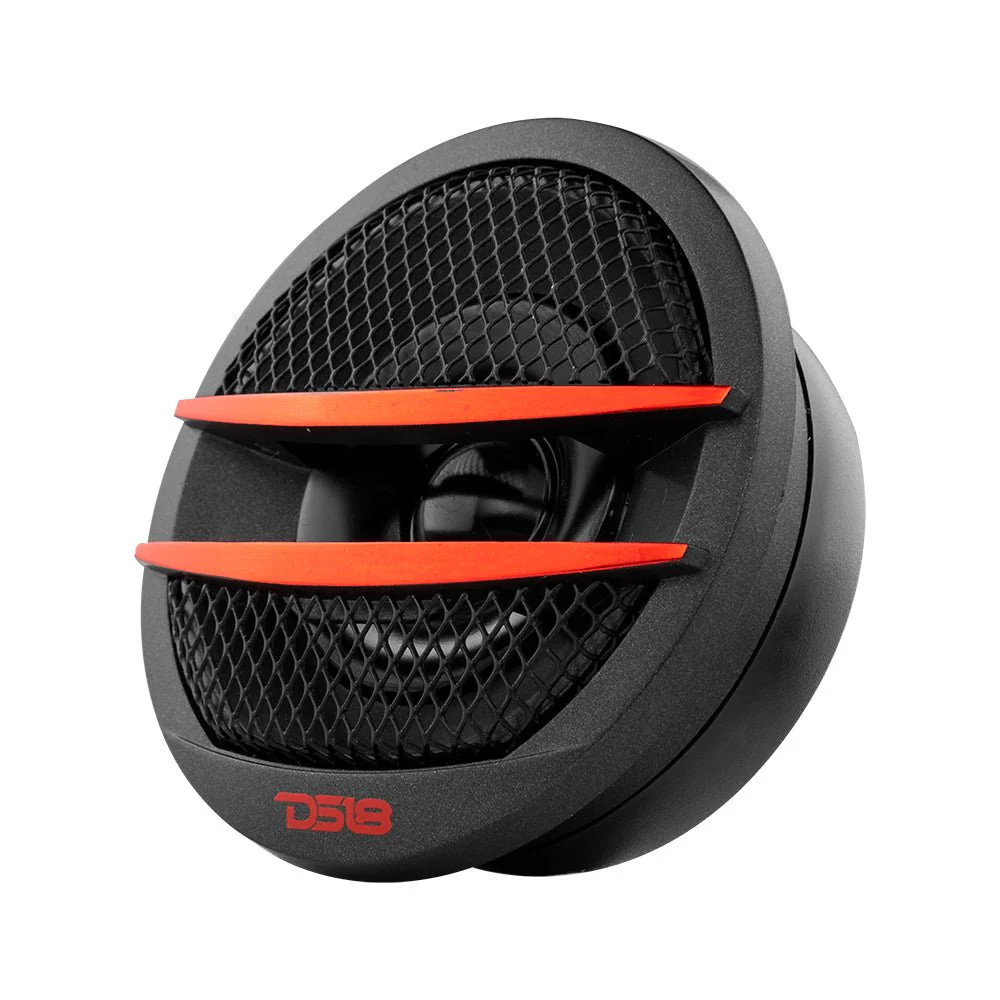

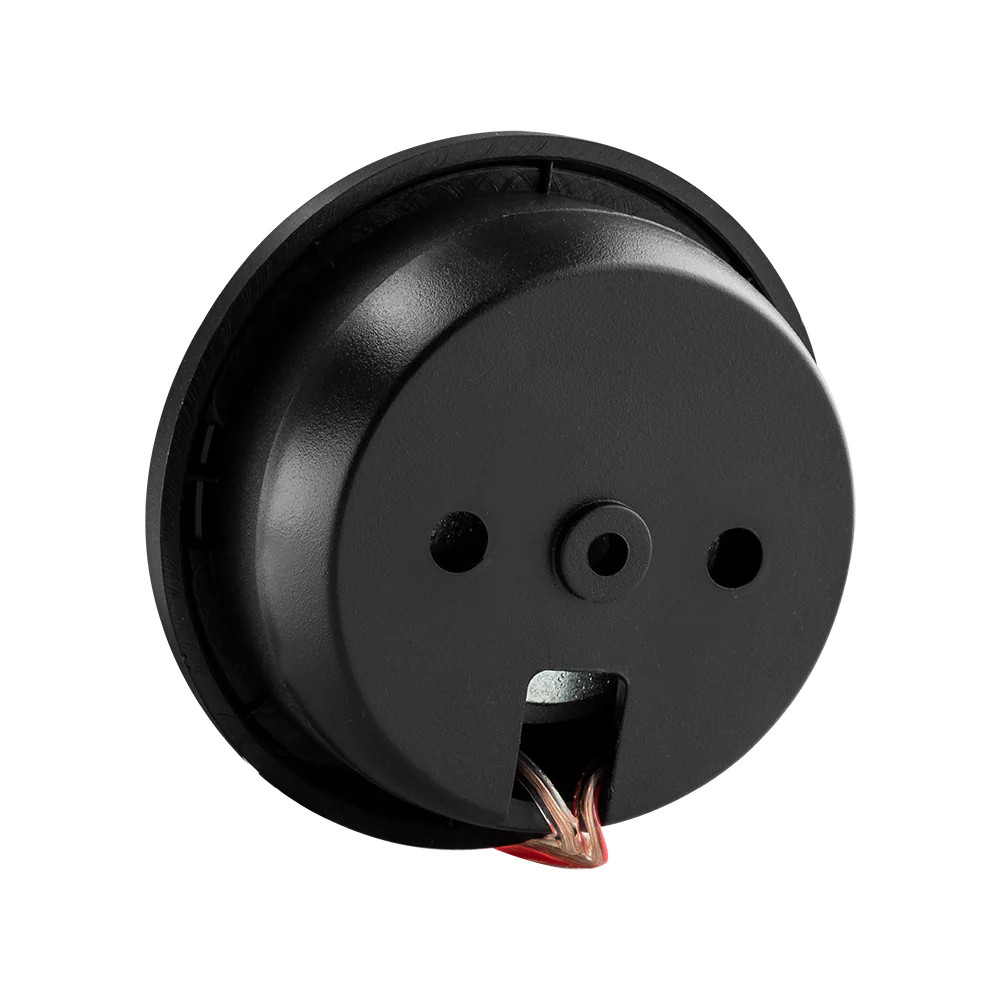

DS18 TX1R

No reviews yet Write a Review
$21.95
SKU:
TX1R
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 2" PEI Dome Tweeter
  • RMS Power: 50 Watts(200 Watts Peak)
  • Impedance: 4 Ohm ~ 88dB
  • Ferrite Magnet
  • Red
  • Pair

2" PEI Dome Ferrite Tweeter 0.5” VC 200W (PAIR)

Engineered and designed in the USA by DS18, the TX1 is not just any ordinary tweeter; it's a masterpiece crafted to elevate your car audio experience to new heights.

The TX1 redefines accuracy in high-frequency reproduction. These compact titans pack a punch, with an astonishing 200W of MAX Power Handling. With such immense power at your disposal, your high frequencies will soar through the air, reaching every corner of your vehicle with clarity and precision.

With a frequency response ranging from 2KHz to 20KHz, the TX1 will sweep you away on a journey through the entire musical spectrum. Whether it's the delicate tinkling of cymbals or the soaring vocals of your favorite artist, every nuance and detail will be faithfully reproduced, leaving you spellbound.

DS18 understands the importance of maximizing space in your vehicle. The TX1 tweeters are ingeniously crafted to provide exceptional performance while minimizing the amount of space they occupy. Their 2-inch PEI dome design ensures they seamlessly integrate into your car's audio system, fitting snugly into most factory tweeter locations on factory amplifiers. Embrace the power of superior sound without sacrificing valuable real estate in your car.


The TX1 tweeters slim design also allows it to effortlessly adapt to various applications with minimal fabrication. Let your imagination run wild as you explore the endless possibilities of where to place these remarkable tweeters. Transform your car into a concert hall on wheels, with every seat enveloped in immersive audio.

Brand DS18
Nominal Diameter 2"
Nominal Impedance 4 OHMS
AES Power Handling 25W
Program Power Handling 50W
Peak Power Handling 200W
Sensitivity (1w/1m) 88 dB
Frequency Response 2K-20KHz
Recommended Hi Pass Crossover 3KHz
Pair Yes
Voice Coil Diameter 0.5"
Voice Coil Former Material KSV
Diaphragm Material PEI Dome
Magnet Material Ferrite
Body Material Plastic
Overall Diameter 2.4" / 60.96mm
Overall Height 1.24" / 31.49mm
Front Mount Baffle Cutout 2" / 50.8mm
Mounting Depth 0.71" / 18.03mm
Product Weight 0.5 lbs
Product Dimensions 8 x 5 x 1.75
Parts Warranty 1 Year
Labor Warranty 1 Year
