General Features:
- Subwoofer Monoblock Amplifier
- 1 Channel
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 800 Watts @ 1 Ohm
- Compact Design
Class D 1-Channel Monoblock Car Amplifier 800x1 RMS @ 1-Ohm 2500W

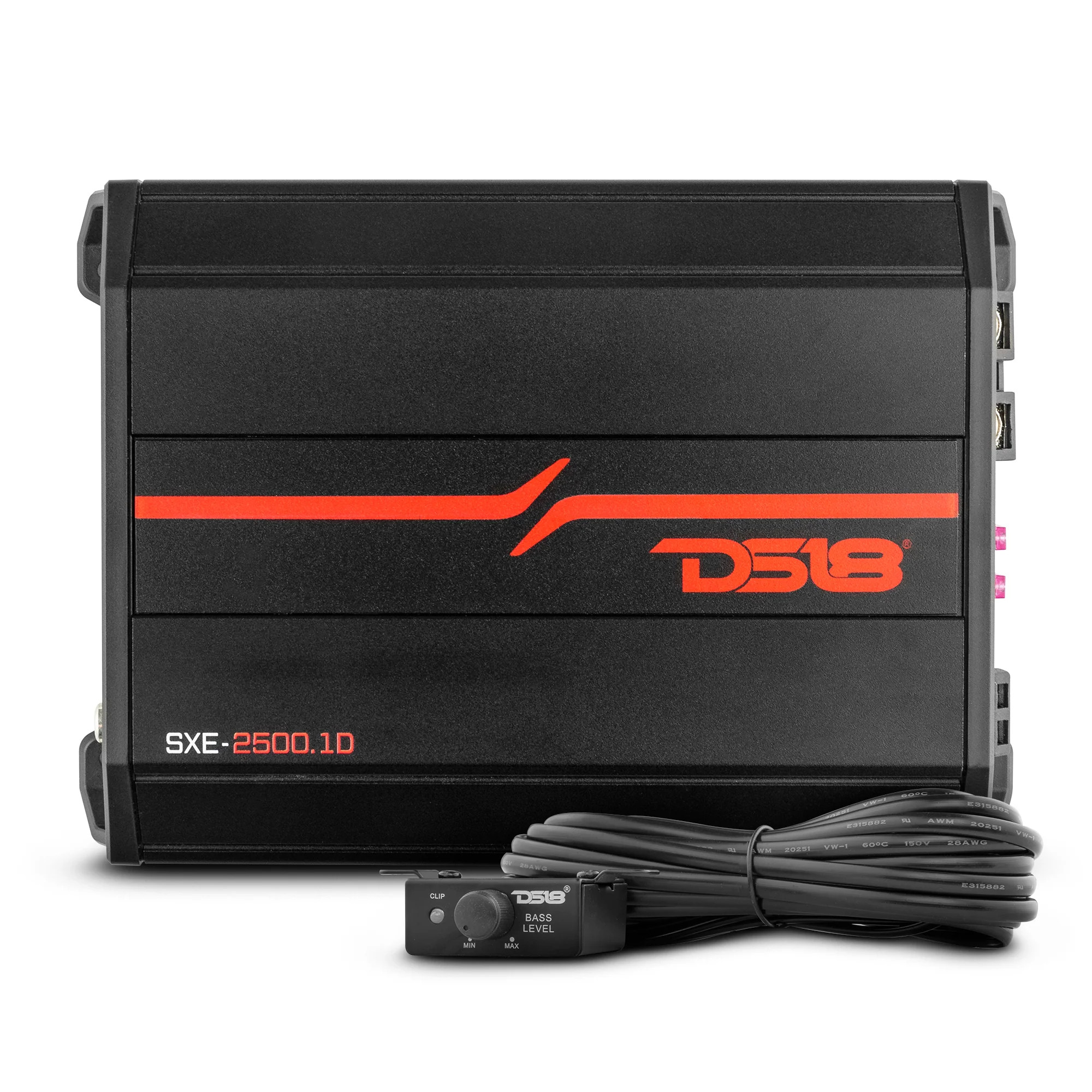

DS18’s SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-2500.1D at the helm, your vehicle's subwoofers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks.

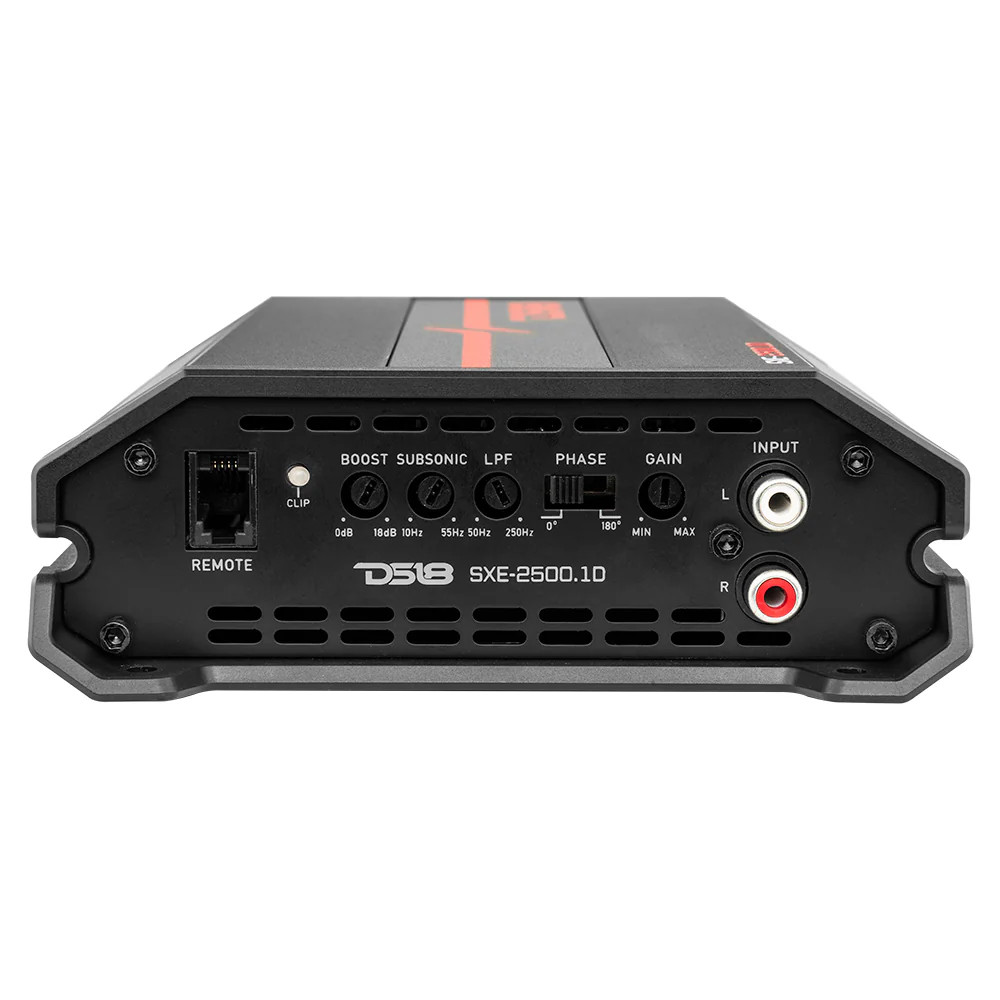

The SXE-2500.1D offers you the ability to shape your systems audio to match your personal preferences. Its fixed low-pass crossover, adjustable gain input sensitivity, and monoblock design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-2500.1D enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style.

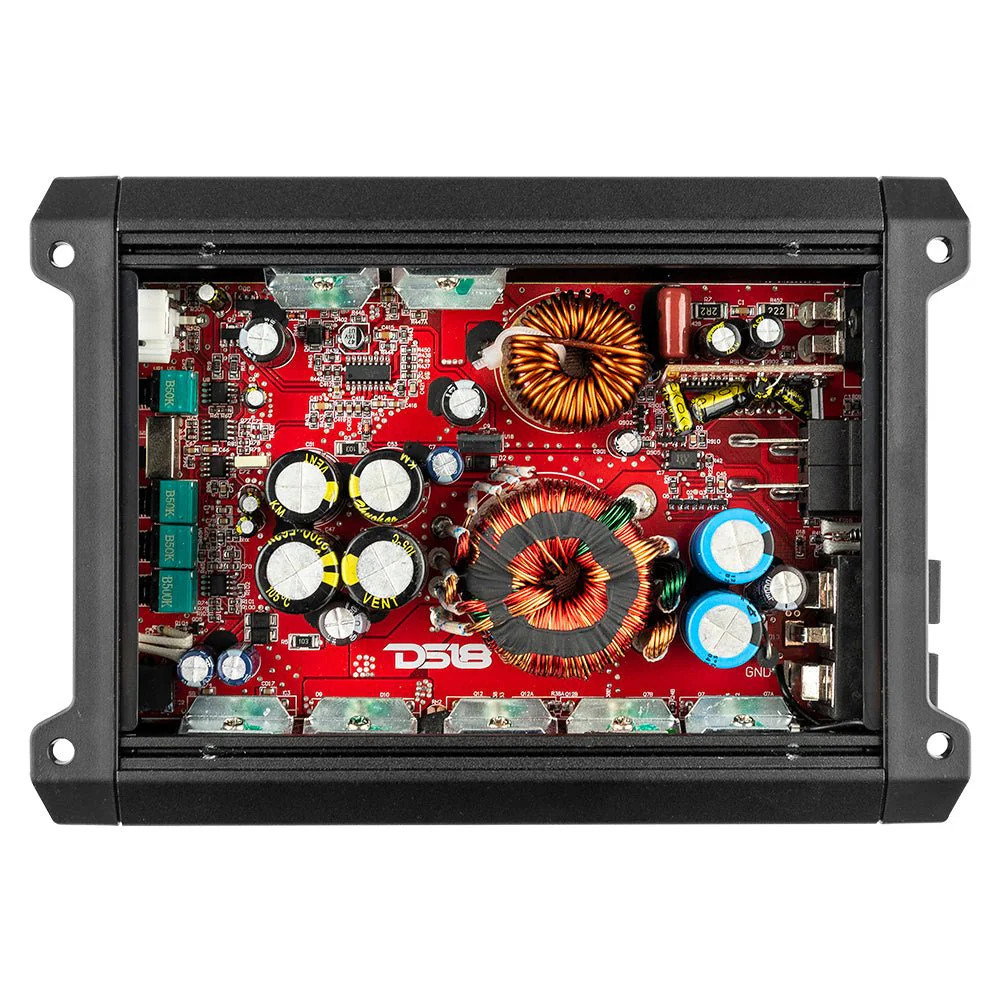

Thanks to its Class D circuit design the SXE-2500.1D seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-2500.1D's staggering performance, delivering 800W at 1-ohm, 600W at 2-ohm, and 300W at 4-ohm. These power settings are guaranteed to supercharge any custom build, leaving you with a smile that stretches from ear to ear.
The SXE-2500.1D also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has thought of everything to guarantee a long-lasting and exceptional audio experience.
| Brand | DS18 |
| Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Channels | 1 |
| Peak Power | 2500W |
| RMS Power @ 4 Ohm/14.4V | 350W |
| RMS Power @ 2 Ohm/14.4V | 600W |
| RMS Power @ 1 Ohm/14.4V | 800W |
| Minimum Impedance | 1 Ohm |
| Operation Voltage | 10 - 15V |
| Frequency Response | 20Hz - 500Hz |
| Signal/Noise Ratio | >90dB |
| Low Pass Filter | 50Hz - 250Hz |
| High Pass Filter | N/A |
| Subsonic | Yes |
| Subsonic Frequency | 10 - 55Hz |
| Efficiency @ 4 Ohm | 0.8 |
| Damping Factor | 140 |
| THD % | 0.05 |
| Input Sensitivity | 0.2V - 6V |
| X-Over Filter Range | 50-250Hz |
| Bass Boost Range | 0 - 18dB |
| Bass Boost Frequency | 50Hz |
| Phase Selector | 0-180 |
| High Level Input | NO |
| Selectable X-Over | Fixed LPF |
| Led Indicator | Power/Protect/Clip |
| Voltage Input Protection | Yes (16.5v) |
| Clipping Protection | Yes |
| Thermal Protection | Yes |
| Cooling Fan | NO |
| Speaker Output Size | 12GA |
| Power Input Size | 4GA |
| Fuse Rating | 40A x 2 |
| Remote Level Control | Yes |
| Body Color / Finish | Red / Black Brushed Aluminum |
| Product Weight (lb) | 4.5 |
| Product Dimensions L x W x H (Inches) | 9.75 x 7.75 x 3.25 |
| M/C Weight (lb) | 20.5 |
| M/C Dimensions L x W x H (Inches) | 16.75 x 10.5 x 8.5 |
| M/C Qty | 5 |
| Sold in | Single |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
