DS18 SXE-2000.4D/BK

DS18 Class D 4-Channel Amplifier 4 x 100 Watts RMS @ 4-Ohm 2000 Watts
No reviews yet Write a Review
$239.95
SKU:
SXE-2000.4D/BK
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • Full Range Amplifier
  • 4 Channel
  • Class D
  • 2 ~ 4 Ohm Stable
  • 4 X 100 Watts @ 4 Ohm
  • Compact Design

DS18’s SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-2000.4D at the helm, your vehicle's speakers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks.

The SXE-2000.4D offers you the ability to shape your systems audio to match your personal preferences. Its selectable crossover, and multi-channel amplifier design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-2000.4D enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style.

Thanks to its Class D circuit design the SXE-2000.4D seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-2000.4D's staggering performance, delivering 320W x 2 CH bridged at 4-ohms, 160W x 4 CH at 2-ohms, and 100W x 4 CH at 4-ohms. These power settings are guaranteed to supercharge any custom build.

The SXE-2000.4D also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has thought of everything to guarantee a long-lasting and exceptional audio experience.

Brand DS18
Total Watts (Peak) 2000W
RMS Power @ 4 Ohm 4 x 100W
RMS Power @ 2 Ohm 4 x 160W
RMS Power @ 1 Ohm N/A
RMS Power @ 4 Ohm Bridge 2 x 320W
Frequency Response 10Hz-20KHz
Signal to Noise Ratio 90dB
Efficiency @ 4ohm 90%
Damping Factor 200
Input Impedance 20k?
Channel Separation 60dB
Total Harmonic Distortion (THD) 0.001
Low Level Input Range 200mV-5V
High Level Input No

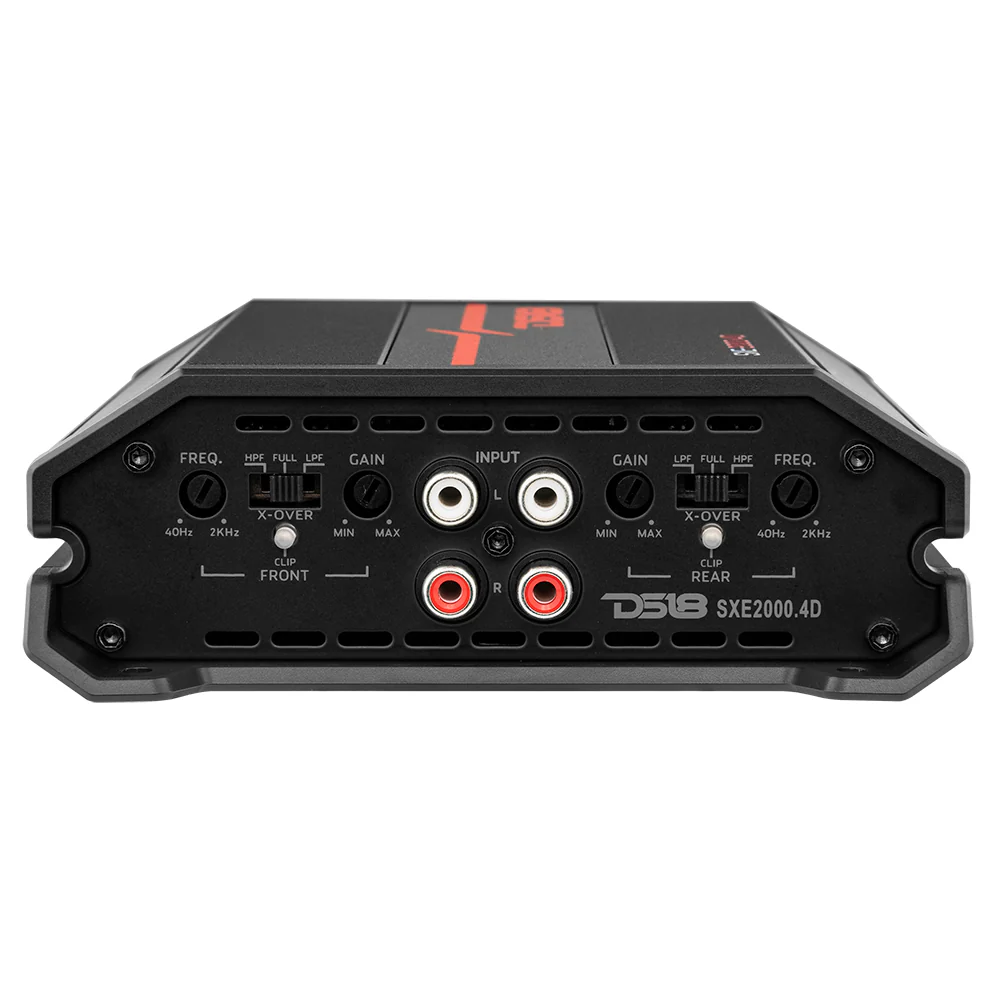

Selectable X-Over HPF/FULL/LPF
X-Over Filter Range 40HZ-2KHZ
Bass Boost Range No
Bass Boost Frequency No
Infrasonic Filter No
Phase Selector No
Amplifier Class Digital (D)
Amplifier Type Stereo Full Range
Number of Channels 4
Minimum Impedance 2 Ohm Stereo / 4 Ohm Bridge
Led Indicator Power/Protect/Clip

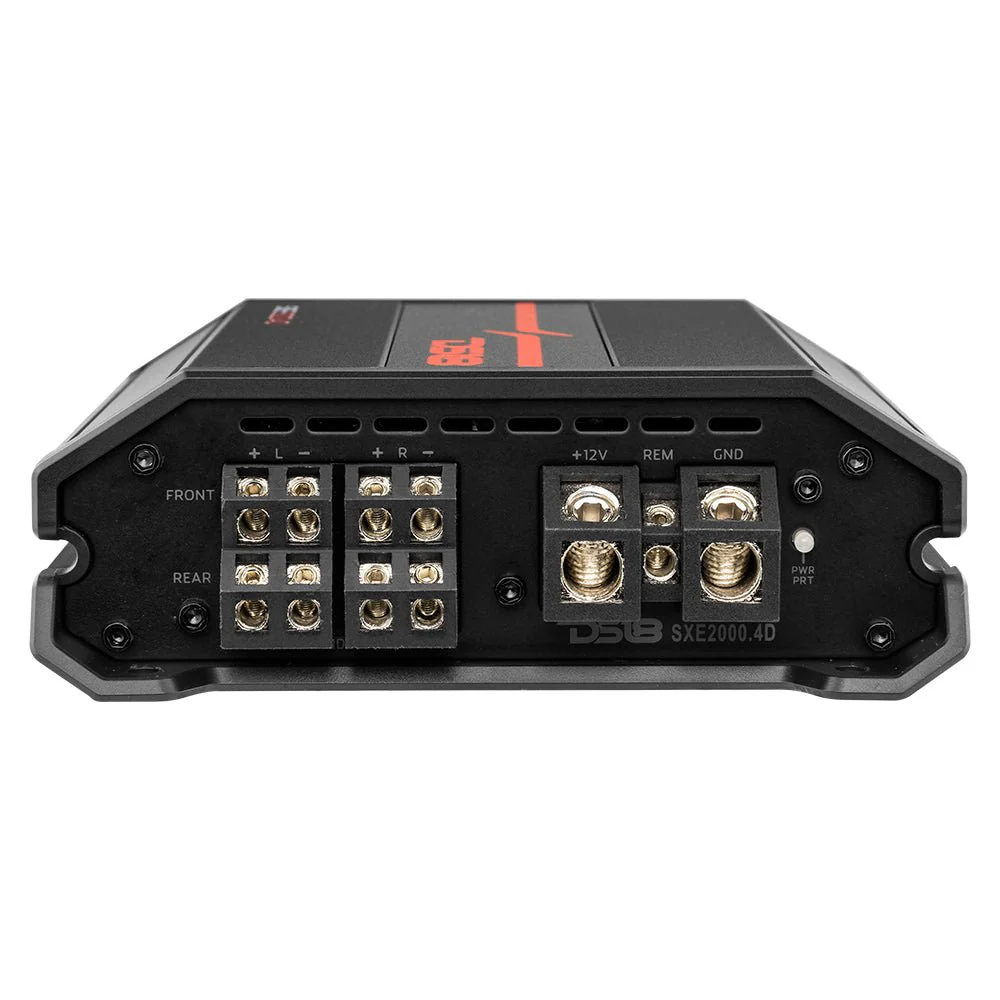

Power Input Terminal Size 4Ga
Fuse Size 1 x 40A (40A)
Remote Level Control No
Cooling Fan No
Voltmeter No
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes (16.5v)
Clipping Protection Yes
Body Color / Finish Red / Black Brushed Aluminum
Overall Length 6.4" / 164.3mm
Overall Wide 5.5" / 140mm
Overall Height 1.8" / 48mm
Heatsink Length 5" / 127mm
Compact Size to easy Installation for Any Applications Yes

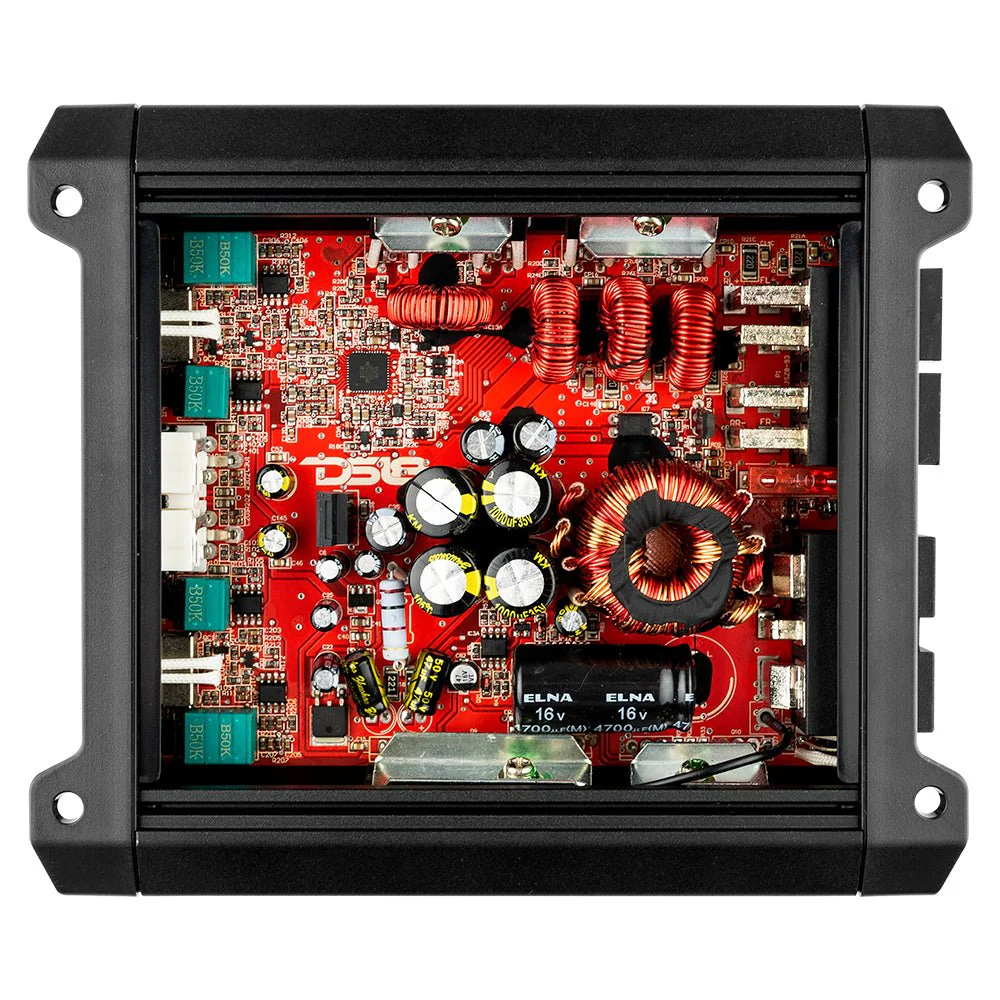

Stable/Reliable Two or Four Layers Traces PCB Design Yes
Surface Mount Component Technology Yes
Quality Control Verification using Audio Precision Instruments Yes
Remote Level Control with Clip Indicator No
Parts Warranty 1 Year
Labor Warranty 1 Year
