DS18 GEN-XX10.4DHE

DS18 10" 500 W RMS DVC 4-Ohm GEN-XX Series High Excursion Subwoofer with Double Stacked Magnets
No reviews yet Write a Review
$164.95
SKU:
GEN-XX10.4DHE
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 10" High Excursion Subwoofer
  • MAX Power: 1000 Watts
  • RMS Power: 500 Watts
  • Impedance: 4-Ohm 2" DVC
  • Ferrite Magnet
  • 84.6dB

10" High Excursion Car Subwoofer 1000 Watts 4-Ohm DVC Double Magnet

Introducing the DS18 GEN-XX10.4DHE, a game-changer in the world of car audio, offering unparalleled low-frequency performance at an affordable price. With the GEN-XX10.4DHE, you can now experience that heart-pounding sensation of concert-quality deep thumping bass right in the comfort of your car.

Crafted with the finest materials, the GEN-XX10.4DHE exemplifies professional quality and unmatched durability. The black aluminum voice coil former, paper cone, and foam surround work harmoniously to deliver exceptional performance and withstand the test of time. The glossy red steel basket adds a touch of elegance to your car's interior.

Featuring a remarkable power rating of 500W RMS and 1000W maximum, the GEN-XX10.4DHE doesn't require massive amounts of power to deliver a mind-blowing performance. You'll be able to shake the neighborhood and turn heads wherever you go without breaking the bank. The GEN-XX10.4DHE’s frequency response of 20Hz to 1.1KHz guarantees a wide range of bass reproduction, allowing you to hear every detail and nuance of your favorite tracks.

The long 2-inch voice coil and double magnet are specifically designed to ensure every note is reproduced with exceptional clarity and precision. With a low FS of 37.6 Hz, the GEN-XX10.4DHE effortlessly reaches into the subsonic range, giving you the ability to experience those earth-shaking frequencies without any issues, if your box is correctly tuned.

Get ready to redefine what you thought was possible in car audio – the GEN-XX10.4DHE is here to make your dreams a reality.

Brand DS18
Nominal Diameter 10"
Nominal Impedance 4+4 Ohm
RMS Power Handling 500W
Maximum Power Handling 1000W
Sensitivity (1w/1m) 84.6 dB
Frequency Response 20Hz - 1.1 Khz
Recommended Lo Pass Crossover 90Hz
Voice Coil Diameter 2" / 50.8mm
Voice Coil Former Material Black Aluminum
Winding Material SV
Cone Material Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel Basket
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 136 oz
Displacement Volume 1.82L
Equivalent Volume Vas 16.583 L
Free Air Resonance Fs 37.6 Hz
Mechanical Factor Qms 4.705
Electrical Factor Qes 0.476
Total Factor Qts 0.432
Moving Mass Mms 166.794g
Compliance Cms 0.107mm/N
Bl Factor BI 23.041N/A
Voice Coil Inductance Le 0.6741mH
Diaphragm Area Sd 330.64cm2
DC Resistance Re 3.2+3.2 ohms
Efficiency Bandwidth Product EBP 78.99

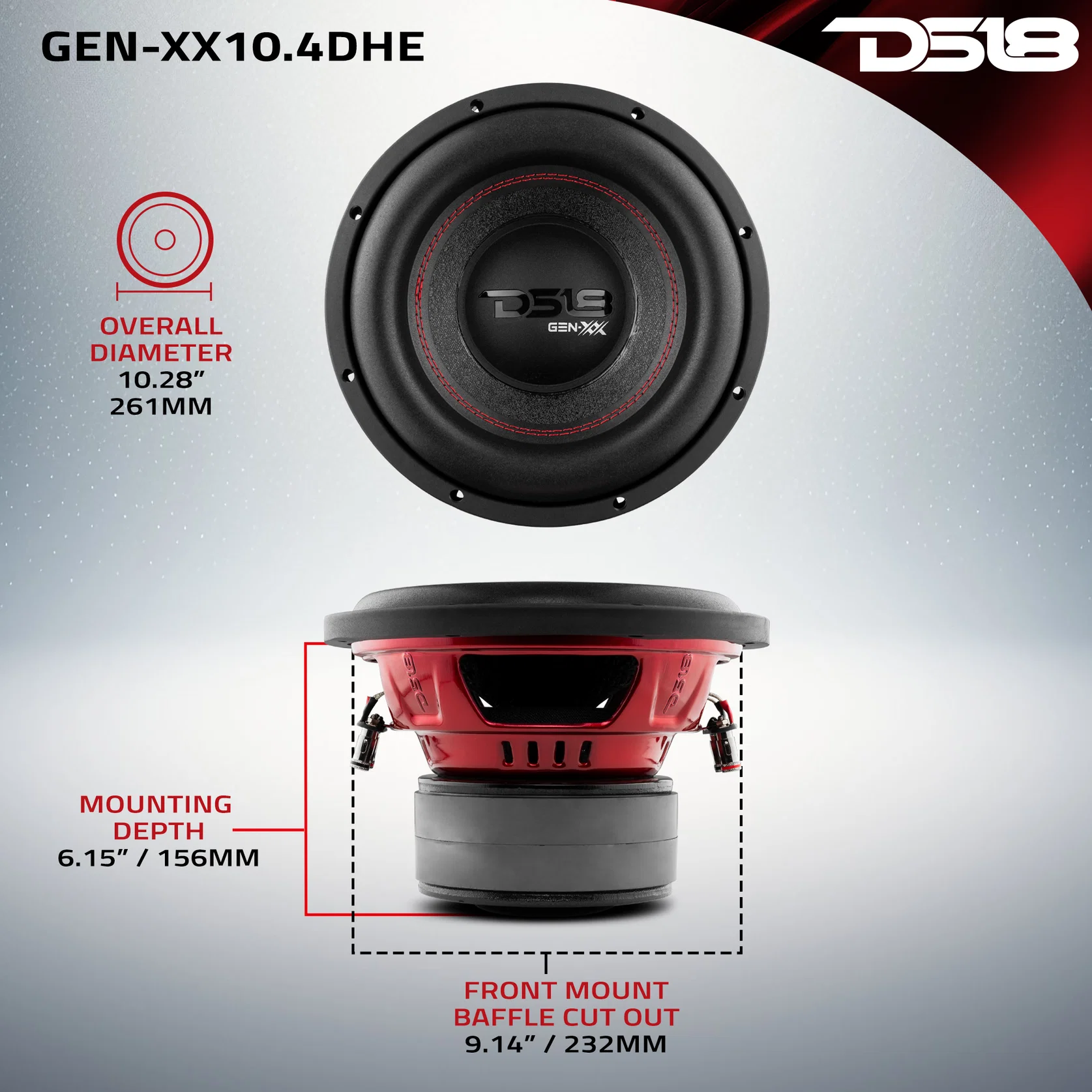

Overall Diameter 10.28" / 261 mm
Overall Depth 7.21" / 183 mm
Front Mount Baffle Cutout 9.14" / 232 mm
Mounting Depth 6.14" / 156mm
Motor Diameter 6.14" / 156 mm
Gross Single Unit Weight (lb) 19
Dimensions W x L x H (Inches) 11.5 x 11.5 x 8.75
Parts Warranty 1 Year
Labor Warranty 1 Year
