DS18 GEN-XX12.4DHE

DS18 12" 600 Watts Rms DVC 4-Ohm High Excursion Subwoofer Double Stacked Magnets
No reviews yet Write a Review
$179.95
SKU:
GEN-XX12.4DHE
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 12" High Excursion Subwoofer
  • MAX Power: 1200 Watts
  • RMS Power: 600 Watts
  • Impedance: 4-Ohm 2" DVC
  • Ferrite Magnet
  • 86.7dB

12" High Excursion Car Subwoofer 1200 Watts 4-Ohm DVC Double Magnet

Introducing the DS18 GEN-XX12.4DHE, a game-changer in the world of car audio, offering unparalleled low-frequency performance at an affordable price. With the GEN-XX12.4DHE, you can now experience that heart-pounding sensation of concert-quality deep thumping bass right in the comfort of your car.

Crafted with the finest materials, the GEN-XX12.4DHE exemplifies professional quality and unmatched durability. The black aluminum voice coil former, paper cone, and foam surround work harmoniously to deliver exceptional performance and withstand the test of time. The glossy red steel basket adds a touch of elegance to your car's interior.

Featuring a remarkable power rating of 600W RMS and 1200W maximum, the GEN-XX12.4DHE doesn't require massive amounts of power to deliver a mind-blowing performance. You'll be able to shake the neighborhood and turn heads wherever you go without breaking the bank. The GEN-XX12.4DHE’s frequency response of 20Hz to 1.5KHz guarantees a wide range of bass reproduction, allowing you to hear every detail and nuance of your favorite tracks.

The long 2-inch voice coil and double magnet are specifically designed to ensure that every note is reproduced with exceptional clarity and precision. With a low FS of 30.5 Hz, the GEN-XX12.4DHE effortlessly reaches into the subsonic range, giving you the ability to experience those earth-shaking frequencies without any issues, if your box is correctly tuned.

Get ready to redefine what you thought was possible in car audio – the GEN-XX12.4DHE is here to make your dreams a reality.

Brand DS18
Nominal Diameter 12"
Nominal Impedance 4+4 Ohm
RMS Power Handling 600W
Maximum Power Handling 1200W
Sensitivity (1w/1m) 86.7 dB
Frequency Response 20Hz - 1.5Khz
Recommended Lo Pass Crossover 80Hz
Voice Coil Diameter 2" / 50.8 mm
Voice Coil Former Material Black Aluminum
Winding Material SV
Cone Material Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel Bakset
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 136 oz
Displacement Volume 1.69L
Equivalent Volume Vas 56.436 L
Free Air Resonance Fs 30.5 Hz
Mechanical Factor Qms 3.991
Electrical Factor Qes 0.532
Total Factor Qts 0.469
Moving Mass Mms 154.38g
Compliance Cms 0.175mm/N
Bl Factor BI 19.173N/A
Voice Coil Inductance Le 0.6741mH
Diaphragm Area Sd 475.29cm2
DC Resistance Re 3.2+3.2 ohms
Efficiency Bandwidth Product EBP 57.3

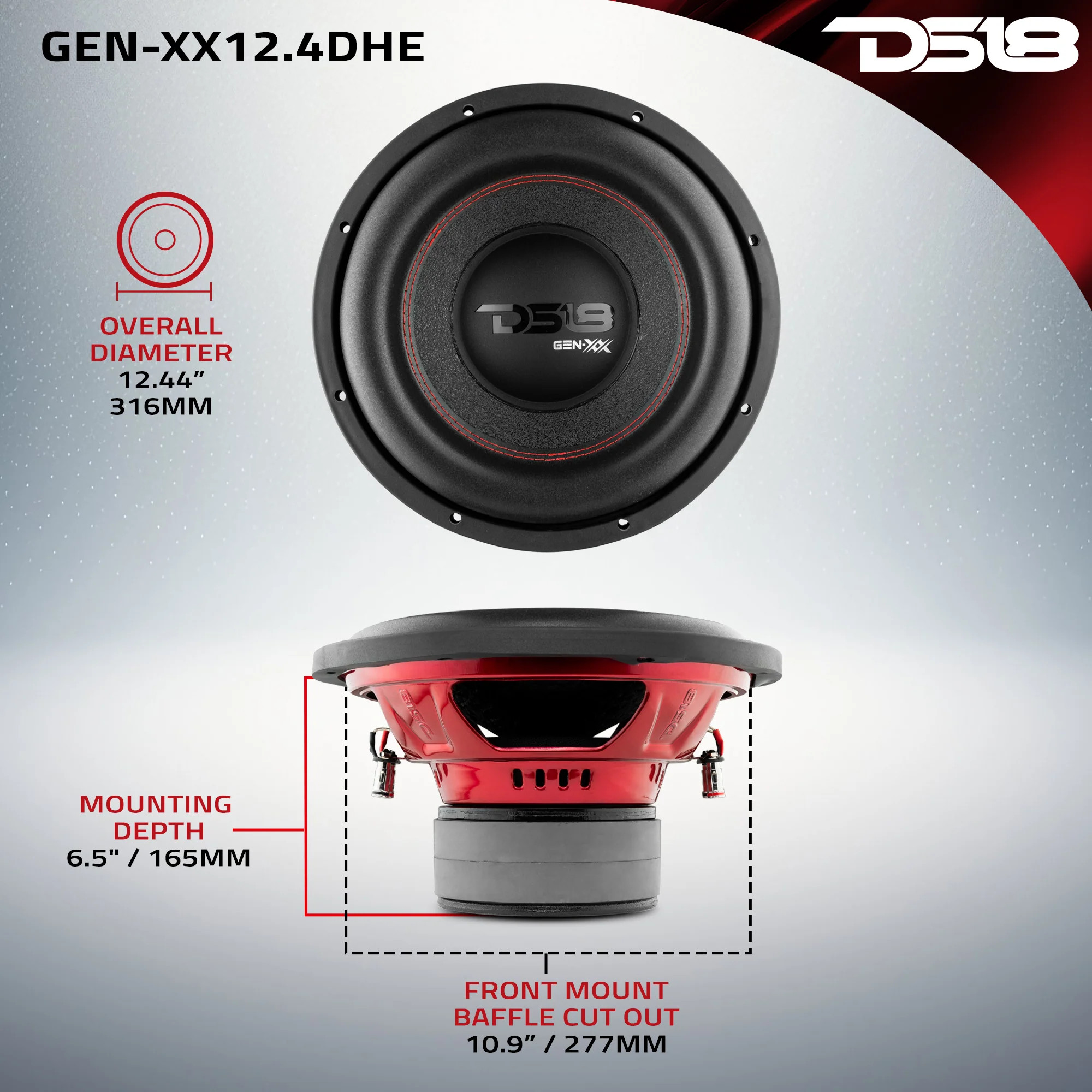

Overall Diameter 12.44" / 316mm
Overall Depth 7.6" / 193mm
Front Mount Baffle Cutout 10.9" / 277mm
Mounting Depth 6.5" / 165mm
Motor Diameter 6.14"/ 156 mm
Gross Single Unit Weight (lb) 19.5
Dimensions W x L x H (Inches) 13.5 x 13.5 x 9
Parts Warranty 1 Year
Labor Warranty 1 Year
