DS18 GEN-X104DCF

DS18 10" 600W RMS Dual 4-Ohm Voice Coils GEN-X Series Subwoofer with Carbon Fiber Dust Cap (sold individually)
No reviews yet Write a Review
$224.95
SKU:
GEN-X104DCF
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 600W RMS Power – Delivers clean, powerful bass with authority
  • Dual 4-Ohm Coils – Easy wiring and system flexibility
  • Carbon Fiber Dust Cap – Stronger cone with aggressive styling
  • Sealed or Ported Use – Tight or loud bass on demand
  • Rugged Construction – Engineered for long-term daily use and reliability

10" Subwoofer with Carbon Fiber Dust Cap and Dual 4-Ohm Voice Coils

The GEN-X104DCF brings real DS18 performance to your daily build. This 10" subwoofer combines high-efficiency output and durable construction for a clean, low-end punch in compact or multi-sub setups.

Serious Power
The GEN-X104DCF delivers 600W RMS and peaks at 1200W. It performs well in both sealed or ported enclosures — for tighter, more accurate bass go sealed: but, if you like it LOUD ported is the way to go.

Proven Build
The non-pressed paper cone is paired with a carbon fiber dust cap for improved stiffness and a sleek, aggressive look. A ferrite magnet (81 oz) and a durable 2" black aluminum voice coil give this sub the muscle it needs to handle any high-performance setups.

Dual 4-Ohm Voice Coils for Wiring Flexibility
Whether you’re wiring to 2Ω or 8Ω, the dual 4Ω coils give you the flexibility to pair with multiple subs or match with a wide range of amplifiers.

Optimized for Daily Bass
With a frequency response of 25–250Hz and a recommended low-pass crossover at 120Hz, this sub is tailored for rich, deep bass response.

Get punchy with DS18’s GEN-X104DCF.

Brand DS18
Nominal Diameter 10" / 254mm
Nominal Impedance 4 + 4 ohms
RMS Power Handling 600W
MAX Power Handling 1200W
Sensitivity (1w/1m) 92 dB
Frequency Response 25Hz-250Hz
Recommended Low-Pass Crossover 120 Hz
Voice Coil Diameter 2" / 50.8mm
Voice Coil Former Material Black Aluminum
Winding Material SV
Cone Material Non Pressed Paper
Dust Cap Material Carbon Fiber
Surround Material Rubber
Basket Material Steel
Basket Color / Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 81 oz
Equivalent Volume 23.67L / 0.835ft3
Excursion (one way) 10.5mm
Free Air Resonance 37Hz
Mechanical Factor 5.07
Electrical Factor 0.76
Total Factor 0.66
Moving Mass 140.16g
Compliance 0.13mm/N
BL Factor 9.26
Voice Coil Inductance 0.38mH
Diaphragm Area 352.99cm2
DC Resistance 3.2 + 3.2 Ohms
Efficiency Bandwidth Product 48.6

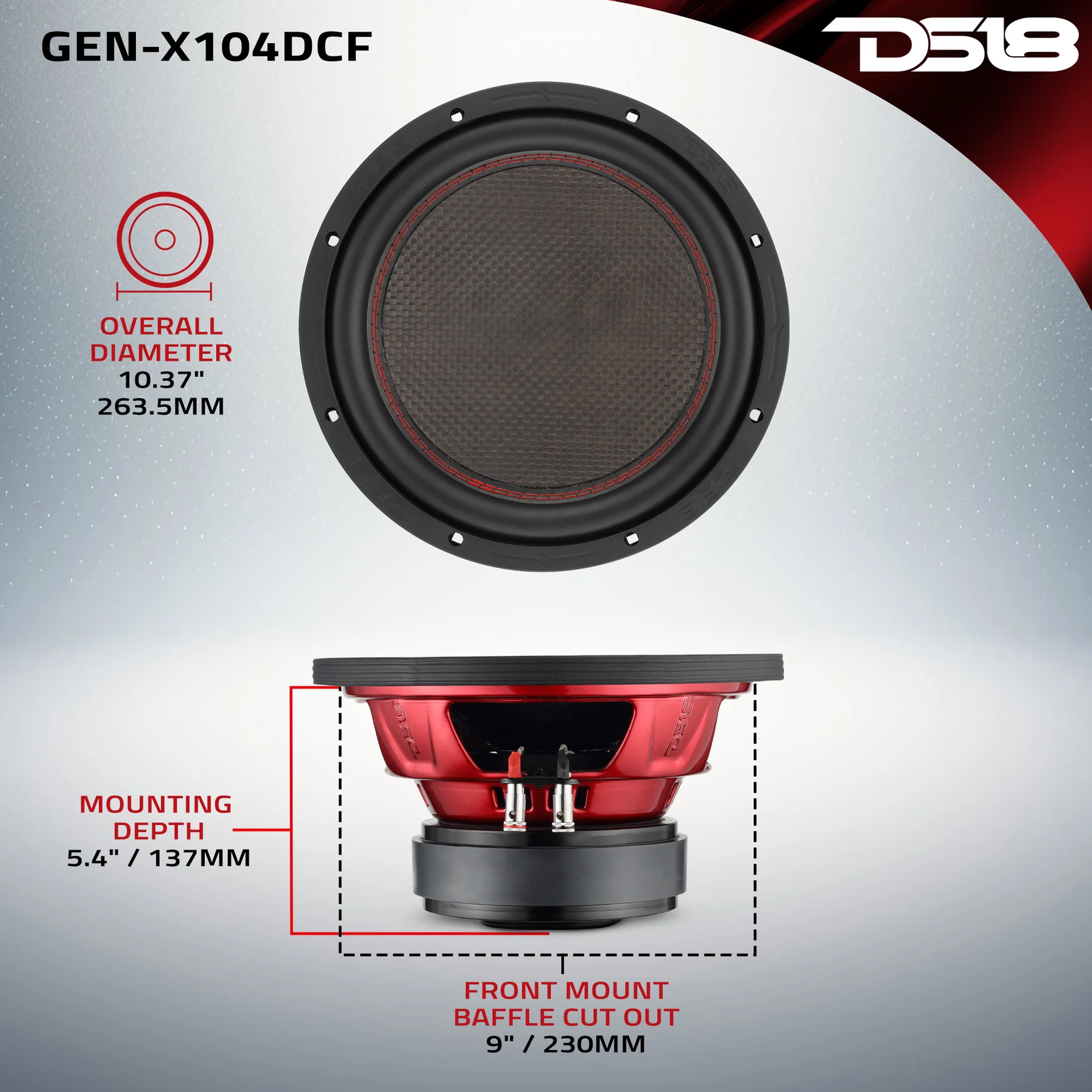

Overall Diameter 10.37" / 263.5mm
Overall Depth 6" / 152mm
Front Mount Baffle Cutout 9" / 230mm
Mounting Depth 5.4" / 137mm
Motor Diameter 6.1" / 155mm
Parts Warranty 1 Year
Labor Warranty 1 Year
