DS18 G5.25XI

DS18 5.25" 45W RMS 4-Ohm GEN-X  Series 2-Way Coaxial Speakers (sold by pair))
No reviews yet Write a Review
$50.95
SKU:
G5.25XI
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 5.25" 2-Way Coaxial
  • MAX Power: 135 Watts
  • RMS Power: 45 Watts
  • Impedance: 4 Ohm
  • Barium Ferrite & Neodymium Magnets
  • Pair ~ 84dB

2-Way Coaxial Speakers 135 Watts 4-Ohm

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

The G5.25Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G5.25Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G5.25Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 50Hz.

These speakers get loud extremely easily with a MAX Power Handling of 135W and RMS Power Handling of 45W.

Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G5.25Xi will deliver. Order yours today and take the first step towards audio perfection on the road.

Brand DS18
Nominal Diameter 5.25" / 133mm
Nominal Impedance 4 Ohms
RMS Power Handling 45W
Maximum Power Handling 135W
Sensitivity (1w/1m) 84dB
Frequency Response 50Hz-20KHz
Recommended HI Pass Crossover 80Hz
Number of ways 2
Pair or single Pair
Grill Included Yes
Woofer Specifications
Voice Coil Diameter 1" / 25.5mm
Winding Material EISV
Cone Material Paper
Surround Material Rubber
Basket Material Steel
Basket Color/Finish Black Matte
Magnet Material Barium Ferrite
Magnet Weight 6.3Oz / 180g
THIELE & SMALL PARAMETERS Listed Below
Equivalent Volume Vas 3.66L / 0.129ft3
Excursion (one way) Xmax 2.2mm
Free Air Resonance Fs 86Hz
Mechanical Factor Qms 3.5
Electrical Factor Qes 1.63
Total Factor Qts 1.1
Moving Mass Mms 9.15g
Compliance Cms 330mm/N
Bl Factor Bl 3.4
Voice Coil Inductance Le 151uH
Cone Area Sd 84.5cm2
DC Resistance Re 3.7 Ohms
Mechanical Mass w/o air Mmd 8.3g
Tweeter Specifications
Nominal Diameter 1" / 25.5mm
Voice Coil Diameter 0.5" / 13.25mm
Winding Material EISVM
Diaphragm Material Mylar
Magnet Material Neodymium
Magnet Weight 1.8g
Measurements Listed Below

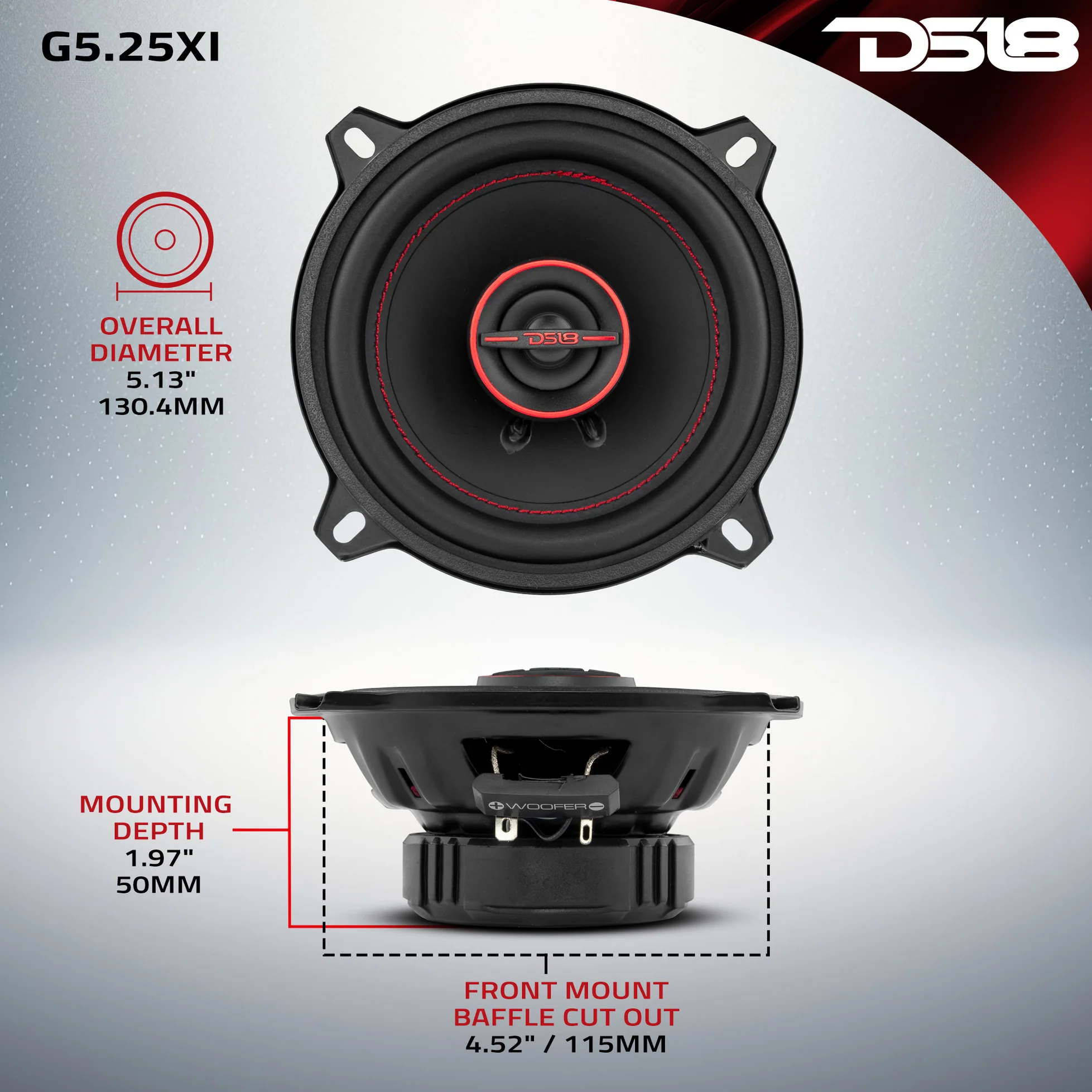

Overall Diameter 5.13" / 130.4mm
Overall Depth 2.47" / 62.8mm
Overall Diameter with Grill 6.38" / 162mm
Overall Depth with Grill 2.75" / 69.8mm
Front Mount Baffle Cutout 4.52" / 115mm
Mounting Depth 1.97" / 50mm
Motor Diameter 3" / 76mm
Tweeter Protrusion 0.5" / 12.8mm
Gross Single Unit Weight 0.52 KG
Parts Warranty 1 Year
Labor Warranty 1 Year
