We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.
General Features:
- 4X6" 2-Way Coaxial
- MAX Power: 135 Watts
- RMS Power: 45 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 84dB
2-Way Coaxial Speakers 135 Watts 4-Ohm
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.
The G4.6Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The G4.6Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G4.6Xi's 2-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 45Hz.
These speakers get loud extremely easily with a MAX Power Handling of 135W and RMS Power Handling of 45W.
Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G4.6Xi will deliver. Order yours today and take the first step towards audio perfection on the road.
| Brand | DS18 |
| Nominal Diameter | 4x6" / 101x152mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 45W |
| Maximum Power Handling | 135W |
| Sensitivity (1w/1m) | 84dB |
| Frequency Response | 45Hz-20KHz |
| Recommended HI Pass Crossover | 80Hz |
| Number of ways | 2 |
| Pair or single | Pair |
| Grill Included | No |
| Voice Coil Diameter | 1" / 25.5mm |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 6.3Oz / 180g |
| Equivalent Volume Vas | 1.8L / 0.063ft3 |
| Excursion (one way) Xmax | 2.2mm |
| Free Air Resonance Fs | 115Hz |
| Mechanical Factor Qms | 4.3 |
| Electrical Factor Qes | 2.3 |
| Total Factor Qts | 1.5 |
| Moving Mass Mms | 9.4g |
| Compliance Cms | 195mm/N |
| Bl Factor Bl | 3.1 |
| Voice Coil Inductance Le | 151uH |
| Cone Area Sd | 84.3cm2 |
| DC Resistance Re | 3.7 Ohms |
| Moving Mass without Air Mmd | 8.5g |
| Nominal Diameter | 1" / 25.5mm |
| Voice Coil Diameter | 0.5" / 13.25mm |
| Winding Material | EISVM |
| Diaphragm Material | Mylar |
| Magnet Material | Neodymium |
| Magnet Weight | 1.8g |

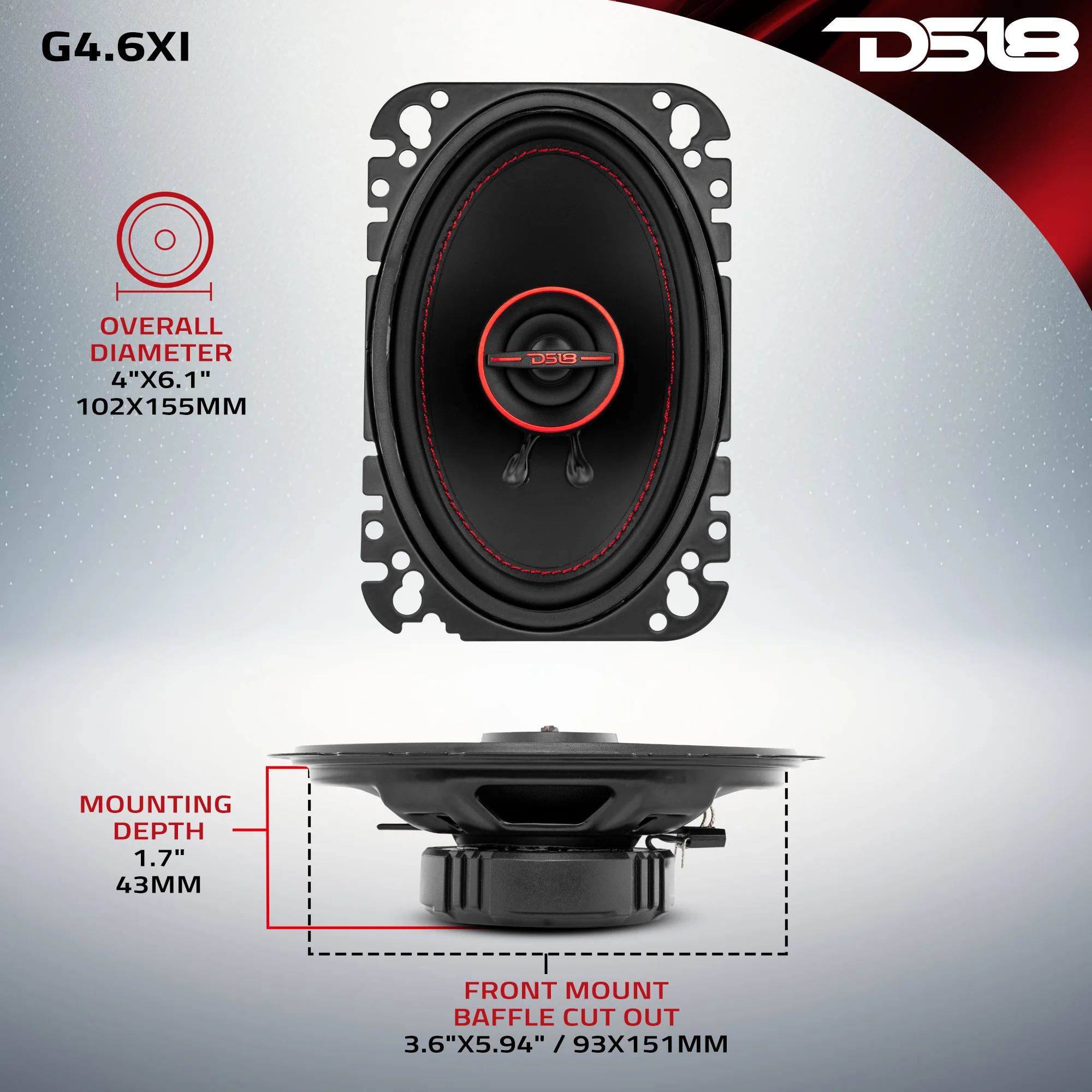

| Overall Diameter | 4" x 6.1" / 102 x 155mm |
| Overall Depth | 2.18" / 55.3mm |
| Front Mount Baffle Cutout | 3.6" x 5.94" / 93 x 151mm |
| Mounting Depth | 1.7" / 43mm |
| Motor Diameter | 3" / 76mm |
| Tweeter Protrusion | 0.48" / 12.3mm |
| Gross Single Unit Weight | 0.45KG |
| Single Unit Box Dimensions W x L x H | 170 x 80 x 230mm |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
