We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.
General Features:
- Premium Yellow Straw and Composite Foam Cone
- Adjustable Swivel Mount Silk Tweeter
- Ferrite Magnets
- High Power Handling 150W RMS / 300W Peak
- Wide Frequency Response

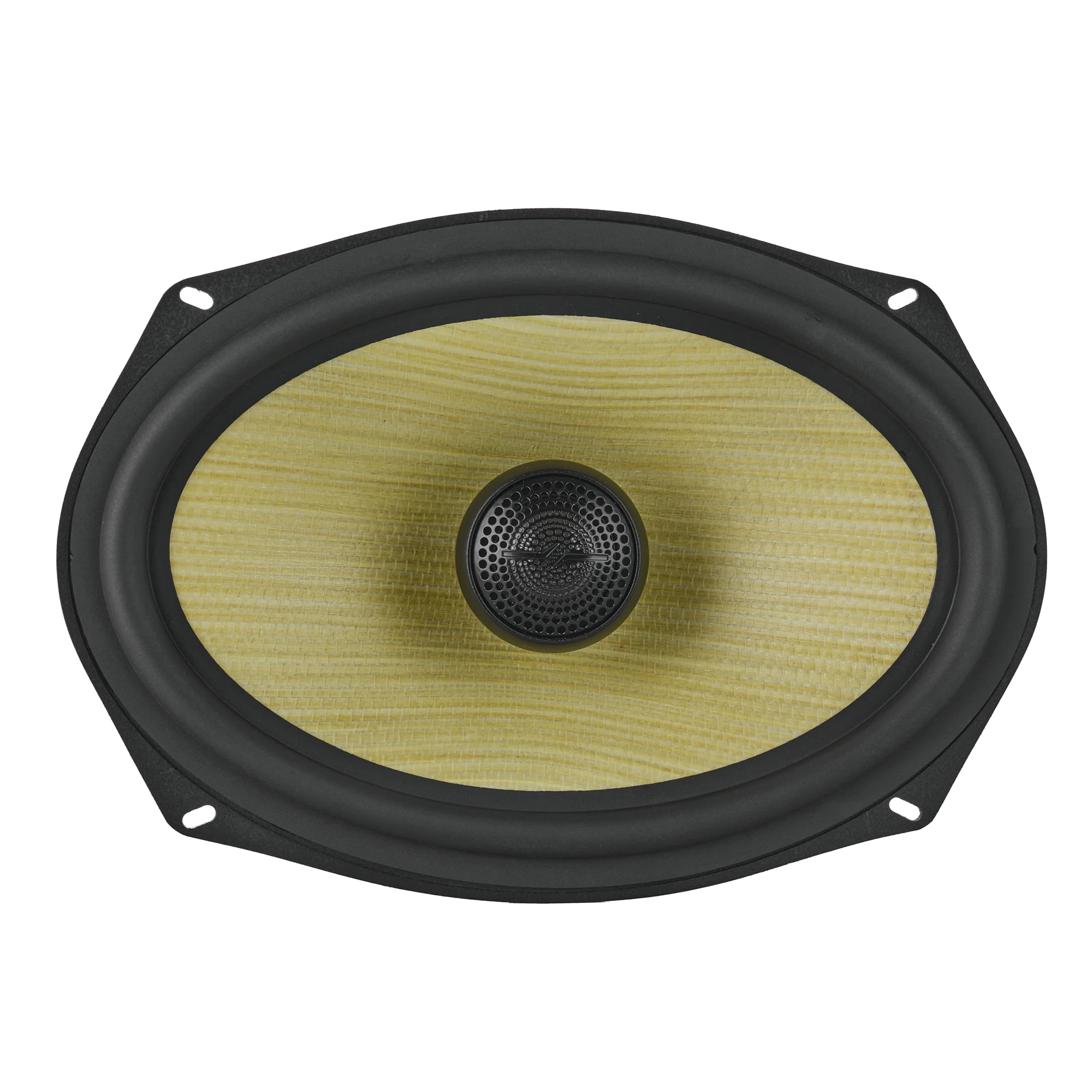

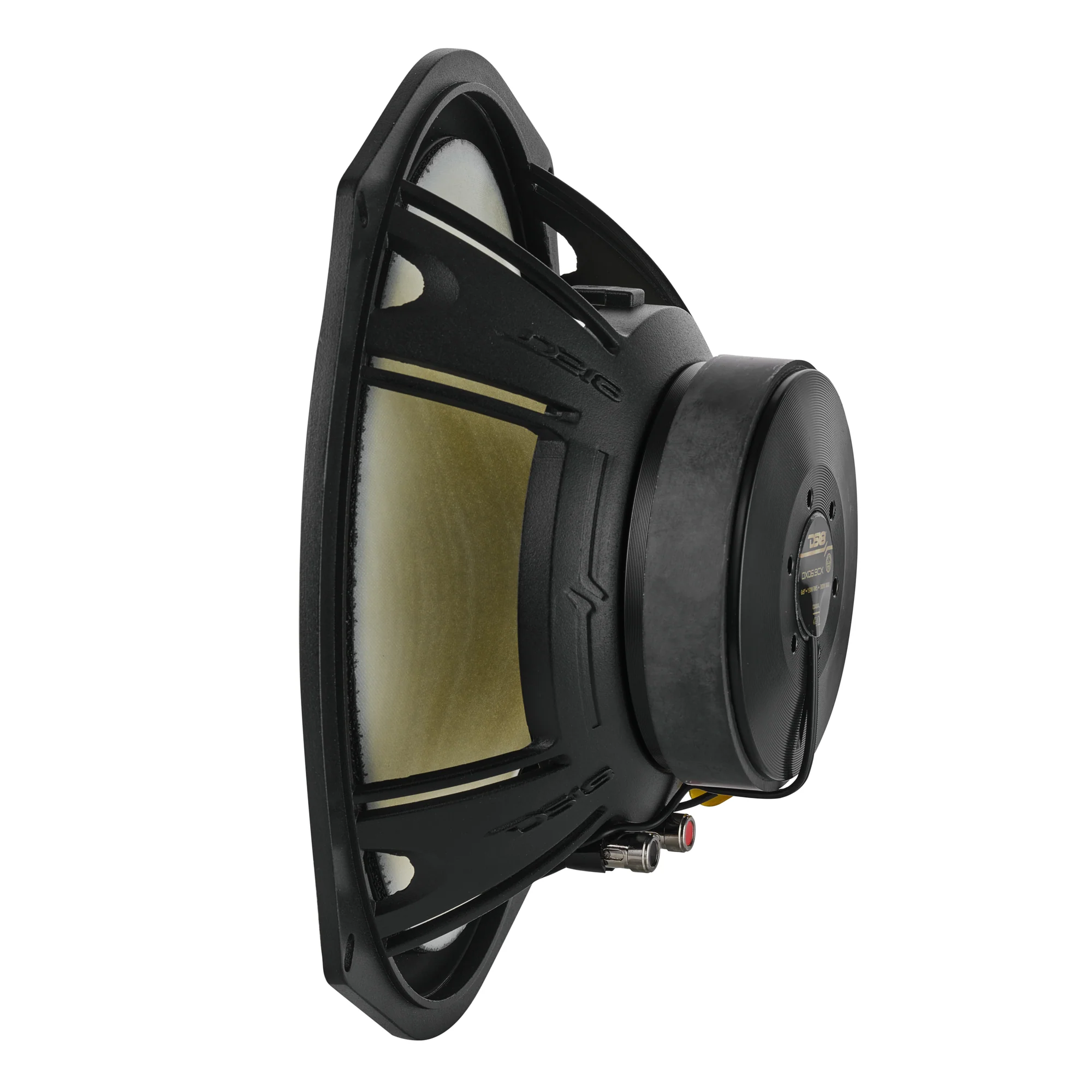

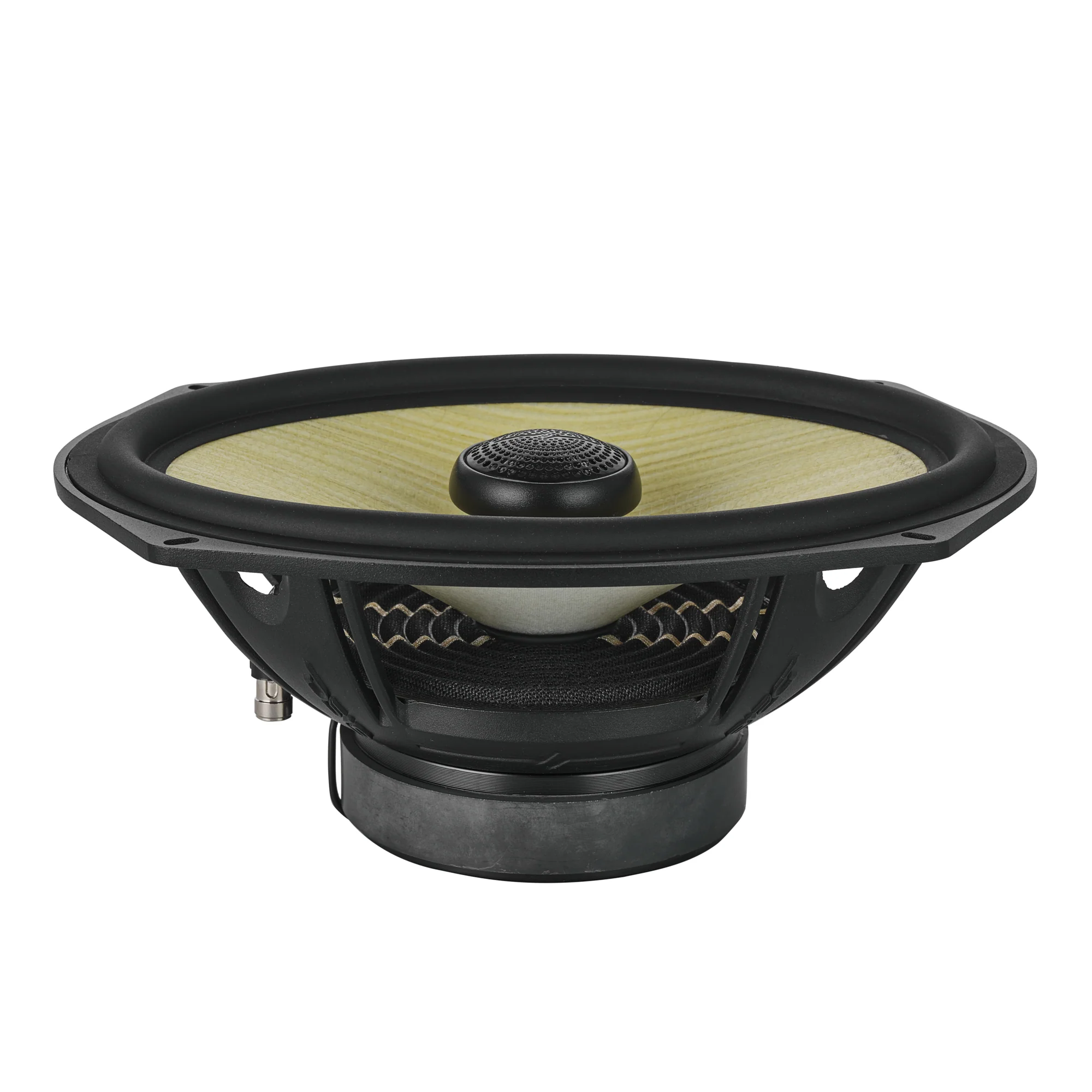

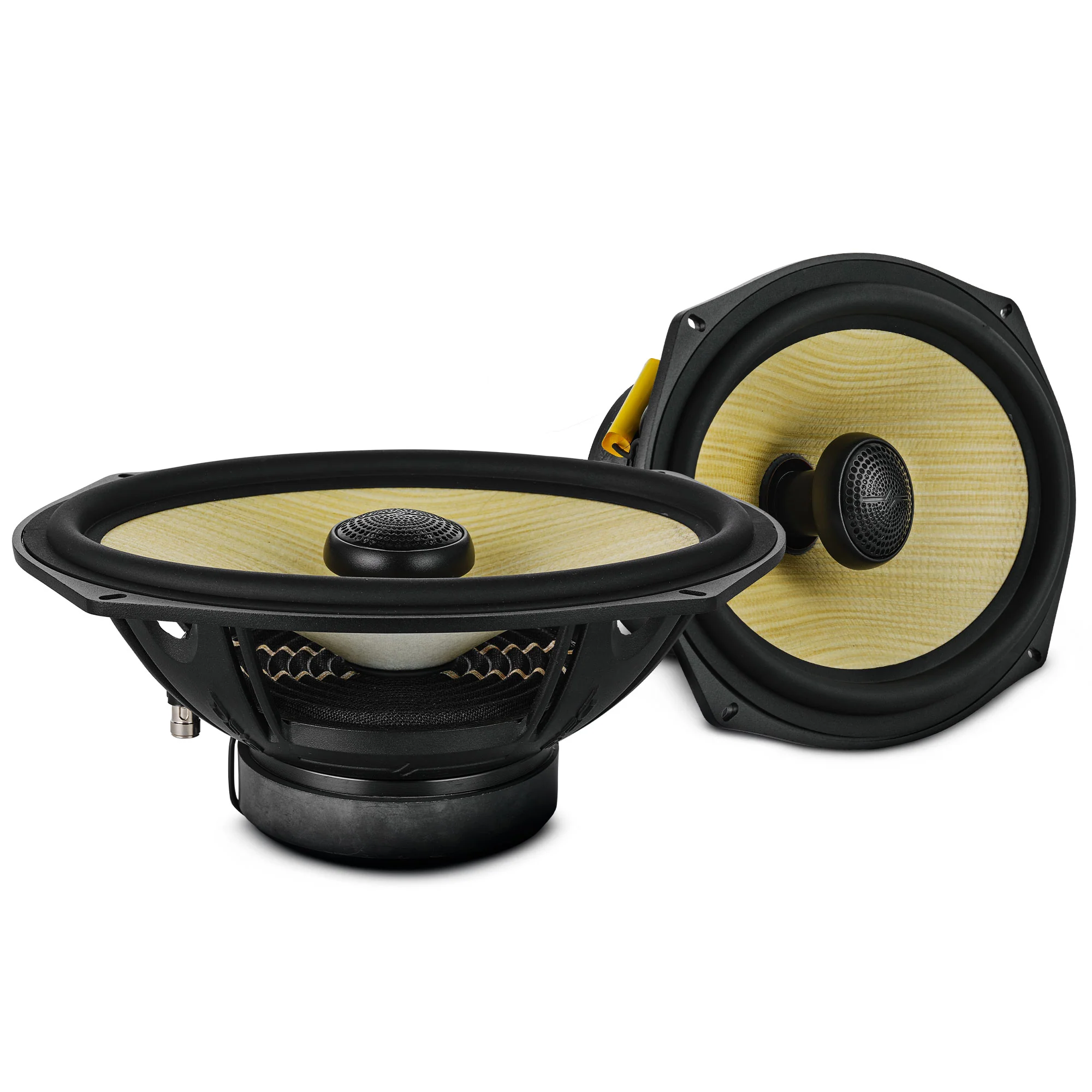

6x9" Coaxial Speaker with Yellow Straw + Composite Foam Cone
The DXQ6.9CX demands clarity and power from every note. This 6x9-inch coaxial speaker delivers full-range sound with a 150W RMS and 300W MAX power handling, making it ideal for car audio systems focused on premium sound performance.
Wide Frequency Range with Clear Audio
Covering an expansive response range from 35Hz to 20kHz, the DXQ6.9CX reproduces natural mids, and crisp highs in studio quality. Its impressive 89dB sensitivity ensures your system sounds loud and detailed without distortion.
Durable Materials for Long-Lasting Performance
The unique yellow straw combined with composite foam cone and a rugged rubber surround deliver durability and enhanced bass response. A sturdy aluminum basket supports the speaker while improved heat dissipation guarantees reliability during extended use.

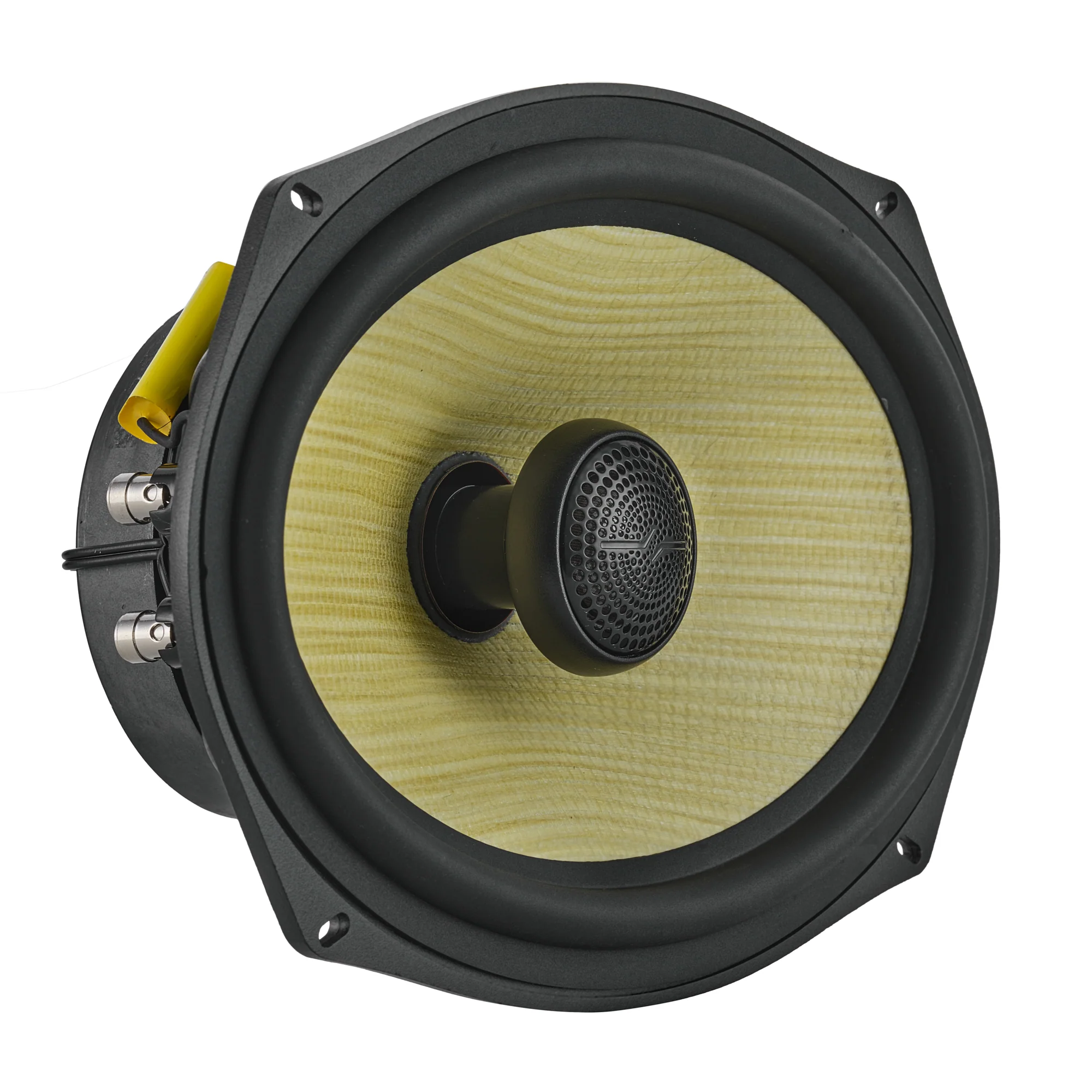

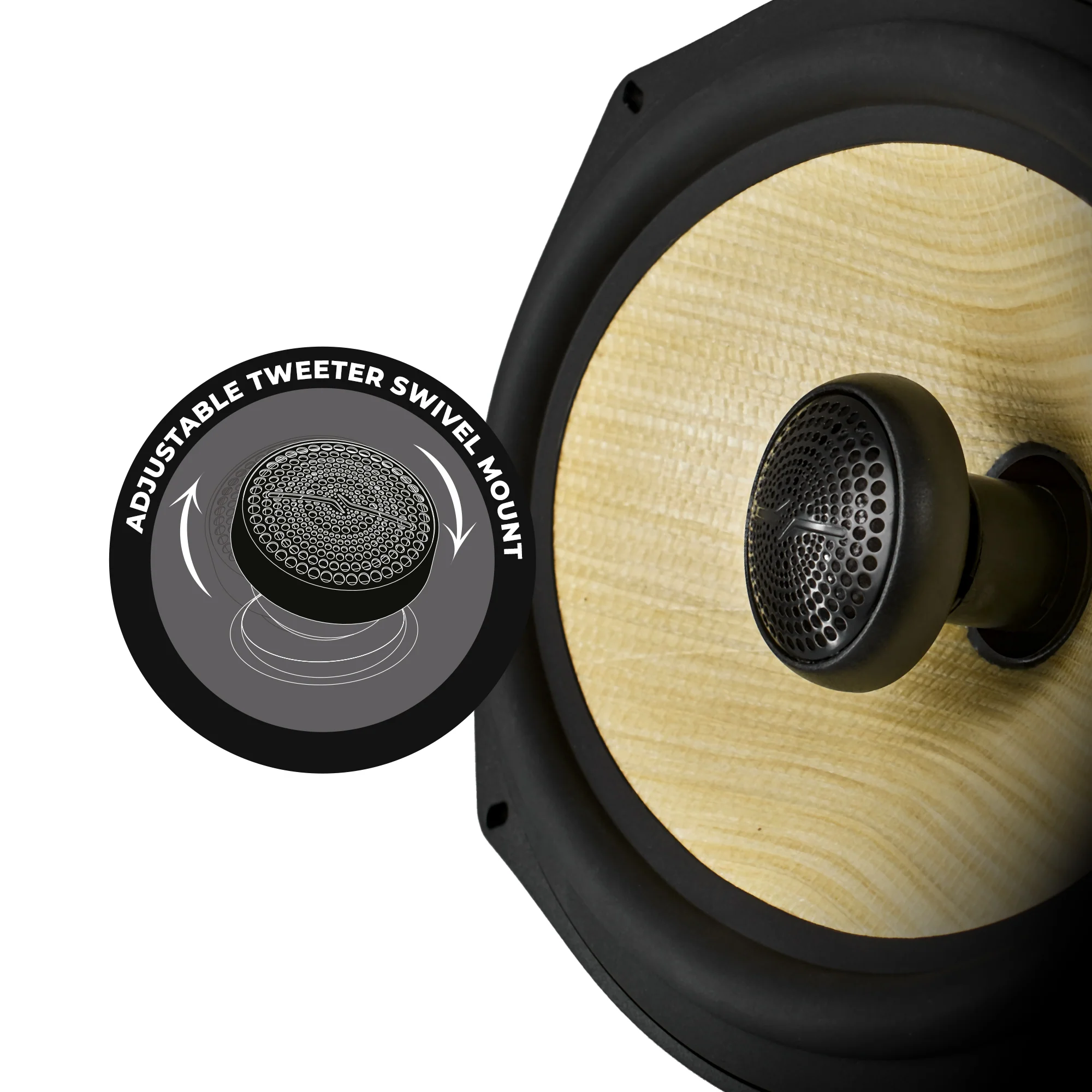

Precision Tweeter with Swivel Mount
Complementing the woofer is a 1-inch silk dome tweeter with a neodymium magnet. The tweeter swivels to let you fine-tune your soundstage, ensuring smooth, detailed highs to enhance your listening experience.
Perfect Integration for Car Audio Systems
With a 4-ohm nominal impedance and a 1.2-inch voice coil, the DXQ6.9CX fits a wide variety of setups. The recommended high-pass crossover at 60Hz balances your system’s output, providing full-range sound ideal for any setup.
Upgrade with Confidence
Sold in pairs, the DXQ6.9CX is the easy, risk-free upgrade that transforms your existing system. These coaxials bring studio quality sound that makes every drive unforgettable.
| Brand | DS18 |
| SKU | DXQ6.9CX |
| Nominal Diameter | 6x9" / 152x228mm |
| Nominal Impedance | 4 ohms |
| MAX Power Handling | 300W |
| RMS Power Handling | 150W |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 35Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Number of ways | 2 |
| Sold in Pair or Single | Pair |
| Grill Included | No |
| Voice Coil Diameter | 1.2" / 30.5mm |
| Voice Coil Former Material | TL |
| Winding Material | SV |
| Cone Material | Yellow Straw + Composite Foam |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20.2 Oz |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push / 14Ga |
| Equivalent Volume Vas | 20.96L / 0.74ft3 |
| Excursion (one way) Xmax | 5mm |
| Free Air Resonance Fs | 55Hz |
| Mechanical Factor Qms | 6.112 |
| Electrical Factor Qes | 0.883 |
| Total Factor Qts | 0.772 |
| Mechanical Mass Mms | 28.919g |
| Mechanical Compliance Cms | 0.287mm/N |
| BL Factor BL | 6.32 |
| Voice Coil Inductance Le | 0.321mH |
| Cone Area Sd | 226.98cm2 |
| DC Resistance Re | 3.52ohms |
| Mechanical Mass w/o air Mmd | 25.054g |
| Nominal Diameter | 1" / 25mm |
| Voice Coil Diameter | 1" / 25mm |
| Voice Coil Former Material | ASV |
| Winding Material | CCAW |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 0.5 Oz / 14g |

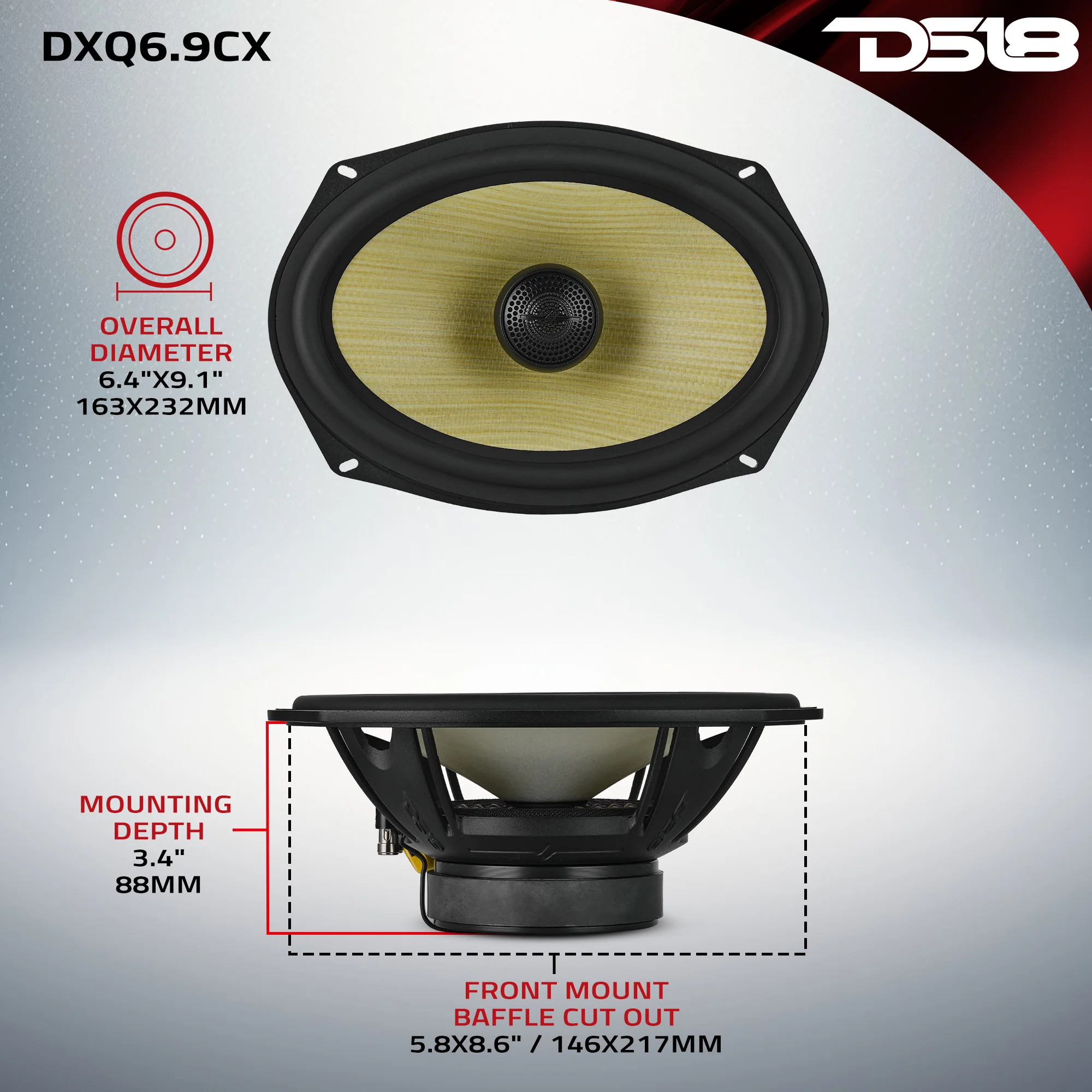

| Overall Diameter | 6.4x5.2" / 163x232mm |
| Overall Depth | 3.8" / 98mm |
| Front Mount Baffle Cutout | 5.8x8.6" / 146x217mm |
| Mounting Depth | 3.4" / 88mm |
| Motor Diameter | 3.9" / 100mm |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
