DS18 8XL800-8

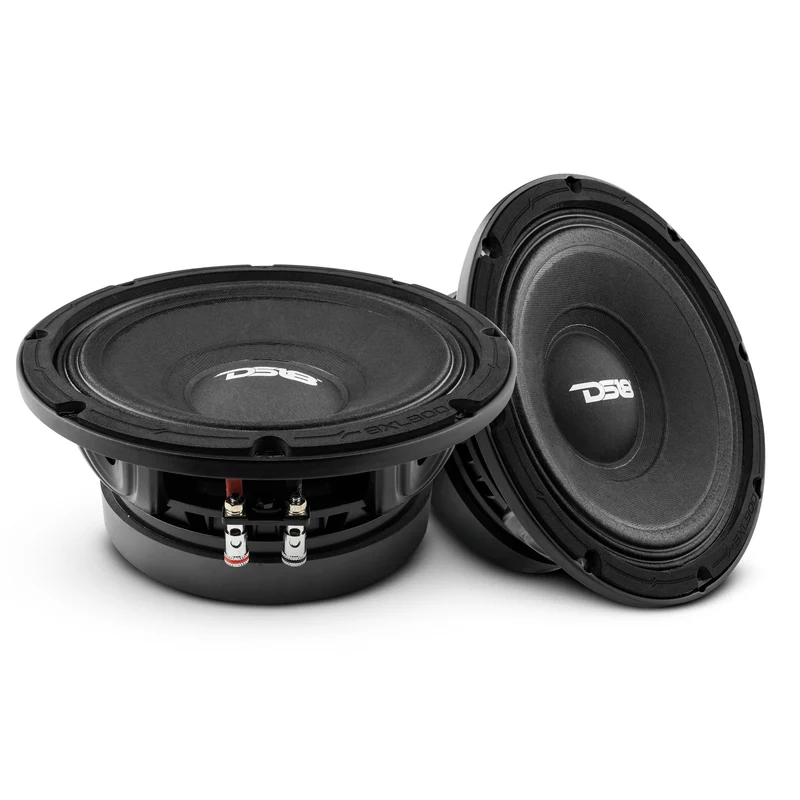

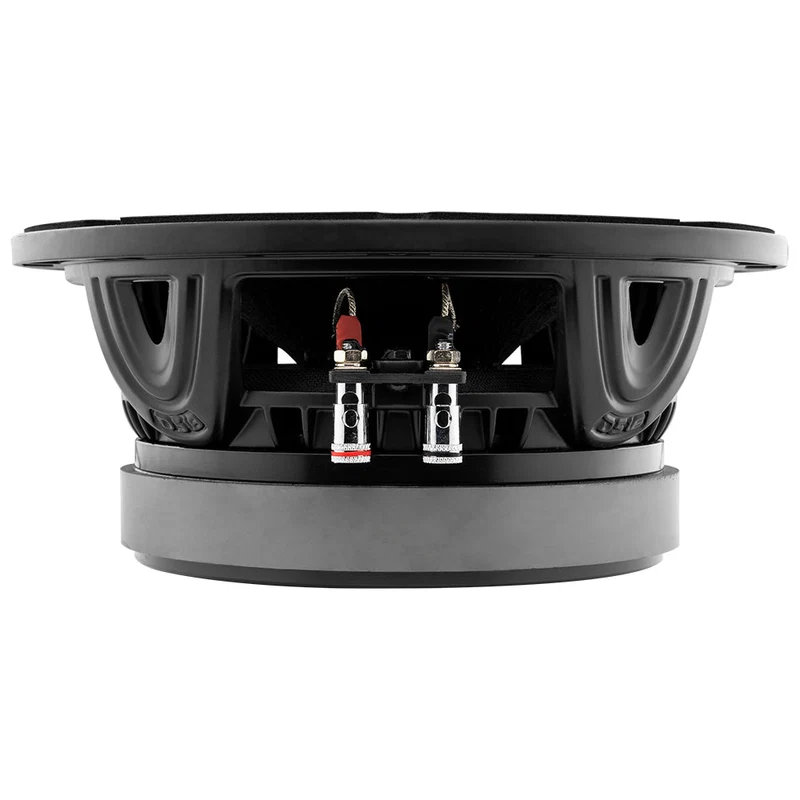

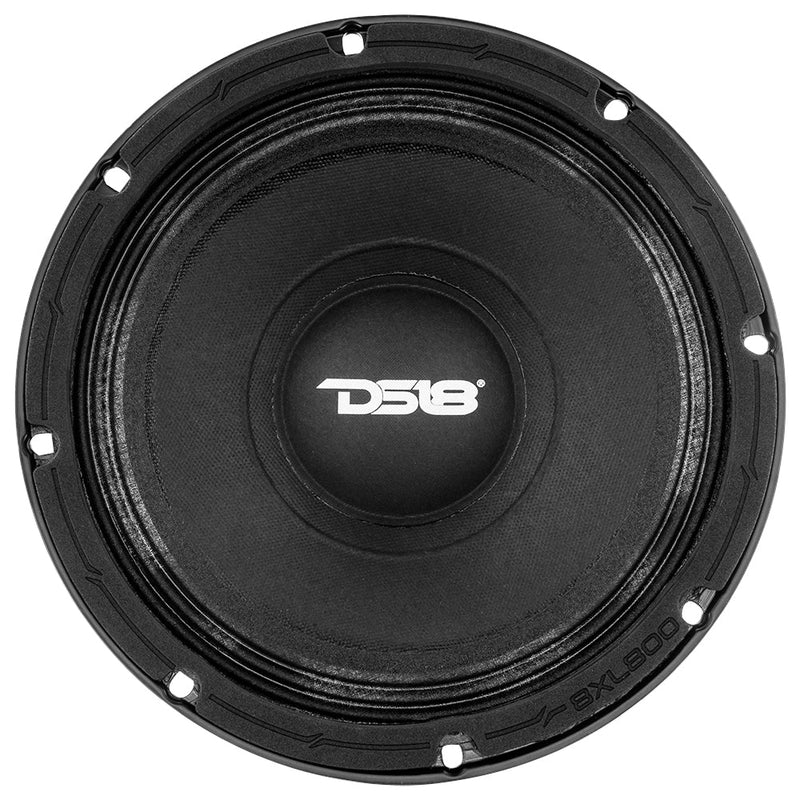

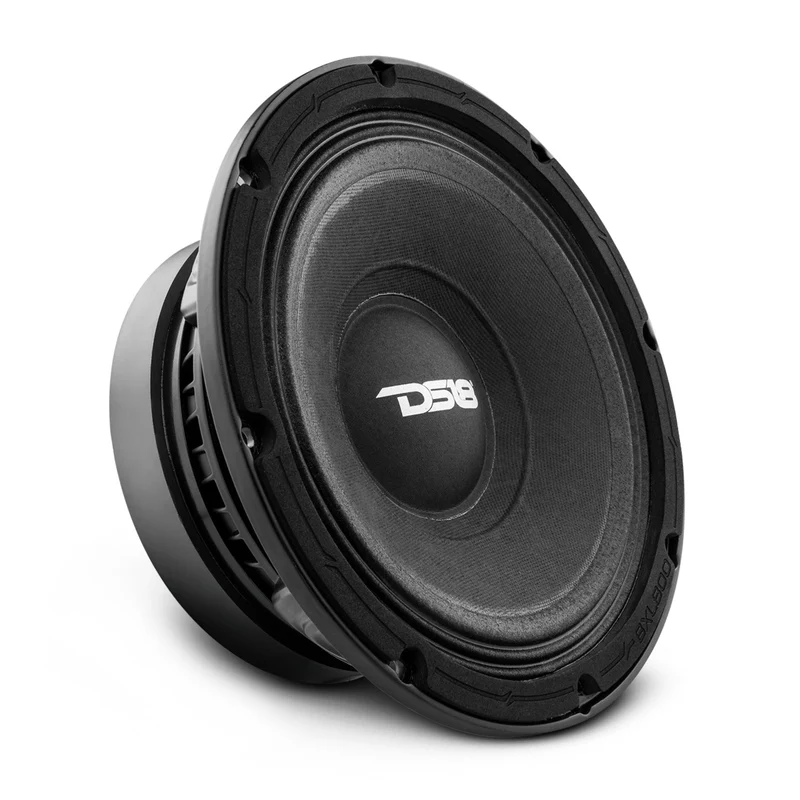

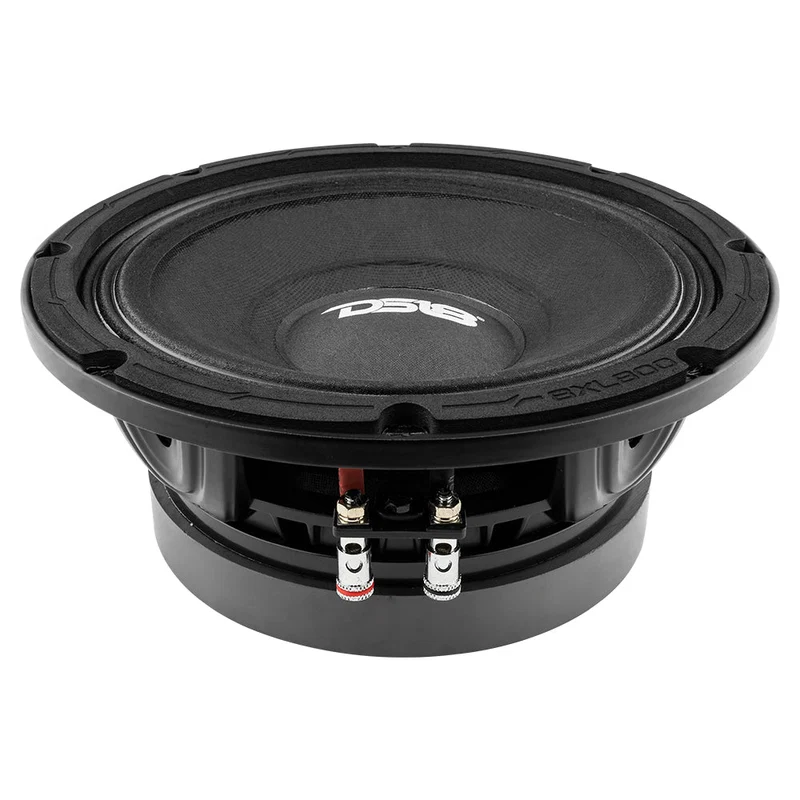

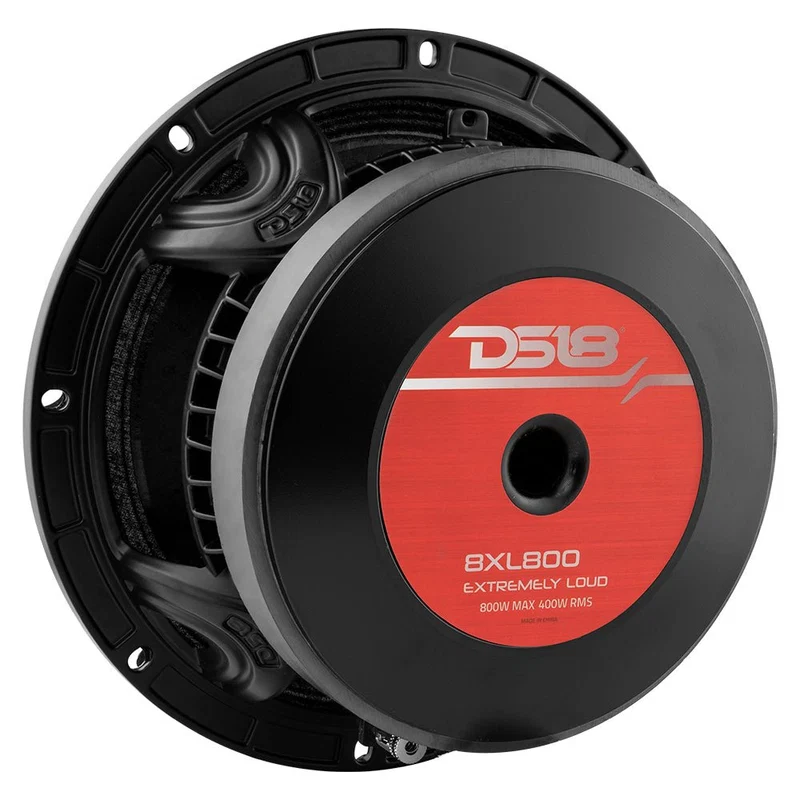

DS18 8" XL  400W (800W Peak) RMS 8-Ohm Mid-Range Loudspeaker
No reviews yet Write a Review
$155.95
SKU:
8XL800-8
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 8" Mid-Range
  • MAX Power: 800 Watts
  • RMS Power: 400 Watts
  • Impedance: 8-Ohm
  • Ferrite Magnet
  • 99dB

PRO XL 8" Mid-Range Loudspeaker 400 Watts Rms

DS18’s 8XL800-8 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.

DS18’s 8XL800-8 stands head and shoulders above the mid-range competition. This 8-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.

With power handling of 400W RMS and 800W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 99 dB guarantees crystal-clear sound reproduction, even in large venues.

Crafted with precision, DS18’s 8XL800-8 features a 2" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at 56 ounces ensures powerful and accurate bass responses that will leave you amazed.

Elevate your audio game with the DS18 8XL800-8!

Brand DS18
SKU 8XL800-8
Nominal Diameter 8" / 203mm
Nominal Impedance 8 Ohm
RMS Power Handling 400 watts
MAX Power Handling 800 watts
Sensitivity (1w/1m) 99dB
Frequency Response 60Hz-8KHz
Recommended HI Pass Crossover 90Hz
Sold in Pair or Single Single
Grill Included No
Voice Coil Diameter 2" / 50.8mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Non-pressed Paper
Dust Cap Material Paper
Bullet Material N/A
Bullet Color/Finish N/A
Surround Material Cloth
Basket Material Aluminum
Basket Color/Finish Satin Black
Magnet Material Ferrite
Magnet Weight 56 Oz
Displacement Volume 0.85L / 0.03ft3
Equivalent Volume 14.8L / 0.52ft3
Excursion (one way) 2.3mm
Free Air Resonance 90Hz
Mechanical Factor 5.62
Electrical Factor 0.39
Total Factor 0.36
Mechanical Mass 15.2g
Mechanical Compliance 0.23mm/N
BL Factor 10.7
Voice Coil Inductance 0.05mH
Cone Area 211.24cm²
DC Resistance 5.5 ohm
Mechanical Mass w/o air 17.5

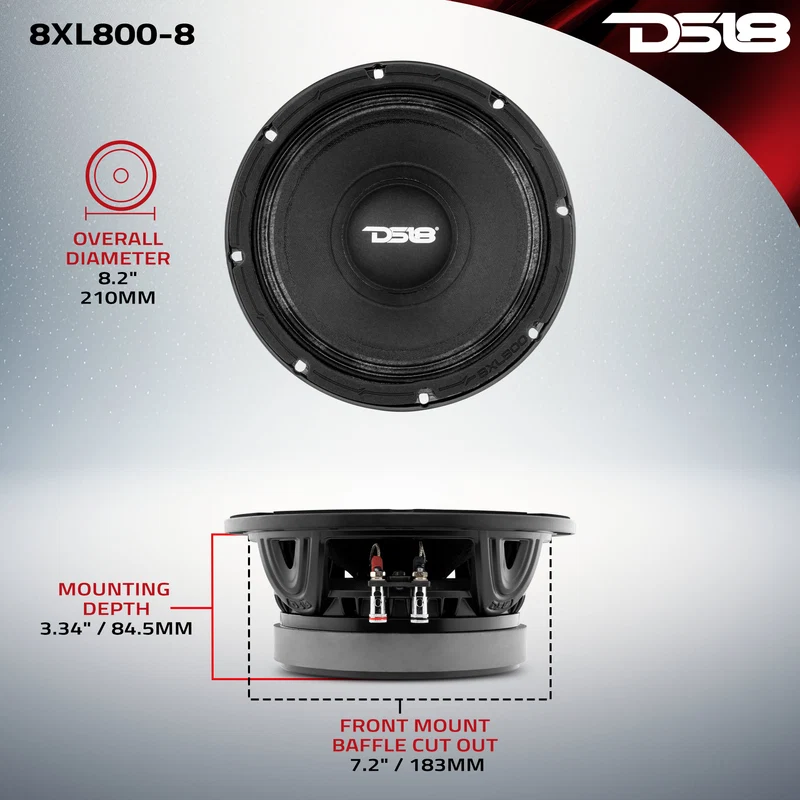

Overall Diameter 8.2" / 210mm
Overall Depth 3.8" / 96.4mm
Front Mount Baffle Cutout 7.2" / 183mm
Mounting Depth 3.34" / 84.5mm
Motor Diameter 6.14" / 156mm
Parts Warranty 1 Year
Labor Warranty 1 Year
