We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
• 5-Channel Marine Amplifier

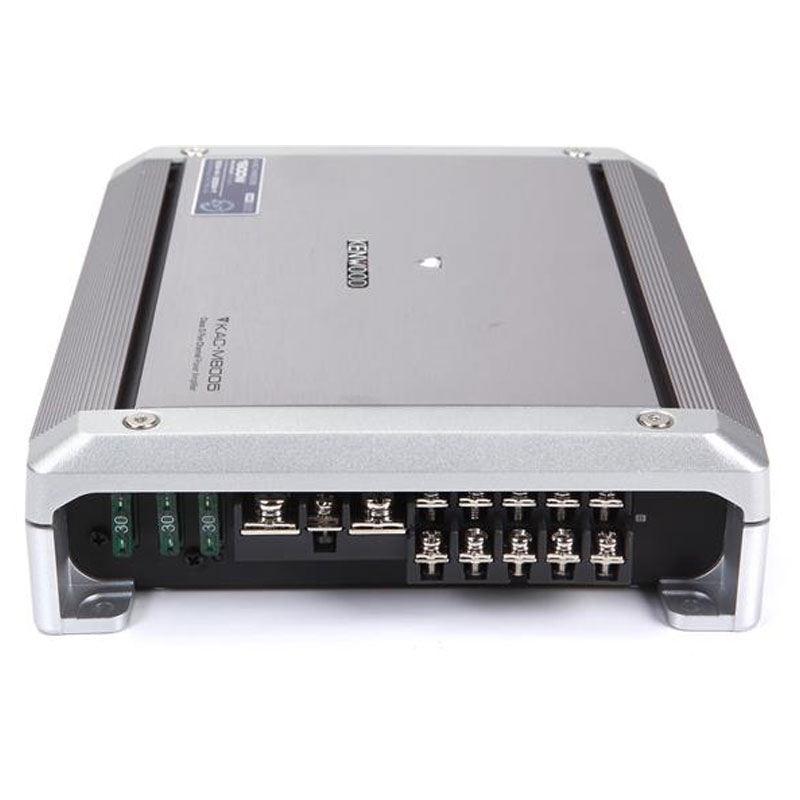

• (3) 30A ATO fuses (installed)
• Rubber control cover
• 2.5mm Allen wrench
• (4) Self-tapping screws (M4 x 16mm)
• Owner's Manual
Can Power Your Entire Sound System

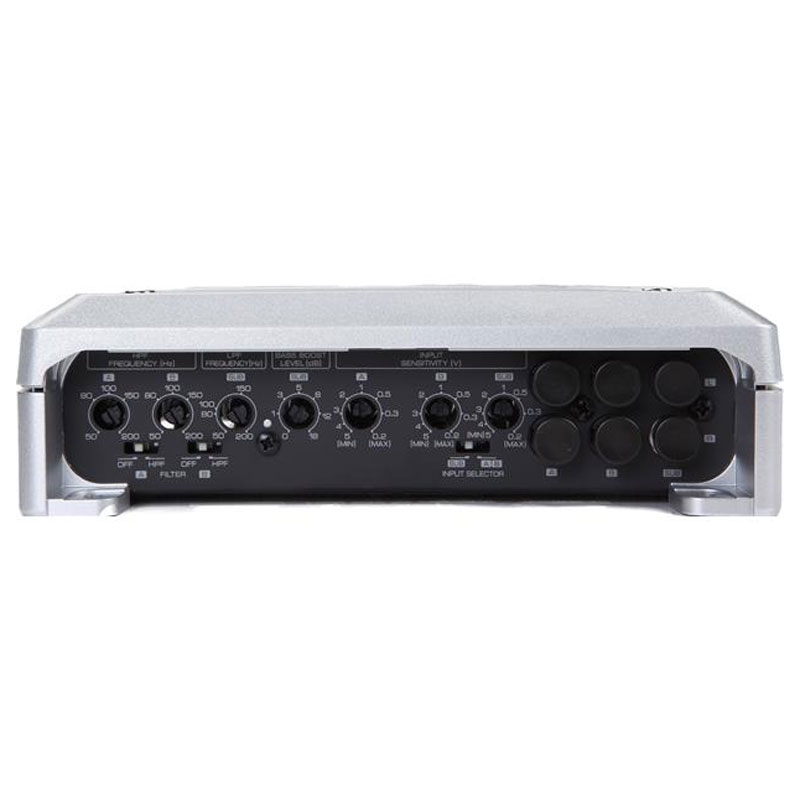

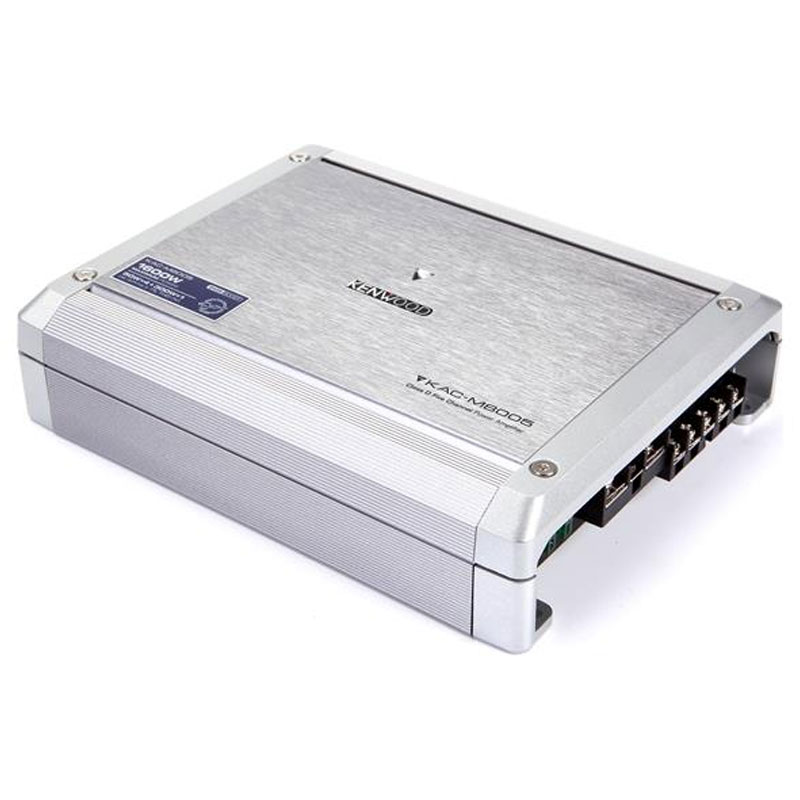

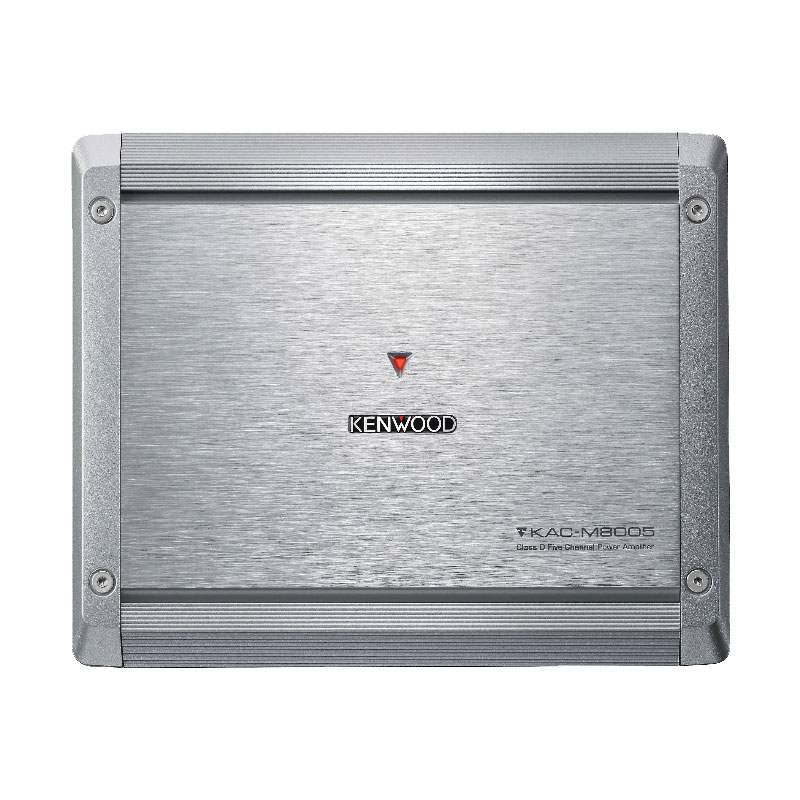

Kenwood's KAC-M8005 5-channel amplifier can power your entire sound system, sending out 50 watts RMS each to your four full-range speakers, and up to 500 watts RMS to your sub. This amp, will accept an input signal from just about any source, whether you're using RCA cables or speaker wires from your radio. When you use the speaker-level inputs, the amplifier will sense the signal and turn itself on, so you won't need to run a remote turn-on lead to your receiver.
5-channel Marine Stereo Amplifier
Give every speaker the power it needs for loud-but-clear audio with this five-channel marine stereo amplifier. Kenwood designed this amp to work with all the frequencies needed for a balanced sound. At 2-ohm output, the amplifier sends out 75 watts RMS each to four full-range speakers, tweeters or squawkers. The fifth channel pumps another 500 watts to the subwoofer. Four-ohm output is also supported, though at lower wattages.
| Brand | Kenwood |
| RMS Power Output (Watts x Channels) | 50 x 4 |
| Frequency Response at Rated RMS Power | 20-20k Hz |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 80 dB |
| Input Voltage | 14.4v |
| Peak Power Output (Watts x Channels) | N/A |
| Power at 2 Ohms (Watts x Channels) | 75 x 4 |
| Bridged Power (Watts x Channels) | 150 x 2 |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 24 dB/octave |
| High-Pass Crossover Frequency | 50-200 Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Height (inches) | 2-3/16 |
| Width (inches) | 9-1/8 |
| Depth (inches) | 7-3/8 |
| Bass Boost | 0-18 dB |
| Bass Boost Frequency | 40 Hz |
| Fan Cooled | No |
| Fuse Rating | 90 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
