We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.

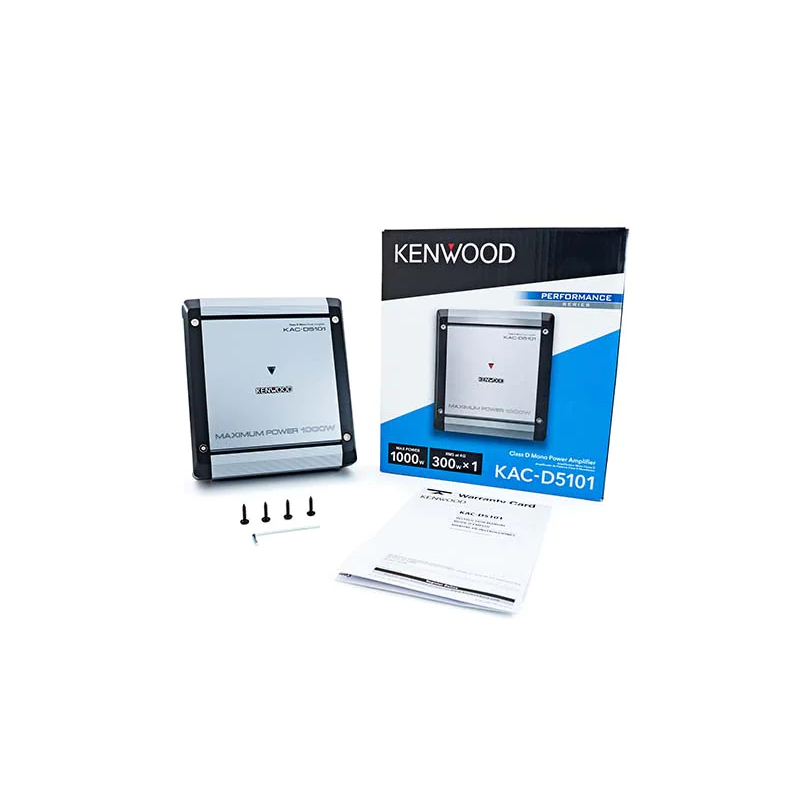

What's Inside?
• Amplifier
• (4) Mounting screws
• Allen wrench
• Owner's Manual
Dual Sigma Drive
This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.
Small Size Big Power

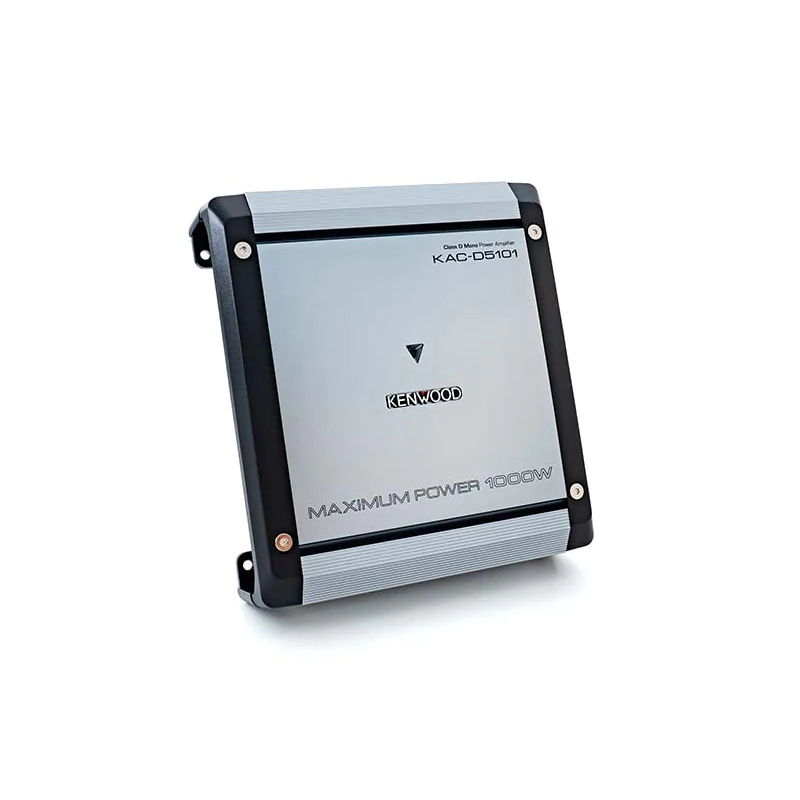

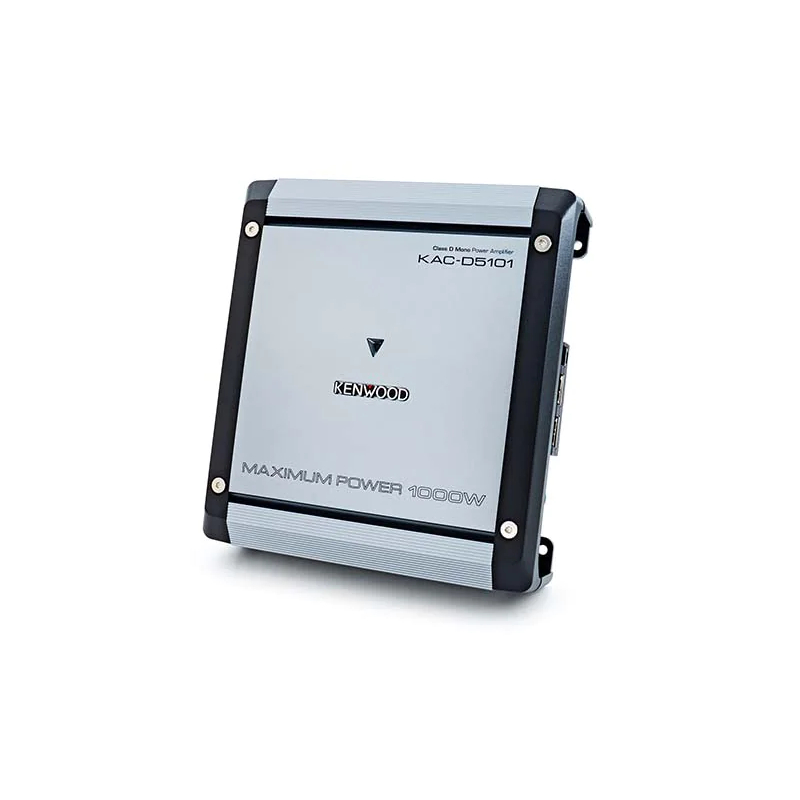

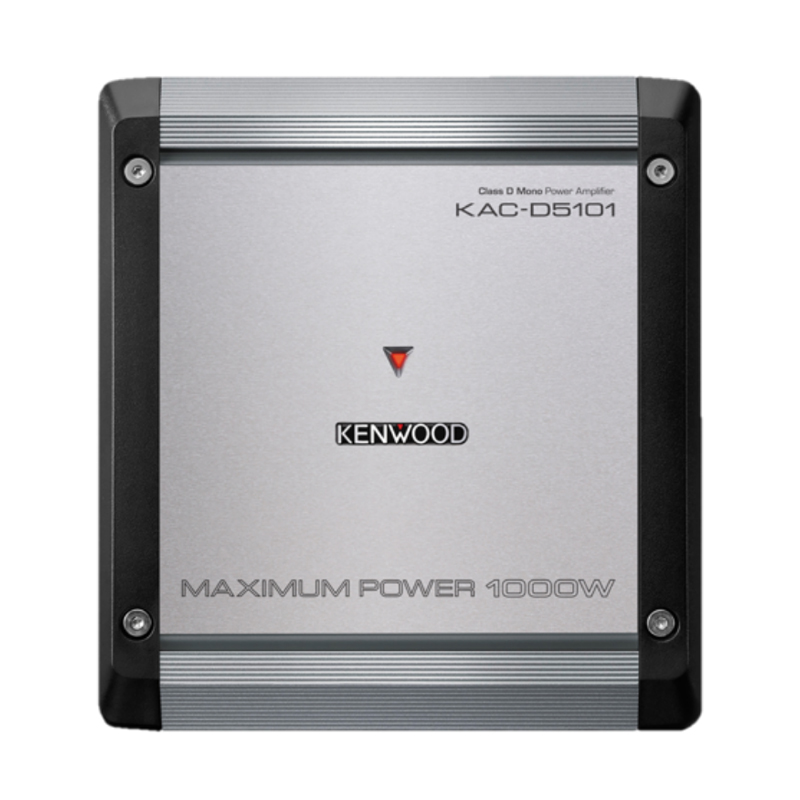

The KAC-D5101 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.
| Brand | Kenwood |
| RMS Power @ 4 ohms | 300 watts x 1 channel |
| RMS Power @ 2 ohms | 500 watts x 1 channel |
| RMS Power @ 1 ohm | 1000 watts x 1 channel |
| Peak Power @ 2 ohms | 1000 watts x 1 channel |
| Series | Performance Series |
| Amplifier Class | D |
| Number of Channels | 1 - Mono |
| Total Peak Power Output | 1000 watts |
| Total RMS Power Output | 500 watts |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Built-in Crossover | Low-Pass (LP) |
| Low-Pass Crossover Frequency | 50 - 200 Hz |
| Bass Boost | 0 - 18 dB |
| Remote bass/level controller | No |
| Strappable | No |
| Sonic Certified Amplifier | Not Tested |
| Amp Bluetooth Connectivity | No |
| Hi-Res Certified | No |
| Maximum Input Gauge Size | Any Gauge with use of Spade Terminal AWG |
| Minimum Impedance Unbridged | 2 ohms |
| Minimum Impedance Bridged | Not Bridgeable |
| THD at Rated RMS Power | 0.01 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
