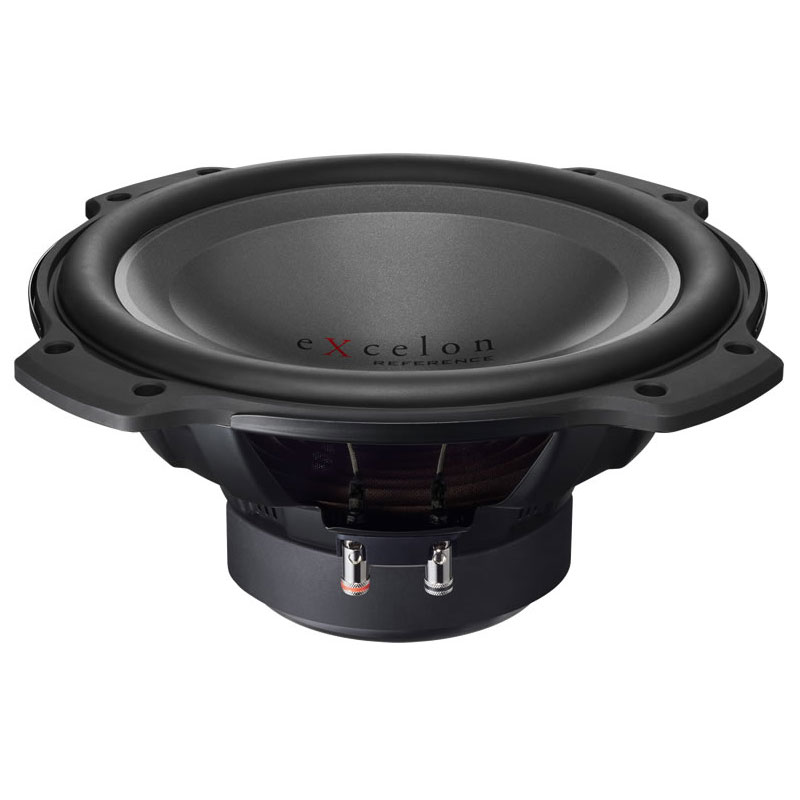

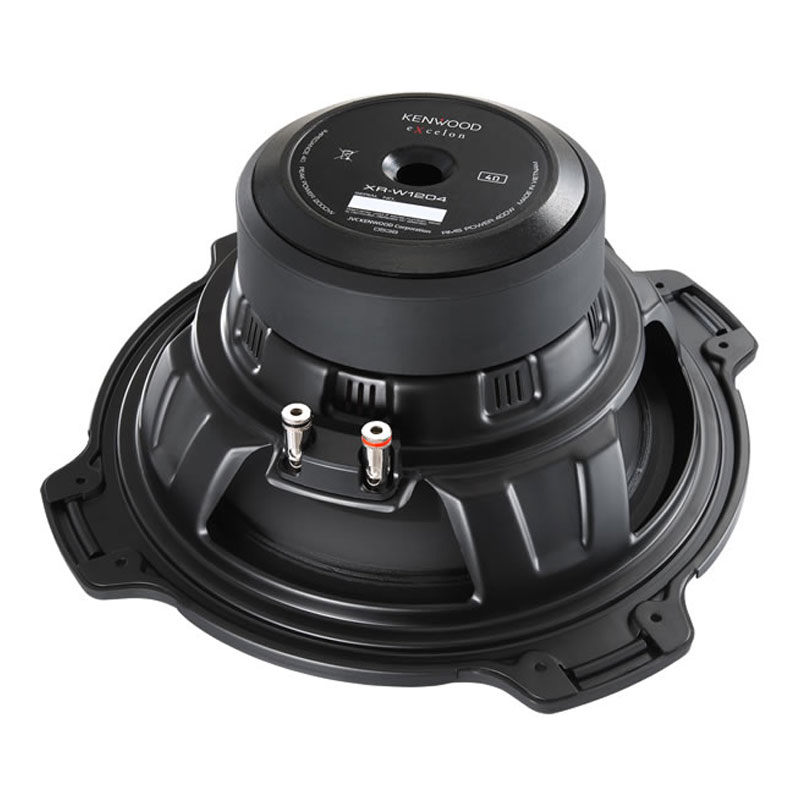

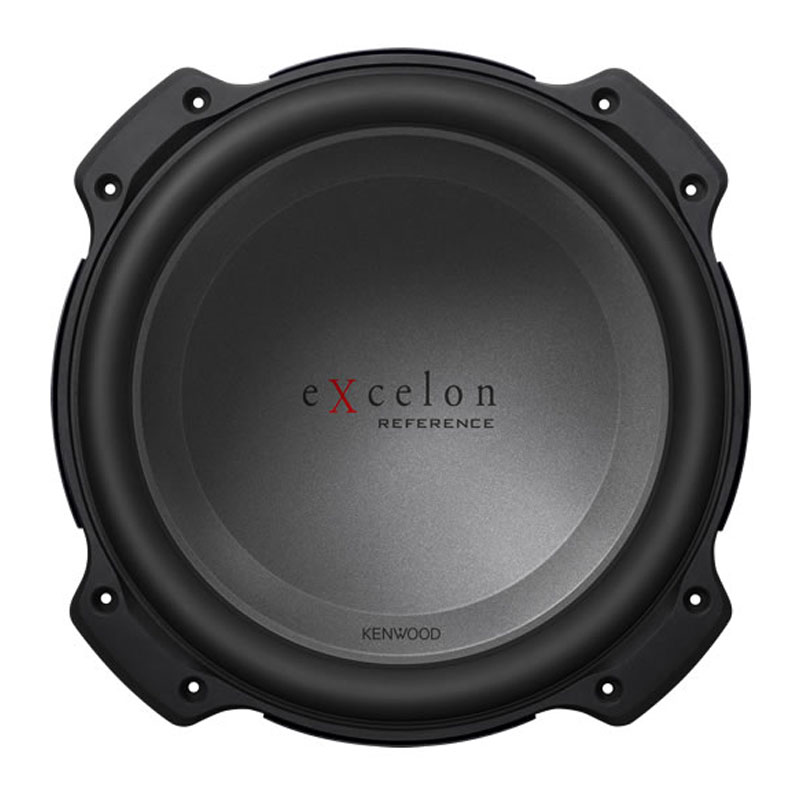

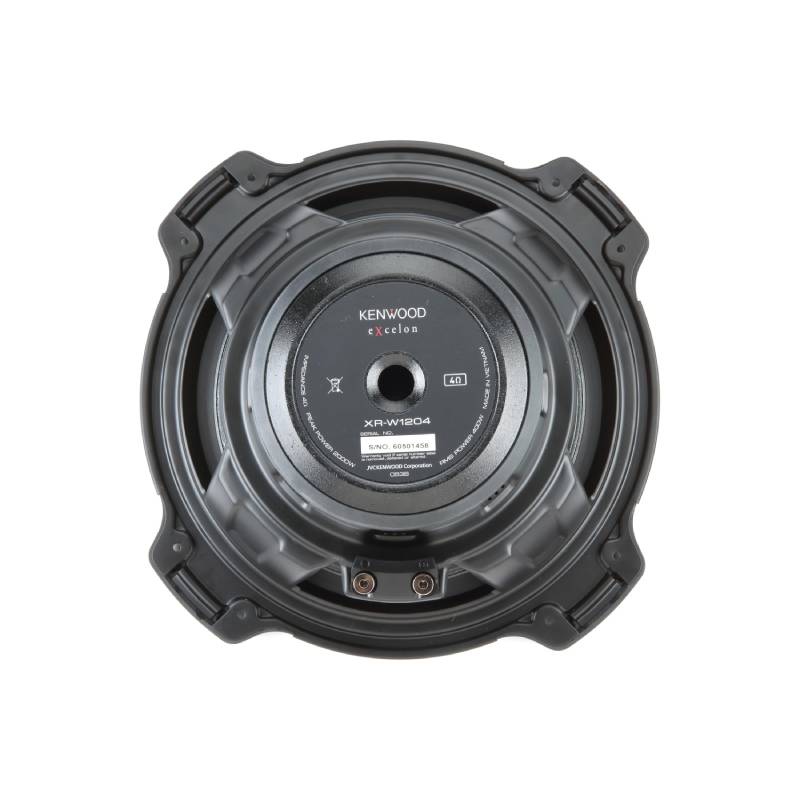

Kenwood Excelon XR-W1204

Kenwood 12" Excelon Series 4-Ohm Single Voice Coil Oversized Subwoofer
No reviews yet Write a Review
$239.99
SKU:
XR-W1204
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty

We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.

What's Inside?
•One 12" Subwoofer
•Eight 1-3/8" Screws
•Adhesive backed foam gasket
•Cardboard template
•Warranty information
•Specs on box lid
•Owner's Manual

Ready to Rock
Kenwood puts their most advanced technology into the Excelon subwoofers, so you can enjoy reliable high-performance bass in your ride. The oversized XR-W1204 12" sub is designed to move more air than a standard sub, which means more sound in your vehicle. It comes equipped with an oversized polypropylene cone attached to a heavy-duty rubber surround that allows for extra excursion, so it'll faithfully reproduce those low notes. The XR-W1204 is rated to handle up to 400 watts RMS so you know it's ready to rock.

Cooler During Extended Play
A dual ventilation system forces heated air out of the motor structure through the back and the sides of the housing, so the sub stays cooler during extended play. This ventilation system also allows this sub to operate in a shallow enclosure, good news if you're building a box to go in a tight spot. Install this Kenwood in a suitable box, hook up a nice amp, and you're ready to rumble.

Brand Kenwood
Size 12 -inch
Impedance (Ohms) 4
Cone Material Polypropylene
Surround Material Rubber
Sensitivity 83 dB at 1 watt
Frequency Response 32 - 300 Hz
Max RMS Power Handling 400
Peak Power Handling (Watts) 2000
Port diameter (inches) N/A
Port length (inches) N/A
Free-Air No
Dual Voice Coil No
Top Mount Depth (inches) 5.625
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 10.9375
Vas (liters) 125.4
Fs (Hz) 21.5
Qts 0.341
Xmax (millimeters) 10.8
Ideal Sealed Box Volume (cubic feet) 0.88
Minimum Sealed Box Volume (cubic feet) 0.6
Maximum Sealed Box Volume (cubic feet) 1.25
Ideal Ported Box Volume (cubic feet) 1.5
Minimum Ported Box Volume (cubic feet) 1.2
Maximum Ported Box Volume (cubic feet) 2
Parts Warranty 2 Years
Labor Warranty 2 Years
