What's Inside?
• (1) Monoblock Subwoofer Amplifier
• 2.5mm Allen wrench
• (1) Self-adhesive JL Audio badge
• (1) Owner's manual
Purpose-built for Subwoofer

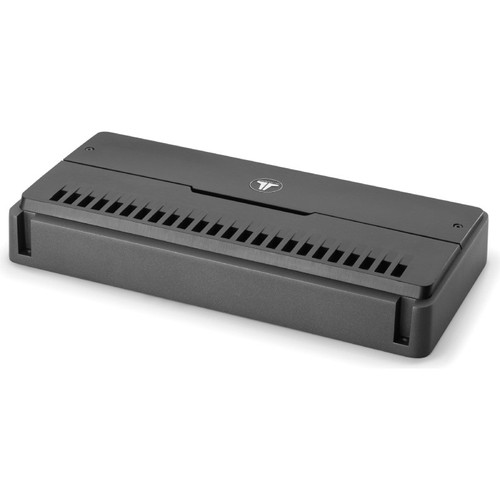

Designed and made for subwoofer applications, the JL Audio RD1000/1 is a subwoofer amplifier purposely built for producing jaw-dropping bass with minimal distortion. Engineered using the latest technologies, JL Audio has made an excellent product for your specific bass needs.
JL Audio employs its patented NexD Switching Technology in the amplifier, combining a self-oscillating modulator and input signal, reducing the distortion produced by supply voltage fluctuation. It also has its patented Differential-Balanced Inputs, allowing the amplifier to accept a vast range of input signal levels, which aids in eliminating noise.
Heavy-duty Aluminum Heat Sinks
The JL Audio RD1000/1 also has some signal processing features on its own. It comes with a low pass filter frequency from 50 to 500 Hz, which gives more definition to the bass, and a bass boost of up to +12 dB if you are still not satisfied with the bass that your subwoofer produces.
The subwoofer amplifier has heavy-duty aluminum heat sinks for efficient and quick heat dissipation, and its dual terminals are designed for easier installation of multiple speakers into the amplifier. It has protection circuitry against thermal, overload, and speaker short circuits.
Amplifier Producing Thunderous Bass
The JL Audio RD1000/1 has a power output of 500 Watts RMS Power per channel at 4 ohms and 1000 Watts RMS Power per channel at 2 ohms. Its frequency response of 7 up to 500 Hz says you will not have any problems with the amplifier producing thunderous bass.
| Brand | JL Audio |
| RMS Power Output (Watts x Channels) | 600 x 1 |
| Peak Power Output (Watts x Channels) | N/A |
| Power at 2 Ohms (Watts x Channels) | 1000 x 1 |
| Bridged Power (Watts x Channels) | N/A |
| Minimum Impedance Bridged | N/A |
| Minimum Impedance Unbridged | 2 |
| Minimum Impedance | 2 |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-500 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | N/A |
| High-Pass Slope (dB/octave) | N/A |
| Best Frequency Response | 7-500 Hz |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 50 dB |
| Input Voltage | 14.4v |
| Bass Boost | 0-12 dB |
| Bass Boost Frequency | 45 Hz |
| Fan Cooled | No |
| Fuse Rating | 80 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | 2 |
| Width (inches) | 14 5/8" |
| Height (inches) | 2 3/16" |
| Depth (inches) | 7" |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
