We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
•4-Channel class-D amplifier
•Power/Ground/Turn-On plug
•(2) 2-speaker connection plugs
•(4) Mounting feet
•2.5mm Allen-wrench
•4mm Allen-wrench
•(4) M4x40mm Flat head machine screws
•Owner's manual
Designed Specifically for Marine Environments

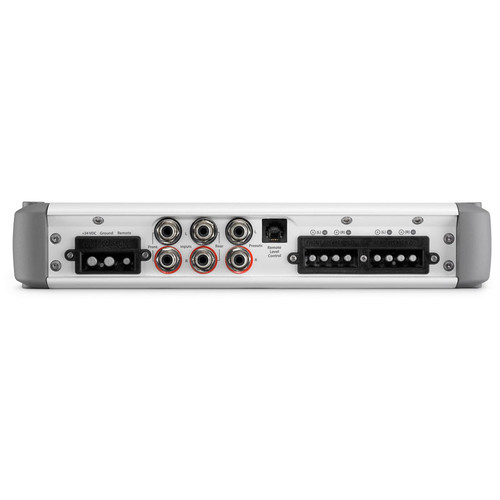

The JL Audio MHD600/4 marine amplifier is a top-of-the-line audio solution designed specifically for marine environments. With its rugged construction and advanced technology, this amplifier delivers exceptional sound quality and power to your boat's audio system.
Withstand the Harsh Conditions of the Marine Environment
Built to withstand the harsh conditions of the marine environment, the MHD600/4 features a corrosion-resistant chassis and coated circuit boards, ensuring long-lasting performance even in saltwater environments.
UV-resistant
It is also UV-resistant, protecting it from sun damage. With a 4-channel configuration, this amplifier allows you to power multiple marine speakers or component sets, filling your boat with rich and clear sound. It delivers up to 600 watts of power, ensuring that your music can be heard over the noise of the water and engine.
Outstanding Sound Quality
The MHD600/4 features a range of protection mechanisms like thermal, low-impedance, and over-voltage protection, safeguarding the amplifier and your audio system. The JL Audio MHD600/4 marine amplifier is a durable, high-performance solution for marine audio enthusiasts. It combines ruggedness, power, and advanced technology to deliver outstanding sound quality in the challenging marine environment.
Brand | JL Audio |
RMS Power Output (Watts x Channels) | 150 x 4 |
Frequency Response at Rated RMS Power | --- |
THD at Rated RMS Power | 0.0003 |
Signal to Noise Ratio | 110 dB |
Input Voltage | 14.4v |
Peak Power Output (Watts x Channels) | N/A |
Power at 2 Ohms (Watts x Channels) | 150 x 4 |
Bridged Power (Watts x Channels) | 300 x 2 |
Height (inches) | 2 |
Width (inches) | 10.75 |
Depth (inches) | 9.5 |
Minimum Impedance Bridged | 3 |
Minimum Impedance Unbridged | 1.5 |
Amplifier Class | D |
Low-Pass Crossover Frequency | 50-500 Hz |
Low-Pass Slope (dB/octave) | 12 or 24 dB/octave |
High-Pass Crossover Frequency | 50-500 Hz |
High-Pass Slope (dB/octave) | 12 or 24 dB/octave |
Bass Boost | No |
Bass Boost Frequency | N/A |
Fan Cooled | No |
Fuse Rating | 50 |
Speaker Level Inputs | Yes |
Preamp Outputs | 2 |
Parts Warranty | 1 Year |
Labor Warranty | 1 Year |
