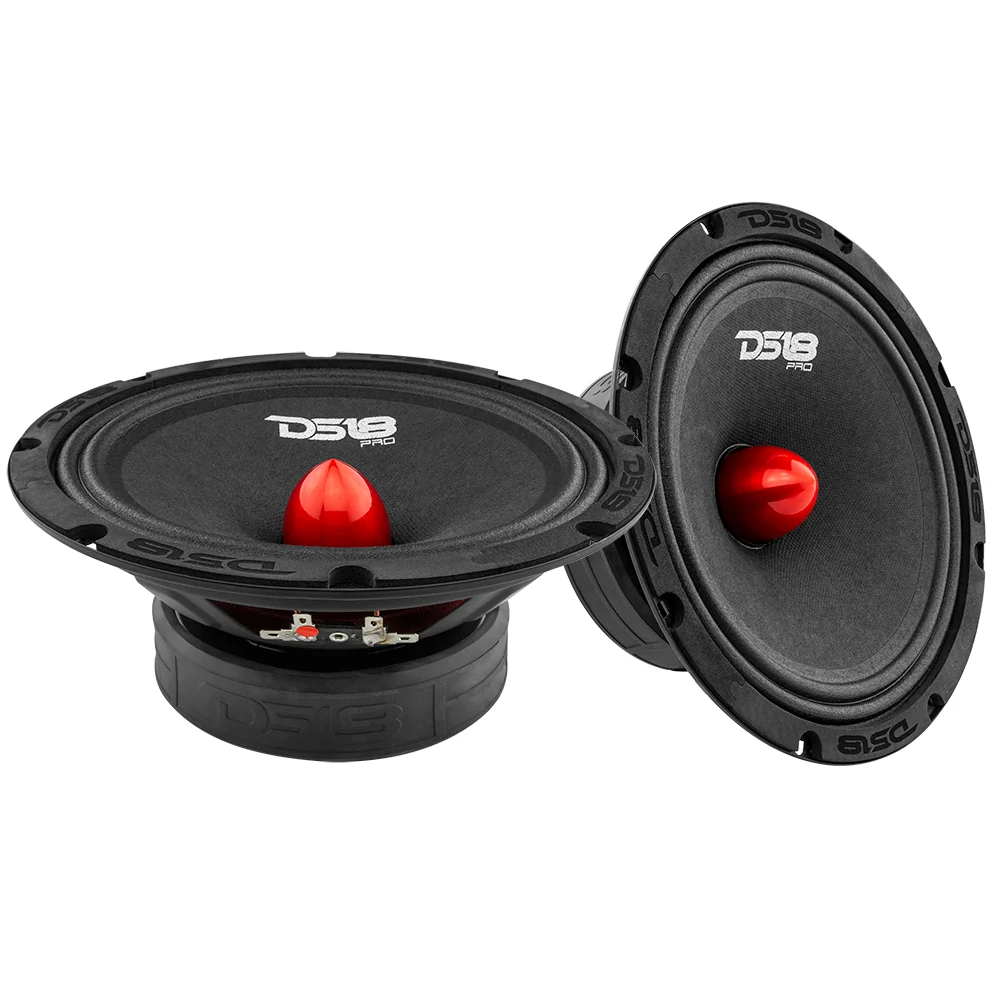

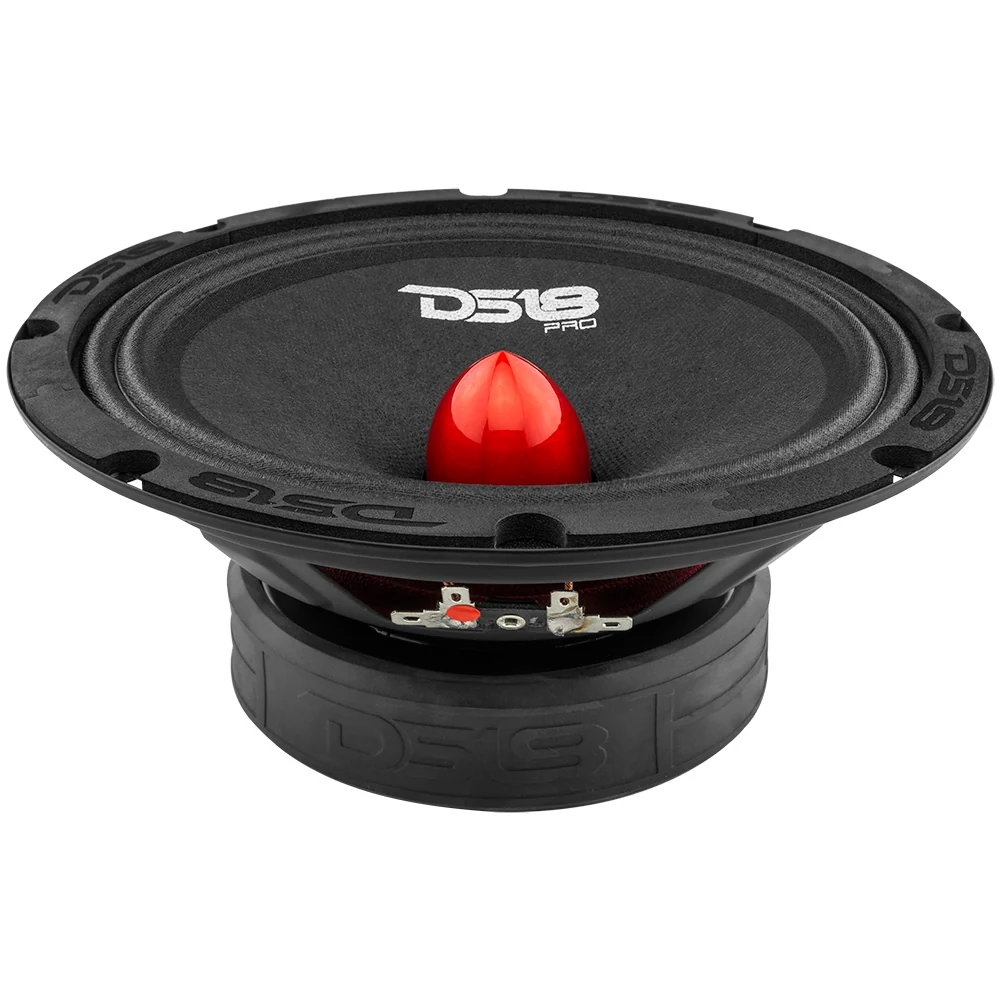

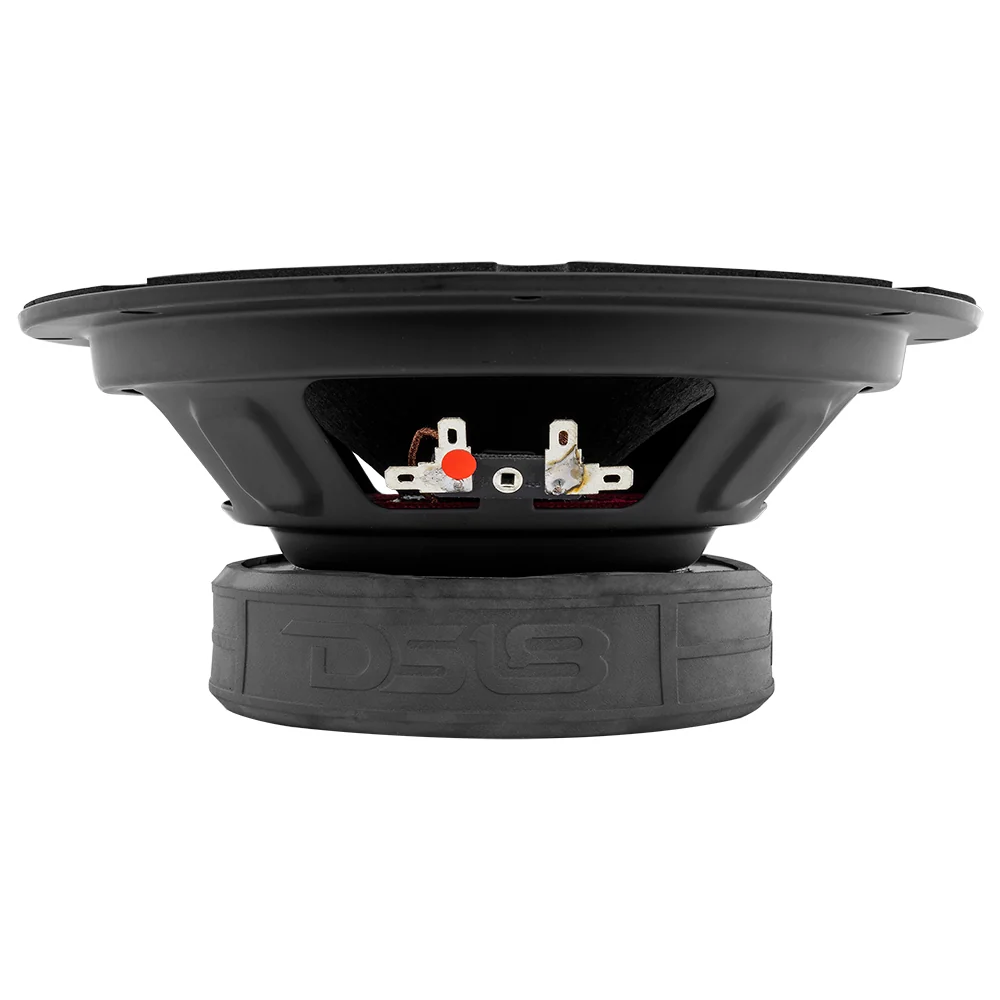

DS18 PRO-GM8.4B

DS18 8" 190W RMS 4-Ohm Pro Series Mid-Range Loudspeaker with Bullet
No reviews yet Write a Review
$50.95
SKU:
PRO-GM8.4B
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 8" Mid-Range
  • MAX Power: 580 Watts
  • RMS Power: 190 Watts
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • With Bullet

8" Mid-Range Loudspeaker with Bullet 580 Watts 4-Ohm

With the DS18 PRO-GM8.4B, you'll experience the pinnacle of faithful sound reproduction. Its exceptional performance in the midrange region, ensures that every nuance and subtlety of your favorite tracks is faithfully conveyed.

With an RMS power of 190W and a maximum power of 580W, these speakers pack a punch that will leave you breathless. The frequency response of 90Hz – 10KHz ensures that no detail is lost, capturing every note with astonishing accuracy.

Crafted with high durability parts, including a robust ferrite magnet, a pressed paper cone, and CCA voice coils, this mid-range is built to deliver maximum volume without compromising audio excellence. The voice coil wire, made of Kapton, ensures enhanced performance and durability. With an impedance of 8 Ohms, a sensitivity rating of 96dB, 1.5" voice coil size, a magnet weight of 30 oz., a mounting depth of 3.11" (86mm), and cut-out dimensions of 7.16" (182mm), these speakers are engineered to fit seamlessly into your vehicle.

The solid cone design of the PRO-GM8.4B ensures that it shines as a pure midrange speaker, providing a focused and precise soundstage. For the ultimate audio experience, pair these exceptional speakers with a complementary tweeter, and prepare to be transported to a world where sound comes alive with unparalleled clarity and depth.

The "B" in PRO-GM8.4B stands for "Bullet," and it represents the heart of this extraordinary speaker. Equipped with a resonator featuring a distinctive red bullet design, the PRO-GM8.4B extends the range of frequencies, allowing you to hear every nuance and detail in your music. From deep, thundering bass to crystal-clear highs, this speaker does it all.

Whether you're cruising down the highway or parked at a car meet, the PRO-GM8.4B will captivate your senses, immersing you in crystal clear notes and deep heavy beats.

Brand DS18
Nominal Diameter 8" / 203.2mm
Nominal Impedance 4 Ohm
RMS Power Handling 190W
MAX Power Handling 580W
Sensitivity (1w/1m) 95dB
Frequency Response 80Hz-10KHz
Recommended HI Pass Crossover 120Hz
Pair or Single Single
Grill Included No
Voice Coil Diameter 1.5" / 38.1mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Dust Cap Material N/A
Bullet Material / Color Red Aluminum
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 30 oz
Equivalent Volume (Vas) 18.39L / 0.64ft3
Excursion (one way) (Xmax) N/A
Free Air Resonance (Fs) 92Hz
Mechanical Factor (Qms) 11.5
Electrical Factor (Qes) 0.715
Total Factor (Qts) 0.673
Mechanical Mass (Mms) 10.3g
Mechanical Compliance (Cms) 0.286mm/N
BL Factor (BL) 5.2
Voice Coil Inductance (Le) 0.427mH
Cone Area (Sd) 213.82cm2
DC Resistance (Re) 3.2 ohm
Overall Diameter 8.26" / 210 mm
Overall Depth 3.46" / 88 mm
Front Mount Baffle Cutout 7.2" / 183 mm
Mounting Depth 3.22" / 82mm
Motor Diameter 4.72" / 120mm
Gross Single Unit Weight (lb) 5
Single Unit Box Dimensions W x L x H (Inches) 9 x 9 x 4
Parts Warranty 1 Year
Labor Warranty 1 Year
