We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.
General Features:
- 3" High Compression Hybrid Driver/Tweeter
- RMS Power: 140 Watts(280 Watts Peak)
- Impedance: 4 Ohm ~ 105dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN4VC

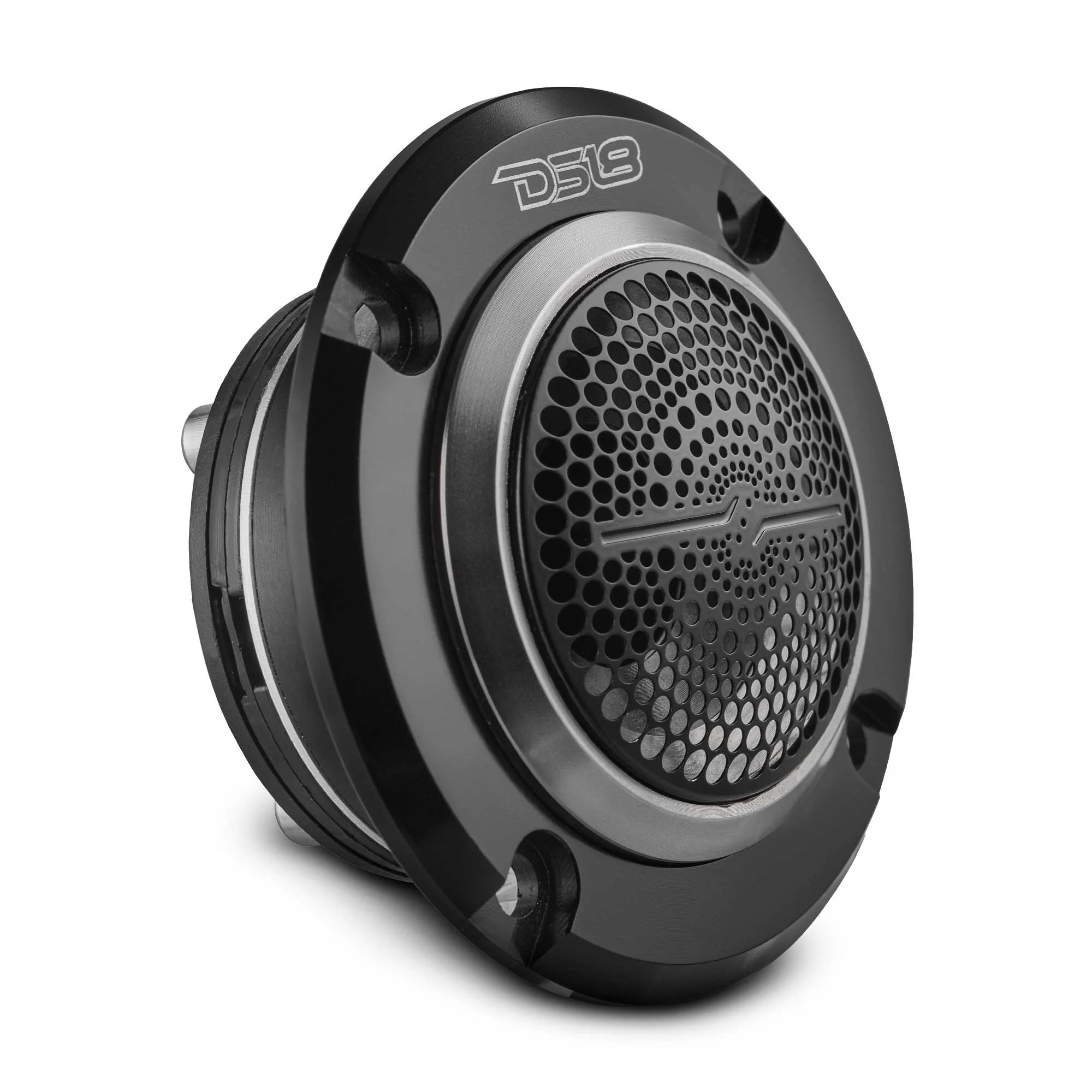

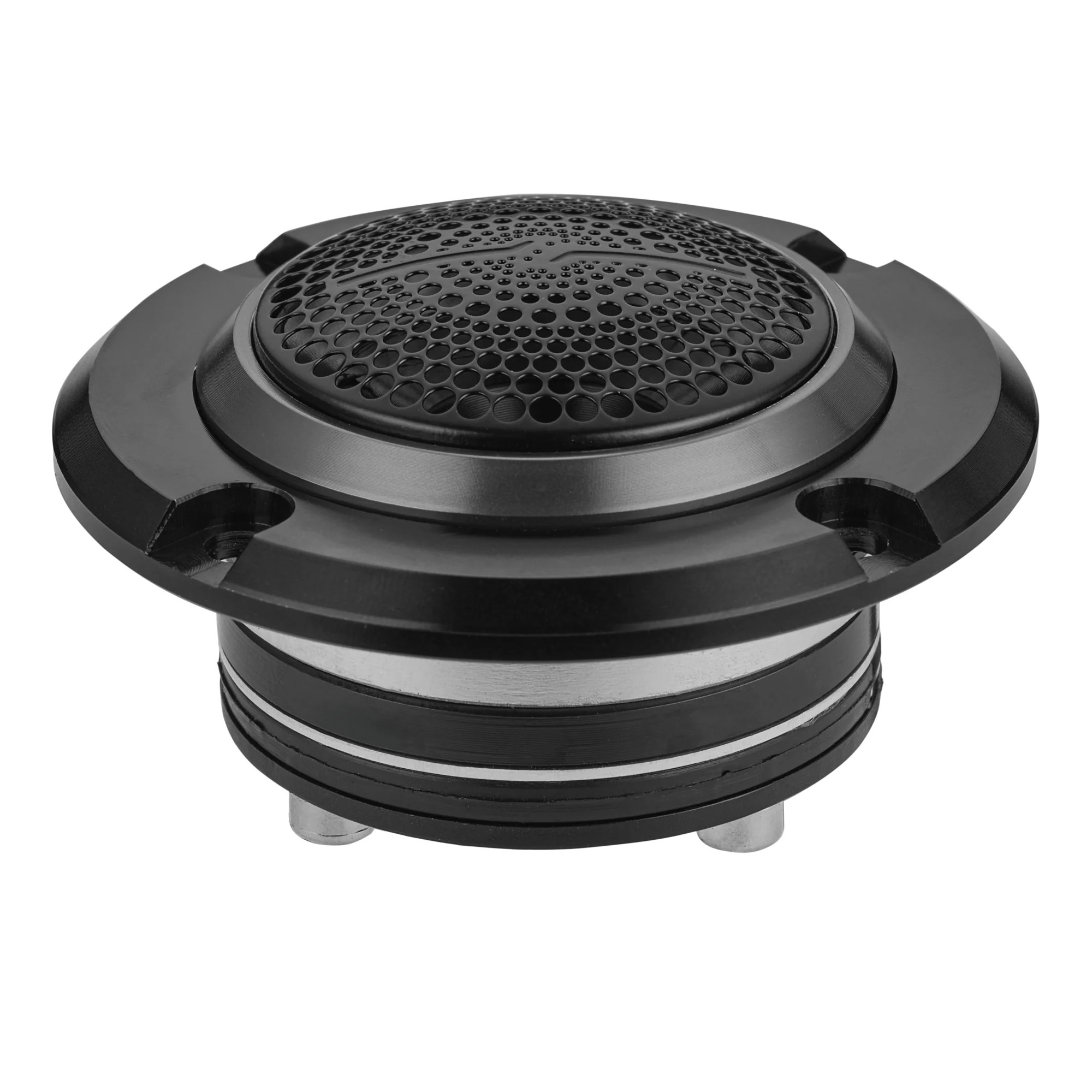

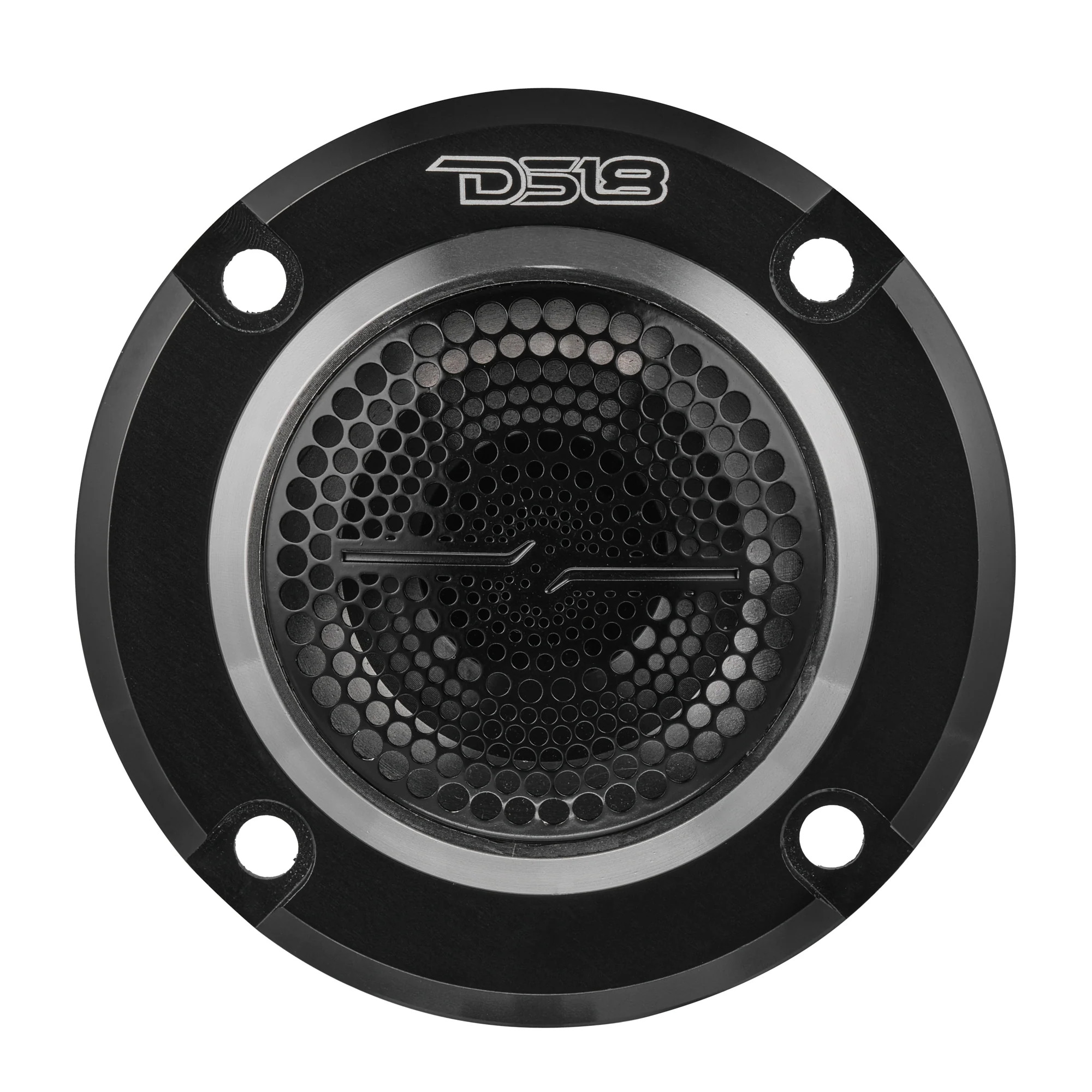

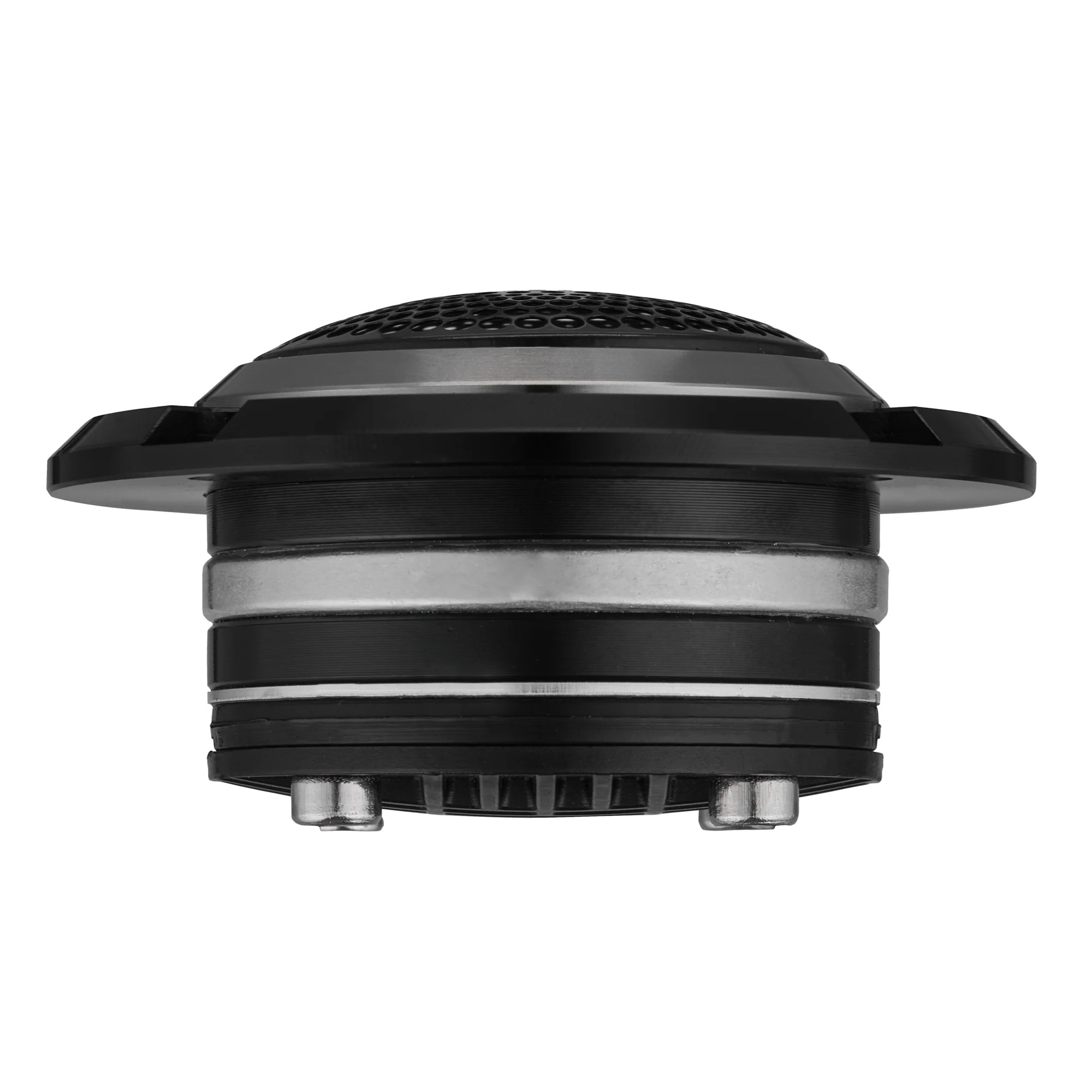

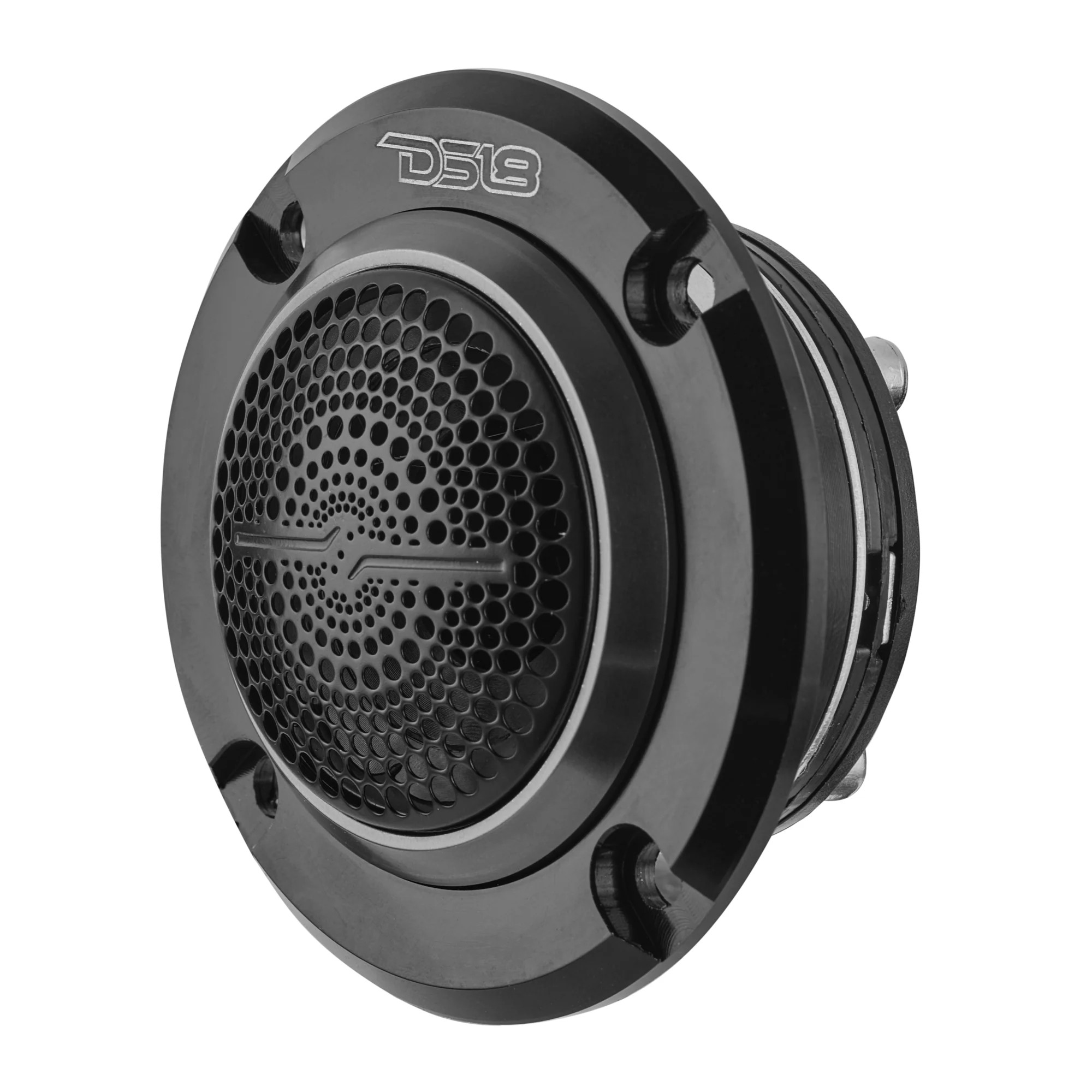

DS18 PRO-TWN4
3" High Compression Neodymium Hybrid Driver/Tweeter
The PRO-TWN4 handles 70W AES, 140W Program, and 280W MAX, offering dynamic highs that cut through any mix. Its 1-inch PEN (Polyarylene Ether Nitrile) voice coil offers clean, distortion-free sound at all volume levels.
Lightweight Neodymium Magnet Efficiency
Built with a strong but lightweight neodymium magnet, this tweeter’s sensitivity has been maximized (105dB). This means louder, clearer sound with less power: making it ideal for a wide range of setups.

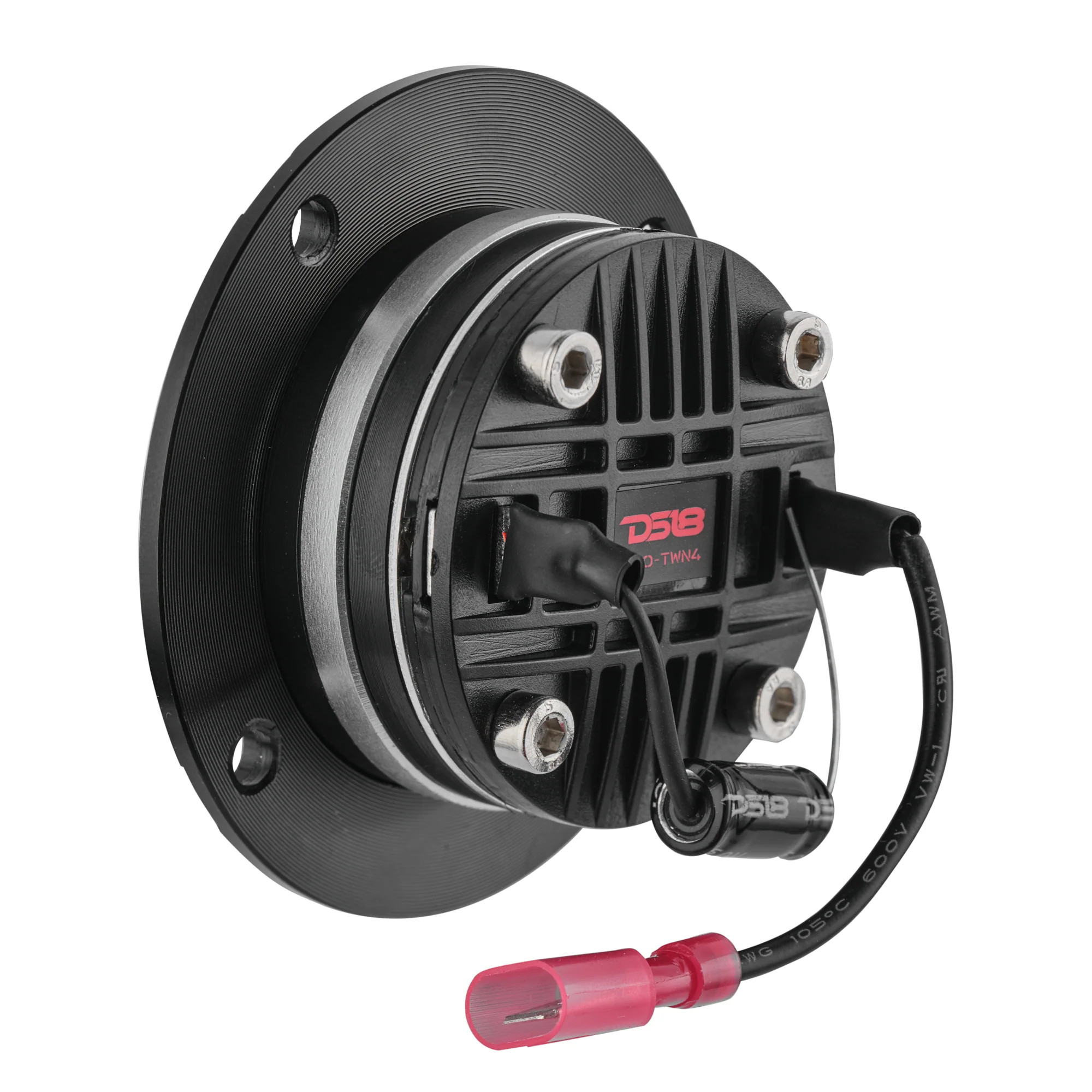

Safe & Reliable with Included Bass Blocker
Each PRO-TWN4 includes a bass blocker to guard the tweeter from damaging low frequencies. This safeguards your system and guarantees longevity, letting you push your audio to the limits worry-free.
The PRO-TWN4 combines power and clarity to elevate your soundstage. Upgrade to high performance today!
| Brand | DS18 |
| Nominal Diameter | 3" |
| Nominal Impedance | 4 Ohm |
| Peak Power Handling | 280W |
| Program Power Handling | 140W |
| AES Power Handling | 70W |
| Sensitivity (1w/1m) | 105dB |
| Frequency Response | 1.5KHz-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Voice Coil Diameter | 1"/25.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | CCAR |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Magnet Size | 2" x 0.2" |
| Body Material | Aluminum |
| Bullet Material | CNC Aluminum |

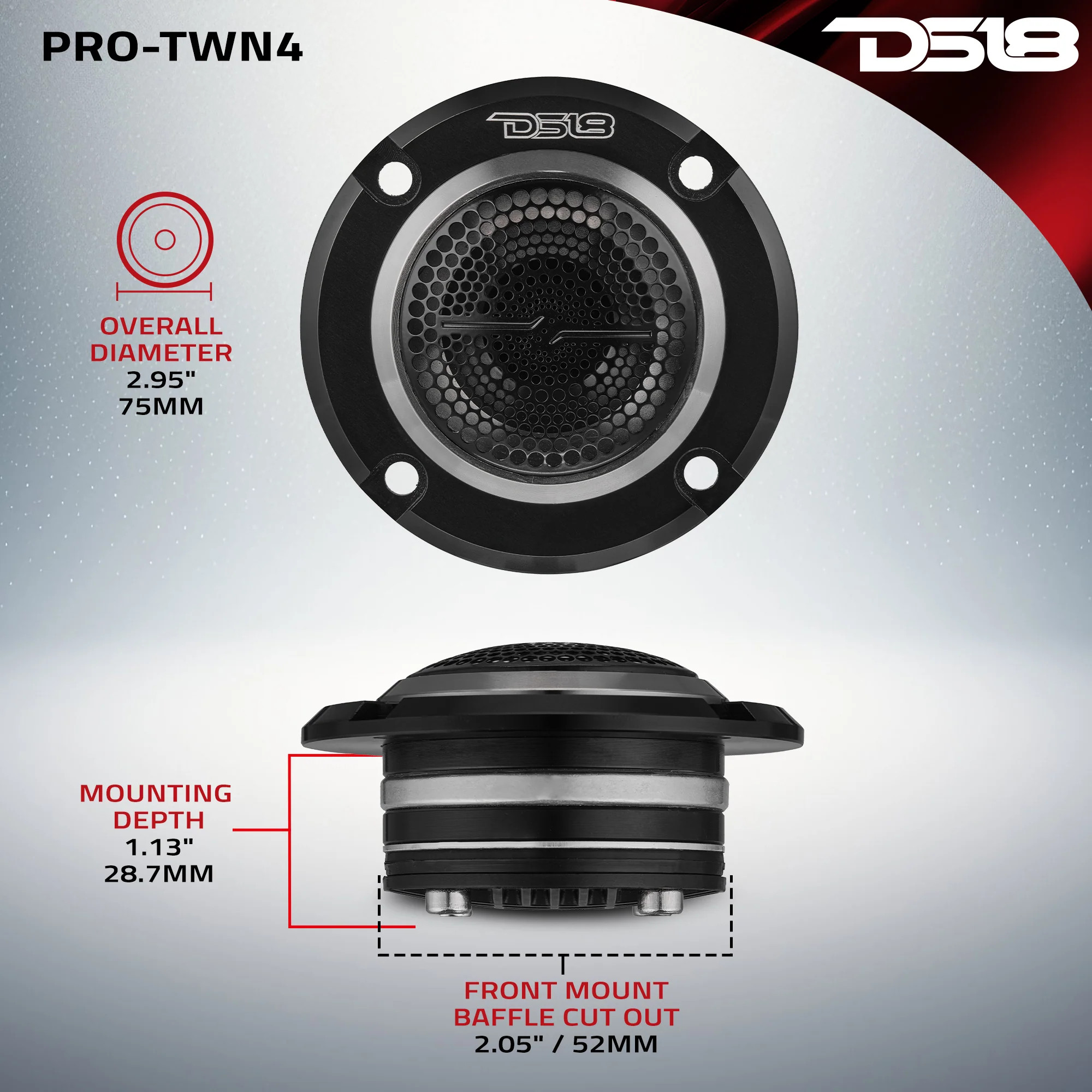

| Overall Diameter | 2.95"/75mm |
| Overall Depth | 1.81"/45.9mm |
| Front Mount Baffle Cutout | 2.05"/52mm |
| Mounting Depth | 1.13"/28.7mm |
| Gross Single Unit Weight (lb) | 0.8 |
| Single Unit Box Dimensions W x L x H (Inches) | 3.8 x 3.3 x 2.2 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
