DS18 EXL-TR12.4D

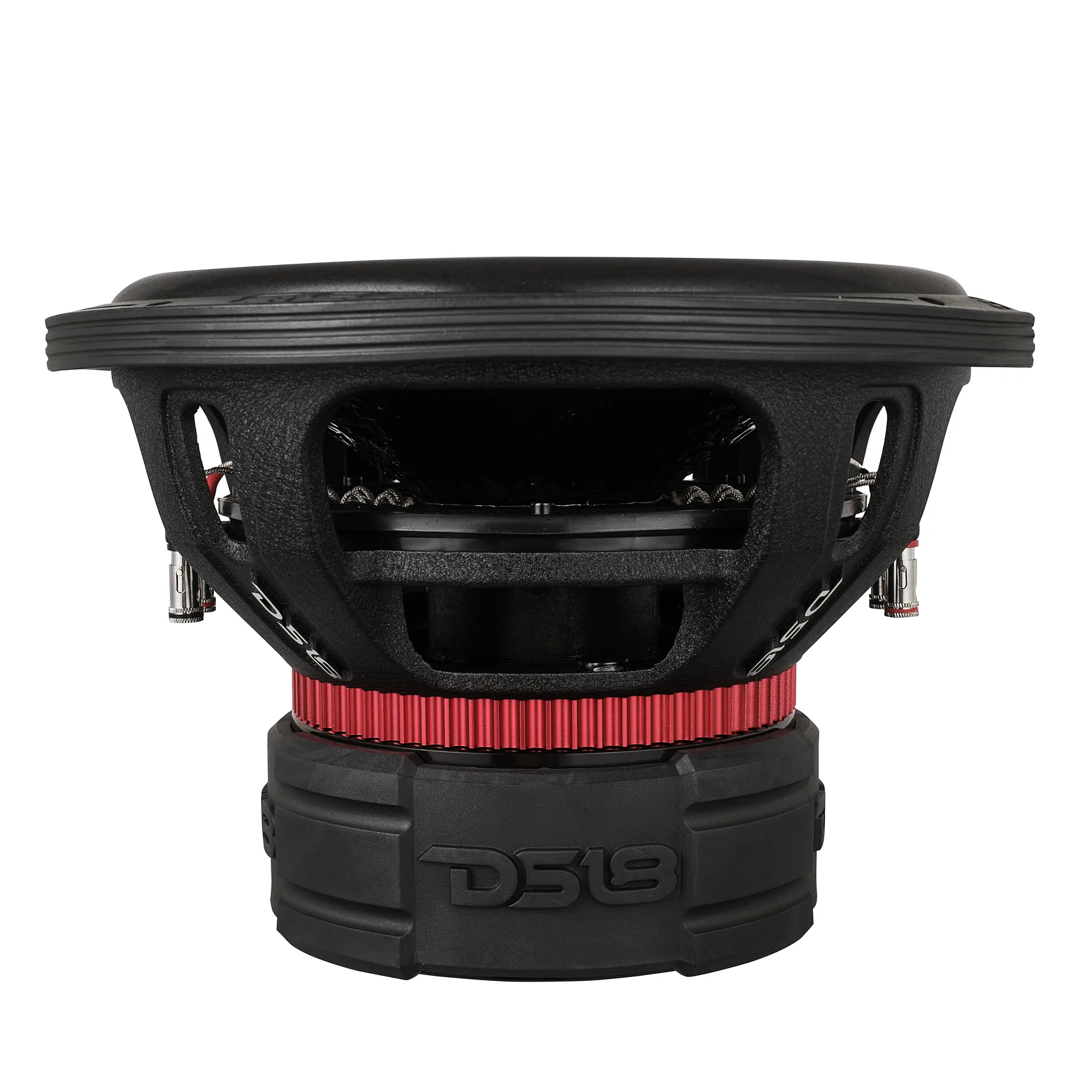

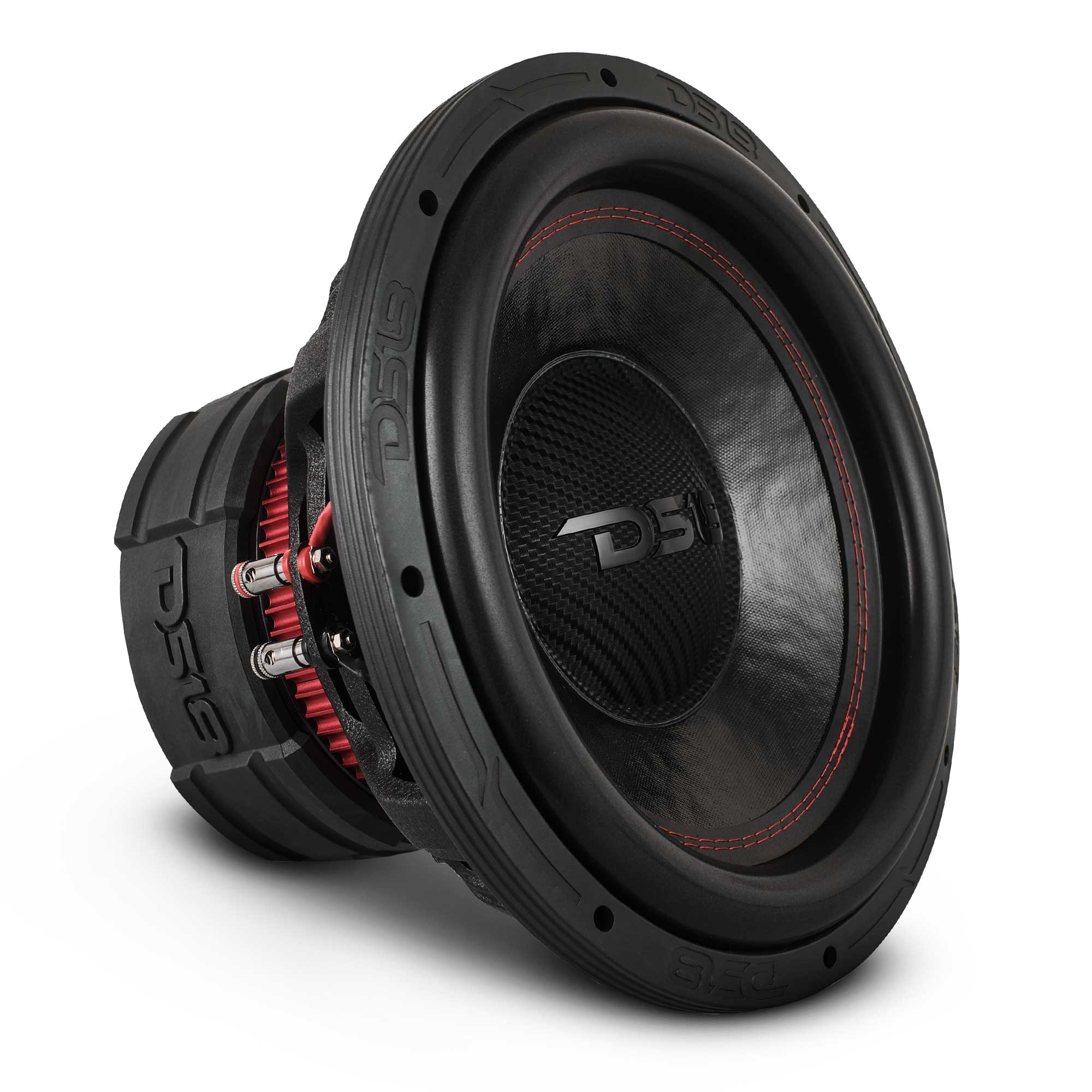

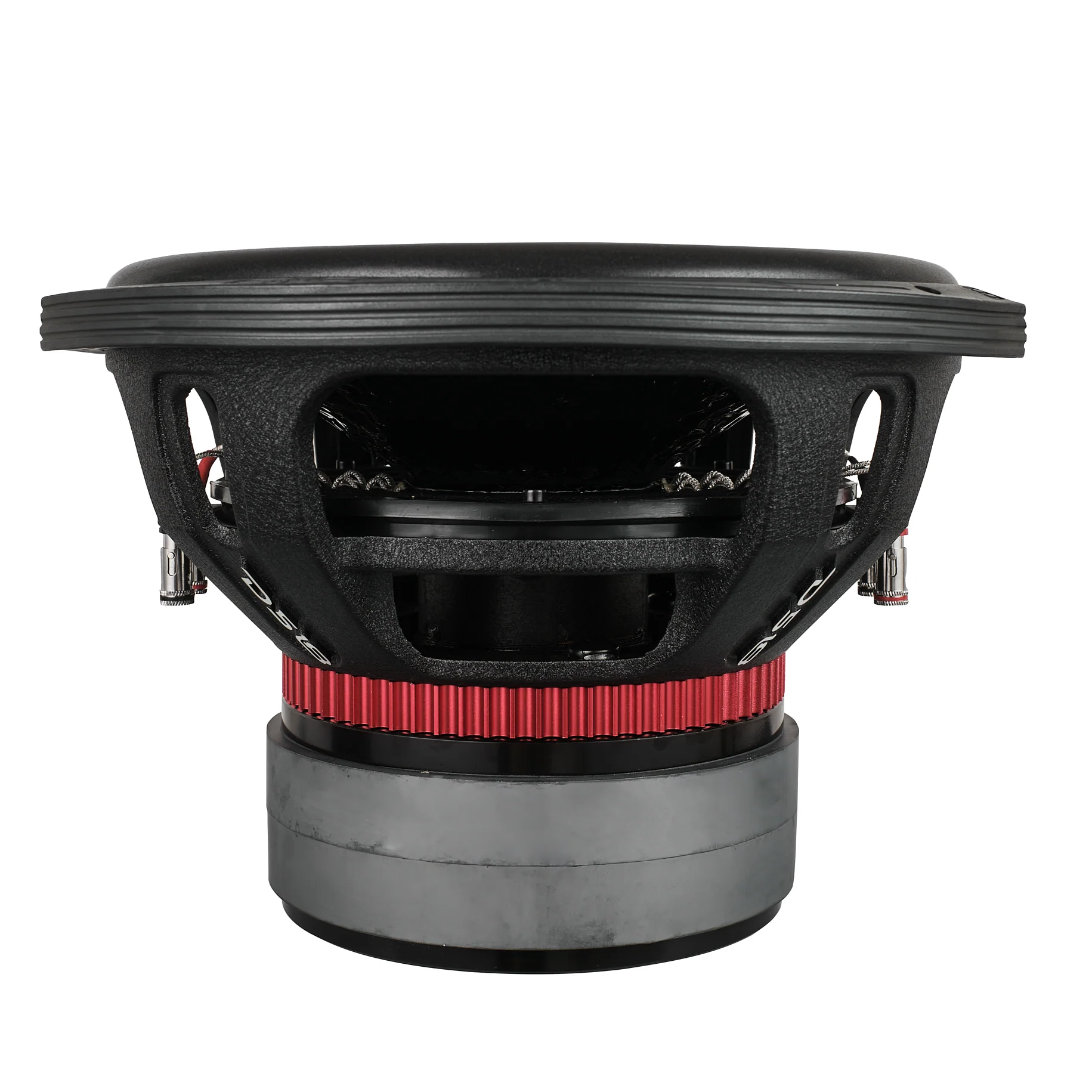

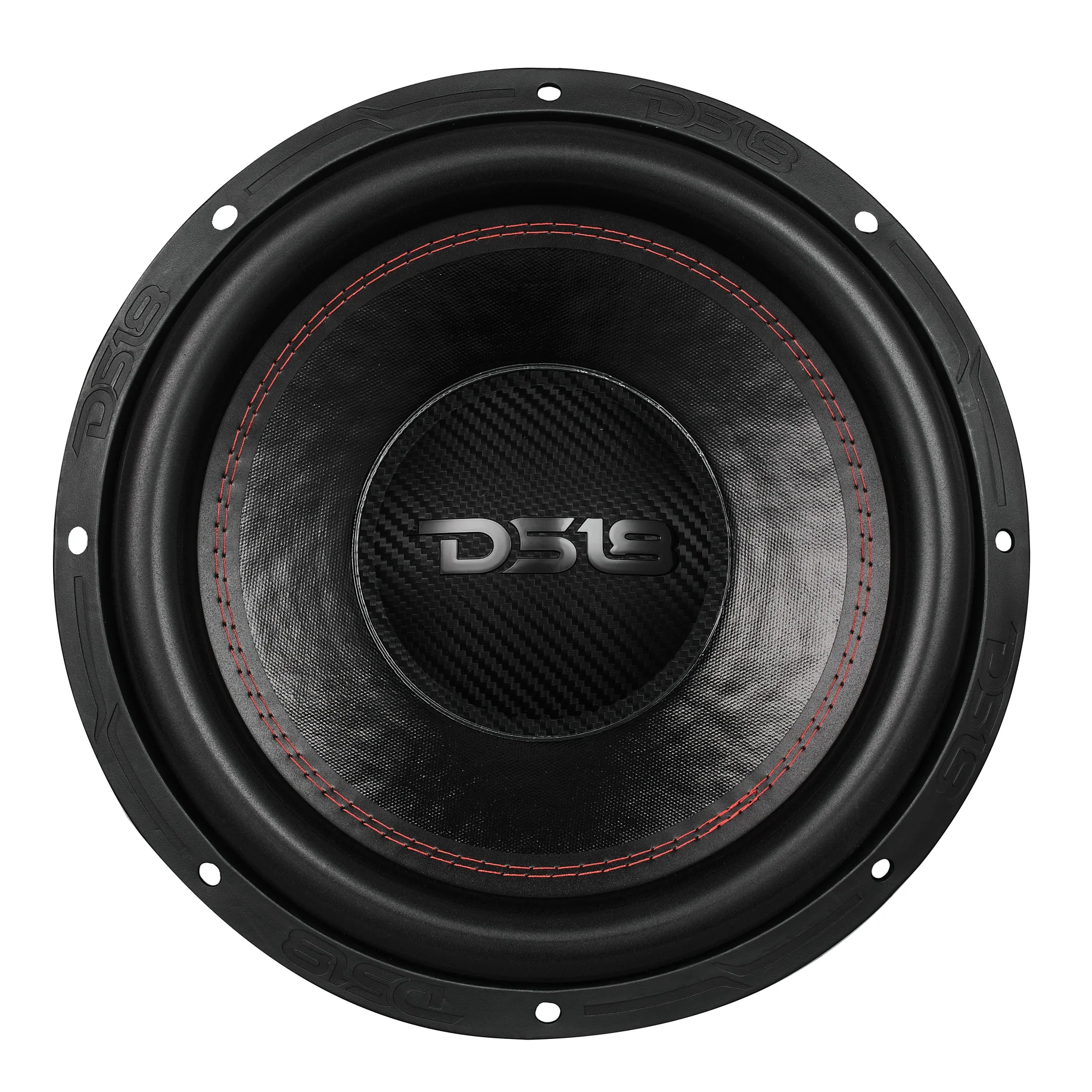

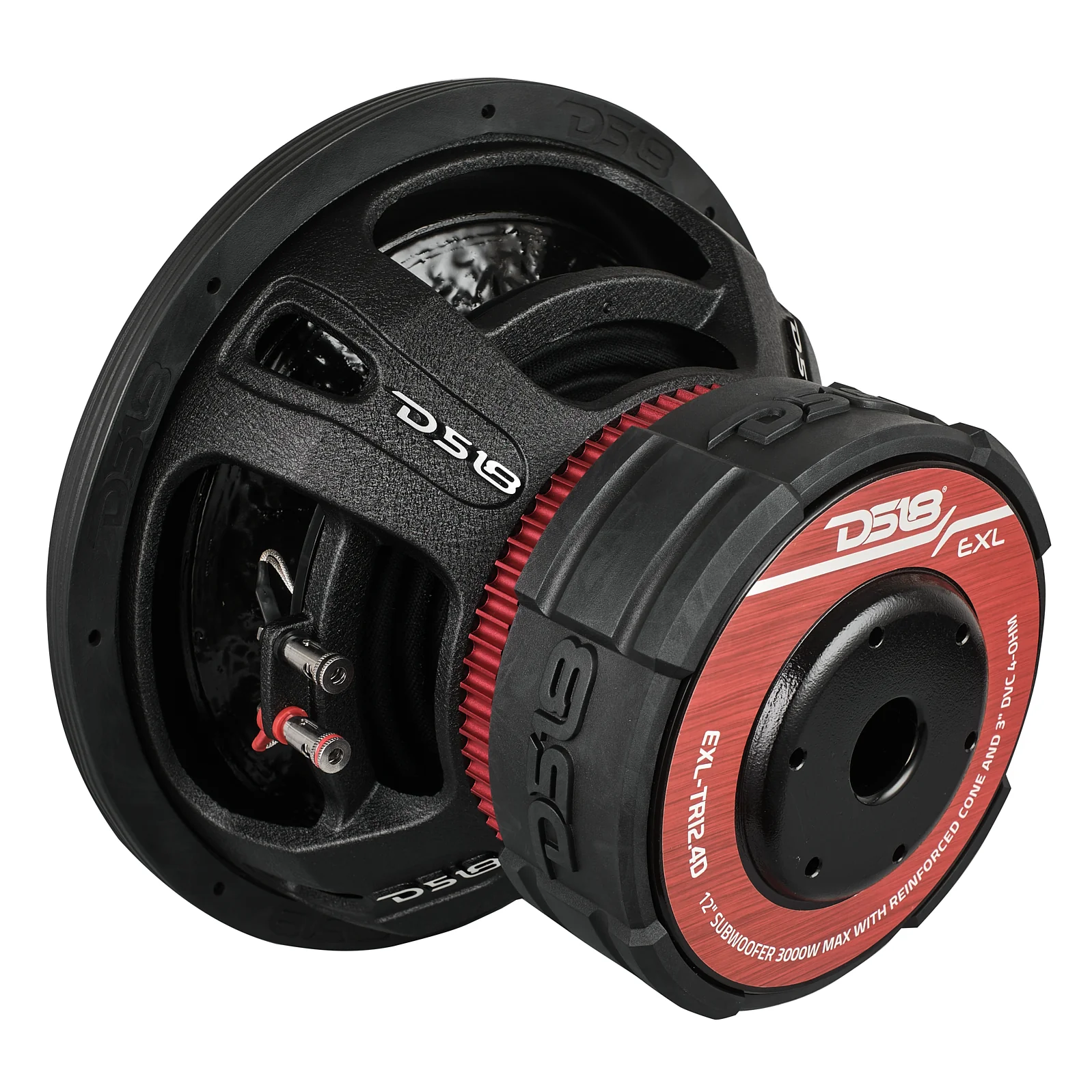

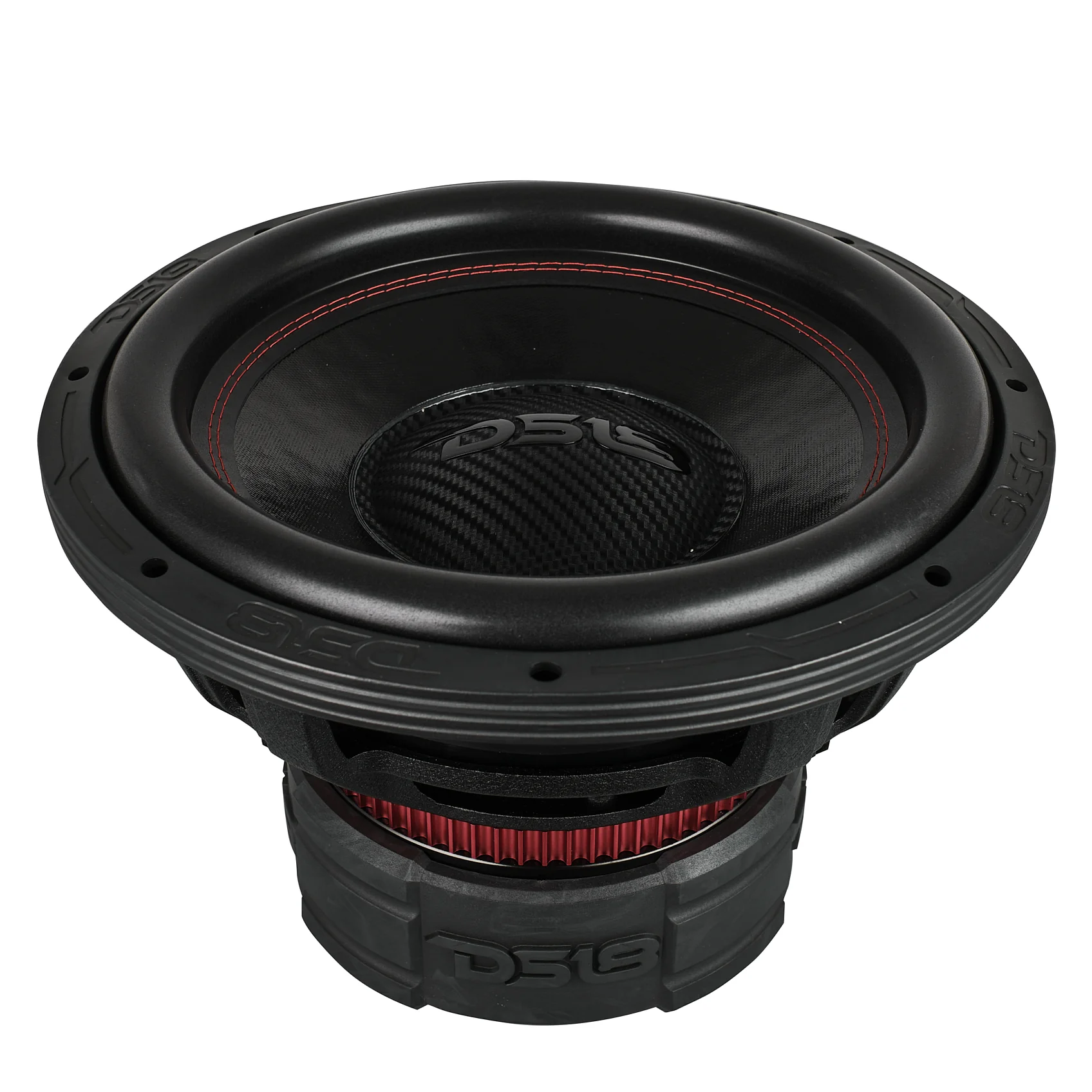

DS18 12" 1500W RMS 4-Ohm EXL Series Subwoofer Dual Stack with Reinforced Cone (sold individually)
No reviews yet Write a Review
$419.95
SKU:
EXL-TR12.4D
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 12" Subwoofer
  • MAX Power: 3000 Watts
  • RMS Power: 1500 Watts
  • Impedance: 4 OHM DVC ~ 82dB
  • Dual Stacked Ferrite Magnets
  • Improved Heat Dissipation ~ Reinforced Cone

Give your car the BOOM it needs with the EXL-TR12.4D! This high-excursion subwoofer delivers an astonishing 3000W MAX and 1500W RMS for full-powered BASS!

Crafted with a non-pressed paper cone and fortified by an epoxy coating, the EXL-TR12.4D guarantees durability while maintaining superior sound quality. The dual 4-ohm impedance configuration provides flexibility in wiring options, making it an ideal choice for custom installations.

The heart of the EXL-TR12.4D lies in its advanced materials and design. With a 3" black aluminum voice coil former and SV winding material, this subwoofer ensures efficient heat dissipation, allowing it to perform seamlessly even during extended high-output use. The spider-crossed leads further enhance reliability by maintaining signal integrity for uninterrupted bass performance. The EXL-TR12.4D also comes with a double-stacked ferrite magnet system weighing in at 170 oz.

With a frequency response that dips as low as 10 Hz, you can capture every subtle note of your favorite tracks. The high-excursion design with 17.5mm of excursion delivers massive low-end impact, perfect for those who demand intense bass without sacrificing clarity.

Versatility is key with the EXL-TR12.4D. It’s optimized for both sealed and ported enclosures, giving you control over your sound profile—whether you prefer tight, punchy bass or a deeper, more resonant boom.

Upgrade with this versatile powerhouse that promises perfect performance for years to come!

Brand DS18
Nominal Diameter 12" / 305mm
Nominal Impedance 4+4 ohms
RMS Power Handling 1500W
MAX Power Handling 3000W
Sensitivity (1w/1m) 82dB
Frequency Response 10-500 Hz
Recommended Lo Pass Crossover 120 Hz
Demodulating Rings No
Improved Heat Dissipation Yes
Cone Shape Curvilinear
Speaker Terminals Push 6ga
Voice Coil Diameter 3" / 76.5mm
Voice Coil Former Material Black Aluminum
Winding Material SV
Cone Material Non-Pressed Paper + Epoxy Coating
Dust Cap Material PPI
Surround Material Foam
Spider Diameter 8.5" / 215mm
Leads Connection Type Crossed Spider
Basket Material Aluminum
Basket Color/Finish Black
Magnet Material Ferrite
Magnet Weight 2 x 85 Oz (170 Oz)
Displacement Volume 3.2L / 0.113ft3
Equivalent Volume Vas 12.36L / 0.436ft3
Excursion (one way) Xmax 17.5 mm
Free Air Resonance Fs 45 Hz
Mechanical Factor Qms 5.839
Electrical Factor Qes 1.254
Total Factor Qts 1.032
Moving Mass Mms 385.777g
Compliance Cms 30.891u m/N
Bl Factor BI 25.684
Voice Coil Inductance Le 6.03mH
Diaphragm Area Sd 530.929 cm?
Dc Resistance Re 3.7+3.7 ohms
Efficiency Bandwidth Product EBP 65
Sealed Internal Volume 17L / 0.6ft3
Sealed Box Output Response 41Hz
Ported Internal Volume 42.5L / 1.5ft3
Port Size *Square (WxHxLong) 1.52"x12.28"x31.82" / 38.5x312x808.2mm
Port Tuning Frequency 30Hz
Ported Box Output Response 25Hz

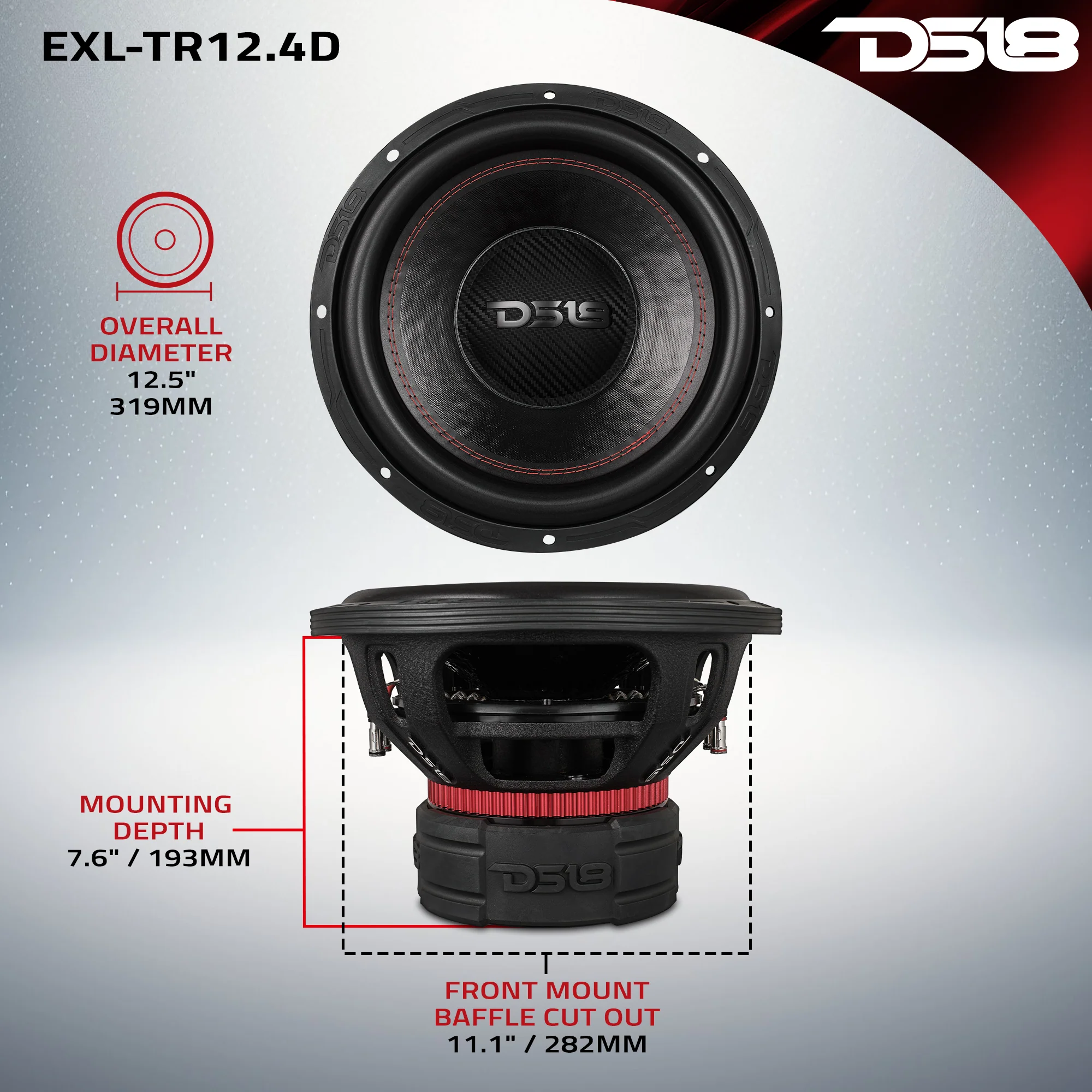

Overall Diameter 12.5" / 319mm
Overall Depth 9" / 230mm
Front Mount Baffle Cutout 11.1" / 282mm
Mounting Depth 7.6" / 193mm
Motor Diameter 7.5" / 191mm
Parts Warranty 1 Year
Labor Warranty 1 Year
