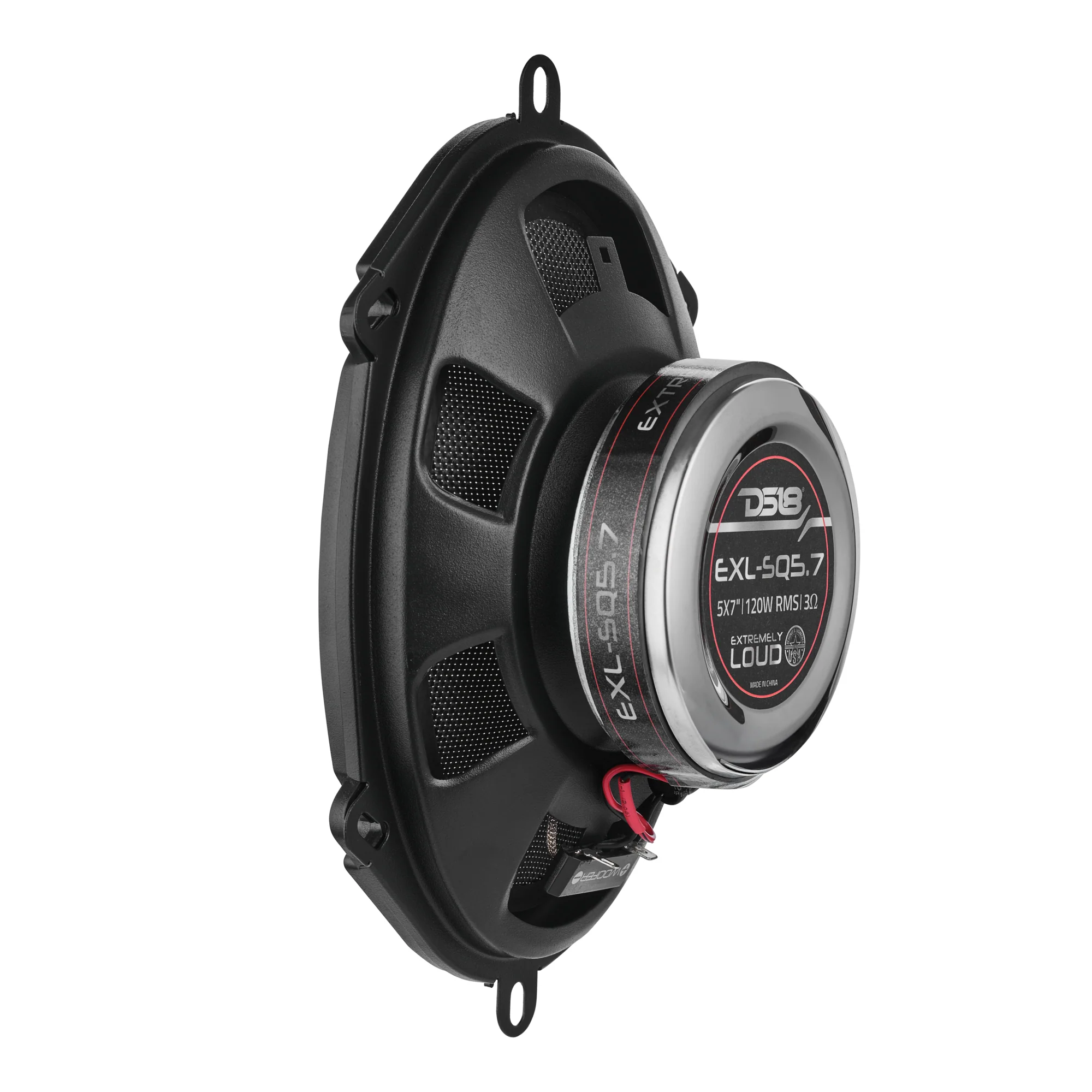

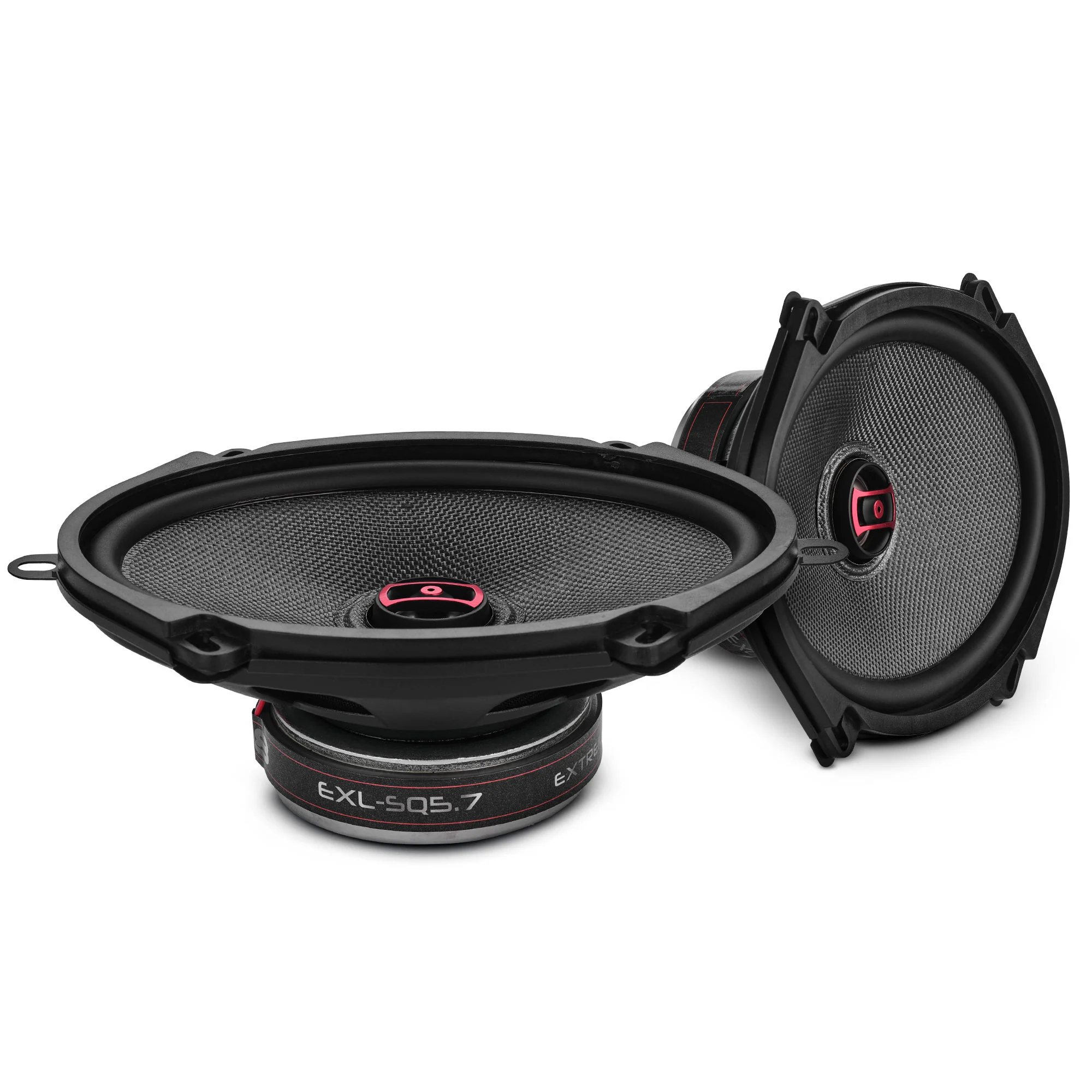

DS18 EXL-SQ5.7

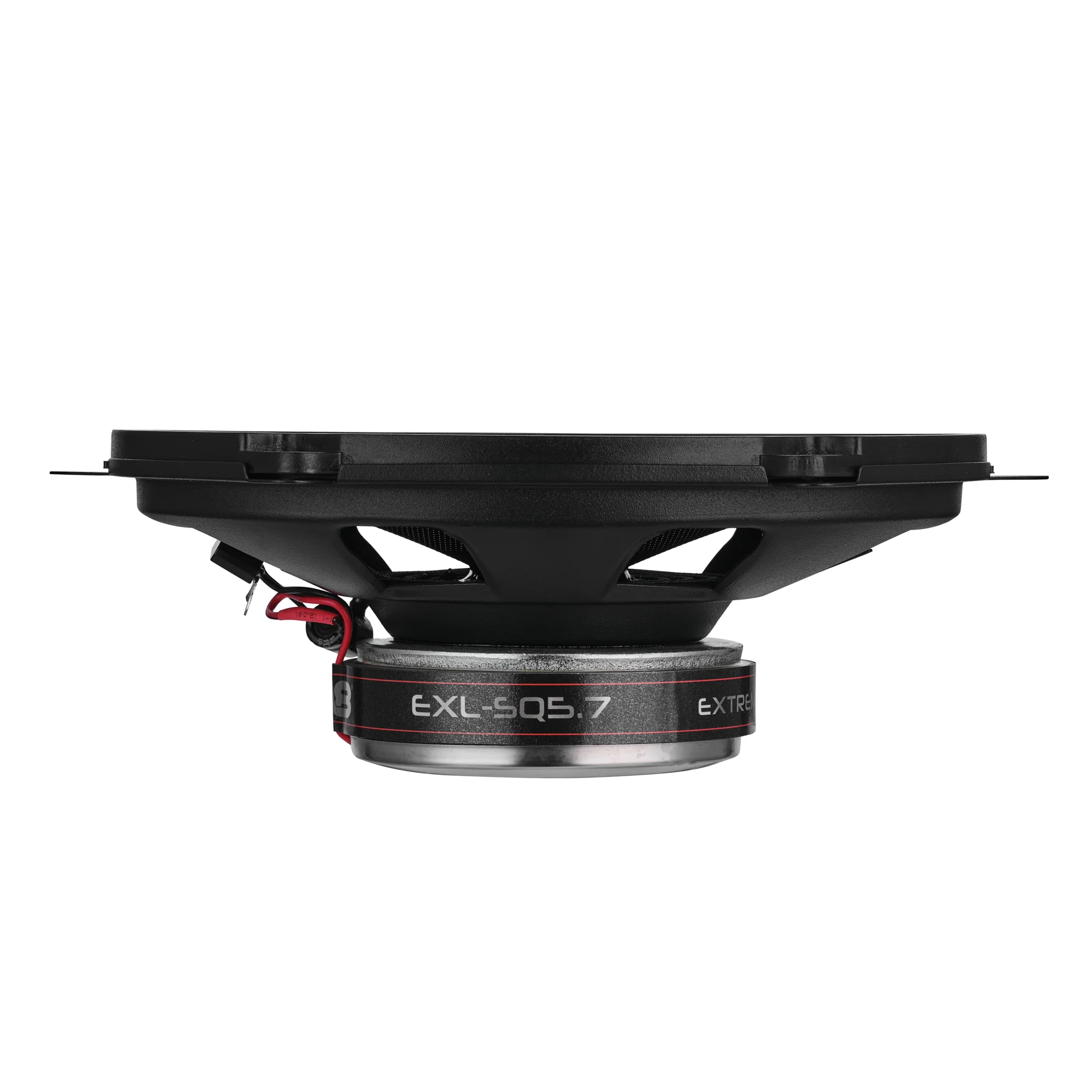

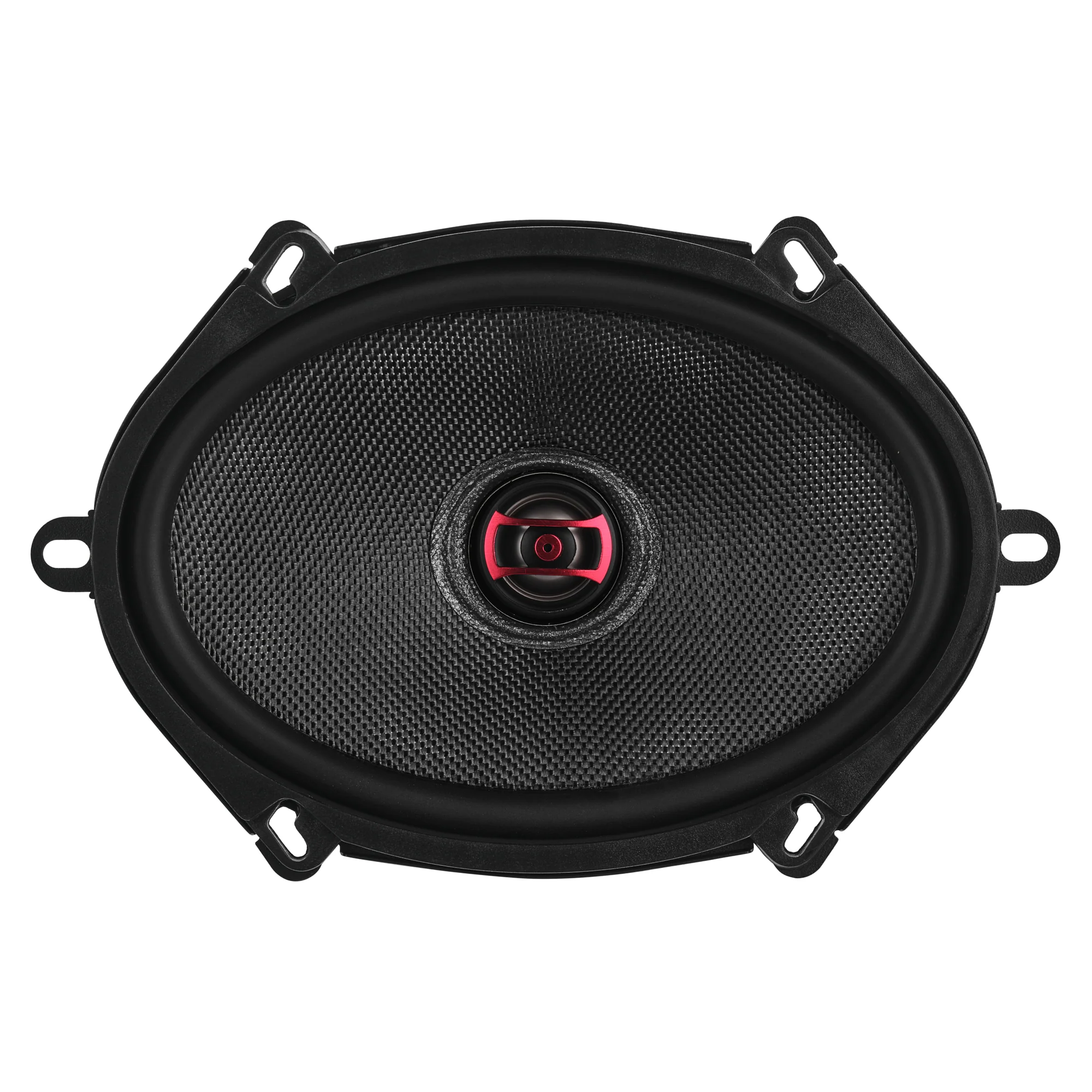

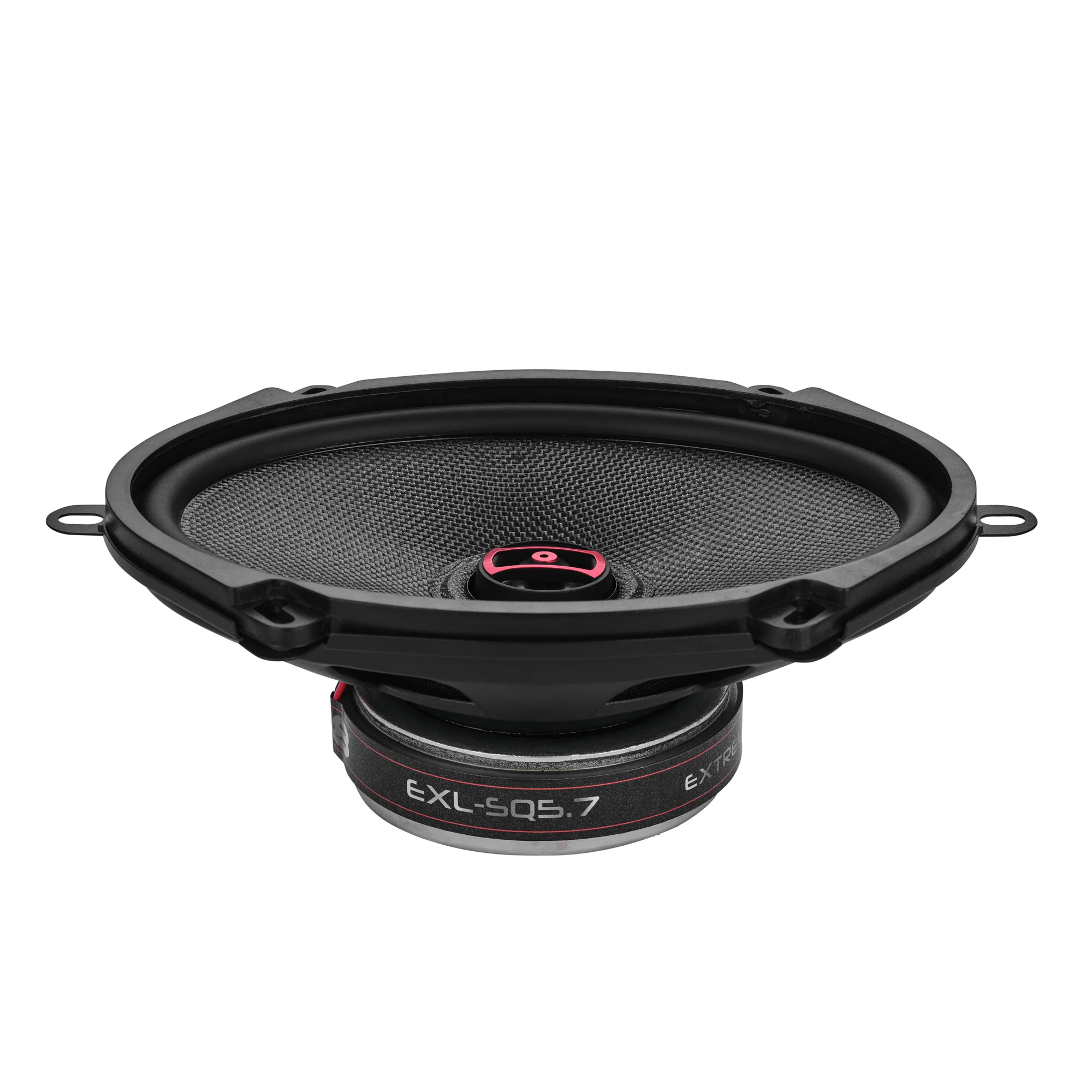

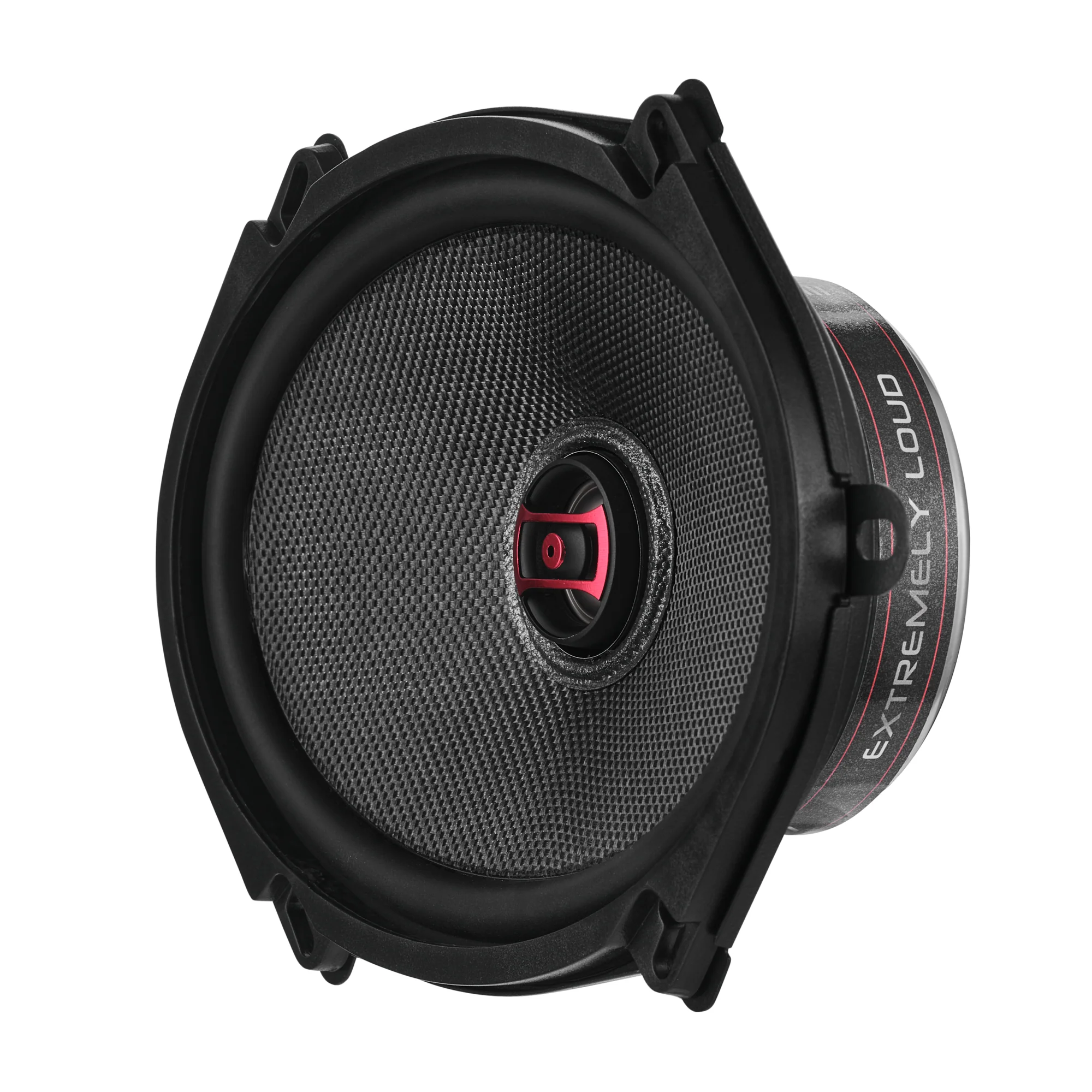

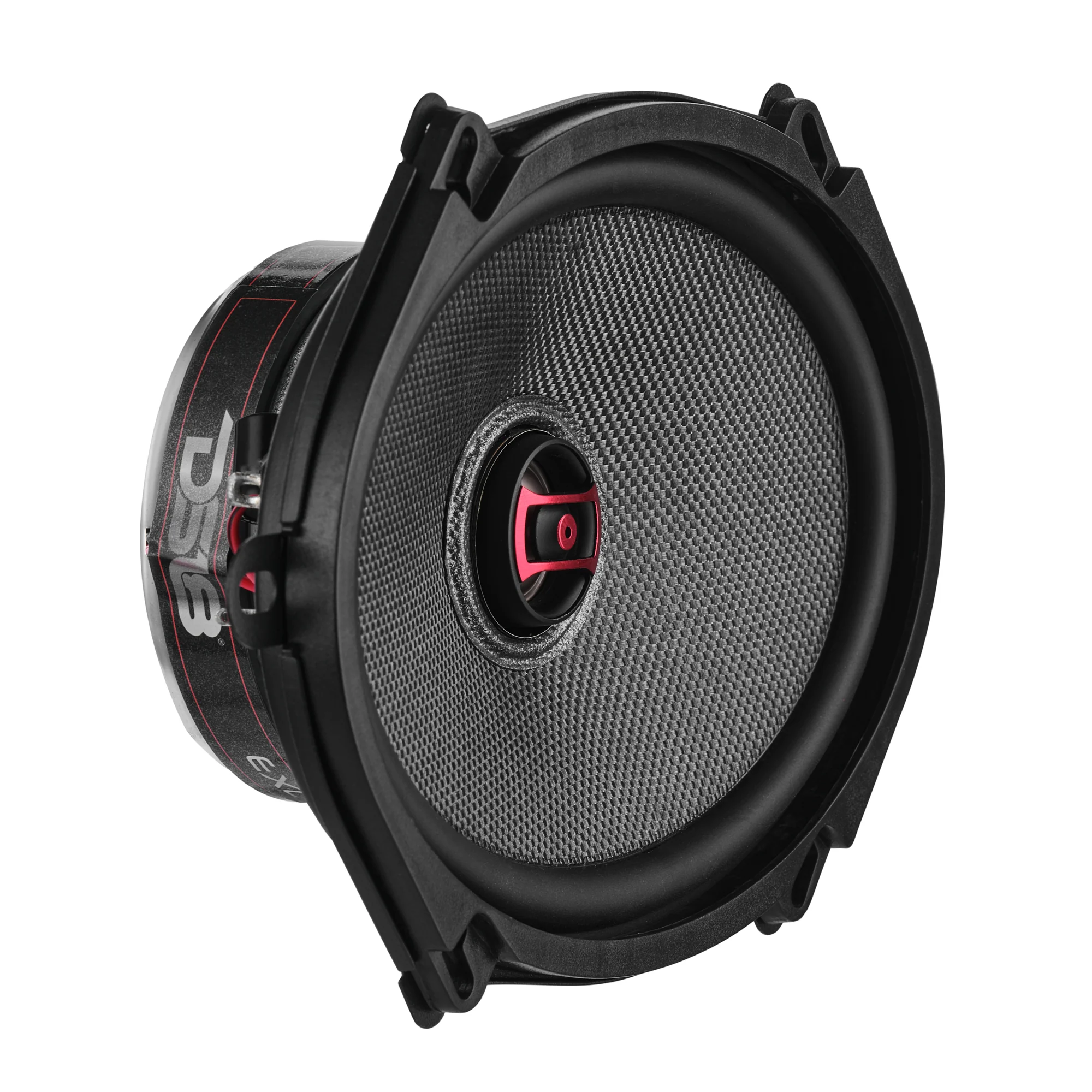

DS18 5x7" 120W RMS 3-Ohm 2-Way Coaxial Speaker
No reviews yet Write a Review
$124.95
SKU:
EXL-SQ5.7
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 5x7" 2-Way Coaxial
  • MAX Power: 400 Watts
  • RMS Power: 120 Watts
  • Impedance: 3-Ohm
  • Barium & Neodymium Magnets
  • Pair ~ 90dB

The EXL-SQ5.7 pushes 120W RMS at 3 ohms, and handles a MAX of 400 watts. This speaker details sound from 60Hz up to 22kHz and cuts through any mix easy!

Advanced Speaker Components
Featuring a durable glass fiber woofer cone with rubber surround, the EXL-SQ5.7 ensures longevity and accurate reproduction. The 1.3-inch ASV voice coil handles heat effectively for consistent performance. A barium magnet weighing powers the system for tight, controlled response.

High-Performance Tweeter
The included 1.14-inch PEI dome neodymium tweeter delivers sharp, clear highs. The built-in crossover protection smoothly integrates with the woofer and decreases distortion.

Built to Last
Constructed with a robust steel basket finished in black, the EXL-SQ5.7 is built for durability and long-term use in demanding automotive environments.

Upgrade to DS18’s EXL-SQ5.7 for pro-grade quality and power that will bring your audio to life!

Brand DS18
Nominal Diameter 5x7" / 127x177.8mm
Nominal Impedance 3 ohm
RMS Power Handling 120W
MAX Power Handling 400W
Sensitivity (1w/1m) 90 dB
Frequency Response 60Hz - 22KHz
Recommended HI Pass Crossover 80Hz
Number of ways 2-way
Pair or Single Pair
Grill Included No
Voice Coil Diameter 1.3" / 33mm
Voice Coil Former Material ASV
Winding Material CCAW
Cone Material Glass Fiber
Surround Material Rubber
Basket Material Steel
Basket Color/Finish Black
Magnet Material Barium
Magnet Weight 13.5 Oz
Equivalent Volume 14.11L / 0.498ft3
Free Air Resonance 78Hz
Mechanical Factor 3.219
Electrical Factor 1.466
Total Factor 1.144
DC Resistance 2.8 ohm
Nominal Diameter 1.14? / 29mm
Voice Coil Diameter 0.8" / 20.3mm
Diaphragm Material PEI Dome
Magnet Material Neodymium

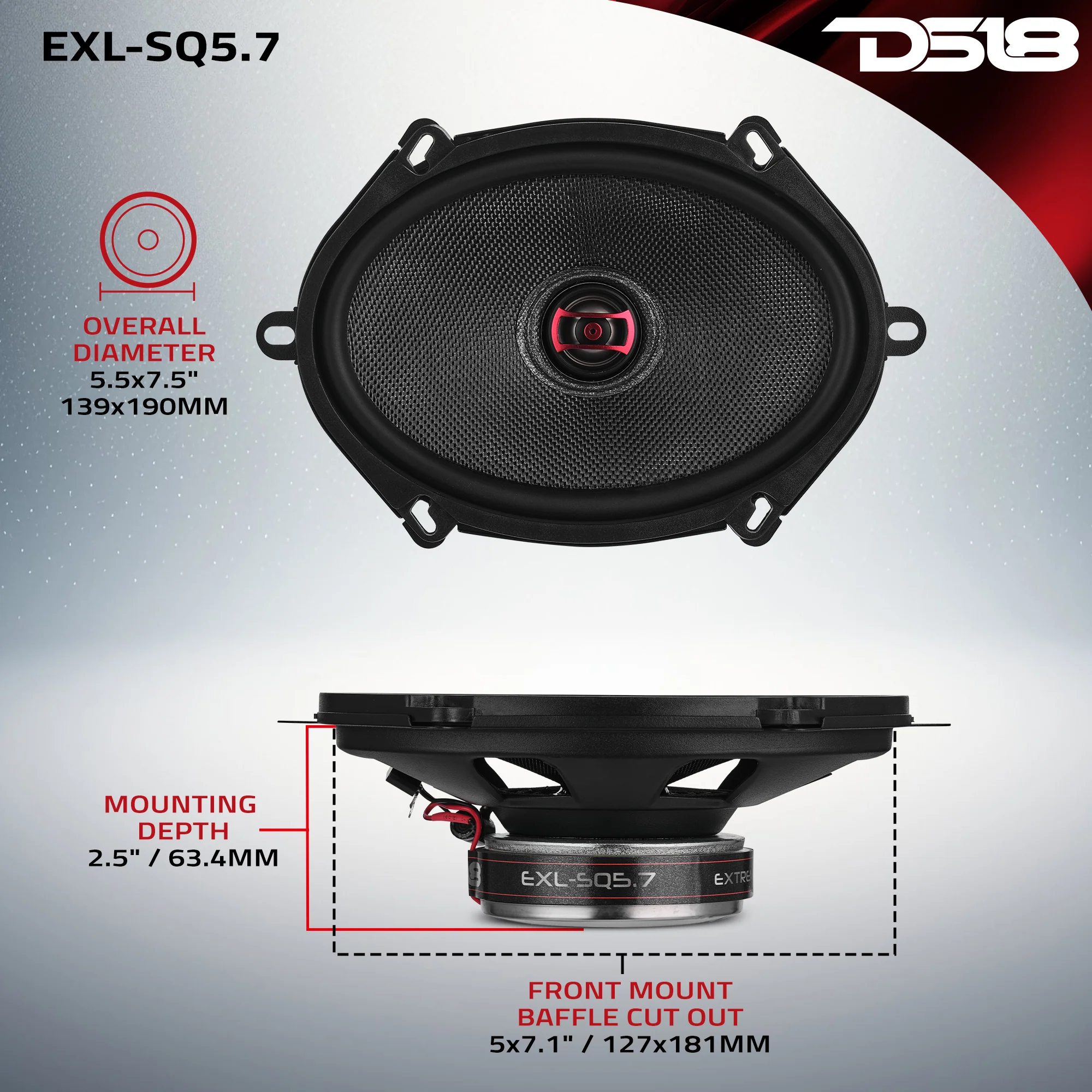

Overall Diameter 5.5x7.5" / 139x190mm
Overall Depth 2.87" / 73mm
Front Mount Baffle Cutout 5"x7.1" / 127x181mm
Mounting Depth 2.5" / 63.4mm
Motor Diameter 3.54" / 90mm
Parts Warranty 1 Year
Labor Warranty 1 Year
