We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
•5-Channel amplifier
•Three 30-amp ATC fuses (installed)
•Terminal cover (installed)

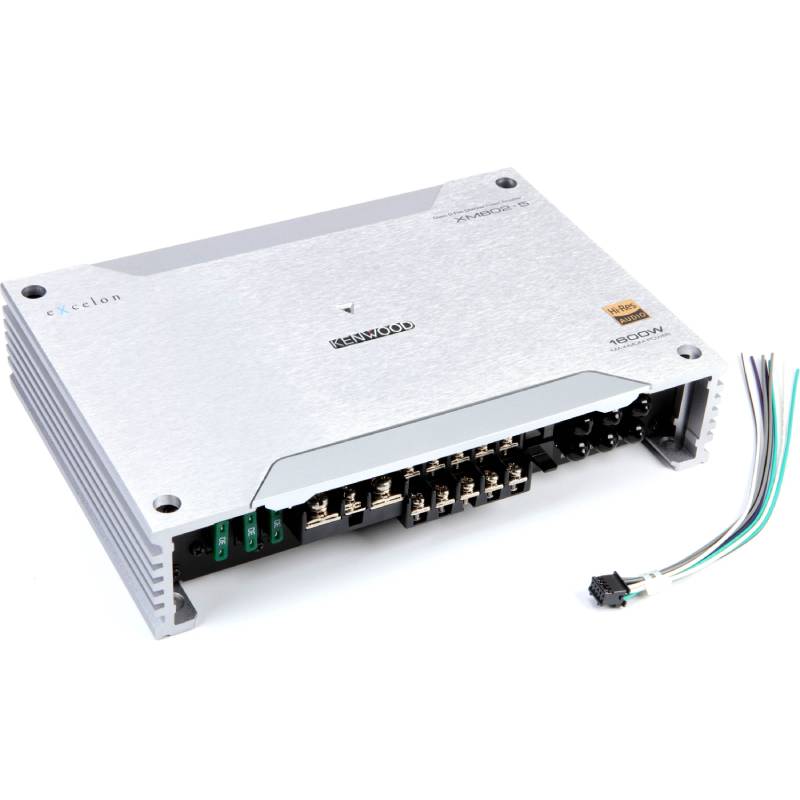

•8" Speaker level input harness
•Four 5/8" Screws
•Instruction manual (English/ French/ Spanish)
•Owner's Manual
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.Detachable sliding terminal cover offers a sleek design and easier installation.All terminals and connections are on one side for easier installation and a cleaner look.Improved Signal to Noise Ratio

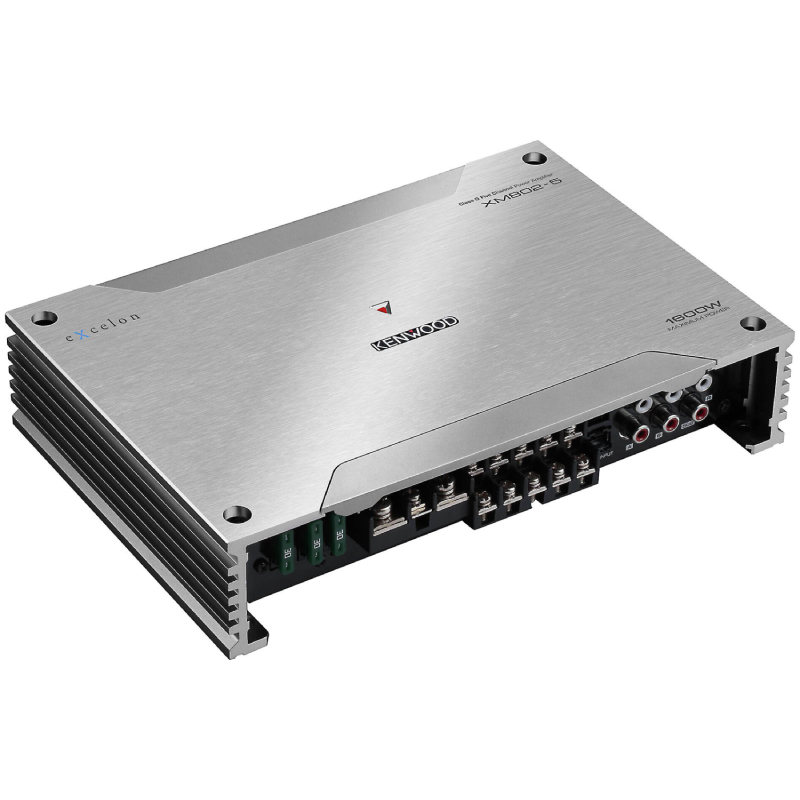

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look. Improved Signal to Noise Ratio
| Brand | Kenwood |
| RMS Power Output (Watts x Channels) | 50 x 4 |
| Peak Power Output (Watts x Channels) | N/A |
| Power at 2 Ohms (Watts x Channels) | 75 x 4 |
| Bridged Power (Watts x Channels) | 150 x 2 |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 24 dB/octave |
| High-Pass Crossover Frequency | 50-200 Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Frequency Response at Rated RMS Power | 20-20k Hz |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 80 dB |
| Input Voltage | 14.4v |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Bass Boost | 0-18 dB |
| Bass Boost Frequency | 40 Hz |
| Fan Cooled | No |
| Fuse Rating | 90 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Height (inches) | 2 1/8" |
| Width (inches) | 9 13/16" |
| Depth (inches) | 6 3/4" |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
