We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.
General Features:
- RMS 50W x4 (4Ω)
- RMS 75W x4 (2Ω)
- Variable High & Low Pass Filter
- Bass Boost
- Conformal Coating
- Protective Terminal Cover
- Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion. All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust. Detachable sliding terminal cover offers a sleek design and easier installation.

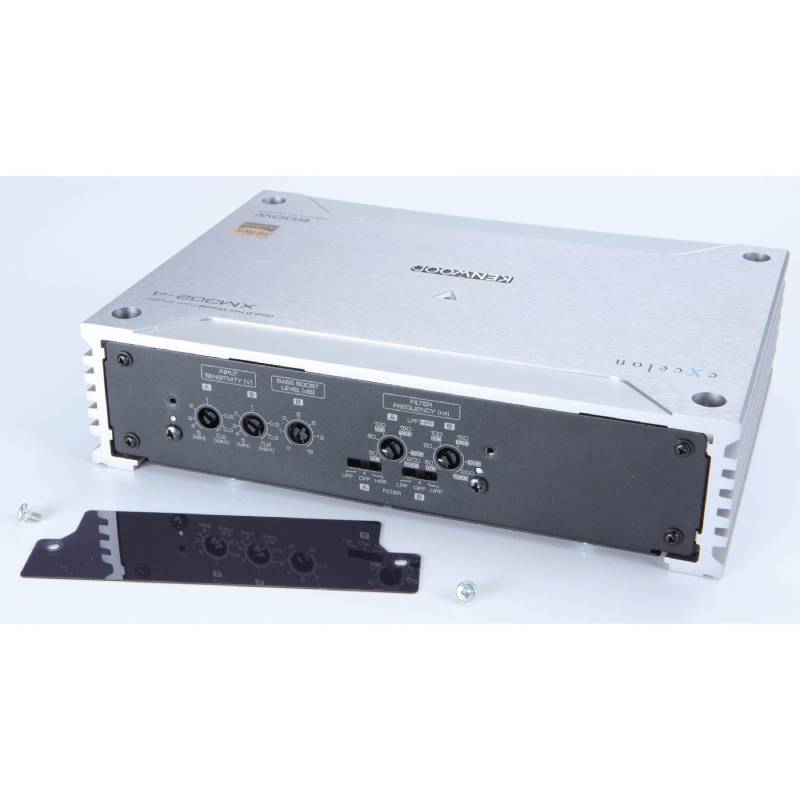

Protective Caps and Cover
All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.

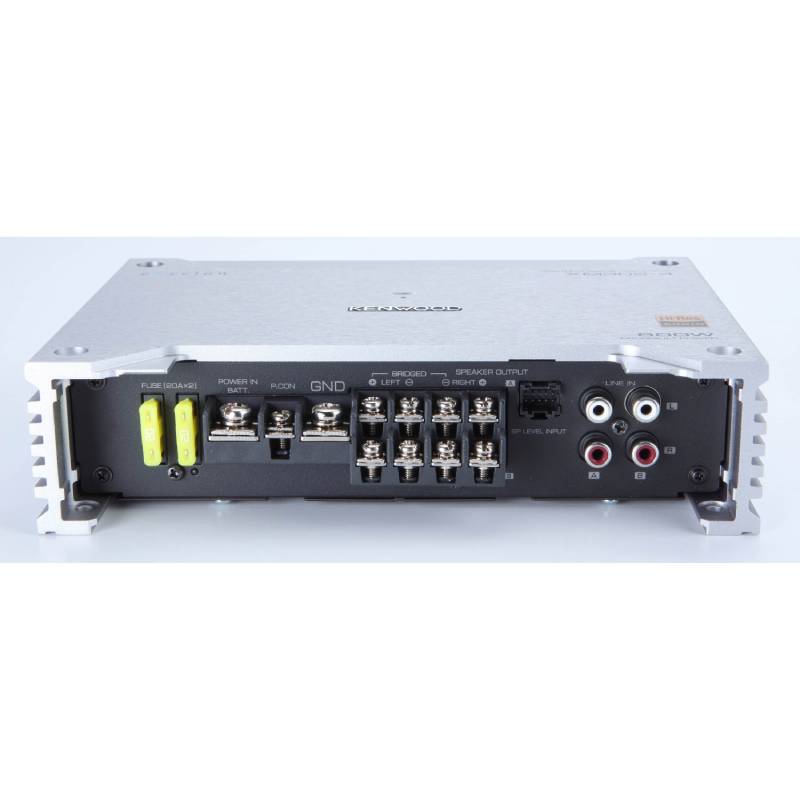

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look. Improved Signal to Noise Ratio
| Brand | Kenwood |
| RMS Power Output (Watts x Channels) | 50 x 4 |
| Peak Power Output (Watts x Channels) | 150 x 4 |
| Power at 2 Ohms (Watts x Channels) | 75 x 4 |
| Bridged Power (Watts x Channels) | 150 x 2 |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | 50-200 Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Frequency Response at Rated RMS Power | 20-20k Hz |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 85 dB |
| Input Voltage | 14.4v |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Bass Boost | 0-18 dB |
| Bass Boost Frequency | 40 Hz |
| Fan Cooled | No |
| Fuse Rating | 40 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Height (inches) | 2 1/8" |
| Width (inches) | 8 7/16" |
| Depth (inches) | 6" |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
