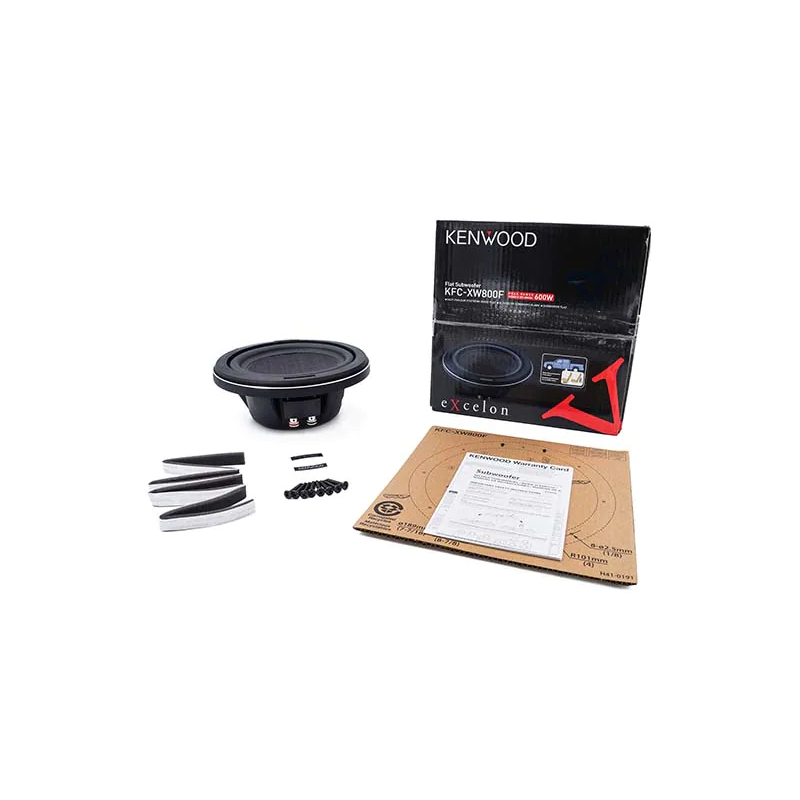

What's Inside?
• 8" SVC Woofer
• Rubber concealing ring (installed)
• Self-adhesive foam strip
• 8 Mounting screws
• "Kenwood" logo sticker for woofer
• eXcelon logo sticker for woofer
• Cardboard template
• Owner's Manual
Flat Subwoofer with Carbon-Glass Fiber Cone

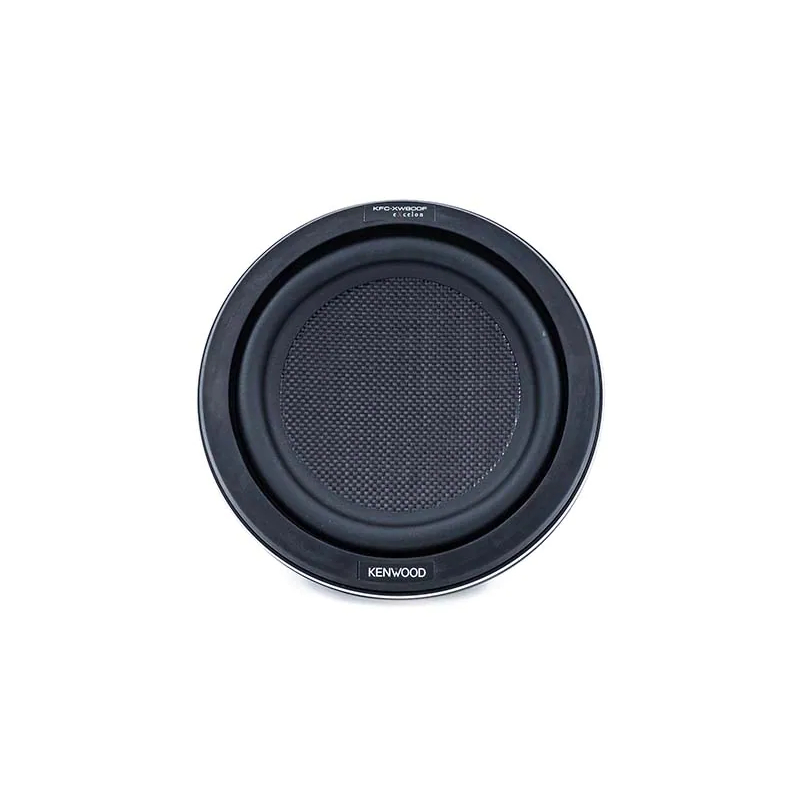

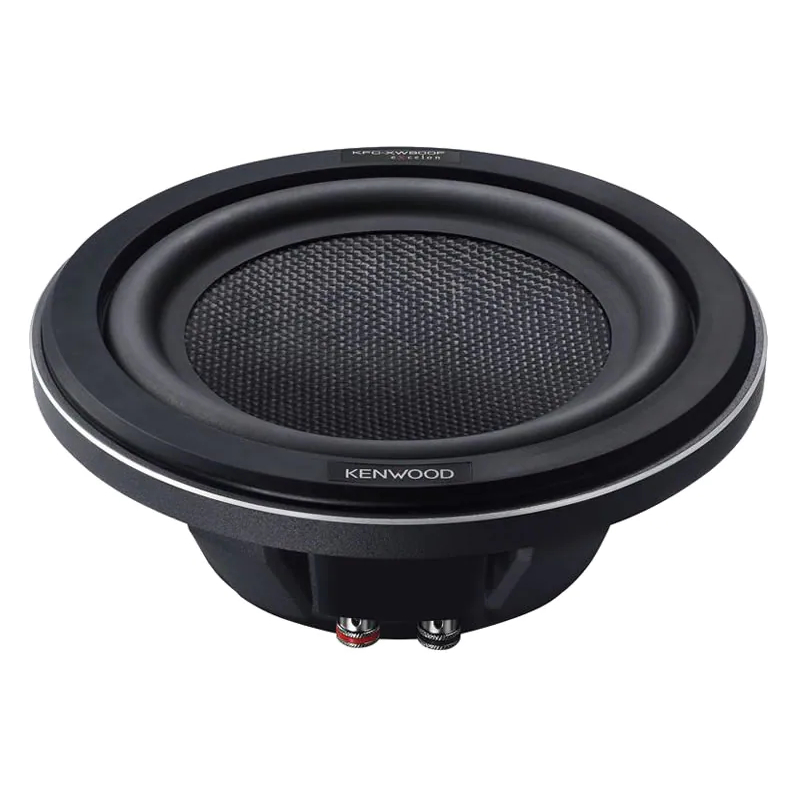

The Kenwood KFC-XW800F is a high-quality 8-inch shallow-mount subwoofer with impressive bass performance and exceptional sound quality. This subwoofer is designed with precision and durability in mind and is a great choice for car audio enthusiasts looking to enhance their audio experience while saving space.
Rubber Surround & Heat Transfer System
Featuring an oversized cone made from carbon-glass fiber composite, the KFC-XW800F delivers an accurate and impactful bass response. The cone is reinforced with a butyl rubber surround, ensuring durability and minimizing distortion even at high volume levels.

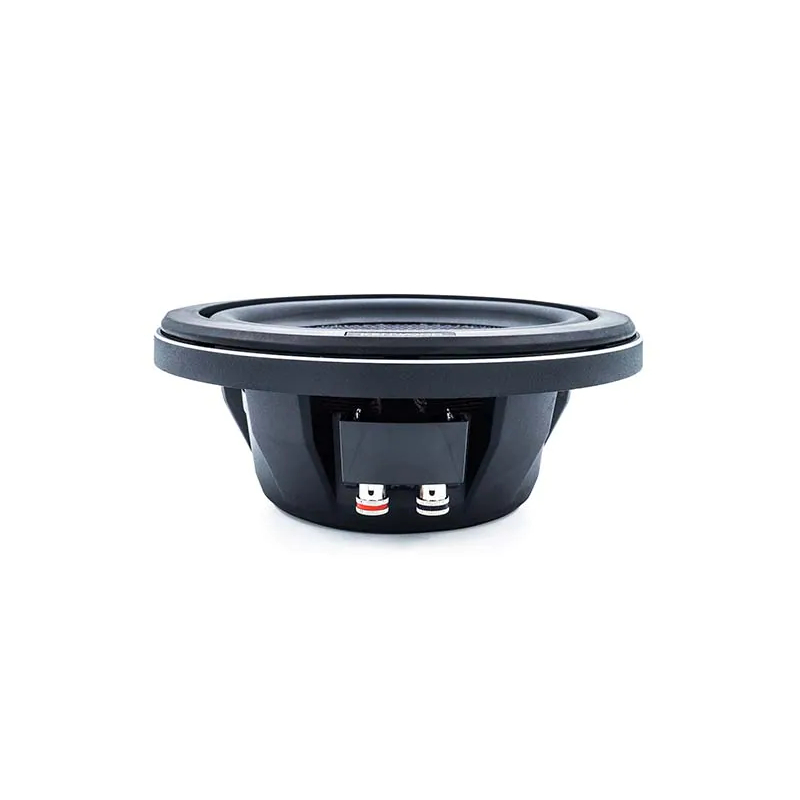

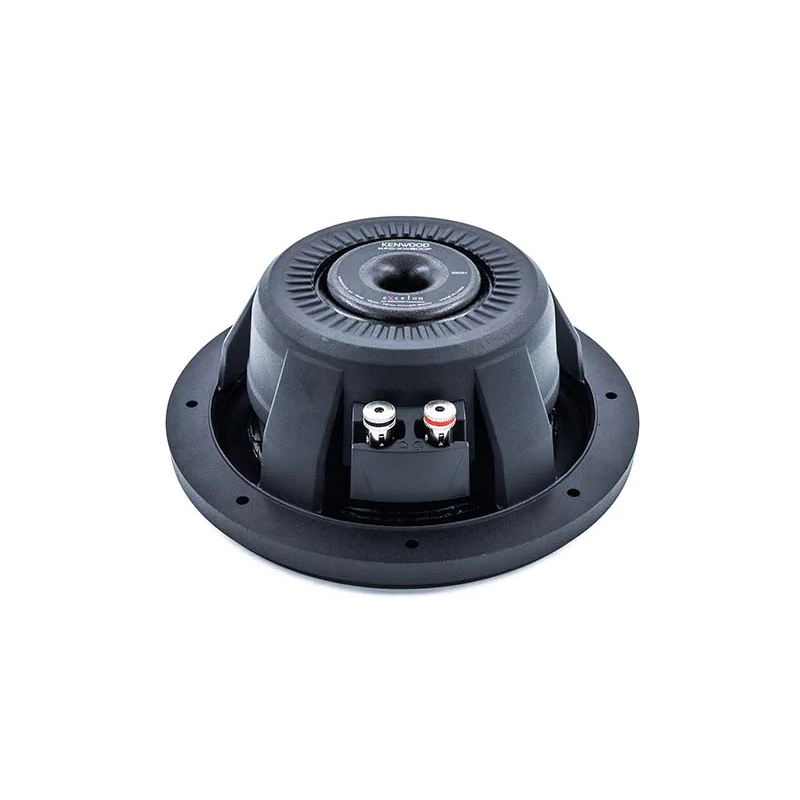

Spring Terminals
With a peak power handling of 600 watts and an RMS power rating of 150 watts, this subwoofer can handle high power levels, providing deep and punchy bass reproduction. It features a dual ventilation system that keeps the subwoofer cool during extended use, allowing optimal performance.
Allows Easy Installation in Tight Spaces
The KFC-XW800F features a compact design that allows easy installation in tight spaces, such as under seats or small enclosures. Its shallow-mount design is ideal for vehicles with limited space without sacrificing bass performance.
| Brand | Kenwood |
| Size | 8 -inch |
| Impedance (Ohms) | 4 |
| Cone Material | Carbon-glass fiber |
| Surround Material | Butyl rubber |
| Sensitivity | 78 dB at 1 watt |
| Frequency Response | 40 - 500 Hz |
| Max RMS Power Handling | 150 |
| Peak Power Handling (Watts) | 600 |
| Port diameter (inches) | N/A |
| Port length (inches) | N/A |
| Free-Air | No |
| Dual Voice Coil | No |
| Top Mount Depth (inches) | 2.75 |
| Bottom Mount Depth (inches) | 3.3125 |
| Cutout Diameter or Length (inches) | 7.1875 |
| Vas (liters) | 10.7 |
| Fs (Hz) | 43 |
| Qts | 0.812 |
| Xmax (millimeters) | 6.5 |
| Ideal Sealed Box Volume (cubic feet) | 0.5 |
| Minimum Sealed Box Volume (cubic feet) | 0.375 |
| Maximum Sealed Box Volume (cubic feet) | 0.6 |
| Ideal Ported Box Volume (cubic feet) | 0.5 |
| Minimum Ported Box Volume (cubic feet) | N/A |
| Maximum Ported Box Volume (cubic feet) | N/A |
| Parts Warranty | 2 Years |
| Labor Warranty | 2 Years |
