We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products.
HIGH-RESOLUTION AUDIO
Our first marine stereo to support high-resolution lossless audio, RA800 offers unparalleled sound quality — supported by Wi-Fi technology for seamless audio streaming.
UPGRADED INTERNAL AMP
The built-in Class-D amplifier can deliver 4 x 40 watts RMS (all channels driven) with less than 0.1% total harmonic distortion at 4 ohms — producing more than 50% more power output1 than its predecessor.

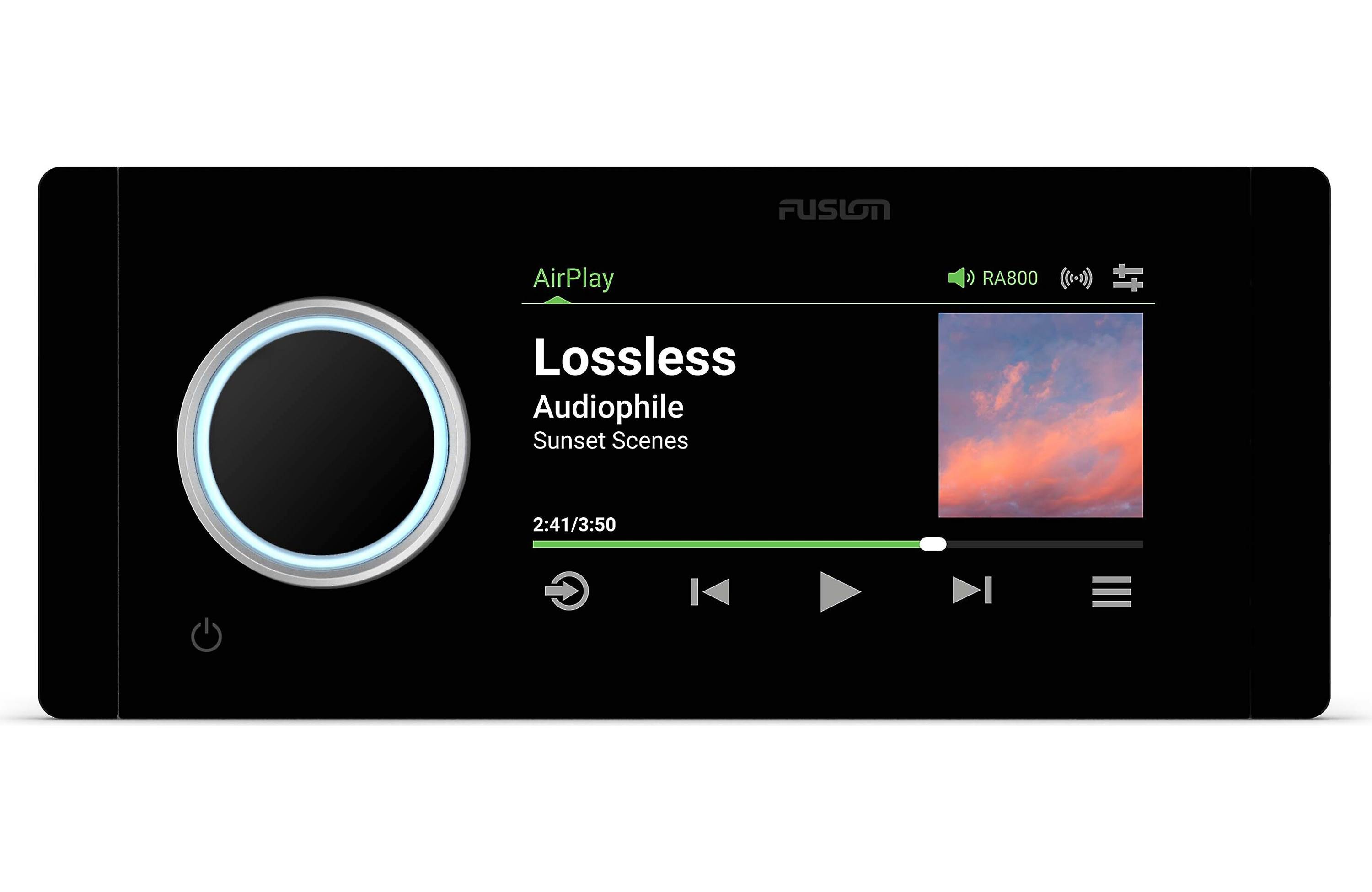

HIGHER-RESOLUTION DISPLAY
The stereo’s 4.3-inch LCD touchscreen display offers notable improvements1 in image resolution, color saturation, viewing angles and readability in bright daylight.
STEREO NETWORKING

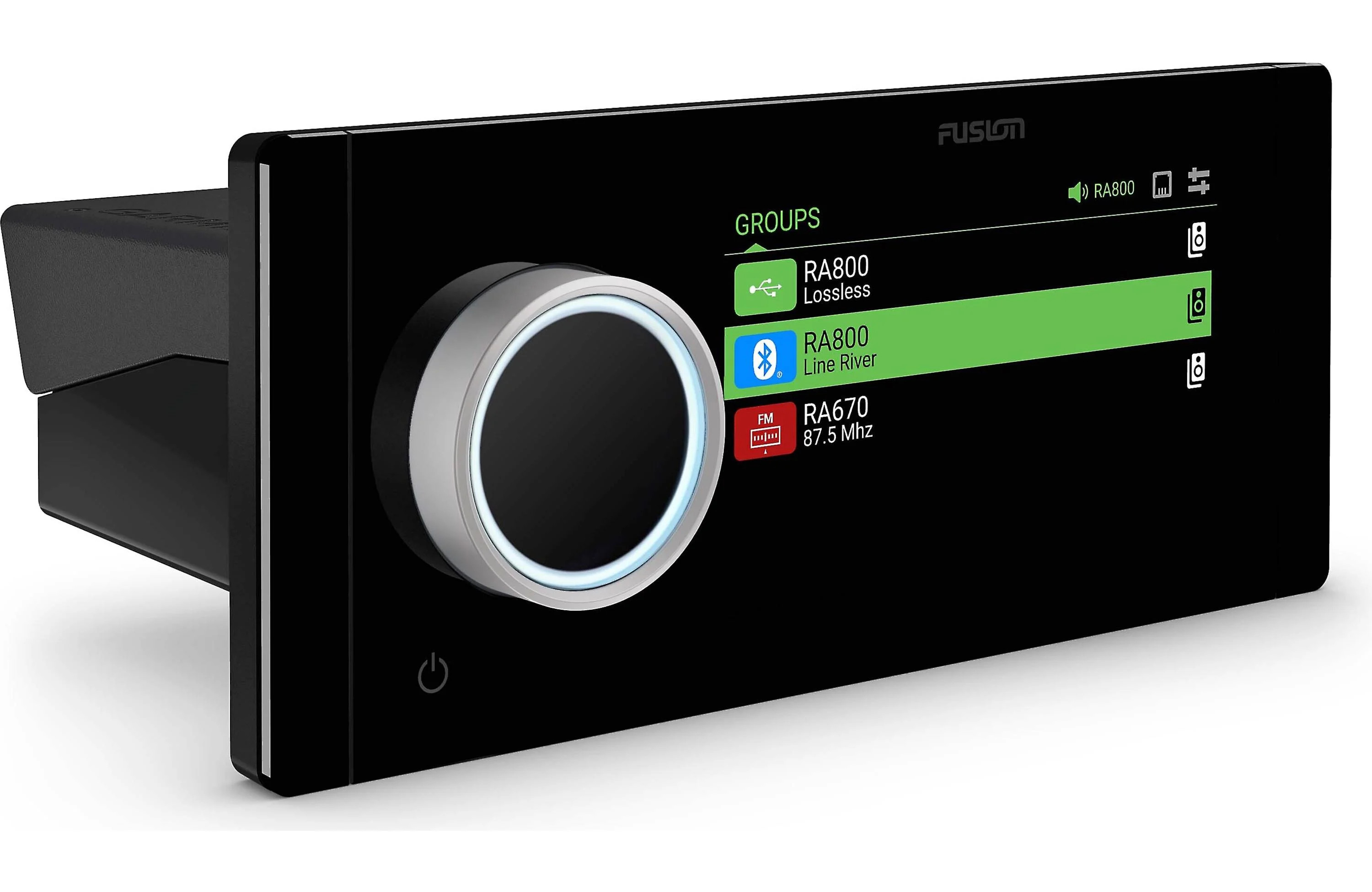

Connect your RA800 stereo with other Apollo Series stereos to create a network on board your boat. Enjoy advanced features, including stereo grouping, combined volume control, power options and Home Zone control.

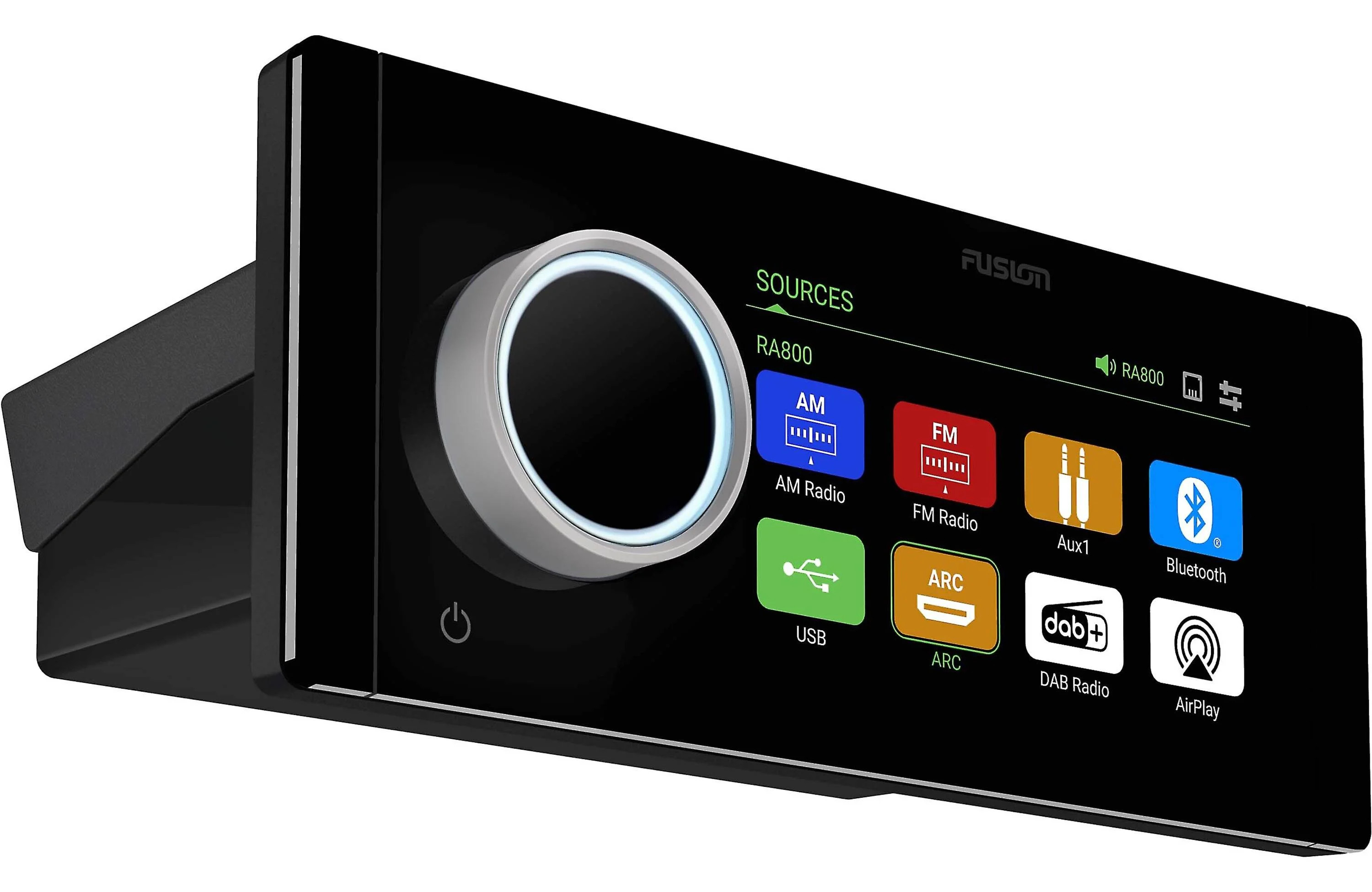

MULTIPLE SOURCE OPTIONS
Take advantage of a wide variety of source options available, including AirPlay streaming from Apple®, BLUETOOTH® connectivity, HDMI ARC, DAB+ radio tuner, USB connections, AM/FM radio and AUX inputs.
MFD NETWORKING
Easily network your RA800 stereo with a compatible Garmin MFD via NMEA 2000® or Garmin BlueNet™ network for integrated audio control at the helm.
| Brand | JL Audio |
| Height | 3.23" (82 mm) |
| Width | 7.56" (192 mm) |
| Depth | 4.7" (119.4 mm) |
| Weight | 1.37 lbs (620 g) |
| Control Surface Dust/Water Rating (when properly installed) | IPX6 and IPX7 |
| Rear Dust/Water Rating (when properly installed) | IPX3 |
| Operating temperature range | -20 to 70° C |
| Current draw (max) | 25 A at 14.4 V |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 40 W x 4 |
| Power Input | 10.8 to 32 Vdc |
| Compass-safe distance | 5.9" (150 mm) |
| Display size | 4.3" (109 mm) |
| Display type | capacitive touchscreen color LCD |
| Display resolution | 800 x 480 |
| Optically bonded display | Yes |
| Built-in amplifier | Class D (4 ?) |
| Built-in Wi-Fi® | Yes |
| Built-in Digital Signal Processing (DSP) | yes (with custom DSP profile setup using Fusion-Link app) |
| Stereo networking | yes (wired or wireless) |
| Fusion-Link control | yes (MFD, smart device and Garmin watch) |
| Multi-Zone technology | 4 zones |
| Bluetooth® wireless technology | Yes |
| ANT® wireless technology | Yes |
| Software updates | Over-the-air updates via Fusion-Link app (when connected to wireless network router) / USB |
| Supported sources | AM, FM, BLUETOOTH®, Apple AirPlay® 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2 |
| Supported audio formats (USB) | MP3, AAC, M4A, FLAC, WAV |
| Auxiliary inputs (RCA) | 2 |
| HDMI ARC Ports | 1 |
| Ethernet ports | 1 |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 2 (65 mA) |
| USB 2.0 ports | 1 (USB-C) |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 4 zones |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | 4 (1 mono output per zone) |
| Wireless frequencies/protocols | WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2, BLUETOOTH®: 2.4 GHz @ +10 dBm nominal, ANT®: 2.4GHz 0dBm nominal |
| ANT® wireless range | Up to 10 ft |
| Bluetooth® wireless range | up to 30 ft |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
