We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products.

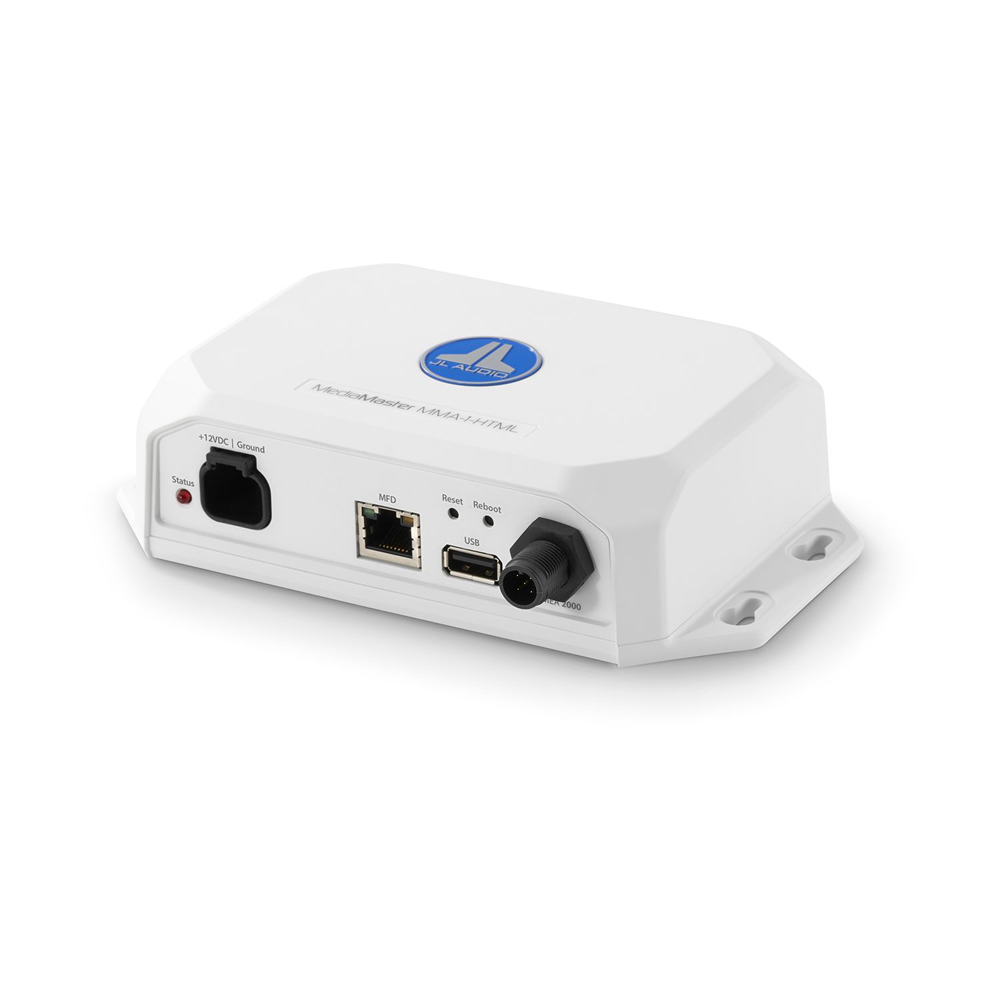

The JL Audio MFD Data Interface for MediaMaster source units is interface engineered to generate MediaMaster source unit themed UI navigation and controls directly onto your vessel's compatible Multi-function Display (MFD). Exclusively designed for use with compatible MediaMaster source units, the MFD Data Interface allows you to pilot your boat and control your MediaMaster source unit seamlessly, via your helm's MFD display.

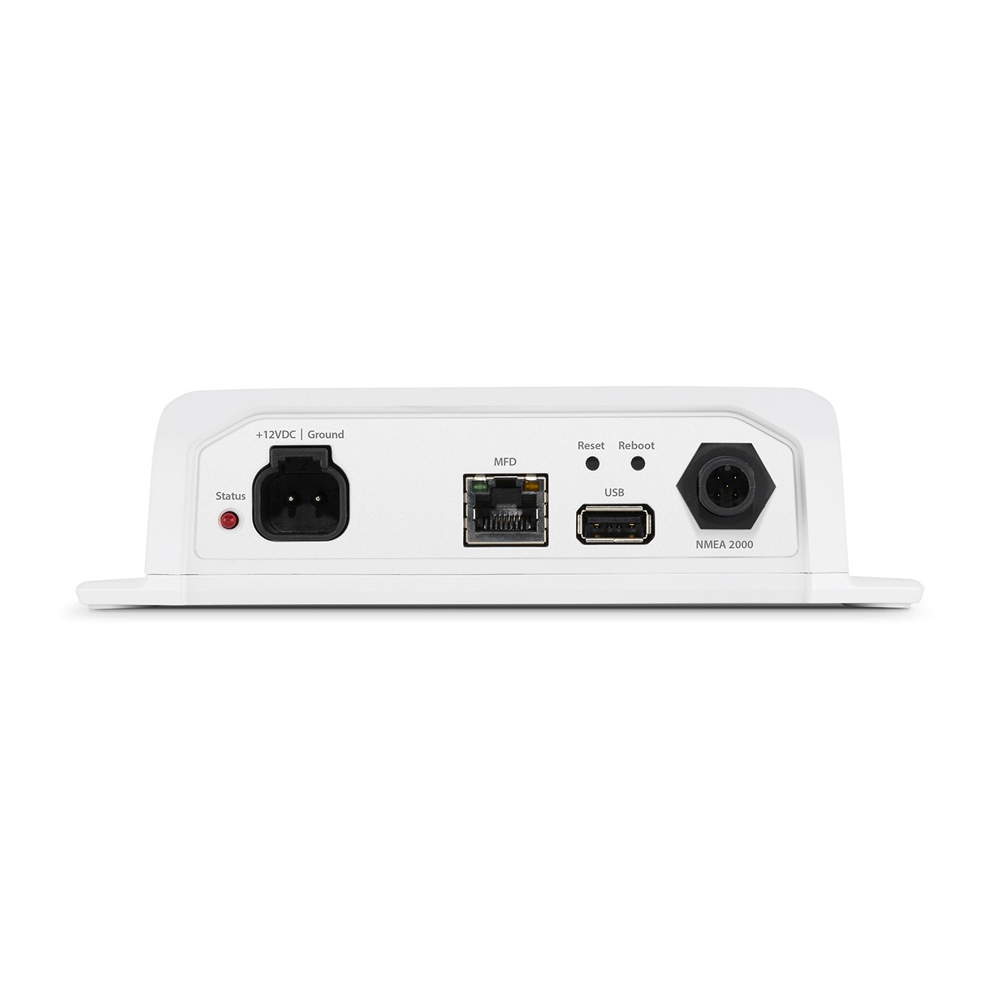

Outfitted with a NMEA 2000® network Micro-C connector (LEN 1), the MFD Data Interface interacts with a vessel's NMEA 2000 network using applicable cables and connectors for the NMEA 2000 network (not included). The MFD Data Interface automatically recognizes the host MediaMaster source unit and will then project its familiar screen info and navigation controls onto your MFD's display, resulting in a true MediaMaster source unit user experience.
| Brand | JL Audio |
| Warranty | 3 years |
| Physical dimensions (Height) | 1.73" (44 mm) |
| Physical dimensions (Width) | 6.77" (172 mm) |
| Physical dimensions (Depth) | 3.98" (101 mm) |
| Operating temperature range | -4° F to +149° F (-20° C to +65° C) |
| Current draw (max) | 150 mA |
| Power Input | 10-15.9 VDC |
| Software updates | USB |
| Supported sources | Derived from host source unit |
| Supported audio formats (USB) | Derived from host source unit |
| Ethernet ports | 1 |
| NMEA 2000® ports | 1 (Micro-C connector) |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 ports | 1 (Software update only) |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
