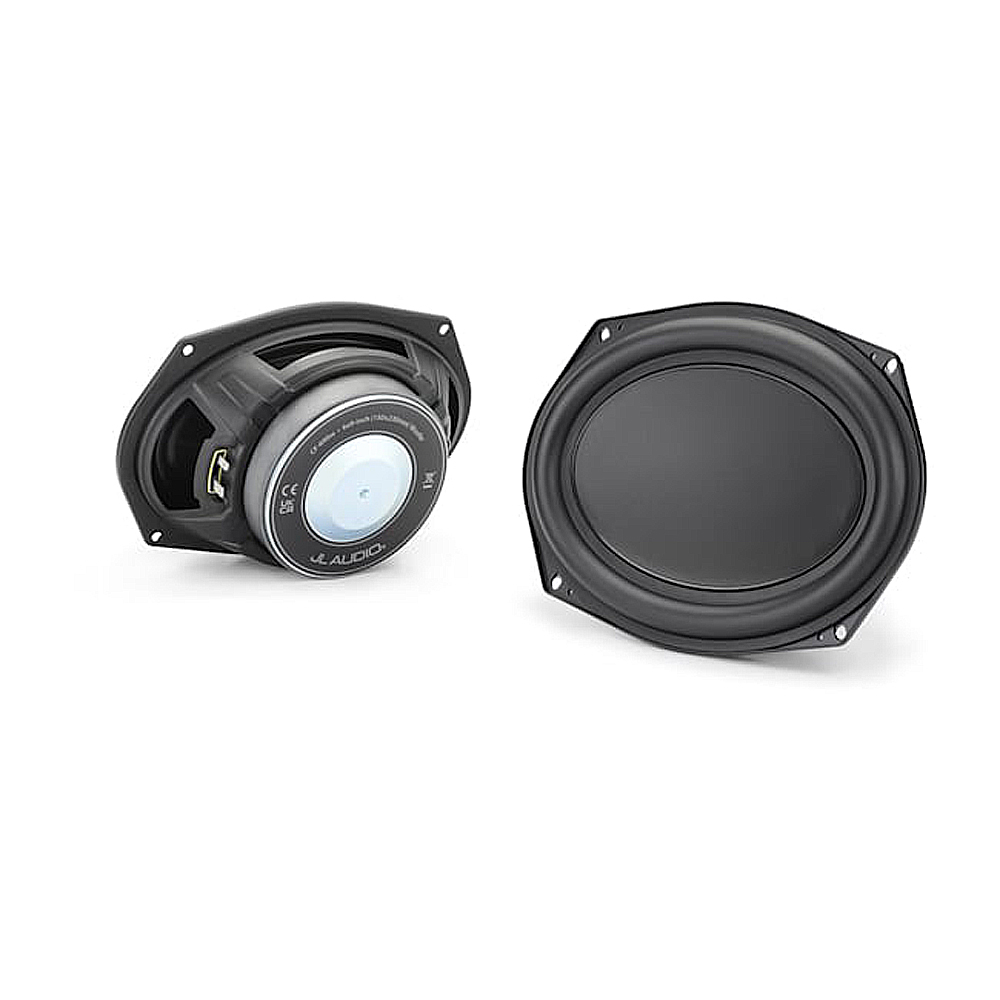

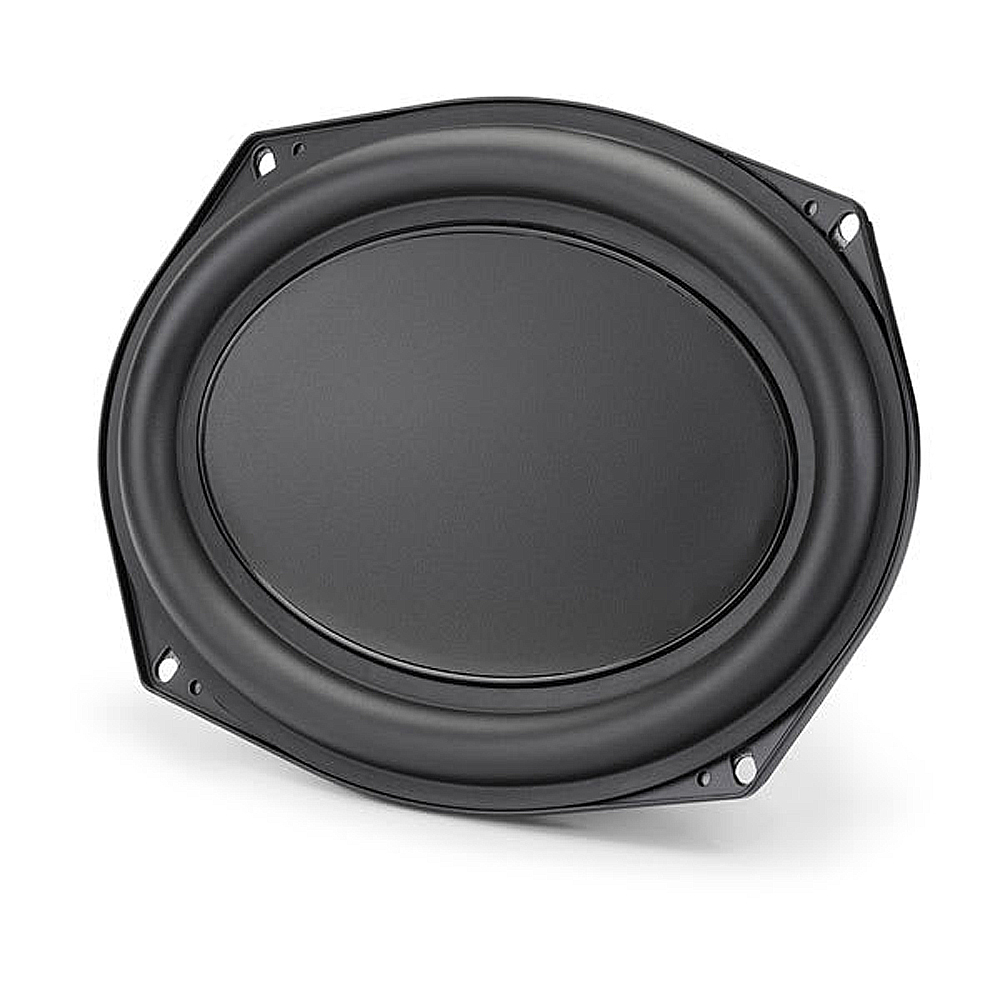

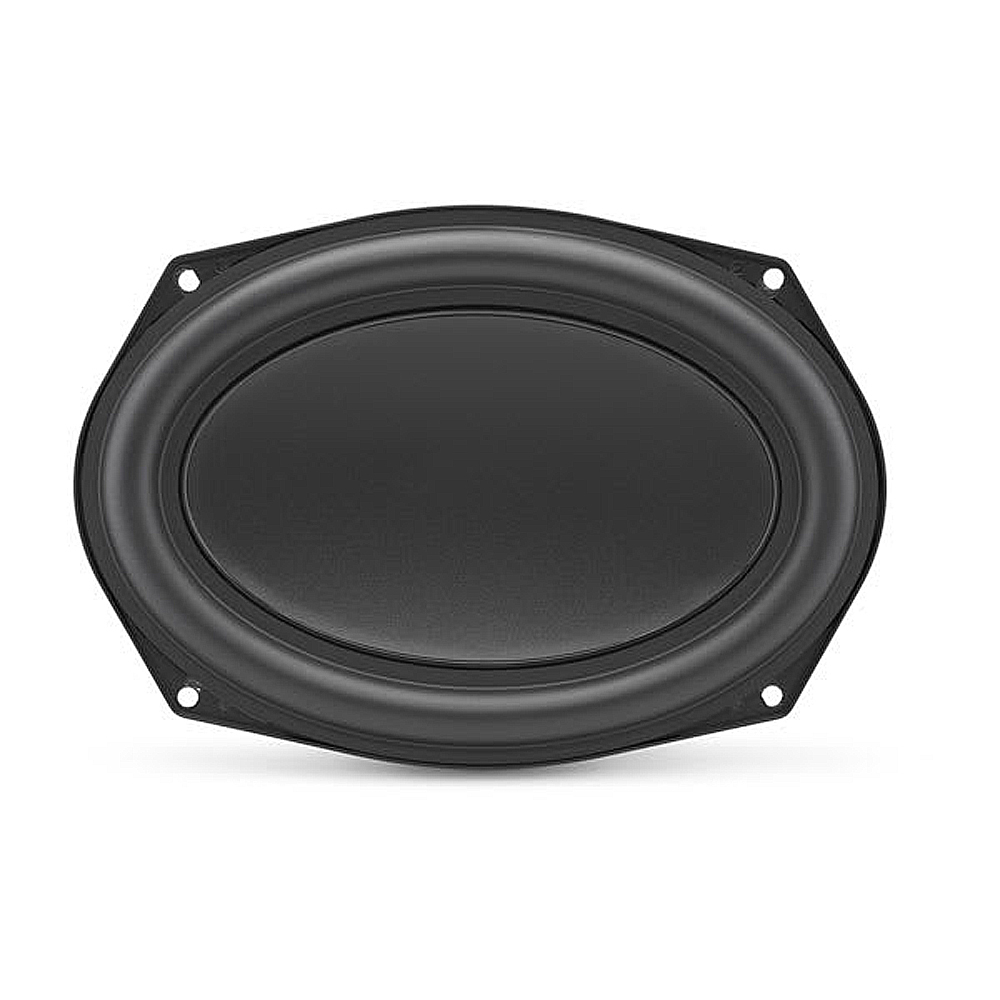

JL Audio CF-690w Custom Fit 6"x9" Component Woofers – Fits Select Ram, Toyota, Chevy & GM
The JL Audio CF-690w is a custom-fit 6"x9" component woofer set designed to upgrade factory speaker systems in select Ram, Toyota, Chevrolet, and GMC vehicles. Engineered for OEM-style installation, these woofers provide improved midbass response, enhanced clarity, and higher power handling while retaining factory grilles.
Featuring vacuum-formed mineral-filled polypropylene cones with rubber surrounds, the CF-690w delivers accurate midbass performance and durability. The included optional 2-way in-line crossovers with 4-step level adjustment allow precise tuning of mid and high-frequency response for optimized sound quality.
Built with high-temperature glass-filled polymer frames and insert-molded terminals, these custom-fit woofers provide reliable performance and seamless integration with factory mounting locations.
Key Features
- Custom-fit 6"x9" component woofers
- Designed for select Ram, Toyota, Chevy, and GM vehicles
- Vacuum-formed mineral-filled polypropylene woofer cones
- Rubber surround for durability and controlOptional 2-way in-line crossovers included
- 4-step level adjustment for mid/high frequency tuning
- High-temperature glass-filled polymer frame
- Insert-molded terminals for secure connections
- OEM-style woofer adapter rings included
- Foam gaskets included for improved sealing
- Retains factory speaker grilles (no grilles included)
Performance Specifications
- Speaker Size: 6" x 9"
- Configuration: Component woofer set (pair)
- RMS Power Handling: 50 – 150 Watts
- Maximum RMS Wattage: 150 Watts
- Frequency Response: 36 Hz – 610 Hz
- Sensitivity: 84.8 dB
- Impedance: 4 Ohm
Included Components
- Two 6"x9" component woofers
- Four OEM-style woofer adapter rings
- Two foam gaskets
- Optional 2-way in-line crossovers
Construction
- Vacuum-formed mineral-filled polypropylene cone
- Rubber surround
- High-temperature glass-filled polymer frame
- Insert-molded terminals
- OEM-style mounting design
Vehicle Compatibility
Designed to fit select:
- RAM trucks
- Toyota vehicles
- Chevrolet models
- GMC vehicles
Custom adapter rings allow installation into factory speaker locations.
Why Choose the JL Audio CF-690w?
The JL Audio CF-690w is engineered to deliver stronger midbass and improved clarity while maintaining factory fitment. With high-quality materials, adjustable crossovers, and OEM-style mounting, these woofers provide a clean upgrade for factory sound systems.
Perfect for:
- Factory speaker upgrade
- OEM replacement 6x9 speakers
- Component system builds
- Truck and SUV audio upgrades
| Brand | JL Audio |
| Series | CF Series |
| Priced Per | Pair |
| Number of Speakers | 2 |
| Speaker Size | 6" x 9" |
| Design | Component |
| Sensitivity | 84.8 dB |
| Frequency Response | 36 - 610 Hz |
| Impedance (Per Voice Coil) | 4 ohm |
| Shallow Mount Installation | No |
| Woofer Composition | Mineral-Filled Polypropylene |
| RMS Power Handling | 100 watts |
| Total RMS Per Pair/Set | 200 watts |
| Top-Mount Depth (Mounting Depth) | 2.85" |
| Cutout Dimensions | 6.38 x 9.13 |
| CTA-2031 Compliant | Yes |
| Marine Certified | No |
| Hi-Res Certified | No |
| Color | Black |
| Illumination | None |
| Speaker Grilles | No |
| Includes Damping Kit | without Damping Kit |
| Compatible vehicle types | Car/Truck/SUV/Van |
| Paperwork | User manual |
| WITB: Speakers | Foam Gasket, Speakers (2), Mounting screws (4), Mounting screws (8) |
| Other Accessory #1 | 0.187 female crimpable connectors (2) |
| Other Accessory #2 | 0.110" female crimpable connectors(2) |
| Other Accessory #3 | OEM adapter rings (4) |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
