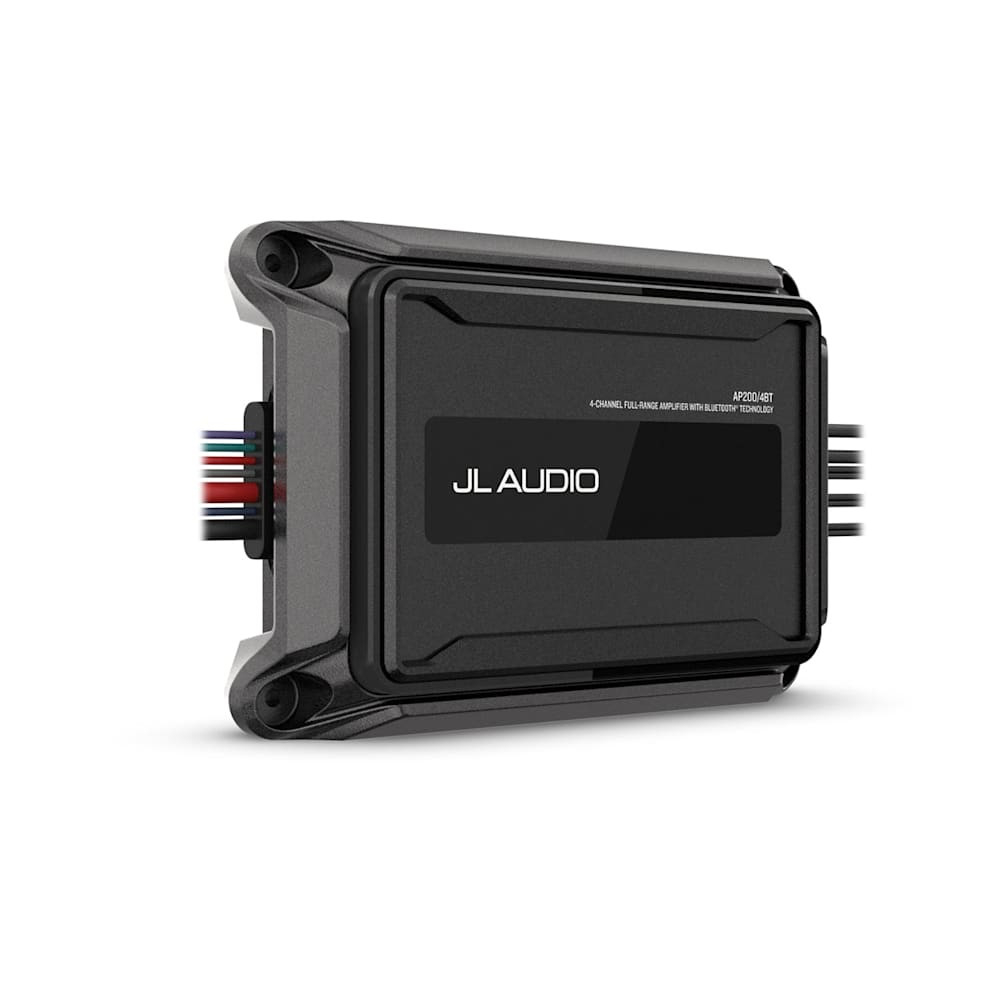

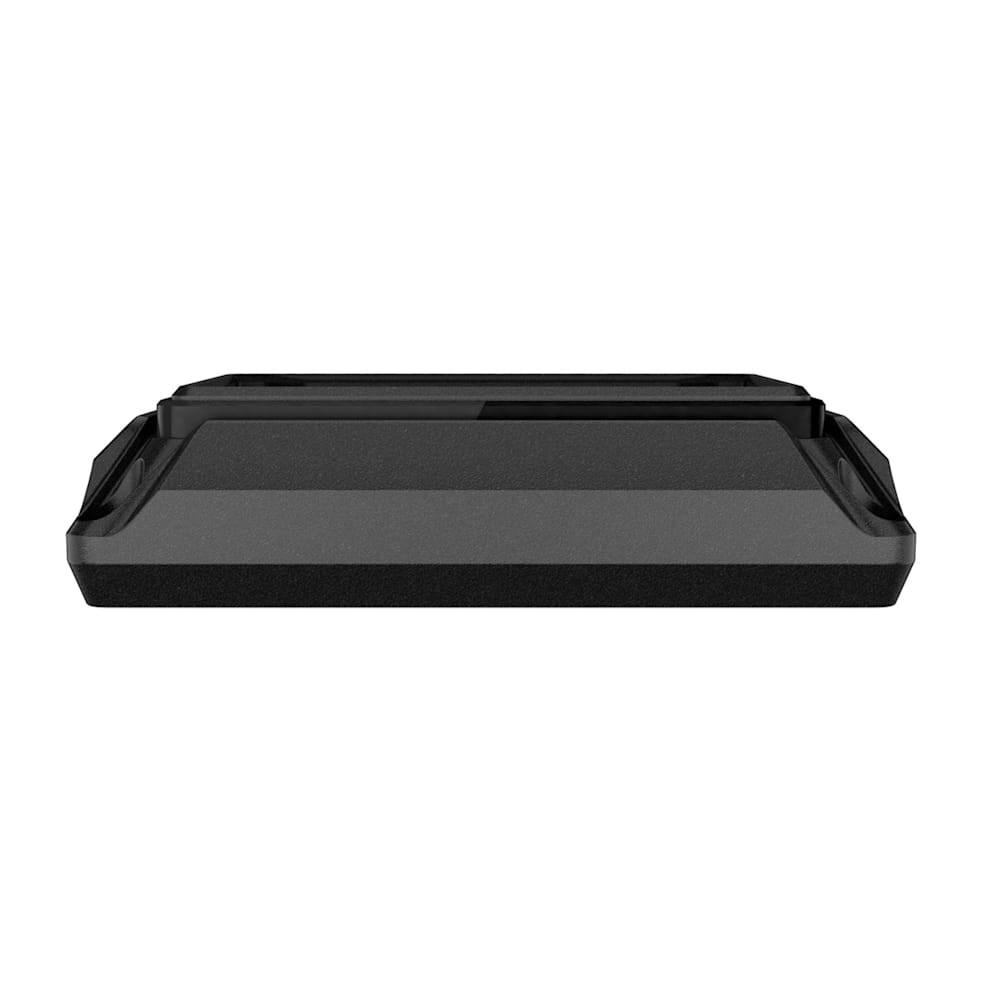

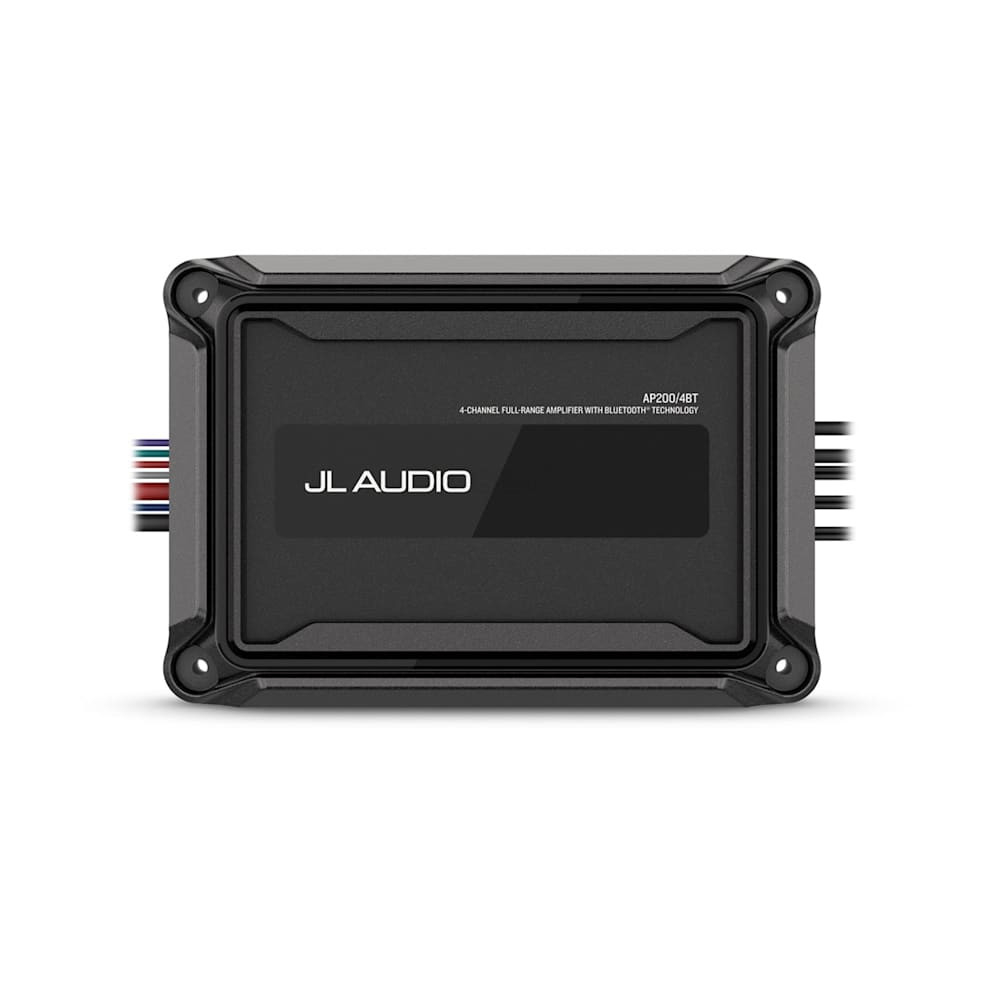

JL Audio AP200/4BT 4-Channel Compact Marine Bluetooth Amplifier – Class D, IP67 Rated
The JL Audio AP200/4BT is a compact 4-channel Class D marine amplifier with built-in Bluetooth streaming, engineered to deliver powerful sound in boats, powersports vehicles, UTVs, ATVs, and off-road applications. Combining efficient amplifier technology, rugged weather-resistant construction, and wireless music control, this all-in-one amplifier is ideal for installations where space is limited and durability matters.
Designed for life outdoors, the AP200/4BT features an IP67-rated amplifier chassis and an IPX7-rated wired remote, providing dependable performance against water, dust, vibration, and harsh environments. With Bluetooth audio streaming and included remote control, you can enjoy music and adjust settings without needing a traditional head unit.
Key Features
- 4-Channel Class D Compact Marine Amplifier
- Built-in Bluetooth audio streaming
- Efficient low-current Class D design
- Compact chassis for tight installations
- IP67-rated amplifier weather protection
- IPX7-rated wired remote control included
- Ideal for boats, UTVs, ATVs, jet skis, and off-road vehicles
- Strong output with reduced battery drain
- Rugged vibration-resistant construction
Wireless Bluetooth Streaming
Enjoy instant wireless music playback directly from your smartphone or Bluetooth-enabled device.
- No head unit required in many applications
- Quick and simple pairing
- Ideal for open-air and marine systems
- Stream playlists, podcasts, and more

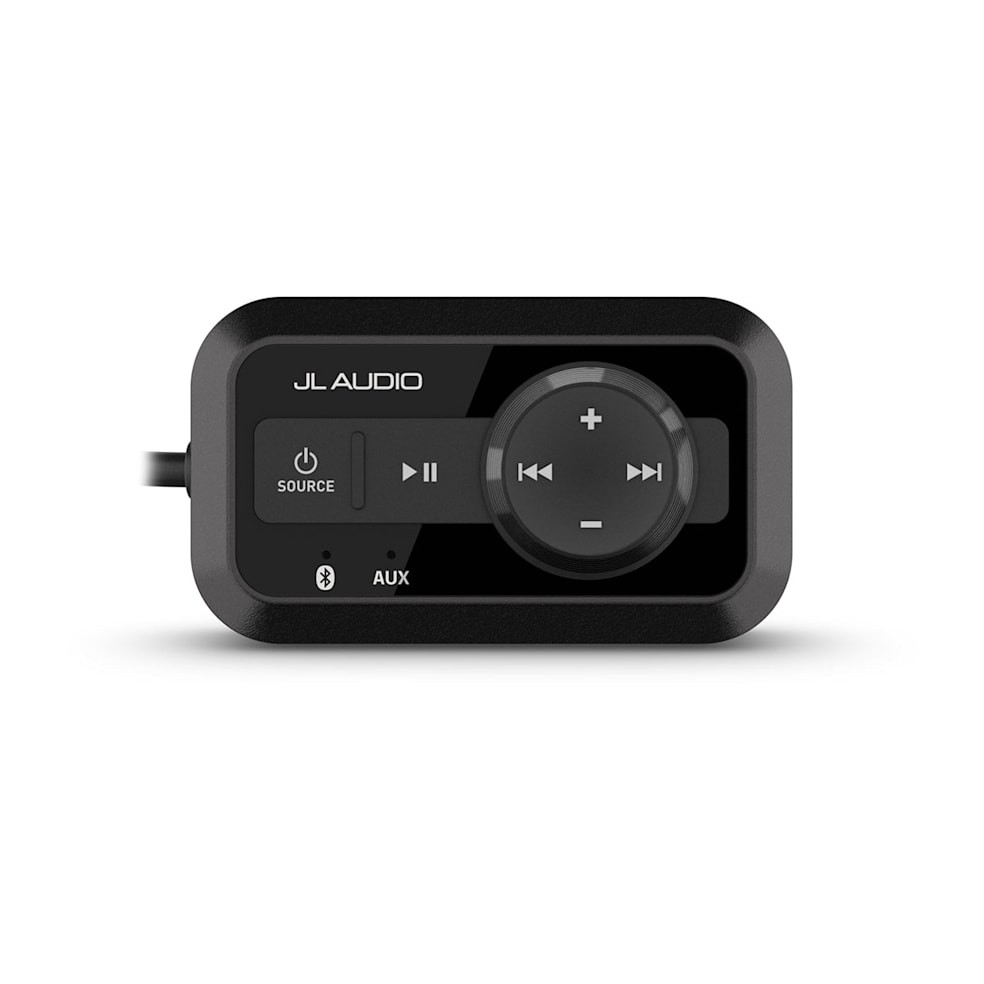

Included Wired Remote Control
The included wired remote gives easy access to system control while driving or riding.
Mounting options include:
- Flush mount
- Surface mount
- Bar mount
Perfect for helm stations, dashboards, handlebars, or utility panels.
Built for Outdoor Use
The AP200/4BT is engineered to withstand harsh environments:
- IP67 amplifier rating for dust and water resistance
- IPX7 remote rating for splash and water exposure
- Durable compact housing
- Built to handle vibration and rough terrain
Ideal Applications
Perfect for:
- Marine audio systems
- Boats and pontoons
- Jet skis / PWCs
- UTV / Side-by-side vehicles
- ATVs
- Golf carts
- Overland and off-road builds

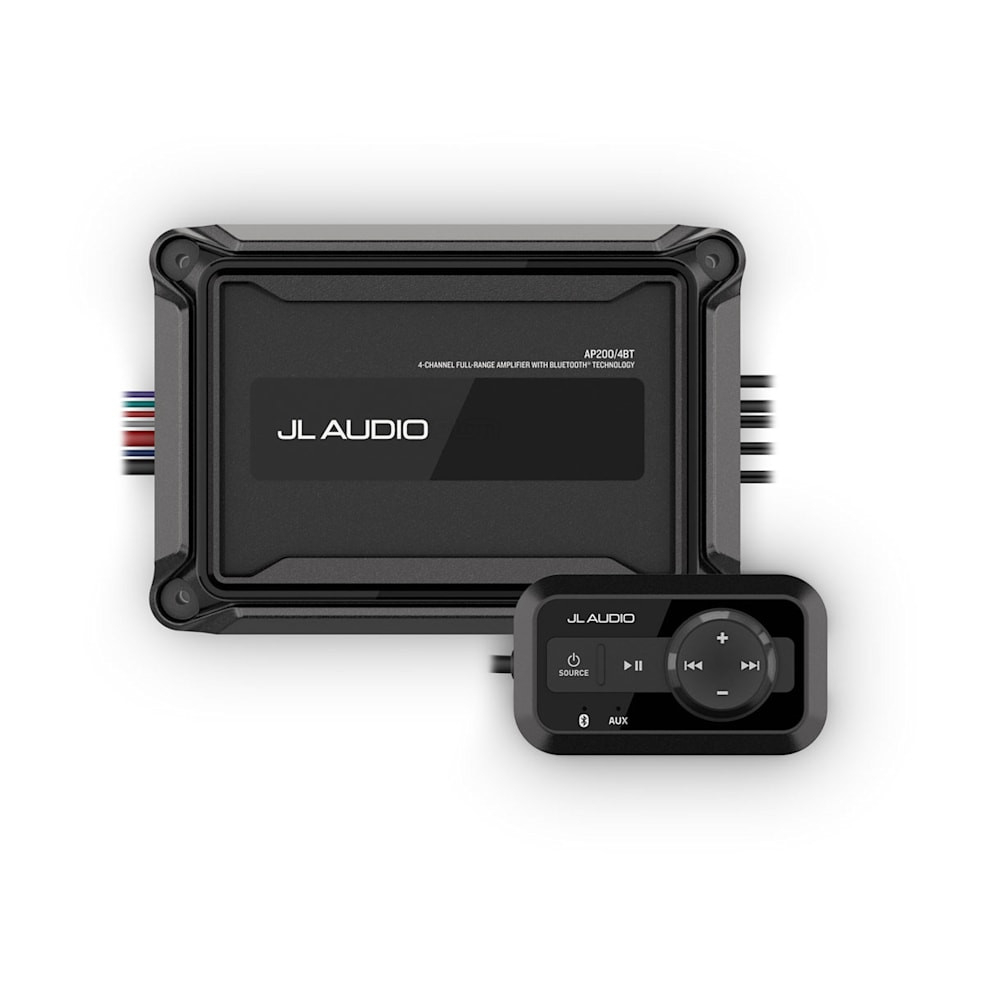

What's Included
- JL Audio AP200/4BT 4-Channel Amplifier
- Wired remote control with attached 9.5' cable
- Surface-mount frame
- Mounting bracket
- (2) 1-3/4" threaded posts with flange nuts and lock washers
- (4) 1/2" Phillips-head screws
- (4) 1-3/8" Phillips-head screws
- (2) Adhesive foam mounting pads
Why Choose the JL Audio AP200/4BT?
The JL Audio AP200/4BT combines amplifier power, Bluetooth convenience, and true outdoor durability in one compact package. It’s perfect for users who want quality sound without a bulky stereo system or complicated installation.
Ideal for anyone wanting:
- Bluetooth marine amplifier
- Compact powersports sound system
- Waterproof off-road amplifier
- Easy audio upgrade for boats or UTVs
| Brand | JL Audio |
| Channels | 4 Channel |
| Physical dimensions (Height) | 1.85" (47 mm) |
| Physical dimensions (Width) | 7.28" (185 mm) |
| Physical dimensions (Depth) | 4.90" (125 mm) |
| Operating voltage | 9-16 VDC |
| Water and dust rating | IP67 |
| Operating temperature range | 4° to 149° F (-20° to 65° C) |
| Amplifier class | Class D |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 40 W x 4/100 W x 2 (Bridged) |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | 50 W x 4 |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | >70 dB |
| THD+N @ Rated Power | <1% @ 4 ? per Channel |
| Frequency response (+0, -1dB) | 20 Hz-20 kHz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Input impedance | 11 k? (High) | 20 k? (Low) |
| Current consumption (Standby) | <1mA |
| Current consumption (Idle) | <700-750mA |
| Fuse rating | 35A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Input under/over voltage, Over temperature, Output short circuit |
| Bass boost EQ (0 to +18 dB @ 37 Hz) | Yes |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
