We are a Garmin authorized dealer, so you get up-to-date, fully warrantied products.
What's Inside:
- STRIKER Vivid 5cv fishfinder

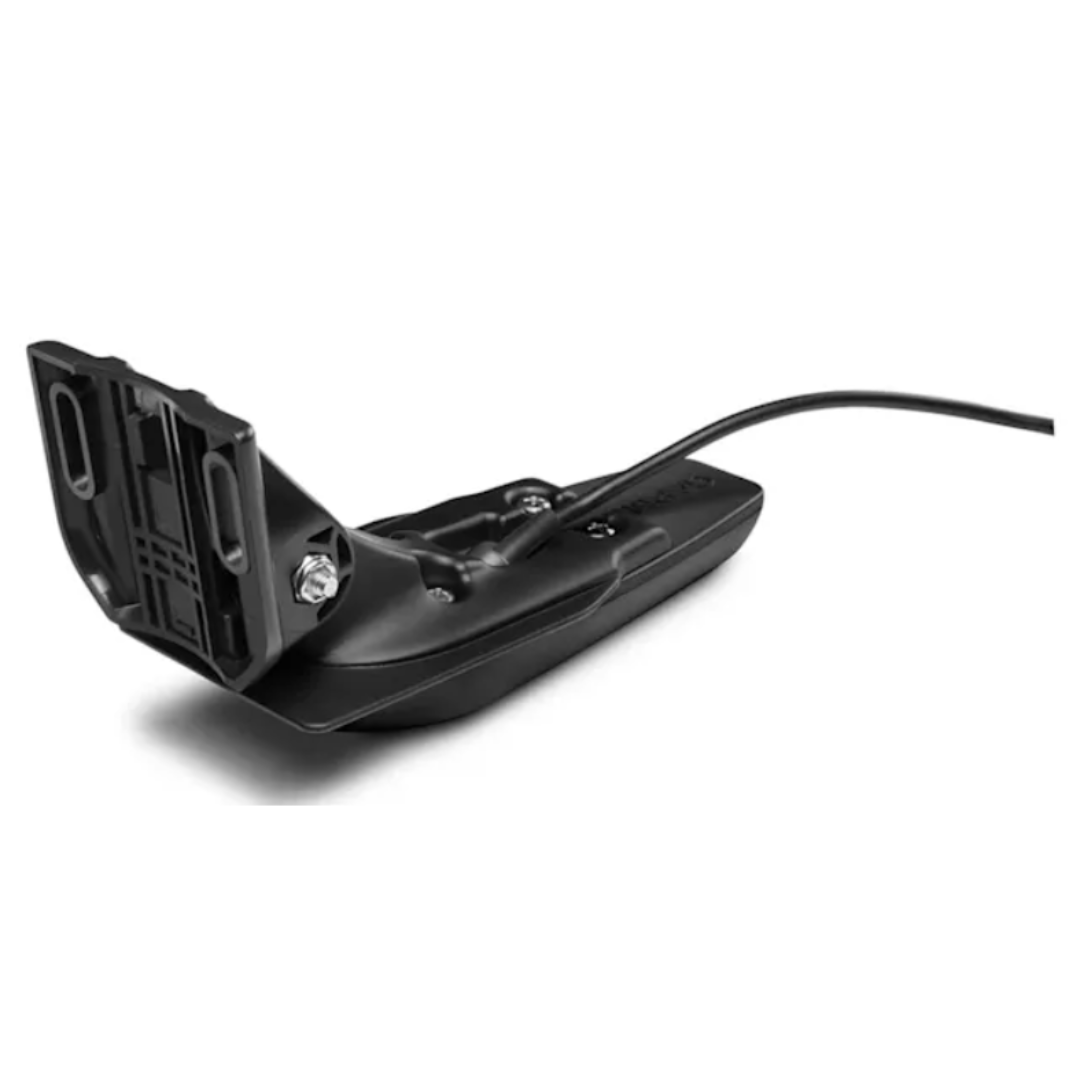

- GT20-TM transducer
- Power/data cable
- Tilt/swivel mount
- Hardware
- Documentation
THE CHOICE IS YOURS
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 5cv fishfinder with transducer.
- The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
- What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars.
- Never lose a hot spot again. Use waypoint marking to find your way back.
- What’s under the water’s surface looks pretty good as 1' contours, just saying.
A NEW WAY TO SEE WHAT'S UNDER THE WATER
CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 4” fishfinder.
BUILT-IN SONAR
Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.
WAYPOINT MARKING
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
HIGH-SENSITIVITY GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. With the STRIKER Vivid 5cv fishfinder, you can store up to 2 million acres of maps with 1’ contours.
INCLUDED HARDWARE
The STRIKER Vivid 4cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
| Brand | Garmin |
| Dimension | 7.4 x 4.5 x 2.1 (18.8 x 11.6 x 5.4 cm) |
| Weight | 1.0 lb (450 g) |
| Water rating | IPX7 |
| Display Type | QSVGA |
| Display Size | 2.6" x 4.3" (6.5 x 10.8 cm) |
| Display resolution | 800 x 480 pixels |
| Mounting Options | flush, tilt/swivel |
| Input | Keyed |
| Maps & Memory | Listed Below |
| Waypoints/favorites/locations | 5000 |
| Track points | 50000 |
| Tracks | 50 |
| Navigation Routes | 100 |
| Sensors | Listed Below |
| GPS | Yes |
| Has built-in receiver | Yes |
| Supports WAAS | Yes |
| Optional Map Support | Listed Below |
| Garmin Quickdraw Contours | Yes |
| Electrical Features | Listed Below |
| Power Input | 12 to 20 Vdc |
| Typical current draw | 0.40 A |
| Max current draw | 1.5 A |
| Power Consumption | 4.8 |
| Sonar Features | Listed Below |
| Displays sonar | Yes |
| Traditional sonar (dual frequency/beam) | Built-in |
| ClearVü | Yes |
| Frequency | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz |
| Transmit power | 300 W (RMS) |
| Bottom Lock (shows return from the bottom up) | Yes |
| Water Temperature Log | Yes |
| Networking & Connections | Listed Below |
| 4-pin transducer ports | 1 |
| Fishfinder Features | Listed Below |
| Split-screen zoom | Yes |
| Fish Symbol ID (helps identify fish targets) | Yes |
| maximizes targets) | Yes |
| Adjustable depth line (measures depth of underwater objects) | Yes |
| A-scope (real time display of fish passing through transducer beam) | Yes |
| Water temperature sensor included | Yes |
| Depth range shading | Yes |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
