We are a Garmin authorized dealer, so you get up-to-date, fully warrantied products.
What's Inside:
- ECHOMAP Ultra 106sv with optional Garmin Navionics+
- GT56UHD-TM transducer
- Power cable
- Bail mount with quick release cradle
- Protective sun cover
- Hardware
- Documentation
ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING
With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
- 10" Touchscreen
- Supports Livescope™ Sonar1 And More
- Available With Built-In Garmin Navionics+ Mapping
- Wirelessly Network; Share Sonar, Waypoints And Routes2
- Capture Screen Recordings To Share Fish Catches
- Multi-Band Gps For Improved Position Accuracy
WHAT YOU'LL LOVE
LIVESCOPE™ SONAR SUPPORT
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
BUILT-IN UHD SONAR

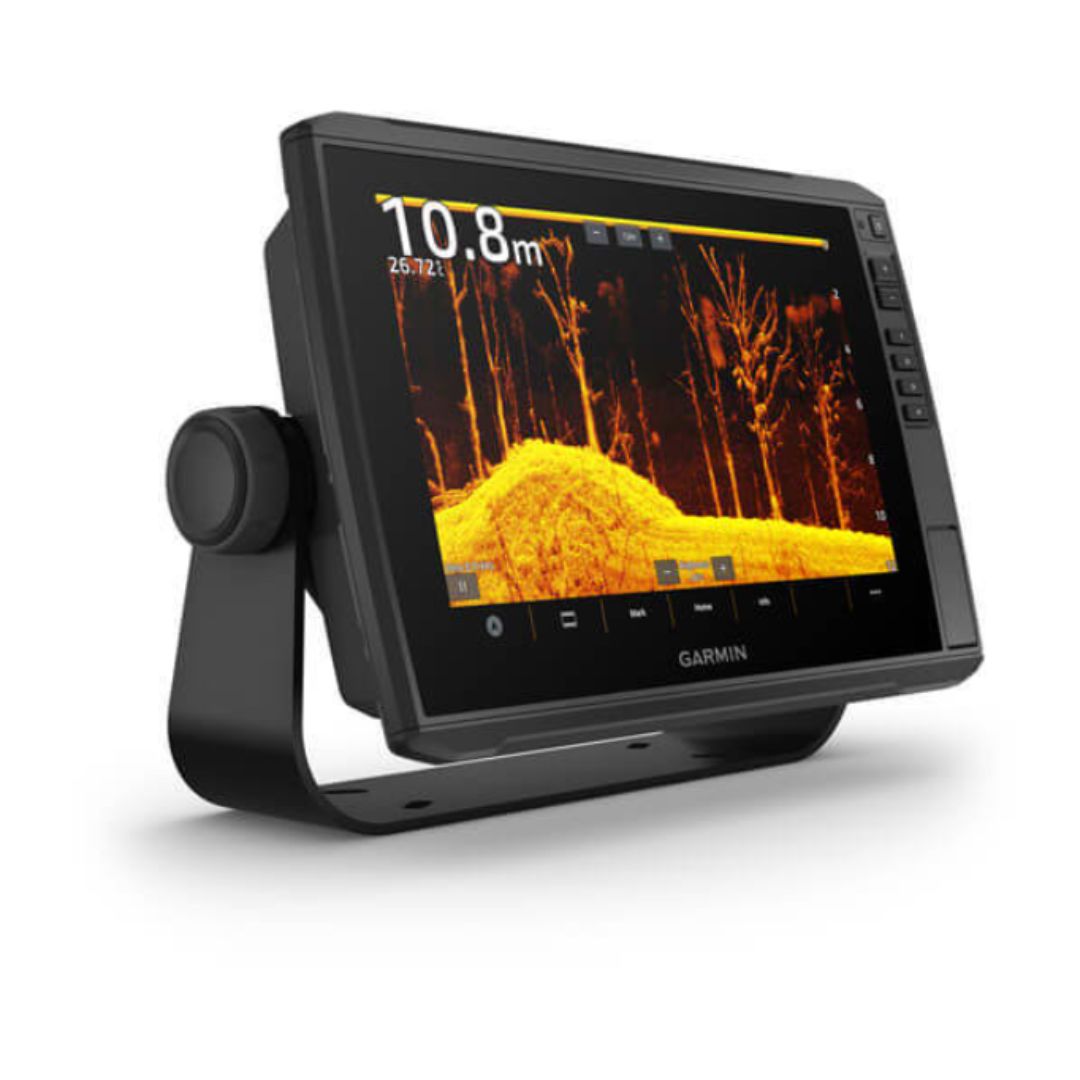

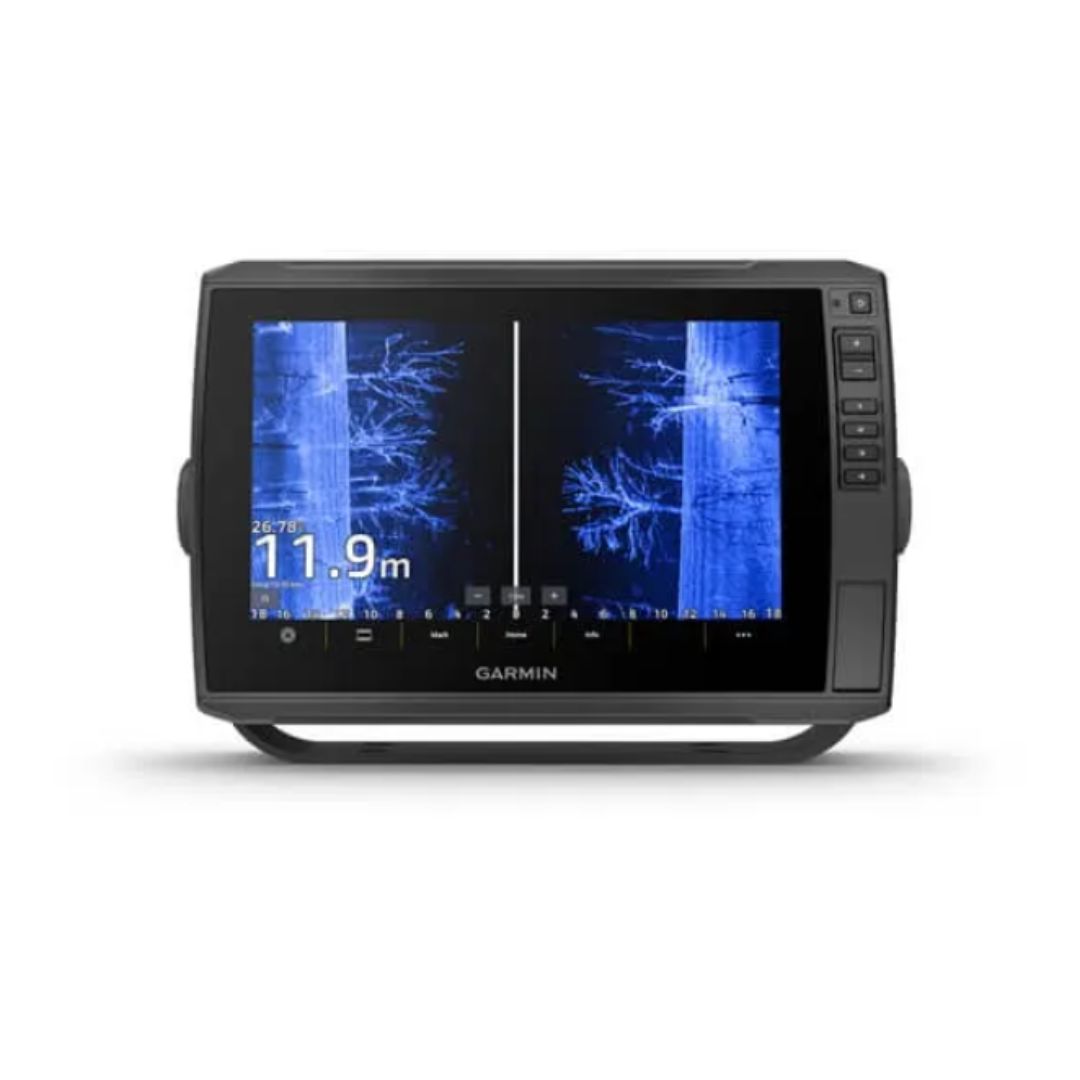

Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
PRELOADED CHARTS
Experience unparalleled coverage and detail. Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more.
PREMIUM MAP UPGRADES
Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.
WIRELESS NETWORKING
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.
See everything with the ultra high-definition scanning sonar system.
STAY CONNECTED
MULTI-BAND GPS
Get improved position accuracy with multi-band GPS
NMEA 2000® NETWORK COMPATIBILITY
Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.
ACTIVECAPTAIN® APP
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data and more
FORCE® TROLLING MOTOR
Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.
TAKE IT WITH YOU

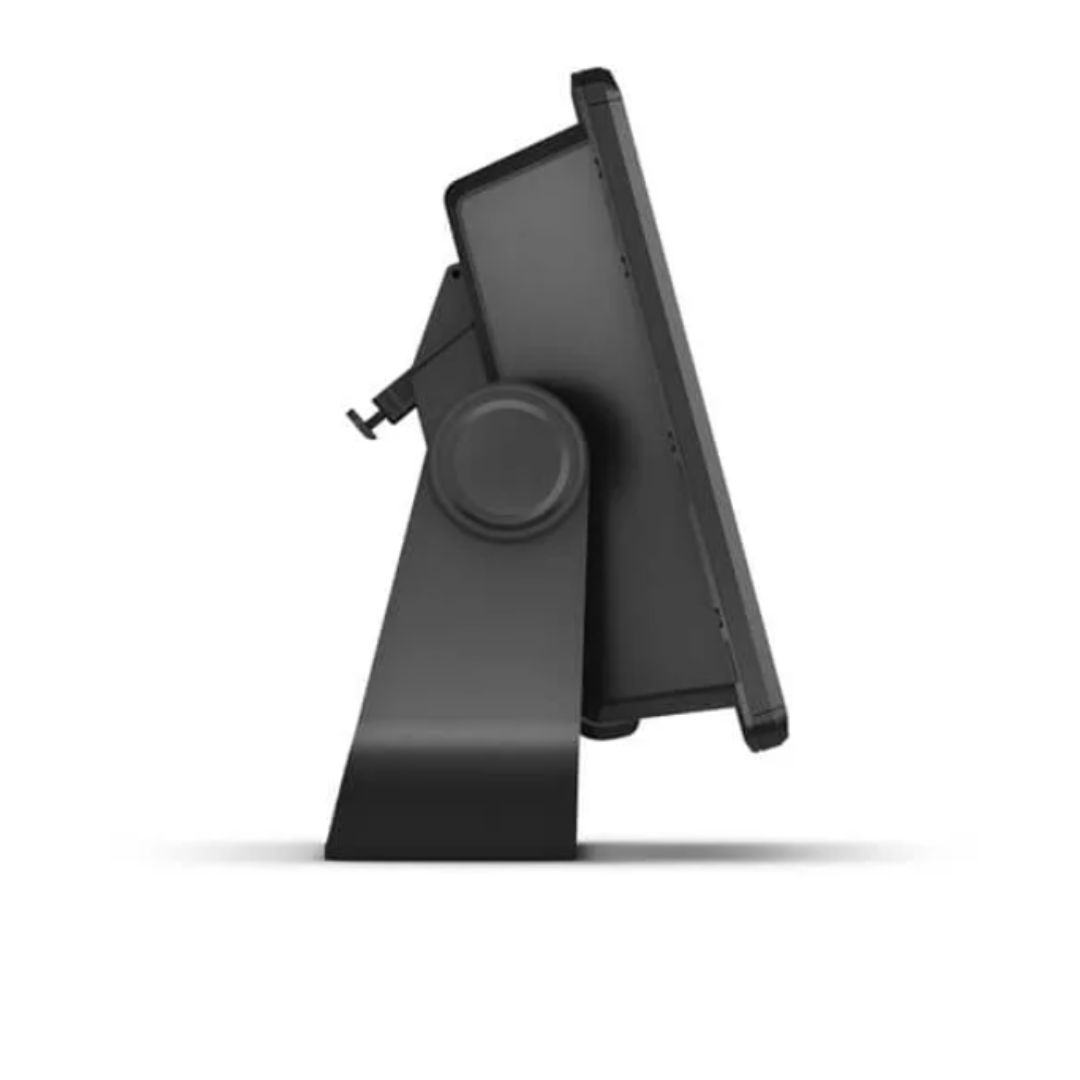

The quick-disconnect bail mount lets you quickly install and remove your unit.
| Brand | Garmin |
| General Features | Listed Below |
| Dimension | 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) |
| Weight | 4.0 lbs (1.8 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | WXGA, IPS |
| Display Size | 8.5" x 5.4" |
| Display resolution | 1280 x 800 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with keyed assist |
| Maps & Memory | Listed Below |
| Accepts Data Cards | 2 microSD cards |
| Waypoints | 5000 |
| Track points | 50000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | Listed Below |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| BeiDou | Yes |
| Has built-in receiver | Yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| Supports WAAS | Yes |
| Supports multi-band, multi-constellation GPS | Yes |
| Built-in Maps | Listed Below |
| Built-in Auto Guidance+ | Yes |
| Garmin Navionics+ (inland and coastal) | yes (see Additional) |
| Tide tables | yes (see Additional) |
| Optional Map Support | Listed Below |
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+ | Yes |
| Garmin Navionics Vision+ | Yes |
| TOPO 100K | Yes |
| Standard mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | Listed Below |
| AIS | Yes |
| DSC | Yes |
| Supports Fusion-Link compatible radios | Yes |
| ActiveCaptain® compatible | Yes |
| Sailing features | Yes |
| Electrical Features | Listed Below |
| Power Input | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 2.3 A |
| Maximum current draw at 12 Vdc | 5.0 A |
| Maximum power usage at 10 Vdc | 34 W |
| Sonar Features | Listed Below |
| Displays sonar | Yes |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix sonar | Yes |
| LiveScope | Yes |

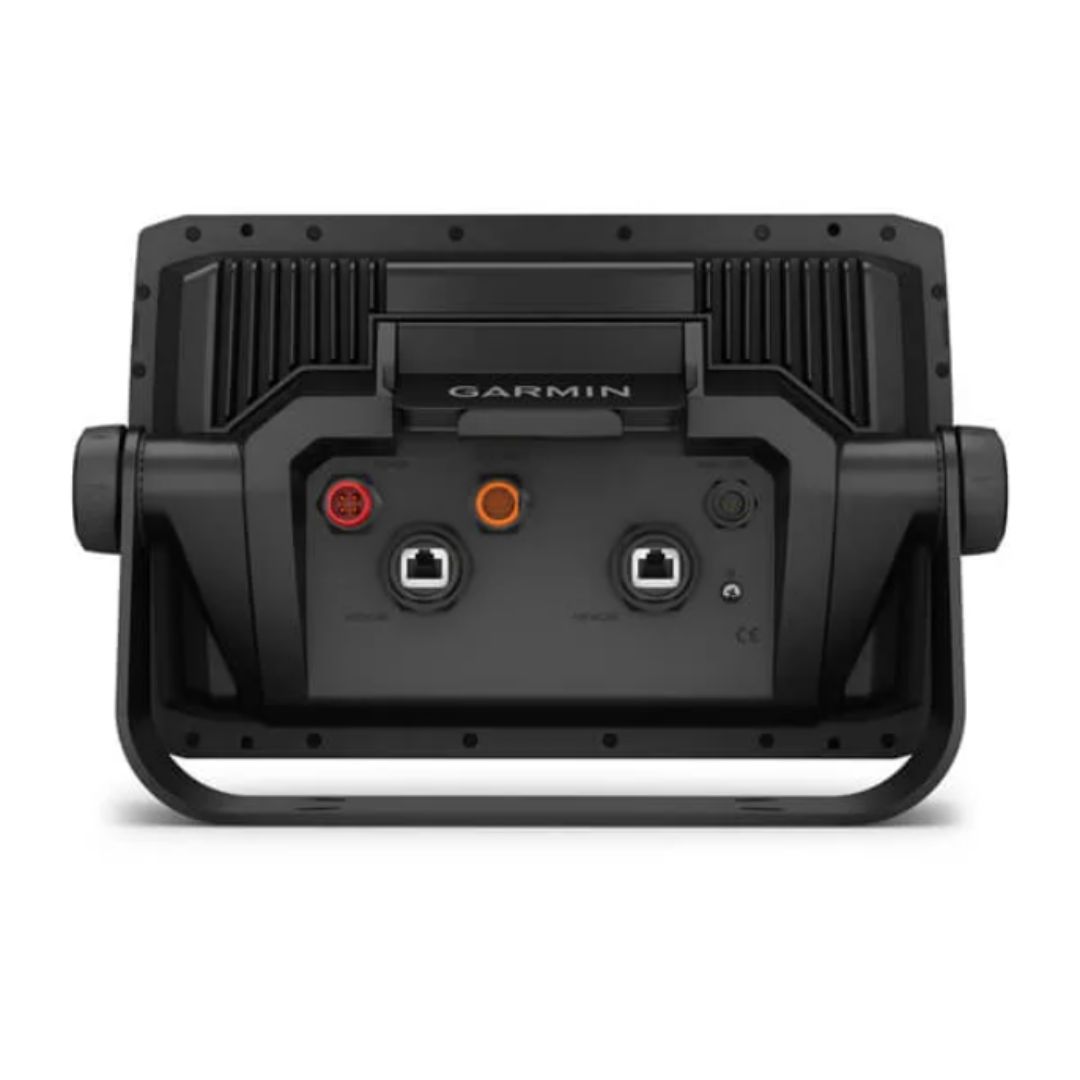

| Networking & Connections | Listed Below |
| NMEA 2000® ports | 1 |
| Garmin Marine Network Ports | 2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
| ANT® (connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| Additional | Garmin Navionics+ (Inland and Coastal): 106sv, 105sv Australia and New Zealand Tide tables: 106sv, 105sv Australia and New Zealand |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
