We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.
General Features:
- 6x9" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB ~ w/Grill
6x9” Mid-Range Loudspeaker With Bullet | 200W RMS | 4-Ohm
The PRO-X694BM is a 6x9” dynamo that delivers 200W RMS and 400W MAX of pure mid-range with absolute clarity.
Aggressive Style Meets Precision Sound

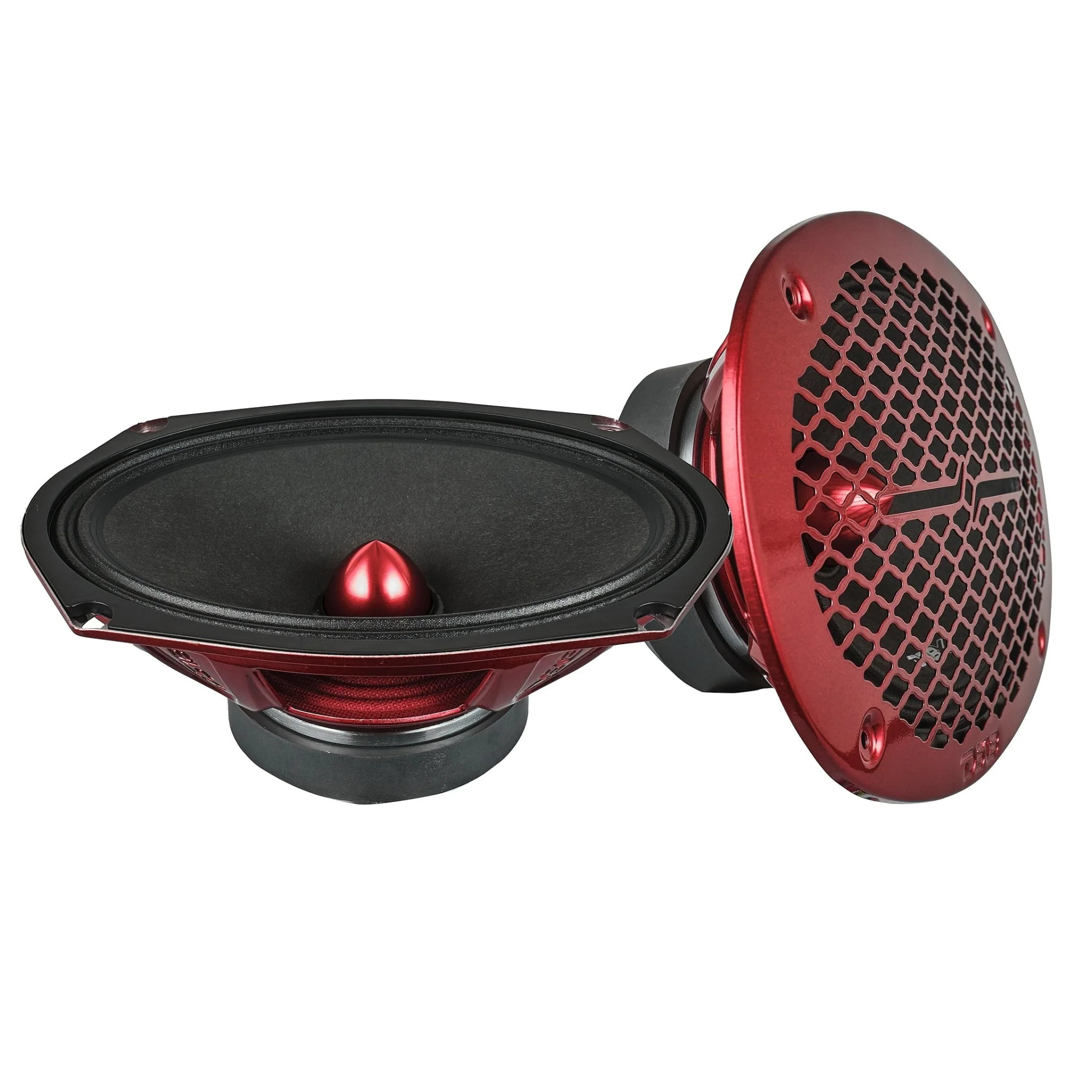

The newly designed glossy red honeycomb grill, bold bullet dust cap, and red steel basket give this speaker a stylish edge. Inside, a 1.5” Kapton voice coil, 27 oz ferrite magnet, and non-pressed paper cone deliver clean, punchy mids with 96dB sensitivity and a frequency range of 100Hz–12.5KHz.
Engineered to Keep Up
The PRO-X694BM was built for performance and endurance. The bullet aluminum phase plug widens frequency dispersion and adds structural strength. A 3.27” mounting depth makes it compatible with most standard vehicle installs, so upgrading is quick and easy.
Upgrade your door panels or build a full pro audio setup with the PRO-X694BM and feel the DS18 difference for yourself!
| Brand | DS18 |
| Nominal Diameter | 6 x 9" / 152 x 228mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 100Hz-12.5KHz |
| Recommended HI Pass Crossover | 120HZ |
| Sold in Pair or Single | Single |
| Grill Included | Yes |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Bullet Material | Aluminum |
| Bullet Color/Finish | Glossy Red |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 27Oz |
| Displacement Volume | 0.32L / 0.011ft3 |
| Equivalent Volume | 20.38L / 0.719ft3 |
| Excursion (one way) | 7.7mm |
| Free Air Resonance | 120Hz |
| Mechanical Factor | 5.166 |
| Electrical Factor | 0.731 |
| Total Factor | 0.64 |
| Mechanical Mass | 8.551g |
| Mechanical Compliance | 0.225mm/N |
| BL Factor | 6.544 |
| Voice Coil Inductance | 3.86mH |
| Cone Area | 207.34cm2 |
| DC Resistance | 3.2 ohms |

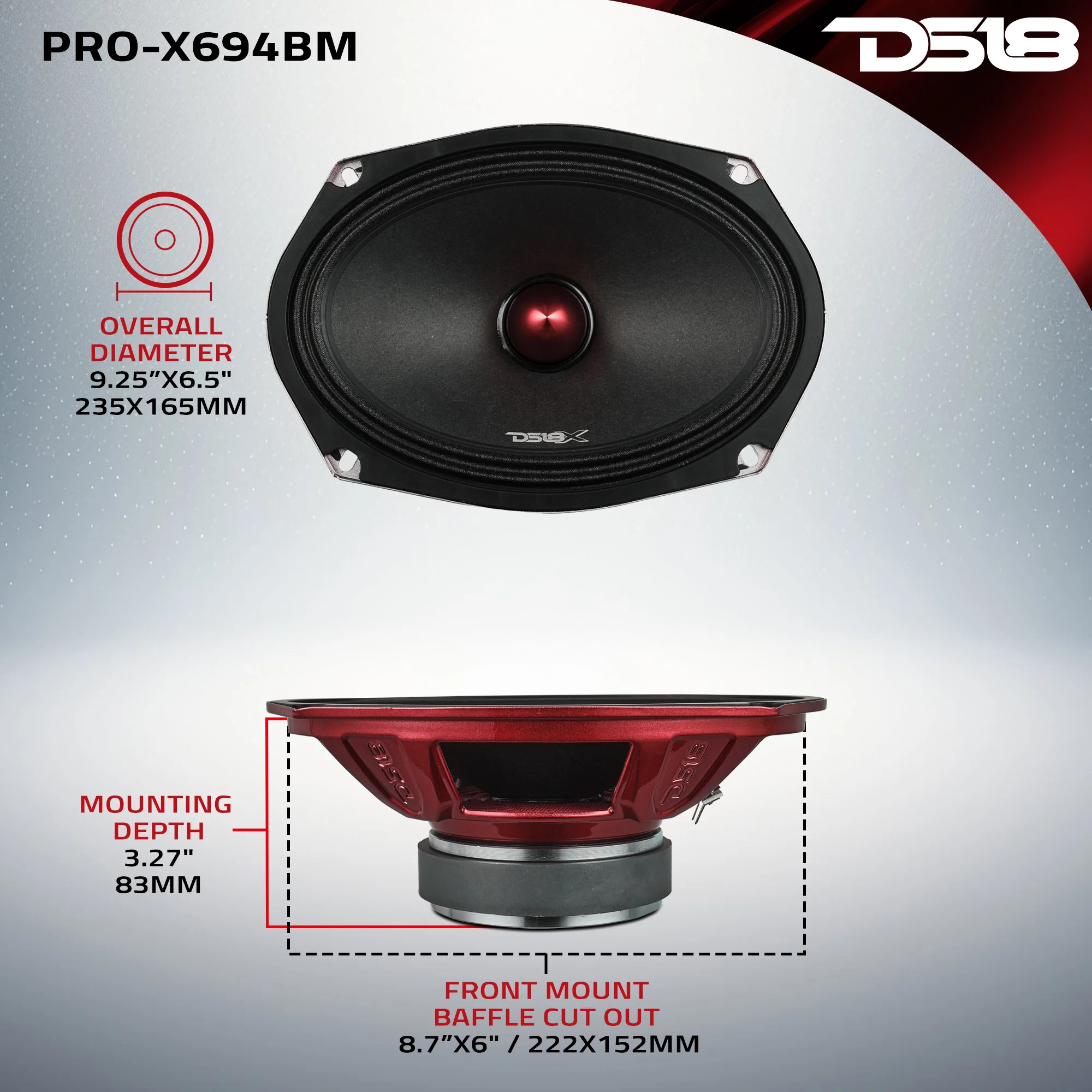

| Overall Diameter | 9.25 x 6.5" / 235 x 165mm |
| Overall Diameter With Grill | 10.2 x 7.08" / 260 x 180mm |
| Overall Depth | 3.5" / 88.85mm |
| Overall Depth With Grill | 3.9" / 100mm |
| Front Mount Baffle Cutout | 8.7 x 6" / 222 x 152mm |
| Mounting Depth | 3.27" / 83mm |
| Motor Diameter | 4.3" / 110mm |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
