DS18 PRO-FR57 NEO

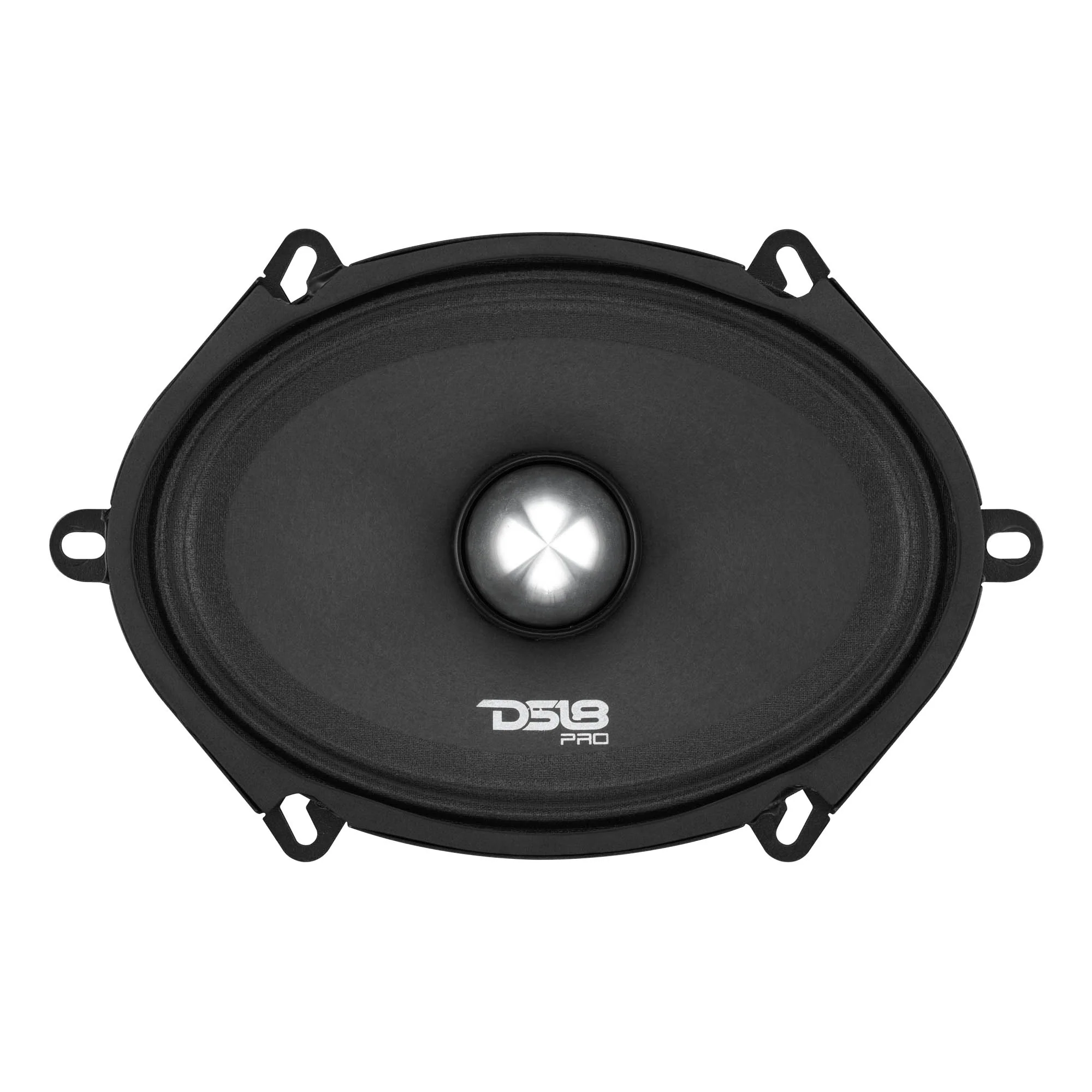

DS18 5x7" 225W RMS 4-Ohm PRO Series Neodymium Full-Range Bullet Loudspeaker
No reviews yet Write a Review
$144.95
SKU:
PRO-FR57 NEO
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 5x7" Full-Range w/Bullet
  • MAX Power: 450 Watts
  • RMS Power: 225 Watts
  • Impedance: 4 Ohm
  • Neodymium Magnet
  • 97.6dB

Let’Em Hear You
Experience true quality with the PRO-FR57NEO loudspeaker. Whether you want to make a statement or just enjoy loud sound, this loudspeaker has what you need to make your audio experience exceptional.

Loud and Proud
This loudspeaker carries a power rating of 225W RMS / 450W MAX, a frequency range of 90Hz-20kHz, and a sensitivity of 97.6dB. Whether you’re throwing a party that needs extra bounce, or you’re showing off to fellow audio enthusiasts, this loudspeaker gets the job done.

Direct Hit
This loudspeaker features an aluminum bullet that provides better and clearer audio, giving you a more direct sound with minimal distortion. Combined with the neodymium magnet, you get a powerhouse of sound that can keep the party going.

Stylish Looks
A black steel finish gives this loudspeaker a look that goes well with any type of vehicle and environment. No matter where you find yourself with this loudspeaker, you’ll always look good, and sound good, too.

Upgrade Your Sound System
The DS18 Pro series gives you LOUD sound and quality construction, so you can keep the music pumping wherever you go. For all types of speakers, tweeters, subs, and more, look no further than DS18.

Brand DS18
Nominal Diameter 5x7" / 142x190mm
Nominal Impedance 4 Ohms
RMS Power Handling 225W
MAX Power Handling 450W
Sensitivity (1w/1m) 97.5dB
Frequency Response 90Hz-20kHz
Recommended High-Pass Crossover 120Hz
Sold as Single Unit
Grill Included No
Voice Coil Diameter 1.5" / 38.3mm
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Paper
Bullet Material Aluminum
Surround Material Cloth
Basket Material Steel
Basket Color / Finish Black
Magnet Material Neodymium
Magnet Weight 7.6 Oz
Displacement Volume 0.63L / 0.22ft3
Equivalent Volume 2.86L / 0.1ft3
Excursion (one way) 0.4mm
Free Air Resonance 160Hz
Mechanical Factor 12.929
Electrical Factor 0.515
Total Factor 0.495
Mechanical Mass 10.198g
Mechanical Compliance 0.081mm/N
BL Factor 8.54
Voice Coil Inductance 0.023mH
Cone Area 158.37cm2
DC Resistance 3.2 Ohms

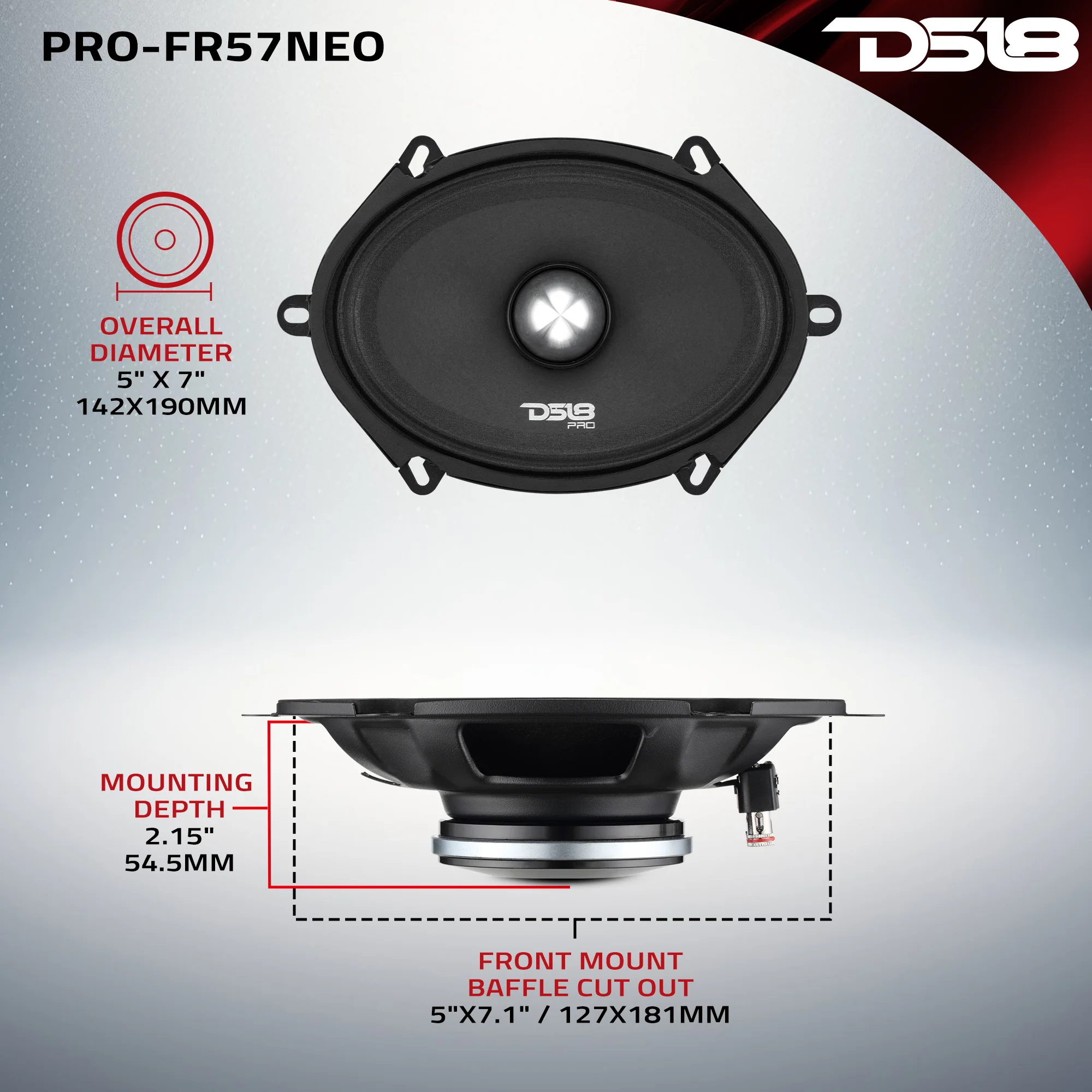

Overall Diameter 5.6x7.5" / 142x190mm
Overall Depth 2.37" / 60.3mm
Front Mount Baffle Cutout 5x7.1" / 127x181mm
Mounting Depth 2.15" / 54.5mm
Motor Diameter 3.54" / 90mm
Parts Warranty 1 Year
Labor Warranty 1 Year
