DS18 IXS12.4D

DS18 12" 1600W Peak (800W RMS) IXS Series Dual 4-ohm Shallow Car Subwoofer
No reviews yet Write a Review
$263.95
Only 2 left In Stock
SKU:
IXS12.4D
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 12" Shallow Subwoofer
  • MAX Power: 1600 Watts
  • RMS Power: 800 Watts
  • Impedance: 4-Ohm 2.5" DVC
  • Ferrite Magnet
  • 85dB

DS18 IXS12.4D

12” Car Subwoofer 1600W 4-Ohm DVC Shallow Mount

Engineered with uncompromising precision and cutting-edge technology, the IXS12.4D is specifically designed to revolutionize your car audio experience.

Drawing upon the immense success of our renowned SW slim subwoofer line, the IXS series builds upon that legacy by offering even more power and depth. Available in both 10 and 12-inch variants, these subwoofers come with multiple voice coil options, allowing you to extract the maximum potential from your amplifier.

With impressive power handling capabilities rated at 800W RMS and 1600W MAX, the IXS12.4D delivers thunderous bass and dynamic performance. The IXS12.4D covers an extensive frequency range (20 – 600Hz) , capturing both the subtle nuances and the powerful impact of low-frequency sounds. It effortlessly reproduces low-frequency sounds with remarkable clarity and accuracy, ensuring that every beat is felt and heard with precision. The high sensitivity rating of 85.1dB the IXS12.4D means that it efficiently converts power into sound, requiring less power to produce impressive volume levels.

The dual voice coil configuration on the IXS12.4D offer increased wiring options, greater amplifier compatibility, higher power handling, improved sound quality, flexibility in subwoofer configuration, and enhanced bass output. Even with its shallow mount size, this subwoofer fits snug in compact spaces, requiring less box space than other subs of its size. The versatility it offers is unmatched, providing you with endless placement options. The 4-ohm impedance of the IXS12.4D allows for seamless integration with a wide range of car audio systems. Ensuring efficient power transfer from your amplifier, maximizing the IXS12.4D’s performance and bass response.

Get ready to feel the bass like never before with the DS18 IXS12.4D—where power meets precision, and excellence becomes the new standard.

Brand DS18
Series IXS Shallow Series
Subwoofer Size 12"
Peak Power Handling 1600 watts
RMS Power Handling 800 watts
Voice Coil(s) Dual
Impedance (Per Voice Coil) 4 ohm
Subwoofer Design Round / Circle
Main Cone Color Black
Woofer Composition Paper
Woofer Surround Rubber
Magnet Structure Double Stacked
Voice Coil Material Aluminum
Voice Coil Diameter 2.5"
Frequency Response 20 - 600 Hz
Sensitivity 85.1 dB
Xmax (millimeters) 10.3 mm
Magnet weight 62 oz.
Magnet Type Ferrite
Subwoofer Grille No
Re-Cone Kit Available No
Recommended Enclosure Type Sealed
Minimum Sealed Box Volume 1 cubic feet

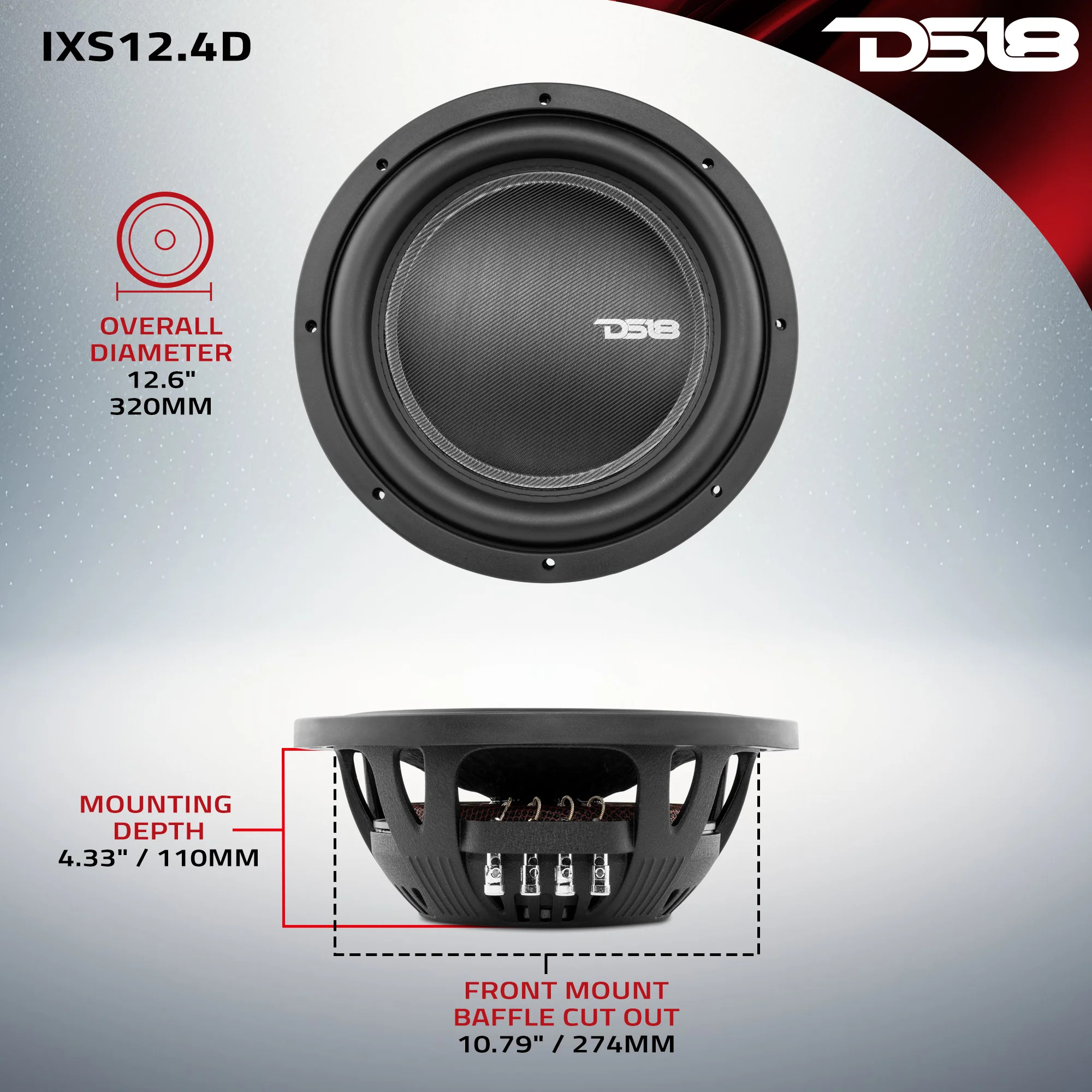

Top-Mount Depth (Mounting Depth) 4.33"
Cutout Diameter 10.79"
Shallow Mount Installation Yes
Free-Air Resonance (Fs) 35 Hz
Equivalent Compliance (Vas) 37.345 liters
Total Speaker Q Value (Qts) 0.71
Electrical Q Value (Qes) 0.861
Electrical Resistance of Voice Coil (Re) 7.2 ohm
Mechanical Q Value (Qms) 4.034
Efficiency Bandwidth Product (EBP) 42.24
Parts Warranty 1 Year
Labor Warranty 1 Year
