DS18 10XL1400-4

DS18 10" XL 700W RMS (1400W Peak) 4-Ohm Mid-Range Loudspeaker
No reviews yet Write a Review
$239.95
SKU:
10XL1400-4
30 days Free Ground Shipping Inside the US within 48 hours
30 days Free Exchanges Guarantee
30 days Money-Back Guarantee if you are not satified
1 year Manufacture Warranty


We are a DS18 authorized dealer so you get up-to-date, fully warrantied products.

General Features:

  • 10" Mid-Range
  • MAX Power: 1400 Watts
  • RMS Power: 700 Watts
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • 98dB

DS18’s 10XL1400-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.

DS18’s 10XL1400-4 stands head and shoulders above the mid-range competition. This 10-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.

With power handling of 700W RMS and 1400W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 98 dB guarantees crystal-clear sound reproduction, even in large venues.

Crafted with precision, DS18’s 10XL1400-4 features a 3.5" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at 93 ounces ensures powerful and accurate bass responses that will leave you amazed.

Elevate your audio game with the DS18 10XL1400-4!



Brand DS18
Nominal Diameter 10" / 254mm
Nominal Impedance Available 4 ohms
RMS Power Handling 700 watts
MAX Power Handling 1400 watts
Sensitivity (1w/1m) 98dB
Frequency Response 60Hz-6KHz
Recommended HI Pass Crossover 80Hz
Sold in Pair or Single Single
Grill Included No
Voice Coil Diameter 3.5" / 89mm
Voice Coil Former Material Kapton
Winding Material CCAW (2 Layers IN/OUT)
Cone Material Non-pressed Paper
Dust Cap Material Paper
Bullet Material N/A
Bullet Color/Finish N/A
Surround Material Cloth
Basket Material Aluminum
Basket Color/Finish Satin Black
Magnet Material Ferrite
Magnet Weight 93 Oz
Displacement Volume 1.44L / 0.051ft3
Equivalent Volume Vas 21L / 0.741ft3
Excursion (one way) Xmax 4mm
Free Air Resonance Fs 70Hz
Mechanical Factor Qms 3.796
Electrical Factor Qes 0.39
Total Factor 0.354
Mechanical Mass Mms 43.4g
Mechanical Compliance Cms 0.11mm/N
BL Factor BL 13.52
Voice Coil Inductance Le 0.12mH
Cone Area Sd 363cm2
DC Resistance Re 3.6 ohm
Mechanical Mass w/o air Mmd 50g

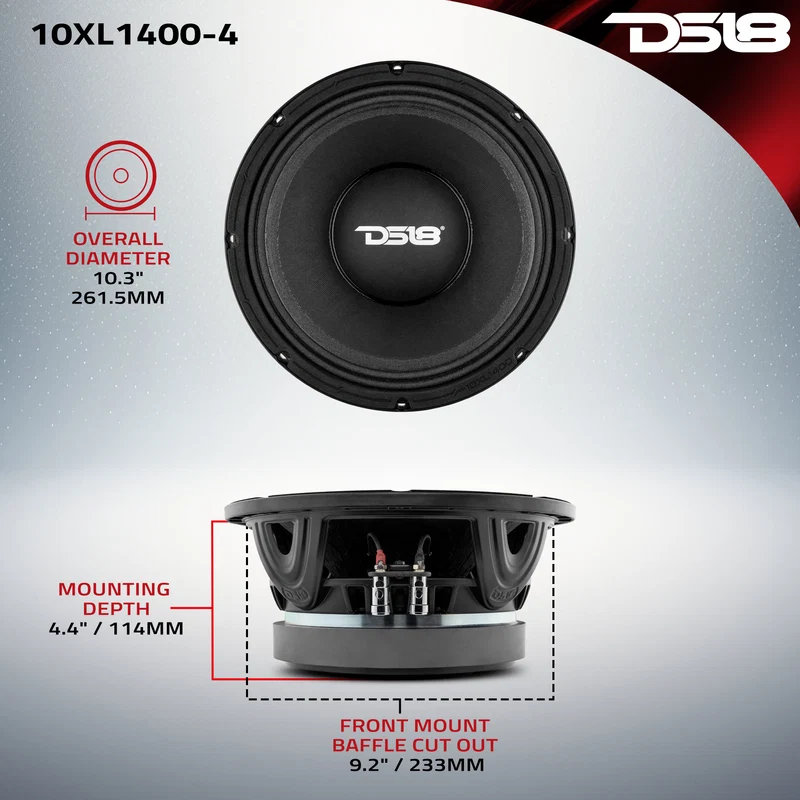

Overall Diameter 10.3" / 261.5mm
Overall Depth 4.93" / 125mm
Front Mount Baffle Cutout 9.2" / 233mm
Mounting Depth 4.4" / 114mm
Motor Diameter 7.48" / 190mm
Parts Warranty 1 Year
Labor Warranty 1 Year
