We are an Alpine authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?

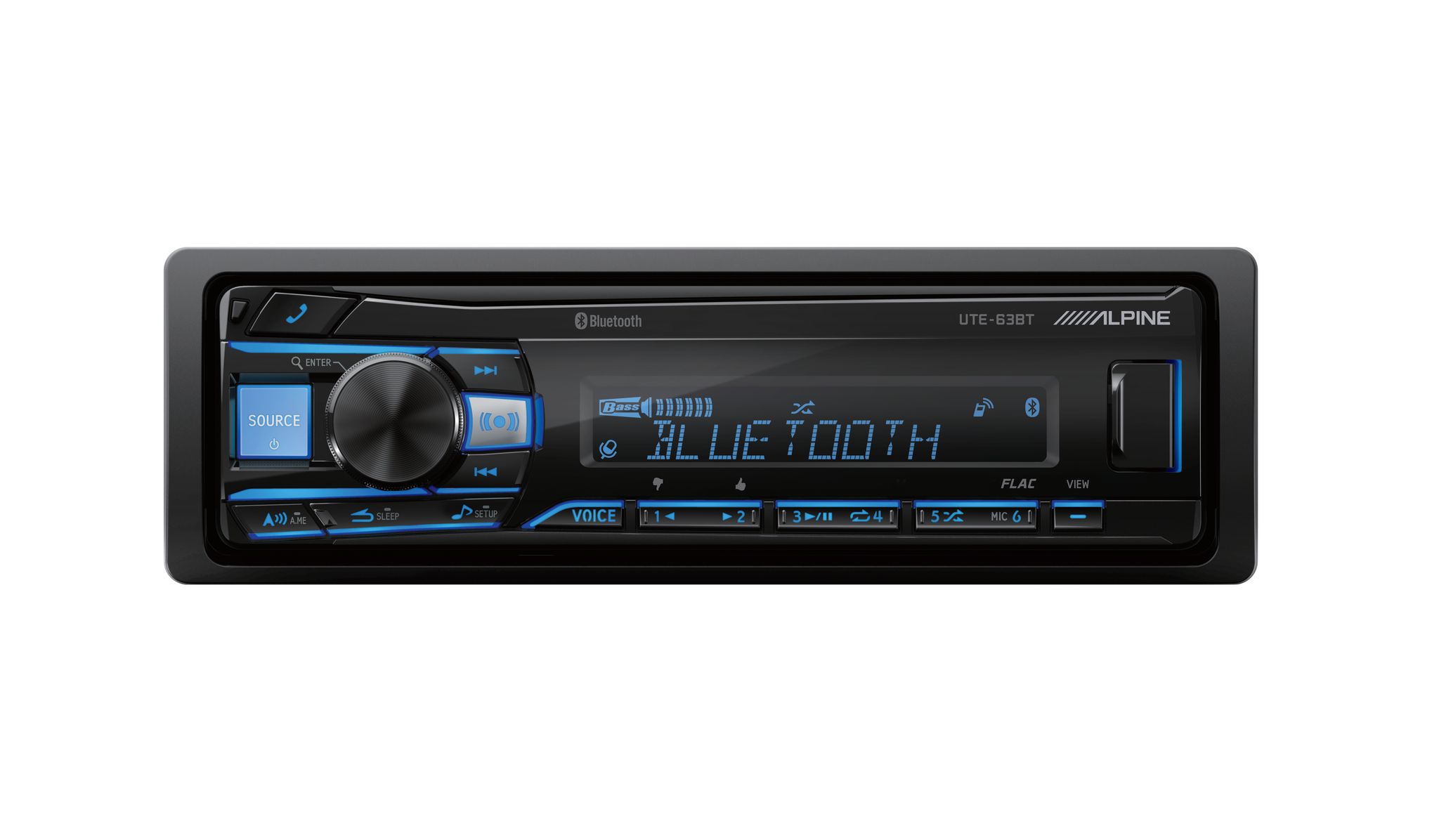

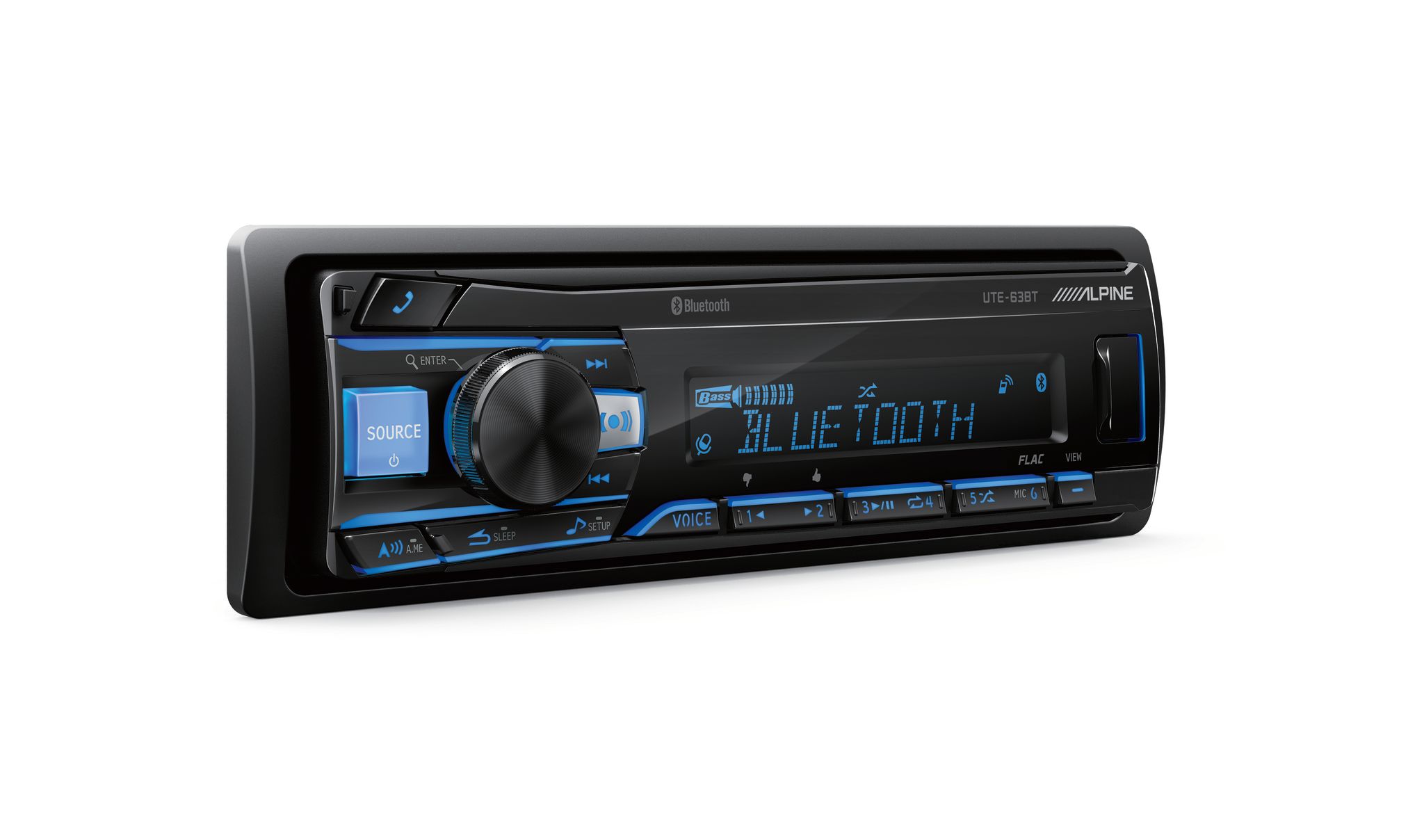

• 1-DIN Mechless Digital Media Receiver
• External microphone with mounting bracket
• Owner's Manual
General Features
• Bluetooth® hands-free calling and audio streaming
• Shallow 4.25” single-DIN chassis for flexible installation
• 2V pre-outs (front, rear, subwoofer)
• Front USB input for playback and charging
• Compatible with Android™ devices
• High-contrast LCD display with RGB illumination
• Built-in amplifier (18W RMS x 4)
• 3-band parametric EQ with crossover controls
• Bass Engine SQ sound tuning
• Steering wheel remote ready
Stay Connected with Bluetooth®
Enjoy safer driving with built-in Bluetooth® wireless technology that enables hands-free calling and audio streaming from your smartphone. The included external microphone helps deliver clear voice quality, reducing background noise for better conversations. With simple controls, you can easily manage calls and music while keeping your focus on the road for a safer, more convenient driving experience.
Shallow Chassis Design
The shallow 4.25-inch chassis design makes installation easy in a wide range of vehicles, including those with limited dash space. A high-contrast LCD display keeps track and station information easy to read, while customizable RGB illumination lets you match your vehicle’s interior. The front USB port provides convenient access for charging and playing your music on the go.
| Brand | Alpine |
| Receiver Size | Single DIN |
| Amplifier Power | 18W RMS x 4 Channels (CTA-2006) |
| Pre-Out Voltage | 3 Channel x 2V (Front/Rear/Subwoofer) |
| Subwoofer Output | Dedicated Subwoofer Pre-Out (2V) |
| Bluetooth® | Hands-Free Calling & Audio Streaming |
| USB Input | Front USB Port (Charging & Media Playback) |
| AUX Input | Not Available |
| Smartphone Compatibility | Android |
| Radio | AM/FM Tuner with RBDS |
| Display Type | 1-Line High-Contrast LCD |
| Illumination | RGB Customizable Lighting |
| EQ | 3-Band Parametric EQ |
| Crossover | High-Pass / Low-Pass Filters |
| Sound Processing | Bass Engine SQ |
| DAC | 24-Bit Digital-to-Analog Converter |
| Audio Playback | AAC, FLAC, MP3, WMA (USB) |
| Chassis Depth | 4.25 Shallow Mount Design |
| Steering Wheel Control | Compatible (Adapter Required) |
| Remote Control | Not Included |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
