We are a Sundown Audio authorized dealer so you get up-to-date, fully warrantied products.

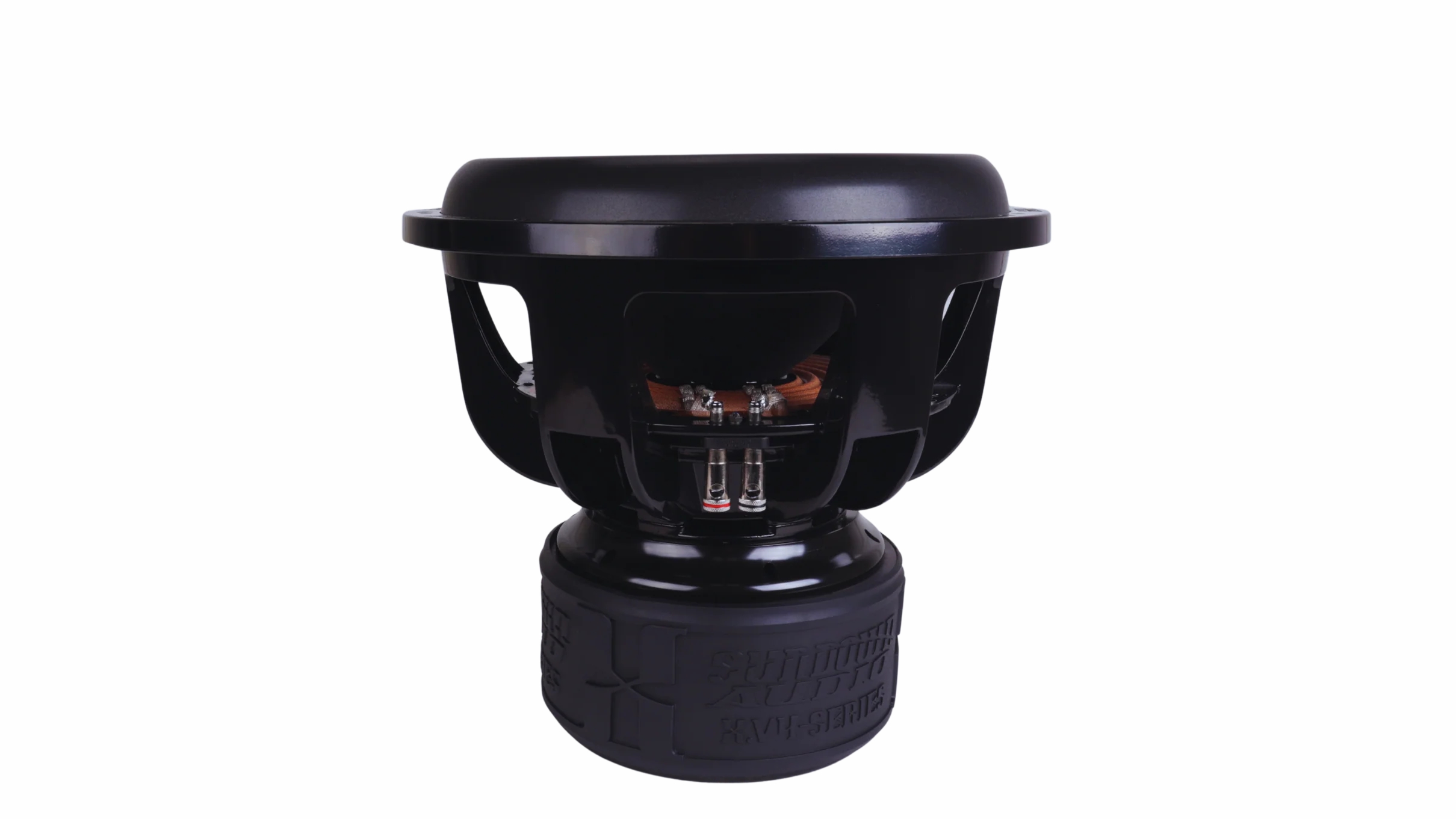

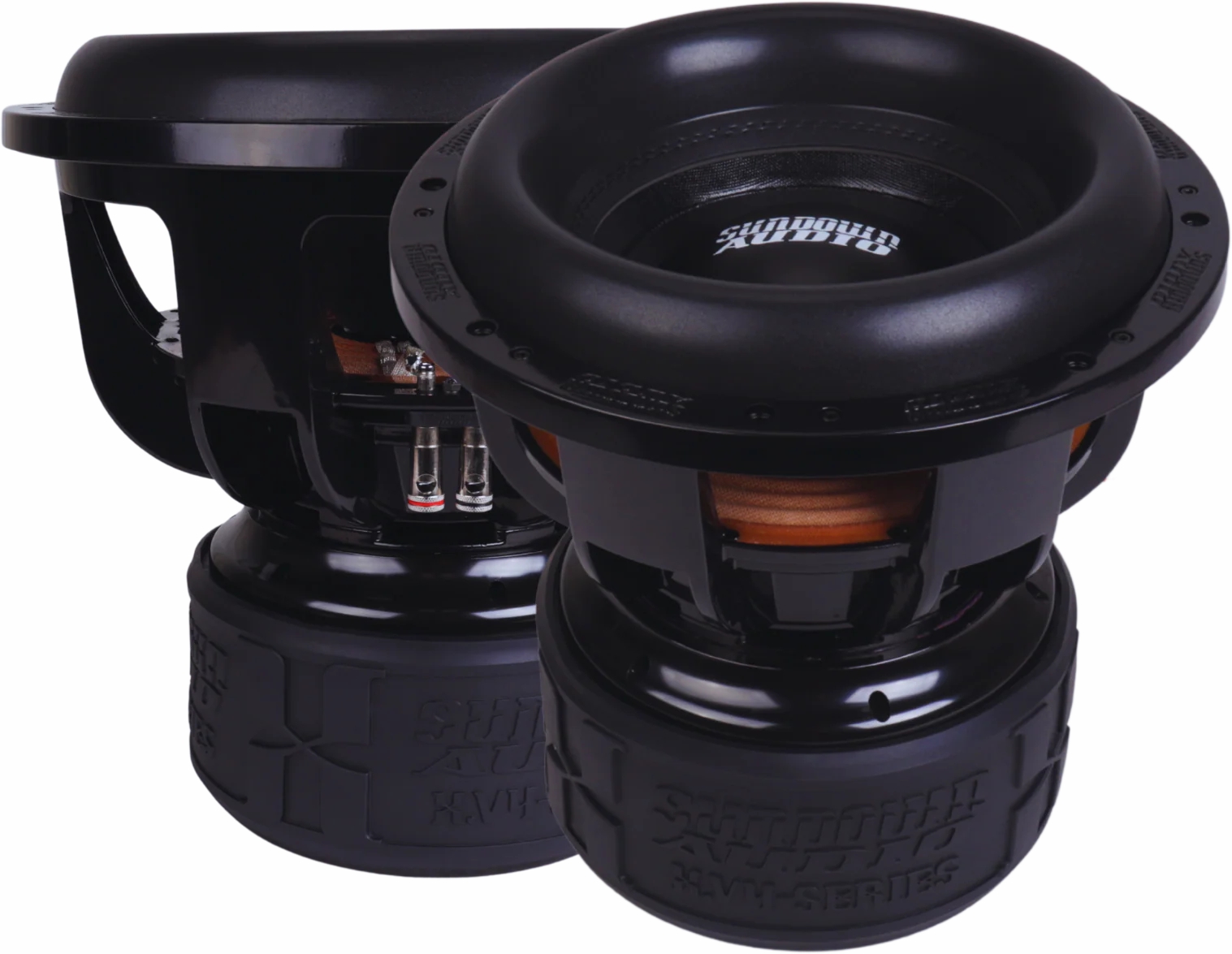

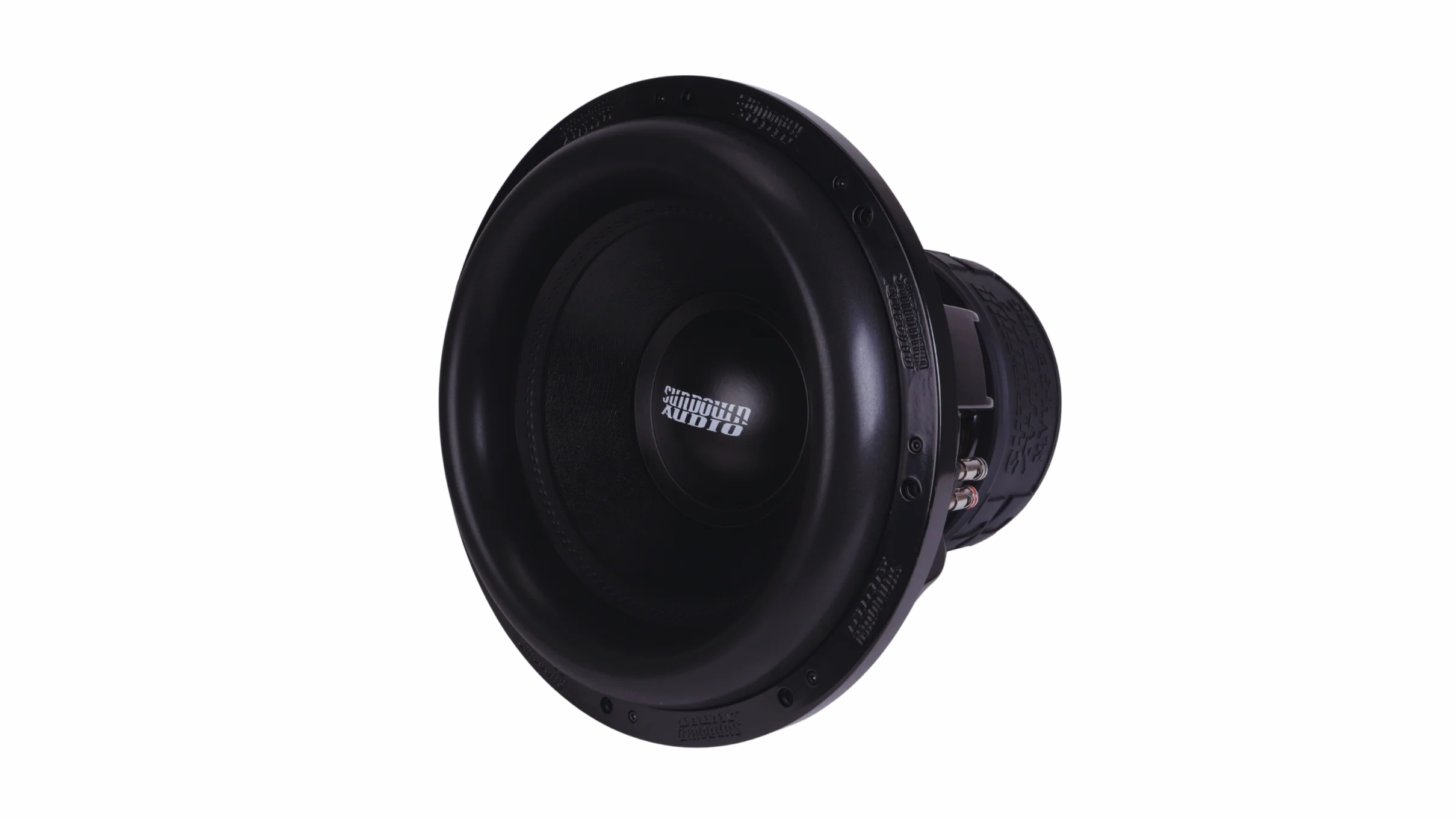

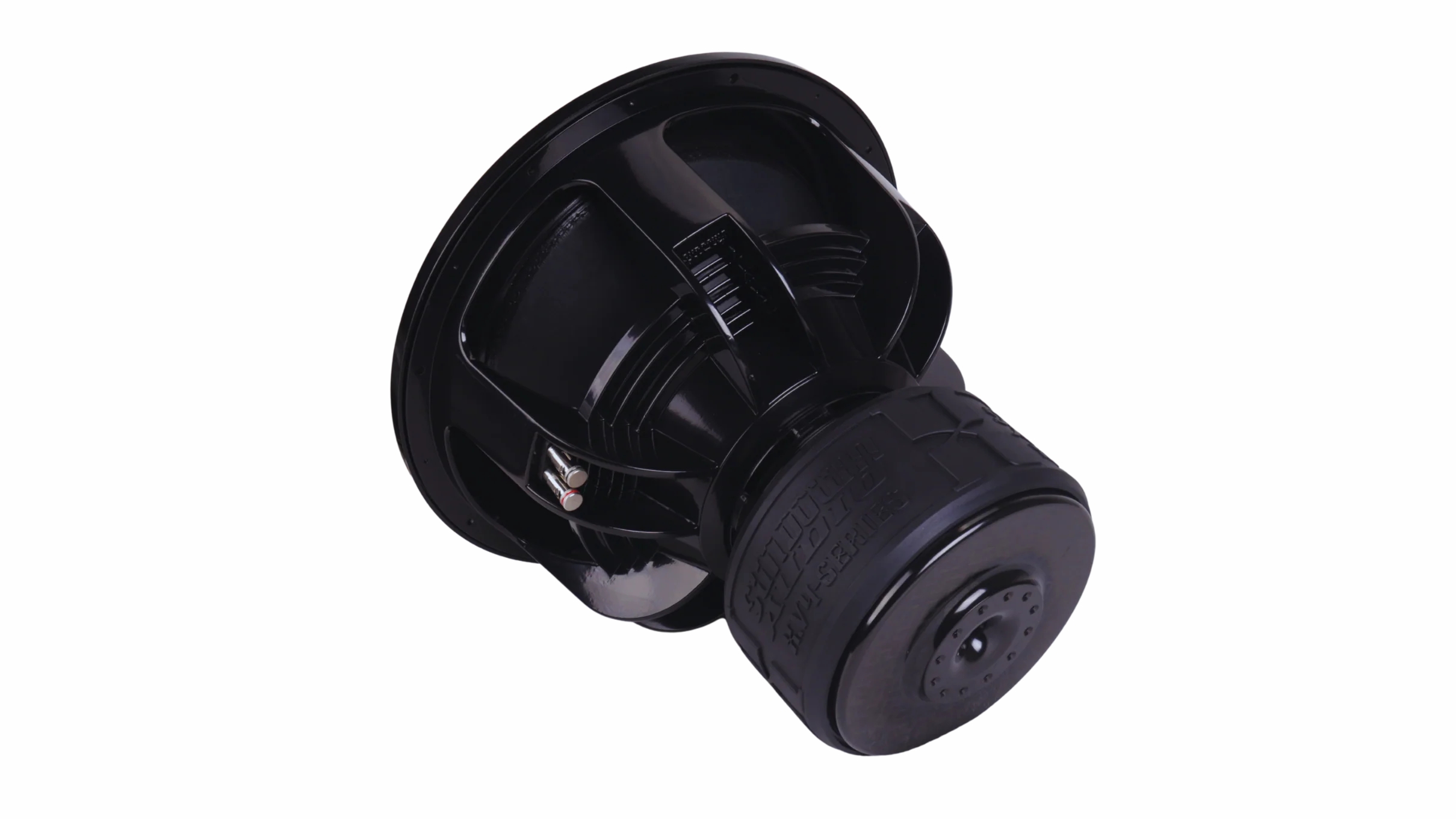

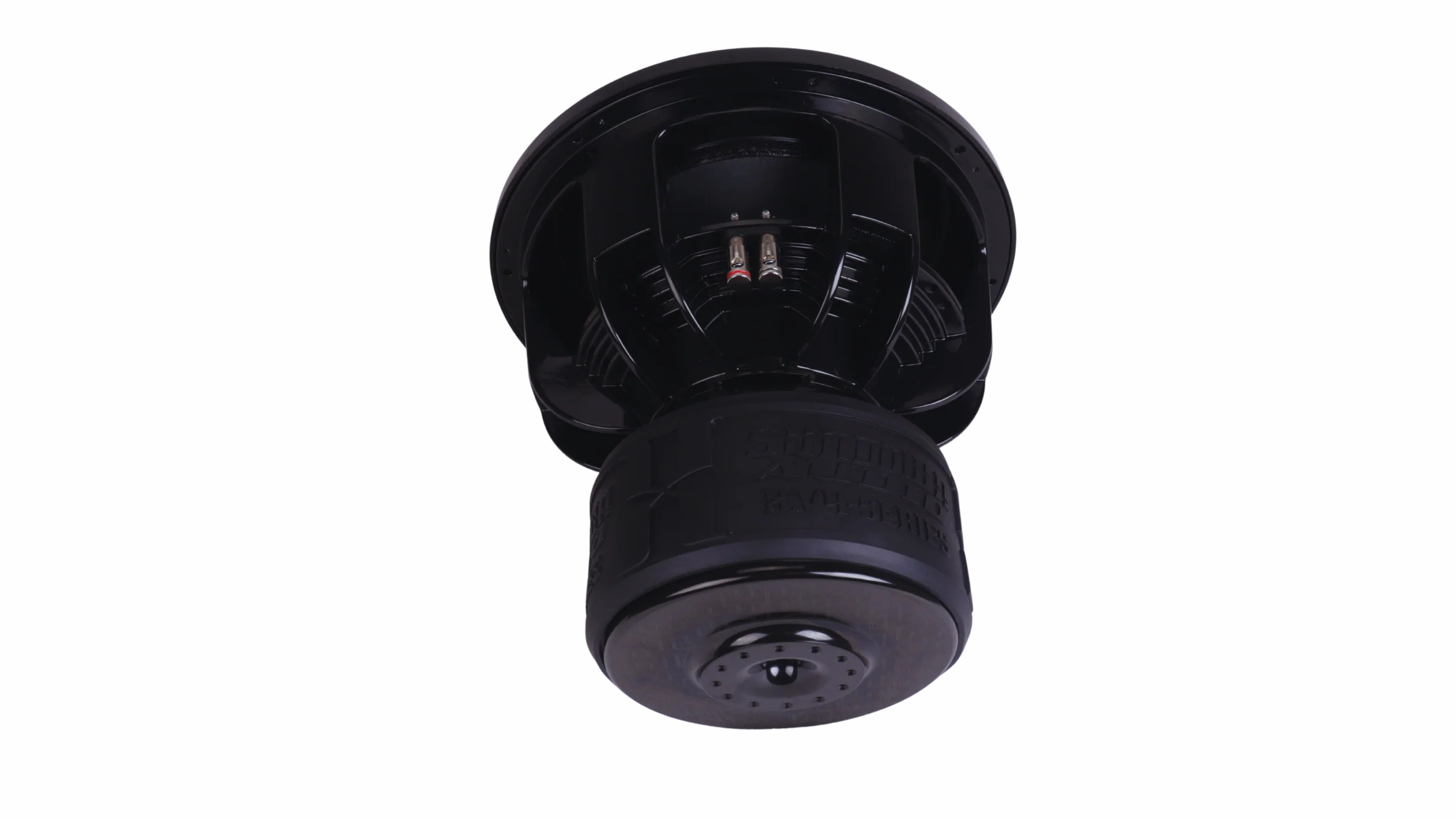

The Sundown Audio Xv4 12" Subwoofer is built for those who demand real power and precision in their sound system. Designed with premium Xv4 coils, this subwoofer delivers a massive 3000W RMS and 6000W peak power while maintaining outstanding clarity and control.
With a durable, heavy-duty motor and optimized cooling system, the Xv4 ensures consistent performance even during extended play. Whether you’re upgrading your car audio or building a competition-level system, this subwoofer delivers thunderous low frequencies that stay tight and accurate.
The precision-engineered cone and suspension system provide minimal distortion and maximum output. Pair it with a well-tuned ported enclosure for deep, room-shaking bass that brings your music to life.
Built to handle extreme sound pressure, the Xv4 series continues Sundown Audio’s legacy of reliability, innovation, and unmatched performance.
Key Features
- 12-inch subwoofer with Xv4 voice coils
- RMS Power: 3000W, Peak Power: 6000W
- Available in Dual 1Ω and Dual 2Ω versions
- High-efficiency motor structure with strong BL factor
- Optimized for ported enclosures (2.5 cu. ft @ 32Hz)
- Xmax: 30mm for deep excursion and accurate bass
- Reinforced cone for durability under extreme pressure
- Designed for audiophiles and SPL enthusiasts
| Brand | Sundown Audio |
| Parameter | D1 | D2 |
| RMS Power | 3000W |
| Peak Power | 6000W |
| Displacement | 0.23 cu.ft |
| Mounting Depth | 11.75" |
| Outside Diameter | 12.81" |
| Cutout Diameter | 11.09" |
| Motor Diameter | 9.25" |
| Sealed Enclosure | Not Recommended |
| Ported Enclosure | 2.5 cu.ft @ 32Hz |
| Recommended Port Area | 40 sq in |
| 4th Order Sealed Side | 1.0 cu.ft |
| 4th Order Ported Side | 3.0 cu.ft |
| 4th Order Port Area | 60 sq in |
| 4th Order Port Length | 8" |
| Xmax | 30mm |
| Sd (Cone Area) | 44.11 |
| Re (?) | 2.05|3.25 |
| Fs (Hz) | 39.39|36.06 |
| Vas (L) | 14.13|15.75 |
| Qes | 0.58|0.54 |
| Qms | 4.95|4.82 |
| Qts | 0.5|0.49 |
| Le (mH) | 1.33|2.6 |
| BL (NA) | 24.4|22.25 |
| Mms (g) | 343.14|367.13 |
| Cms | 47.56|53.04 |
| Sensitivity (dB) | 83.47|83.06 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
