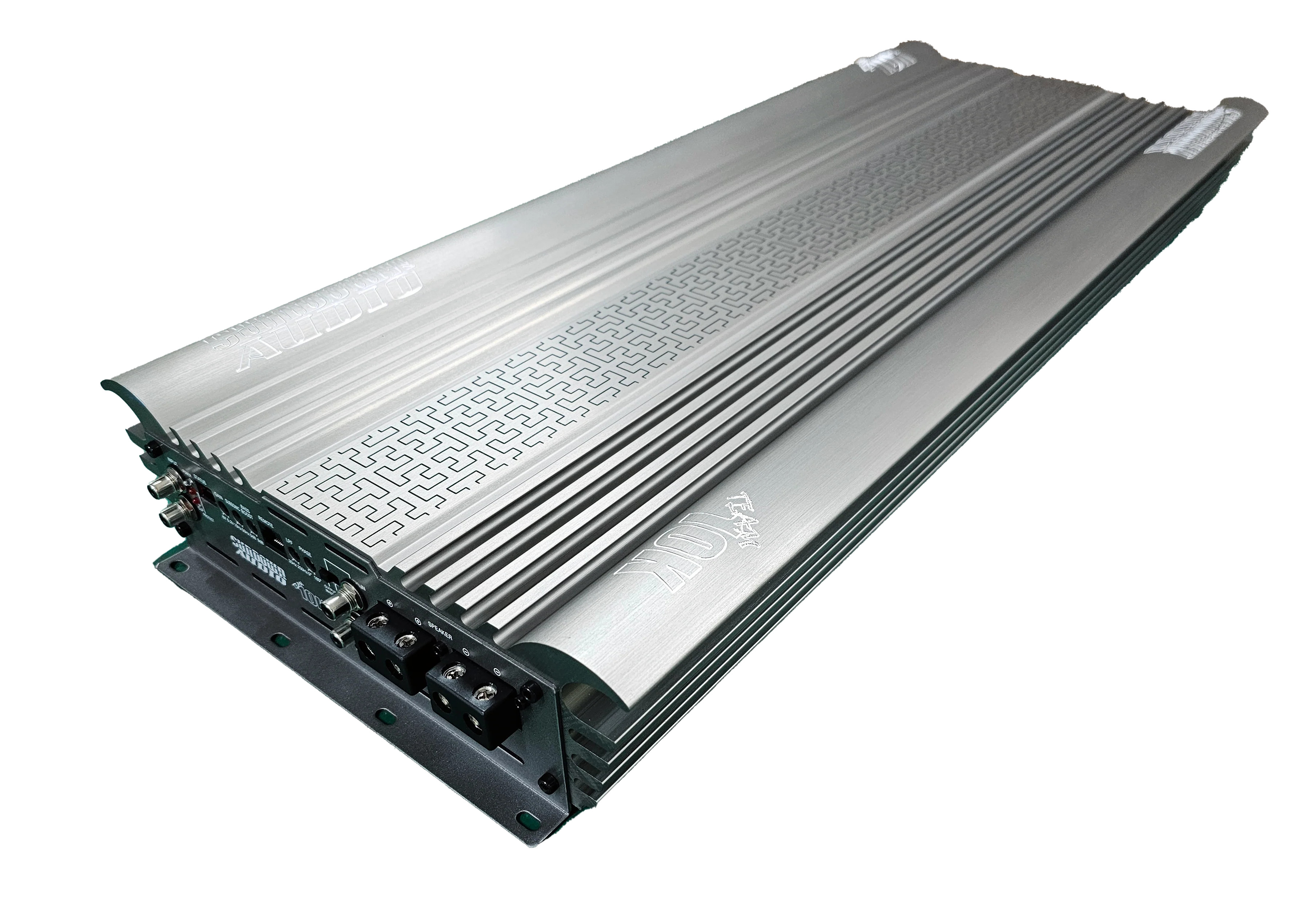

Sundown Audio TEAM-10K

We are a Sundown Audio authorized dealer so you get up-to-date, fully warrantied products.

The Sundown Audio TEAM-10K is a competition-grade 10,000W RMS Class D monoblock amplifier engineered for extreme SPL builds and high-output demo systems. Delivering 10,000 watts RMS at 1 ohm and strappable to 20,000 watts RMS at 2 ohms linked, the TEAM-10K is purpose-built for serious competitors who demand massive output with precision control.

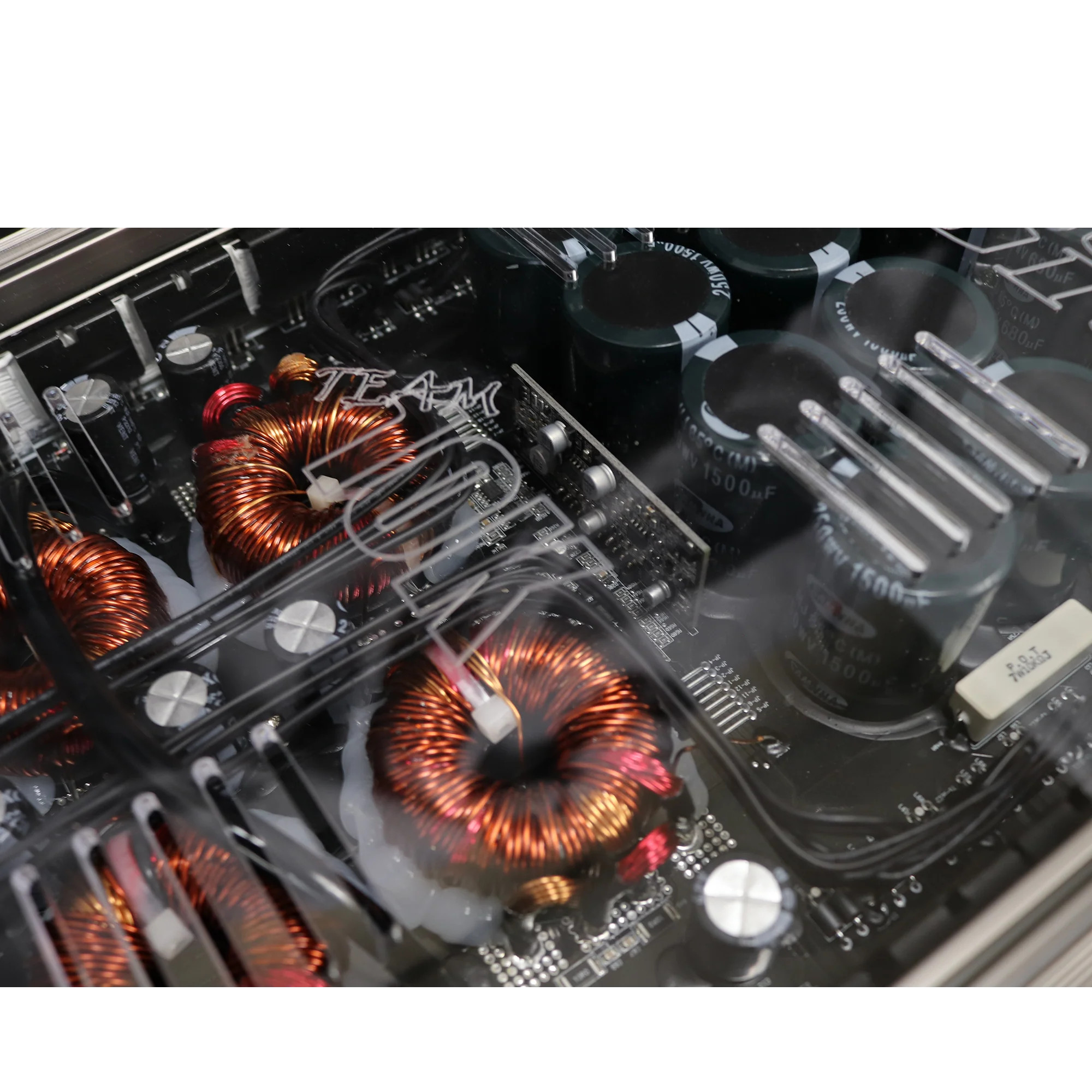

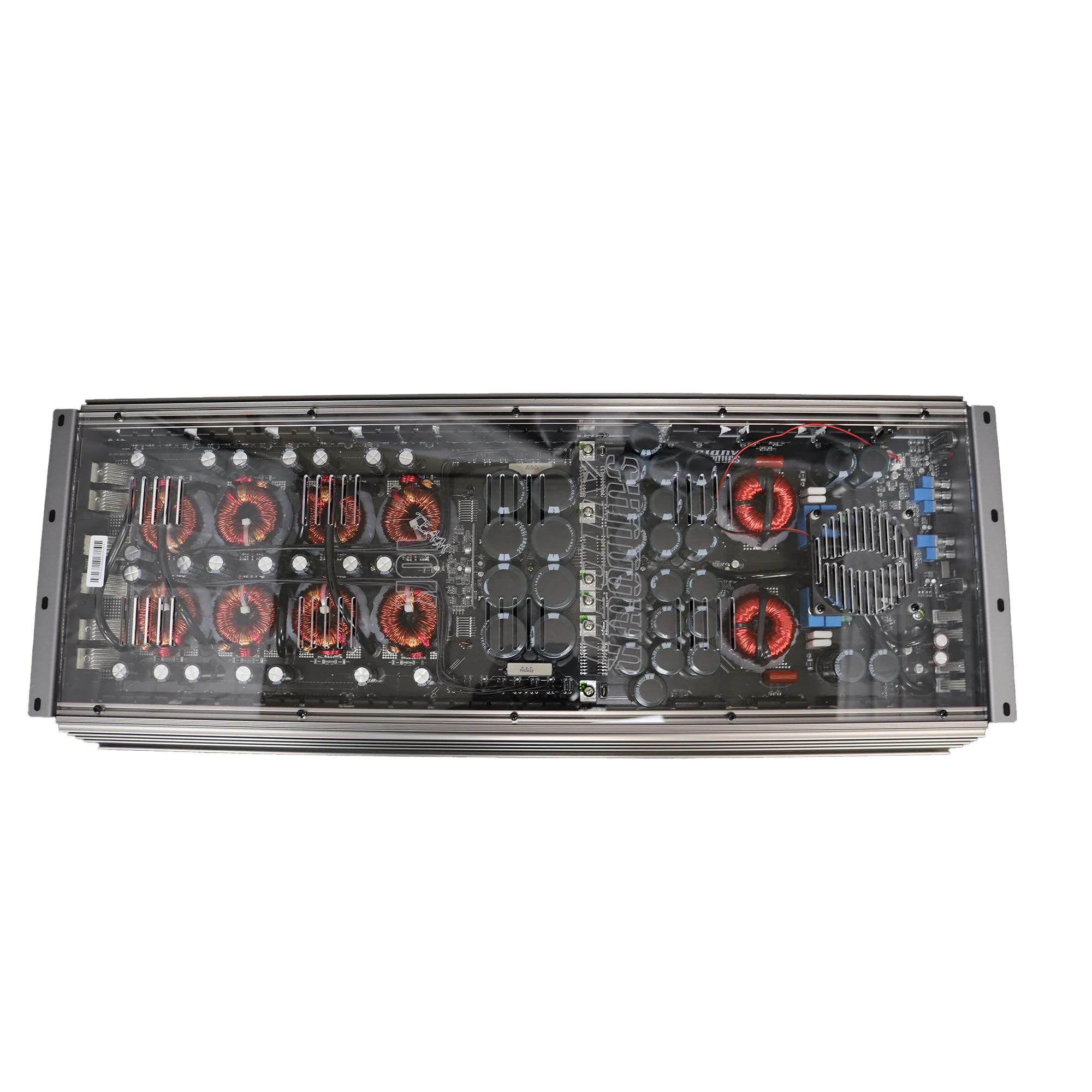

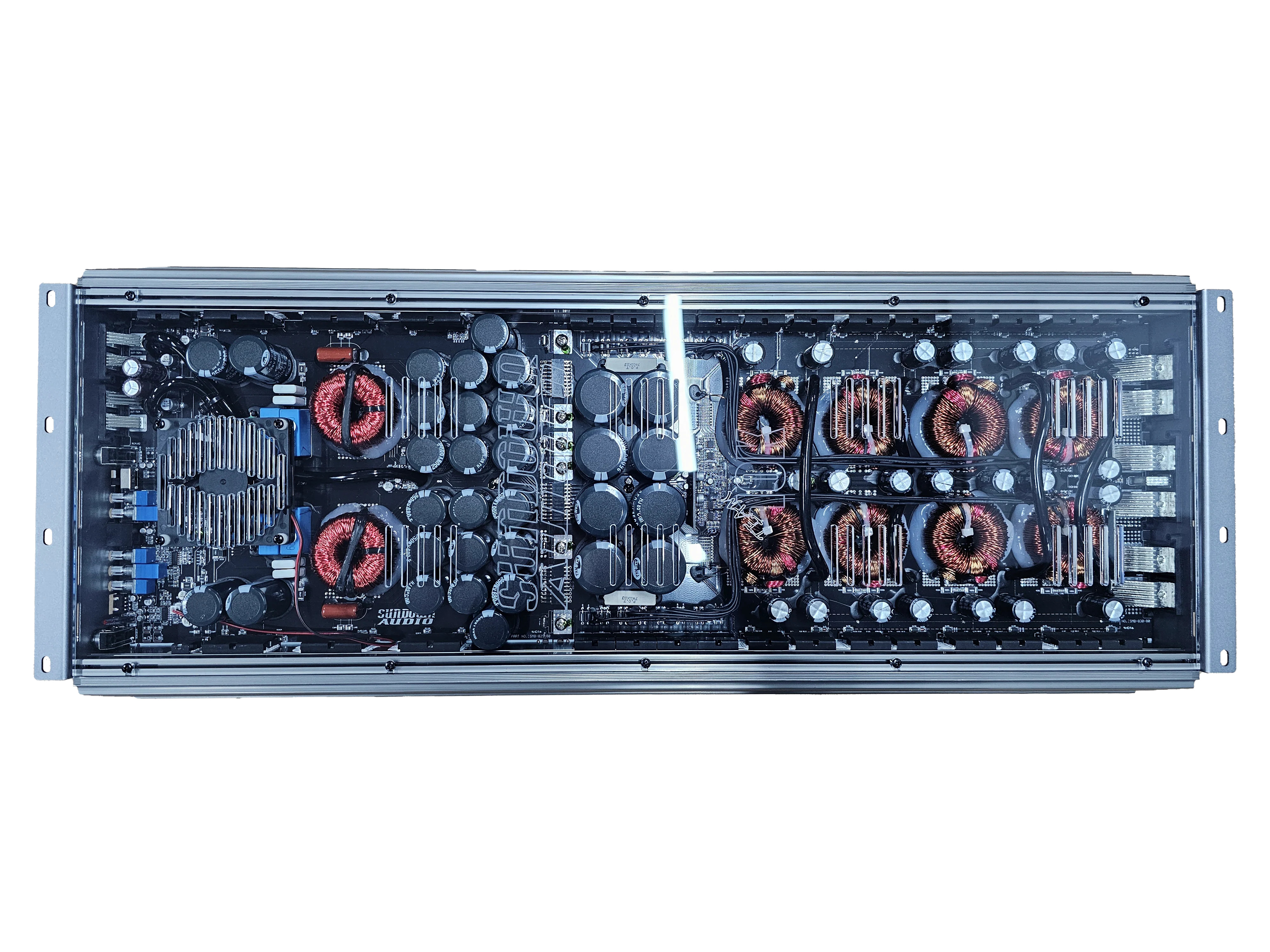

Built on a highly efficient Class D digital platform with a dual MOSFET PWM power supply, this amplifier achieves over 97% efficiency at 4 ohms while maintaining stable, consistent power delivery. Advanced protection circuitry and real-time monitoring via the included wired remote provide voltage, temperature, and clipping feedback — giving you total command of your system during competition or demo sessions.

This is not just raw power. It’s controlled, measurable, dyno-proven performance.

Dyno Performance Results

• Certified Dyno Run: 12,412W @ 1 Ohm (14.04 VDC)
• Uncertified Dyno to Clipping: 13,529W (13.8 VDC)
• Dynamic RMS Power: 18,830W @ 1 Ohm (15.06 VDC)
• Dynamic RMS Power: 13,306W @ 1 Ohm (14.32 VDC)

RMS Power Output (14.4V)

• 1 Ohm Mono: 10,000W RMS
• 2 Ohm Mono: 7,000W RMS
• 4 Ohm Mono: 4,000W RMS
• 2 Ohm Strapped (Linked): 20,000W RMS

Key Features

• Class D Digital Monoblock Design
• Dual MOSFET PWM Power Supply
• 97% Efficiency (at 4 Ohms)
• Strappable Master/Slave configuration
• Wired remote with voltage, temperature & clipping display
• High damping factor (>400) for superior woofer control
• Designed for SPL competition & extreme subwoofer systems
• External 1000A fuse rating (not built-in)

Audio Performance Specifications

• Frequency Response: 15Hz – 264Hz
• Signal-to-Noise Ratio: 91 dB
• THD: < 0.1%
• Input Sensitivity: 6V – 0.2V
• Working Voltage: 9V – 16.5V

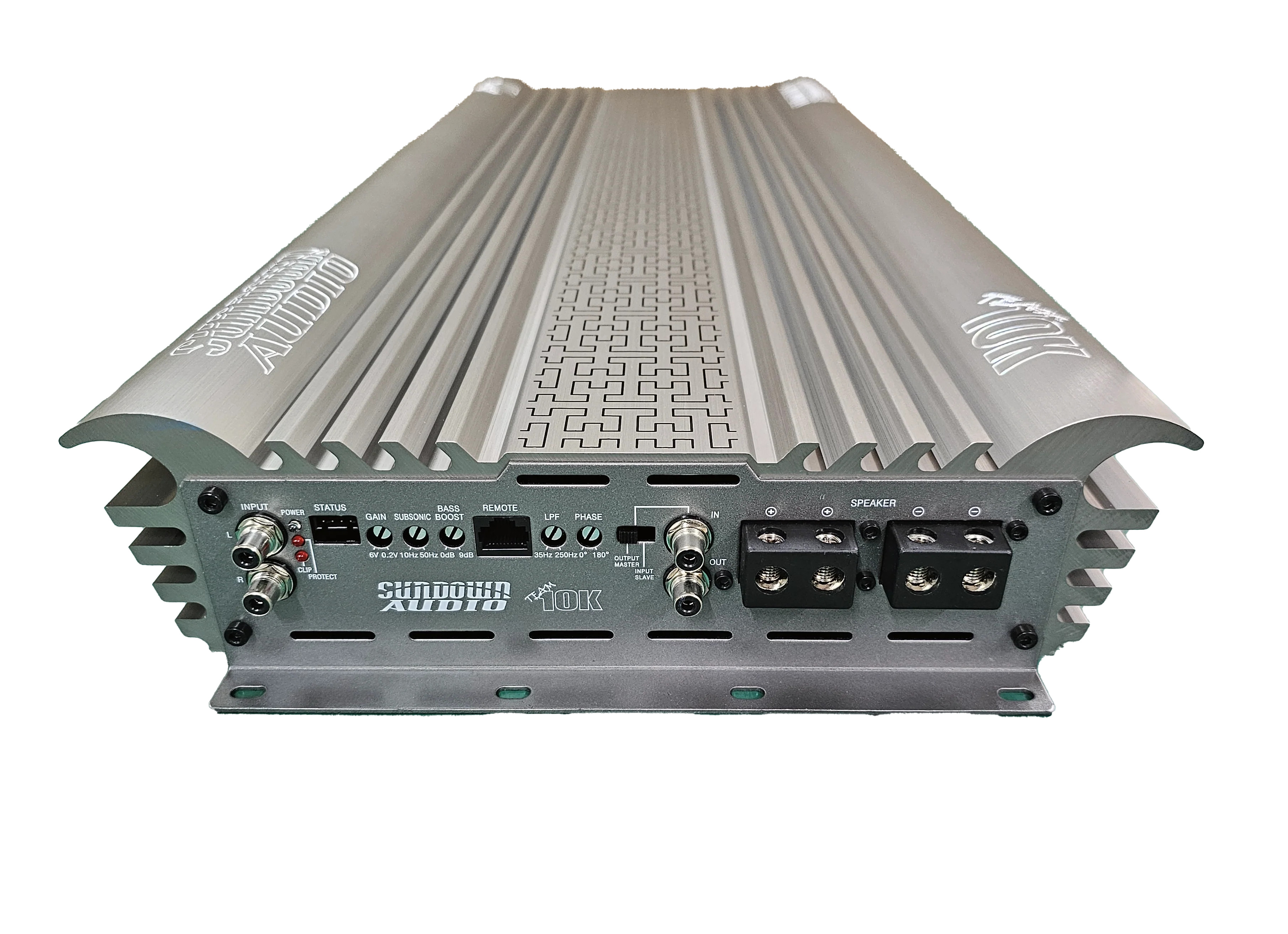

Controls & Tuning

• Low Pass Filter: 35Hz – 250Hz (24 dB/Oct)
• Subsonic Filter: 10Hz – 50Hz (24 dB/Oct)
• Bass Boost: 0 – 9 dB @ 45Hz
• Phase Shift: 0 – 180°

These precise crossover and tuning controls allow you to dial in your subwoofer system for maximum output while maintaining accuracy and control.

Connectivity & Monitoring

• RCA Inputs/Outputs (Master/Slave Linking)
• Wired Remote Control Includes:
• Voltage Display
• Temperature Display
• Clipping Indicator

Real-time system feedback helps prevent damage and ensures peak performance during heavy load conditions.

Protection Circuitry

• Thermal Protection
• Voltage Protection
• Speaker Short Protection
• DC Offset Protection

Built-in intelligent protection systems keep your amplifier and electrical system safe during extreme operation.

Why Choose the Sundown Audio TEAM-10K?

The TEAM-10K is engineered for enthusiasts who refuse compromise. Whether you're competing in SPL lanes or building a demo system that turns heads, this amplifier delivers massive power, extreme efficiency, and dyno-verified output backed by Sundown Audio’s reputation for durability.

If you're building a serious high-wattage subwoofer system and need proven 10,000W RMS performance — the TEAM-10K stands at the top.
