What's Inside?
•One 12" Subwoofer
•Trim ring
•Eight 1-1/8" Screws
•Enclosure recommendations printed on the box
•Owner's Manual
Easily Upgrade to High Performance
Pioneer A Series speakers are designed to match subwoofers and full-range loudspeakers for smooth, impactful sound. The OPEN & SMOOTH concept ensures seamless sound transition between drivers, especially useful in cars where speakers may not face ears. The A Series offers flexibility, improved acoustics, and easy installation with built-in crossover and adapters.
Reinforced Cone Structure

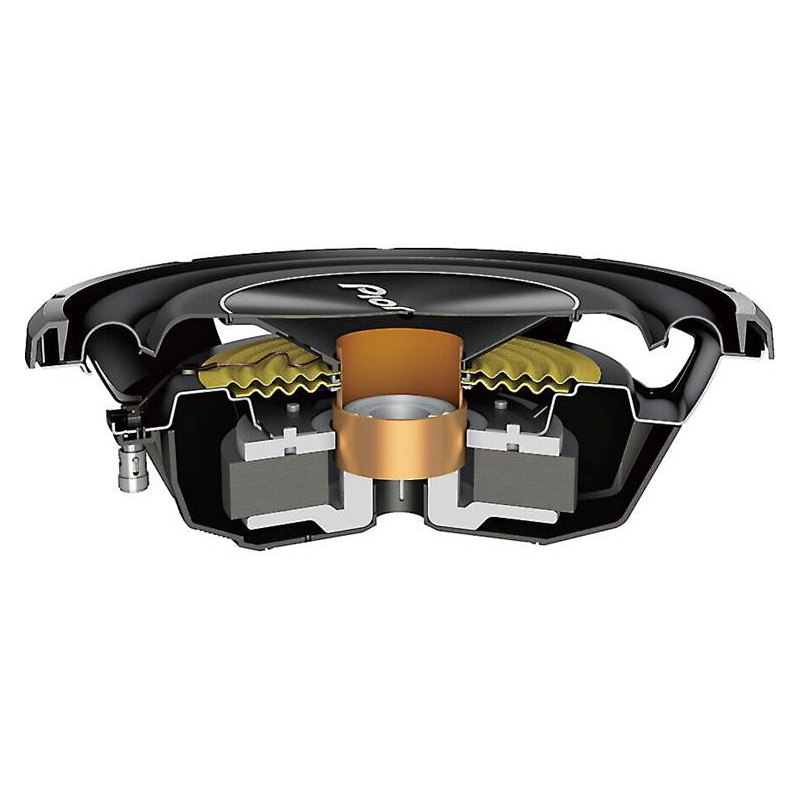

The cone structure of this subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.
Shallow Compact Design

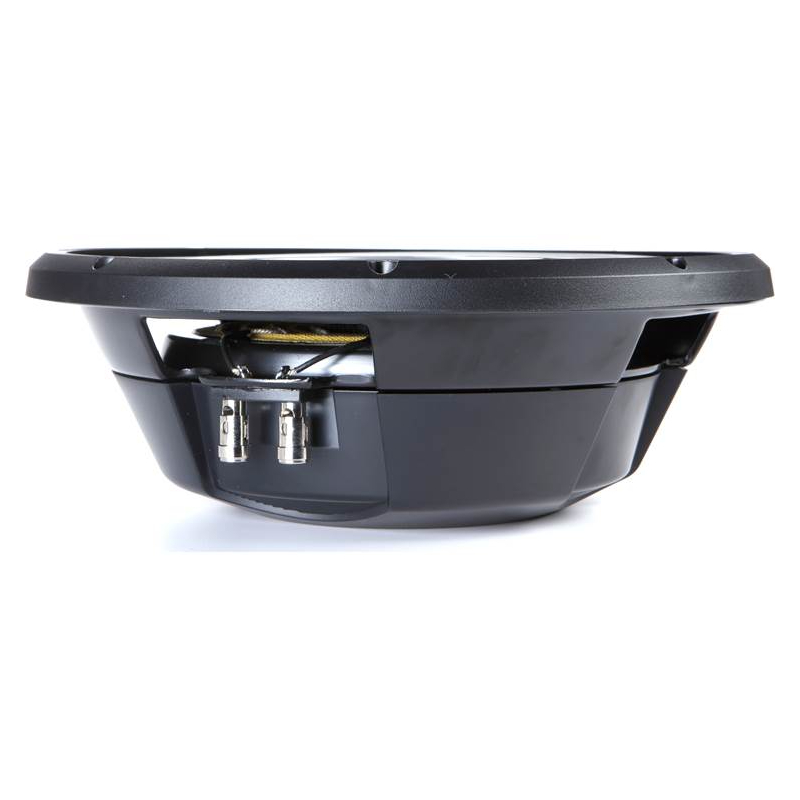

Our shallow subwoofers offer versatile installation for various vehicles with patent-pending features, delivering powerful bass like full-size models, yet in a compact design. They fit under seats with a shallow depth of 3-1/2", less than half the size of typical subwoofers in this category.
| Brand | Pioneer |
| Size | 12 -inch |
| Impedance (Ohms) | 4 |
| Cone Material | Glass Fiber/Mica Reinforced IM |
| Surround Material | Rubber |
| Sensitivity | 88 dB at 1 watt |
| Frequency Response | 20 - 1000 Hz |
| Max RMS Power Handling | 400 |
| Peak Power Handling (Watts) | 1500 |
| Port diameter (inches) | 3 |
| Port length (inches) | 5.875 |
| Free-Air | Yes |
| Dual Voice Coil | No |
| Top Mount Depth (inches) | 3.625 |
| Bottom Mount Depth (inches) | N/A |
| Cutout Diameter or Length (inches) | 11" |
| Vas (liters) | 45.6 |
| Fs (Hz) | 31 |
| Qts | 0.54 |
| Xmax (millimeters) | 8.8 |
| Ideal Sealed Box Volume (cubic feet) | 0.8 |
| Minimum Sealed Box Volume (cubic feet) | 0.5 |
| Maximum Sealed Box Volume (cubic feet) | 1 |
| Ideal Ported Box Volume (cubic feet) | 0.8 |
| Minimum Ported Box Volume (cubic feet) | 0.65 |
| Maximum Ported Box Volume (cubic feet) | 1.014 |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
