We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?

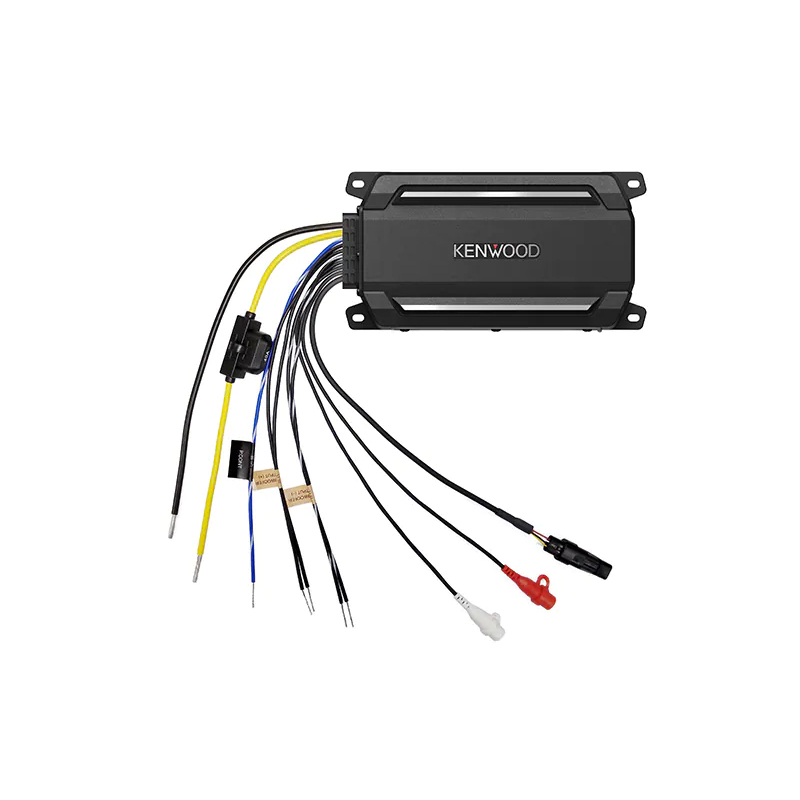

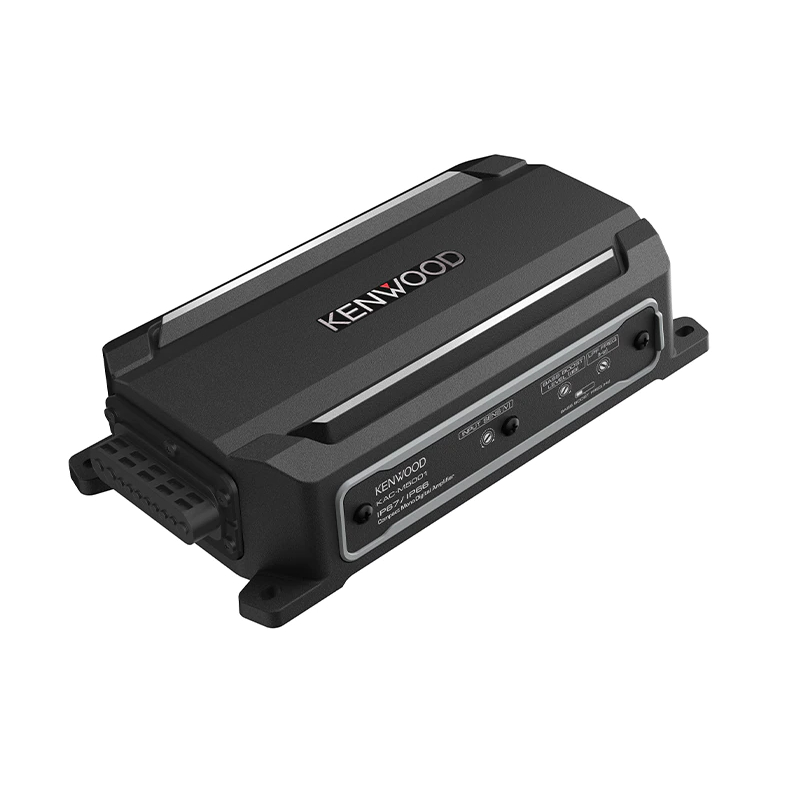

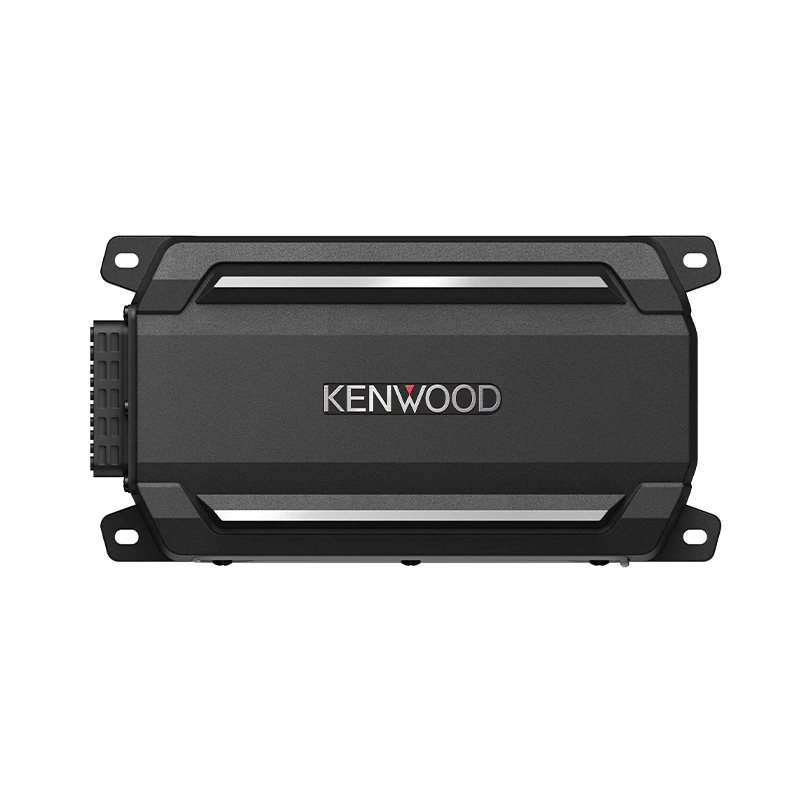

•Mono moto-marine subwoofer amplifier
•Power/ground/input-output harness (installed) w/ inline fuse holder
•One 40-amp ATC fuse (installed)

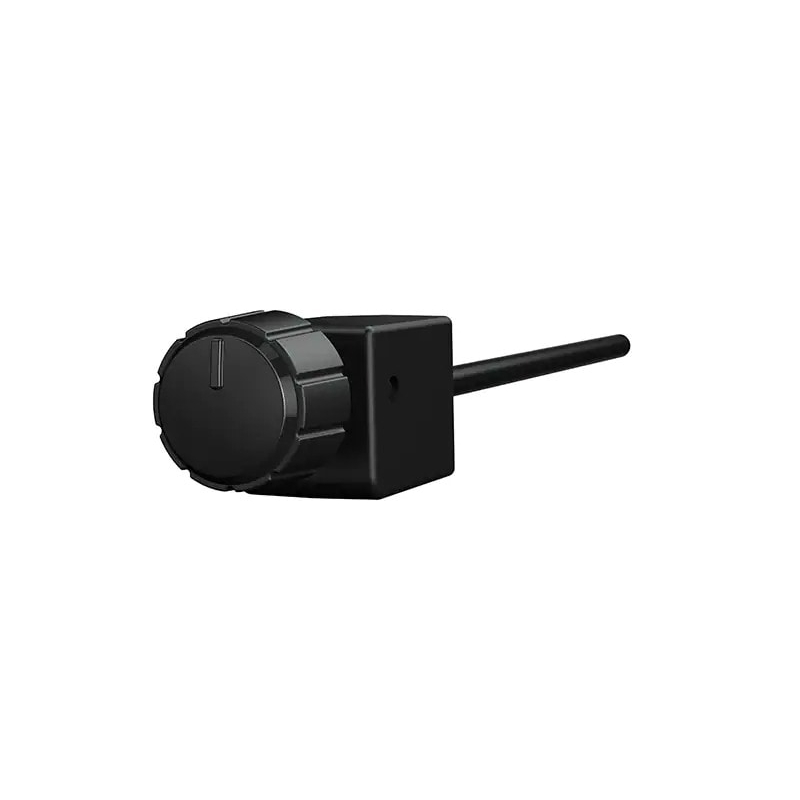

•Wired remote control with 22' cable attached
•One hex nut
•One flat washer
•Four 5/8" screws
•One 3" wire tie
•Warranty information
•Owner's Manual
WaterPROOF & DustPROOF
IPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes, and can resist high-pressure, heavy sprays of water.
Salt Spray PROOF
ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.
System EXPANSION Ready
KENWOOD Audio Receivers and the KAC-M5024BT have RCA outputs to expand the system to connect to the KAC-M5001 mono amplifier and subwoofer.
Increased Power Flow
Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction.
| Brand | Kenwood |
| RMS Power Output (Watts x Channels) | 200 x 1 |
| Frequency Response at Rated RMS Power | 20-200 Hz |
| Minimum Impedance Bridged | N/A |
| Minimum Impedance Unbridged | 2 |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 78 dB |
| Input Voltage | 14.4v |
| Peak Power Output (Watts x Channels) | 600 x 1 |
| Power at 2 Ohms (Watts x Channels) | 300 x 1 |
| Bridged Power (Watts x Channels) | N/A |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 24 dB/octave |
| High-Pass Crossover Frequency | N/A |
| Height (inches) | 2 |
| Width (inches) | 8-3/4 |
| Depth (inches) | 4-3/16 |
| High-Pass Slope (dB/octave) | N/A |
| Bass Boost | 0-18 dB |
| Bass Boost Frequency | 40, 60, 80 Hz |
| Fan Cooled | No |
| Fuse Rating | 40 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
