We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products.

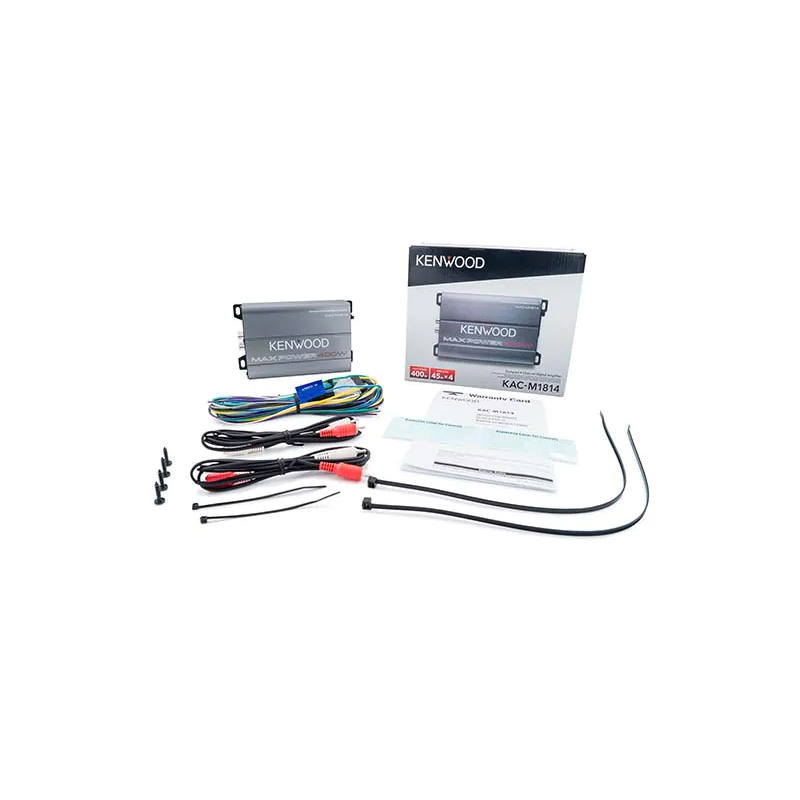

What's Inside?
•4-Channel amplifier
•POne 15-amp ATM mini-fuse (installed)
•(2) 38" RCA stereo patch cables
•5' Power and speaker output harness with plug cover
•(4) 5/8" Screws (4x16mm)
•(2) 14" Zip Ties
•(2) 4" Zip Ties
•(2) Sets of clear self-adhesive control covers
•Owner's Manual
Reduce Radiation Noise

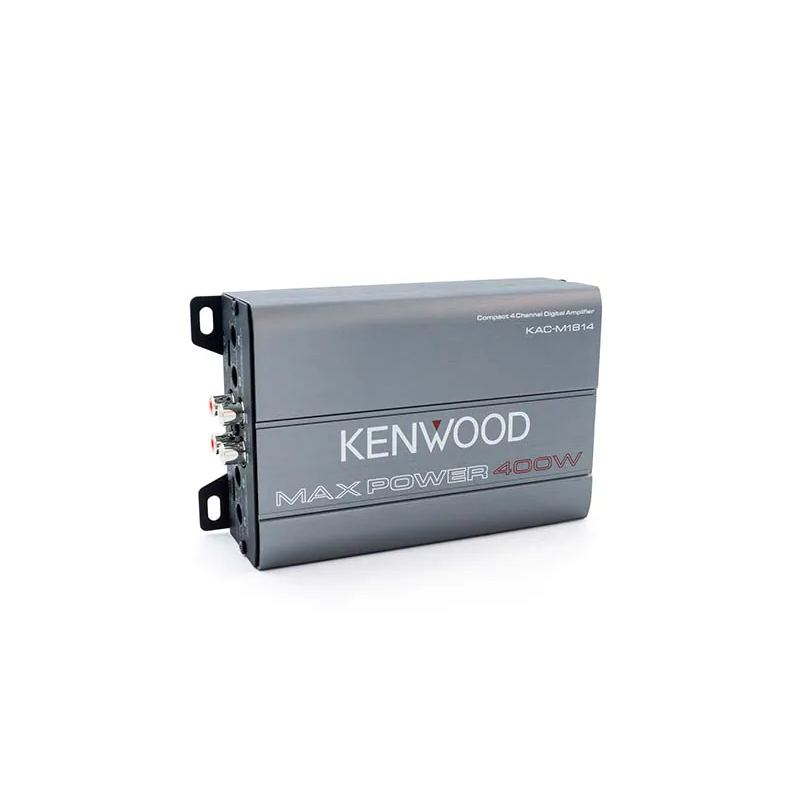

Kenwood's super-compact KAC-M1814 will add new clarity and impact to the basic sound system of almost any kind of vehicle on land or water, and it'll fit in a lot of places when space is tight. This marine-rated 4-channel amp will pump up your audio system with 45 watts RMS per channel — that's more than twice the power of most car stereos or marine receivers.
Plastic Covers To Protect Its Connections
The amp uses plastic covers to protect its connections and features a conformal-coated circuit board that keeps out moisture and salt, so the party won't stop just because of a little wetness. The KAC-M1814 will accept a signal from just about any source, whether you're using RCA cables from an aftermarket receiver or speaker wires from a factory radio.
Separate Remote Turn-on Lead
When you use the speaker-level inputs, the amplifier will sense the signal and turn itself on, so you won't need to run a separate remote turn-on lead to the receiver or fuse box. Kenwood goes to great lengths to ensure good sound quality, putting the preamp and output power amp stages on separate circuit boards for better, cleaner
| Brand | Kenwood |
| RMS Power Output (Watts x Channels) | 45 x 4 |
| Peak Power Output (Watts x Channels) | 100 x 4 |
| Power at 2 Ohms (Watts x Channels) | 45 x 4 |
| Bridged Power (Watts x Channels) | 90 x 2 |
| Minimum Impedance Bridged | 4 |
| Minimum Impedance Unbridged | 2 |
| Minimum Impedance | 2 |
| Best Frequency Response | 20-20k Hz |
| THD at Rated RMS Power | 0.01 |
| Signal to Noise Ratio | 82 dB |
| Input Voltage | 14.4v |
| Amplifier Class | D |
| Low-Pass Crossover Frequency | 50-200 Hz |
| Low-Pass Slope (dB/octave) | 12 dB/octave |
| High-Pass Crossover Frequency | 50-200 Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Width (inches) | 8-5/8 |
| Height (inches) | 1-13/16 |
| Depth (inches) | 3-15/16 |
| Bass Boost | No |
| Bass Boost Frequency | N/A |
| Fan Cooled | No |
| Fuse Rating | 15 |
| Speaker Level Inputs | Yes |
| Preamp Outputs | No |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
